Page 1: Replacement Parts List

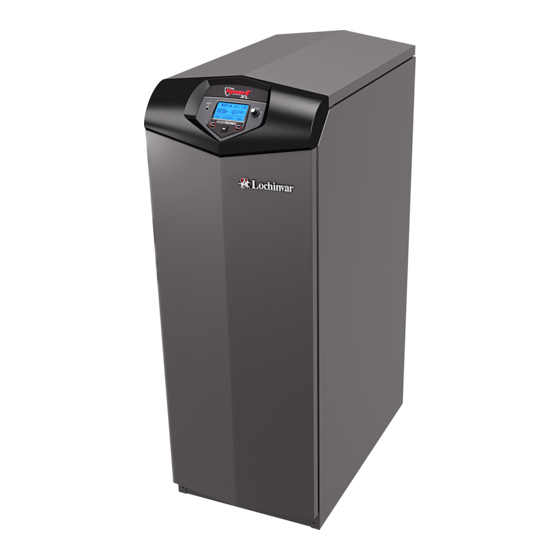

KBXII-RP Rev F Replacement Parts List PARTS & SERVICE DEPARTMENT Knight XL Nashville, Tennessee 615-889-8900 • Fax: 615-882-2918 Heating Boilers parts_team@lochinvar.com KB 400 thru 801 www.Lochinvar.com... - Page 2 GAS TRAIN 400 GAS TRAIN 501 GAS TRAIN 601-801 CONTROL HEAT EXCHANGER 400-801 PANEL 25 21 ITEM NO. PART NO. DESCRIPTION MODEL HEAT EXCHANGER ASSEMBLY HEX3081 HEAT EXCHANGER KBN400 HEX3082 HEAT EXCHANGER KBN501 HEX3088 HEAT EXCHANGER KBN601 HEX3089 HEAT EXCHANGER KBN701 HEX3090 HEAT EXCHANGER...
- Page 3 ITEM NO. PART NO. DESCRIPTION MODEL CONTROLS RLY20062 LOW VOLTAGE CONNECTION BOARD RLY30037 INTEGRATED CONTROL PRIOR TO H10 KBN400 RLY30065 INTEGRATED CONTROL BEGINNING H10 KBN400 RLY30038 INTEGRATED CONTROL PRIOR TO H10 KBN501 RLY30066 INTEGRATED CONTROL BEGINNING H10 KBN501 RLY30039 INTEGRATED CONTROL PRIOR TO H10 KBN601 - 801 RLY30067 INTEGRATED CONTROL BEGINNING H10...
- Page 4 ITEM NO. PART NO. DESCRIPTION MODEL MISCELLANEOUS MSC3180 SIGHT GLASS GKT2453 GASKET, SIGHT GLASS RLY2222 RELAY, 1.5 HP PUMP FIB2167 DIVIDER PLATE, INSULATION BAFFLE FIB2168 BURNER PLATE, INSULATION, DOOR KBN400/501 FIB2146 BURNER PLATE, INSULATION, DOOR KBN601 - 801 GKT2455 GASKET DOOR RUBBER KBN400/501 GKT2063 GASKET DOOR RUBBER...
