CNX-I-O_100160920_2000001478_Rev C
REMOTE CONNECT
INSTALLATION & OPERATION
INSTRUCTIONS

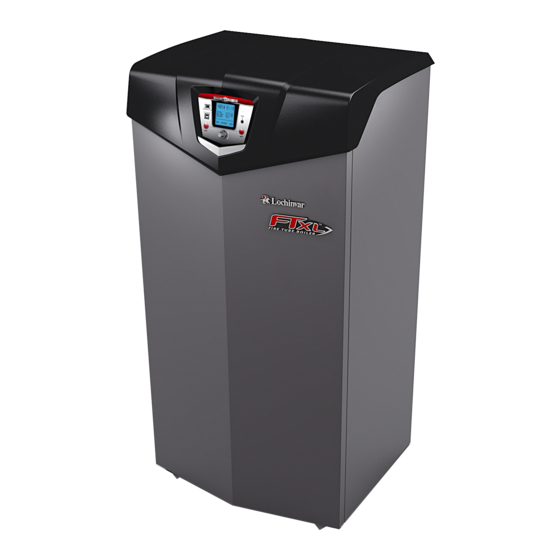

Models: FTXL, Knight, Armor,
& Shield
Th is manual must only be used by a
WARNING
qualifi ed heating installer / service
technician. Read all instructions,
including
this
manual,
the
Installation and Operation Manuals,
and the Service Manuals, before
installing.
Perform steps in the
order given. Failure to comply could
result in severe personal injury, or
substantial property damage.
Save this manual for future reference.
Advertisement
Table of Contents
Related Manuals for Lochinvar FTXL
Summary of Contents for Lochinvar FTXL
- Page 1 CNX-I-O_100160920_2000001478_Rev C REMOTE CONNECT INSTALLATION & OPERATION INSTRUCTIONS Models: FTXL, Knight, Armor, & Shield Th is manual must only be used by a WARNING qualifi ed heating installer / service technician. Read all instructions, including this manual, Installation and Operation Manuals, and the Service Manuals, before installing.
-
Page 2: Table Of Contents
Site Manager ............... 14 Introduction Th e information contained in this manual provides general guidelines for the implementation of the CON·X·US remote communication device with Lochinvar boilers. Now from virtually anywhere you can: • Monitor boiler plant operating conditions at unlimited locations •... -
Page 3: List Of Kit Components
Figure 2-1_Gain Access to the Interior of the Unit PROP THE BEZEL UP ON/OFF SWITCH (ON REAR OF UNIT) NOTE: When required, remove brace. PROP ROD REMOVE FRONT PANEL (no tools required) IMG01095 NOTE: FTXL shown for illustration purposes only. -
Page 4: Installation Procedure
2. Using four (4) 100053762 screws, install the CON·X·US board (100094892) onto the standoff s installed in Step 2. Figure 2-2A_Install FTXL CON·X·US Board NOTE: FTXL Models Only: a. Install two (2) push rivets (100134843) on the right side of the unit (reference Detail A). Once installed attach the harness clips (100137491) to the push rivets on the inside of the unit (Detail A), above the main control panel. - Page 5 Installation and Operation Instructions CON·X·US Installation (continued) Figure 2-2B_Install KB CON·X·US Board REMOVE TOP INSTALL 4X STAND-OFF,HEX,6-32 X 1/2,STL,NICKEL REMOVE 6X SCREW,PHP,SHTMTL,,#10 X 1/2 REMOVE BEZEL INSTALL 8X SCREW,PHP, 6-32 X 1/4,STL INSTALL RELAY,REMOTE MONITORING REMOVE 4X SCREW,PHP,PLASTIT,#8X1/2,STL,ZINC REMOVE FRONT DOOR IMG01191 NOTE: On units purchased after Serial #1915 the bezel bracket will not be required.
- Page 6 Installation and Operation Instructions CON·X·US Installation Figure 2-2D_Install KH CON·X·US Board REMOVE BEZEL REMOVE 4X SCREW,PHP,PLASTIT,#8X1/2,STL,ZINC DIR# 2000538313 00 INSTALL 4X STAND-OFF,HEX, 6-32 X 1/2,STL,NICKEL INSTALL RELAY, REMOTE MONITORING DIR# 2000538292 00 INSTALL 8X SCREW,PHP,6-32 X 1/4,STL REMOVE FRONT DOOR Figure 2-2E_Install AW CON·X·US Board REMOVE 4X SCREW,PHP,PLASTIT,#8X1/2,STL,ZINC...
- Page 7 Installation and Operation Instructions CON·X·US Installation (continued) Figure 2-2F_Install SNR CON·X·US Board CON·X·US BOARD DIR# 2000540180 00 INSTALL STAND-OFF, HEX, 6-32 X 1/2, STL, NICKEL & SCREW,PHP,6-32 X 1/4,STL 3. Connect the 24 volt power harness 100190832 in series with the 24 volt side of the transformer and the other end of the power harness to the CON·X·US board (see FIG.
-
Page 8: Con·x·us Registration
Installation and Operation Instructions CON·X·US Registration Th e screens depicted in this manual are to be used for illustration purposes only. NOTICE Device Registration 1. Search for the CON·X·US board just like you would search for a Wi-Fi connection on your device. Ensure that your green LED light is ON and that the WLAN LED is OFF. - Page 9 Installation and Operation Instructions CON·X·US Registration (continued) 3. Once connected to the CON·X·US board, you should be redirected to a Login page. Note: If you are not redirected, open your internet browser and type 192.168.0.1 in the address bar and click GO. At this point, you are choosing the network you would like the CON·X·US board to be linked with.
- Page 10 Installation and Operation Instructions CON·X·US Registration 5. Your screen should tell you when the WiFi connection is complete. You will also notice a WLAN LED light on the upper left side of the CON·X·US board once the CON·X·US board is connected to your internet source. Figure 3-4_Connection Complete 6.
- Page 11 Installation and Operation Instructions CON·X·US Registration (continued) 8. If you are a new user you will have to create a new account. If you have an existing account, move on to Step 11. 9. To create a new account, open the CON·X·US App and click CREATE NEW ACCOUNT. You will receive an e-mail asking you to confi rm your new account.
- Page 12 Installation and Operation Instructions CON·X·US Registration 12. Th ere are required fi elds on the Device Registration Screen. Ensure ALL required fi elds are fi lled in. Figure 3-8_Fill in Required Fields NOTE: You can use the SCAN buttons to fi ll in the QR code (reference FIG. 1-1 on page 2 for QR Code location) on the CON·X·US board and the serial number of the unit or you can enter them manually.
- Page 13 Installation and Operation Instructions CON·X·US Registration (continued) 13. When you are fi nished fi lling in the fi elds, click the REGISTER button. Figure 3-10_Register Button Register button 14. Once registration has been completed, you will be re-directed to the Device Selection Screen. You are now able to select the unit to monitor and change parameters with the App at this time.
-
Page 14: Site Manager
Installation and Operation Instructions Permissions Whomever registers the CON·X·US will be assigned the role of Site Manager. As you register a CON·X·US your user information will be automatically populated in the site manager fi eld. Th e Site Manager is responsible for assigning access to users for each site. -
Page 15: Permissions
Installation and Operation Instructions Permissions (continued) For each service provider, the Site Manager can grant either “View Only” access or “View & Edit” access by clicking one of the boxes to the right of the service provider’s name. “View Only” access will allow that user to view all information without the ability to make any changes. - Page 16 Installation and Operation Instructions Permissions Figure 4-4 Enter Cell Phone Info Select Notification Type Enter cell phone number and select cell box to receive a text message with lockout info Figure 4-5 Link/Unlink Buttons Press these buttons to link/ unlink *Site Managers/Users *Site Manager can unlink all if unlinked.
- Page 17 Installation and Operation Instructions Permissions (continued) By accessing the Setup tab, the Site Manager and any user with “View and Edit” privileges will be able to make changes to all accessible parameters and send the parameters to the boiler. To send parameters to the boiler simply click the SEND UPDATE button.
- Page 18 Installation and Operation Instructions Permissions How to use the sort function By clicking on the ACCOUNT button you will be taken to a list of all the boilers registered to the Account Manager or user. You can access any boiler on the list by selecting the desired boiler. Th e sort function can be used to sort the list of boilers by serial number, city, or site name.
-
Page 19: Troubleshooting
Installation and Operation Instructions Troubleshooting Figure 5-1_CON·X·US LED Layout WLAN LED POLARITY IMG01101 LED 0 - LED 5 Table 5-1 CON·X·US LED Troubleshooting Table DESCRIPTION ERROR CORRECTIVE ACTION LED 0 Control to Display LED 1 • Check ribbon cable connections and display. Communication Error •... -
Page 20: Revision Notes
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation. This Class A digital apparatus complies with Canadian ICES-003.
