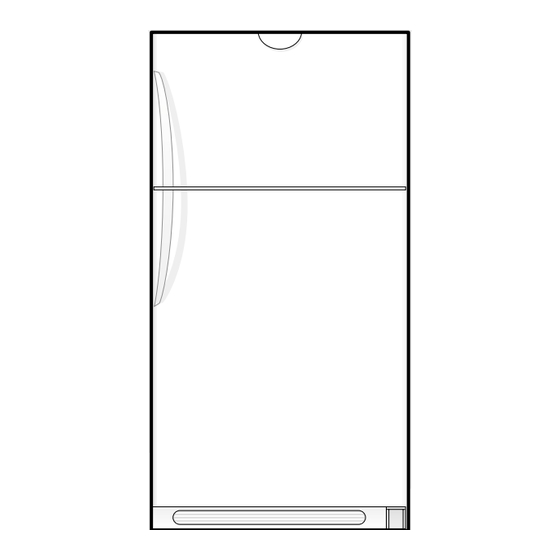

Frigidaire FRT21KS5A Factory Parts Catalog
Top mount refrigerator
Hide thumbs
Also See for FRT21KS5A:
- Factory parts catalog (11 pages) ,
- Factory parts catalog (11 pages)
Advertisement
Quick Links
PRODUCT NO.
BASE MODEL NO.
FRT21KS5AQ4
FRT21KS5A
FRT21KS5AQ5
FRT21KS5A
FRT21KS5AW4
FRT21KS5A
FRT21KS5AW5
FRT21KS5A
MARKET
North America
WIRING DIAGRAM - # 240379009
OWNER'S GUIDE - # 240400105
SERVICE DATA SHEET - # 240379009
ELECTROLUX HOME PRODUCTS, INC
P.O. Box 212378, Augusta, GA 30917
SERIES
COLOR
R134a
bisque
R134a
bisque
R134a
white
R134a
white
Publication No.
5995372314
020517
-EN/SERVICE /KC
357
FACTORY
PARTS CATALO
VOLTS
115
115
115
115
TOP MOUNT
REFRIGERATOR
Model No.
FRT21KS5A
©2002 Electrolux Home Products, Inc.
All rights reserved
G
Advertisement
Related Manuals for Frigidaire FRT21KS5A
Summary of Contents for Frigidaire FRT21KS5A
- Page 1 FACTORY PARTS CATALO PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS FRT21KS5AQ4 FRT21KS5A R134a bisque FRT21KS5AQ5 FRT21KS5A R134a bisque FRT21KS5AW4 FRT21KS5A R134a white FRT21KS5AW5 FRT21KS5A R134a white MARKET North America WIRING DIAGRAM - # 240379009 OWNER’S GUIDE - # 240400105 SERVICE DATA SHEET - # 240379009 TOP MOUNT REFRIGERATOR...
- Page 2 Publication No. FRT21KS5A 5995372314 DOOR 05/02...
- Page 3 FRT21KS5A Publication No. 5995372314 DOOR A = FRT21KS5A (FRT21KS5AQ4) B = FRT21KS5A (FRT21KS5AQ5) C = FRT21KS5A (FRT21KS5AW4) D = FRT21KS5A (FRT21KS5AW5) POS. NO PART NO DESCRIPTION 240514607 A B C D Gasket,frzr door seal ,white ,magnetic 240514608 A B C D Gasket,refr door seal ,white ,magnetic 240337703 A B C D...
- Page 4 Publication No. FRT21KS5A 5995372314 CABINET 05/02...
- Page 5 FRT21KS5A Publication No. 5995372314 CABINET A = FRT21KS5A (FRT21KS5AQ4) B = FRT21KS5A (FRT21KS5AQ5) C = FRT21KS5A (FRT21KS5AW4) D = FRT21KS5A (FRT21KS5AW5) POS. NO PART NO DESCRIPTION 240355402 A B C D Cover-fan 240433201 A B C D Screw,hex washer head ,8-18 x 0.375 240367001 A B C D Knob-damper control...
- Page 6 Publication No. FRT21KS5A 5995372314 SHELVES 05/02...
- Page 7 FRT21KS5A Publication No. 5995372314 SHELVES A = FRT21KS5A (FRT21KS5AQ4) B = FRT21KS5A (FRT21KS5AQ5) C = FRT21KS5A (FRT21KS5AW4) D = FRT21KS5A (FRT21KS5AW5) POS. NO PART NO DESCRIPTION 215667501 A B C D Tray,ice cube ,plastic 240358003 A B C D Shelf,freezer ,full-width ,wire 5303299664 A B C D Spacer,shelf...
- Page 8 Publication No. FRT21KS5A 5995372314 SYSTEM 05/02...
- Page 9 FRT21KS5A Publication No. 5995372314 SYSTEM A = FRT21KS5A (FRT21KS5AQ4) B = FRT21KS5A (FRT21KS5AQ5) C = FRT21KS5A (FRT21KS5AW4) D = FRT21KS5A (FRT21KS5AW5) POS. NO PART NO DESCRIPTION 240444401 A B C D Condenser,dynamic 218944001 A B C D Drier-filter,R134a System 240496101 A B C D Wiring Harness,machine compt ,w/electric cord 6* #...
-
Page 10: Wiring Schematic
Publication No. FRT21KS5A 5995372314 WIRING SCHEMATIC 05/02... -
Page 11: Wiring Diagram
FRT21KS5A Publication No. 5995372314 WIRING DIAGRAM # = Fast-moving Parts 05/02 * = Non-Illustrated Parts...
