Symbol MC35 Quick Start Manual

MC35

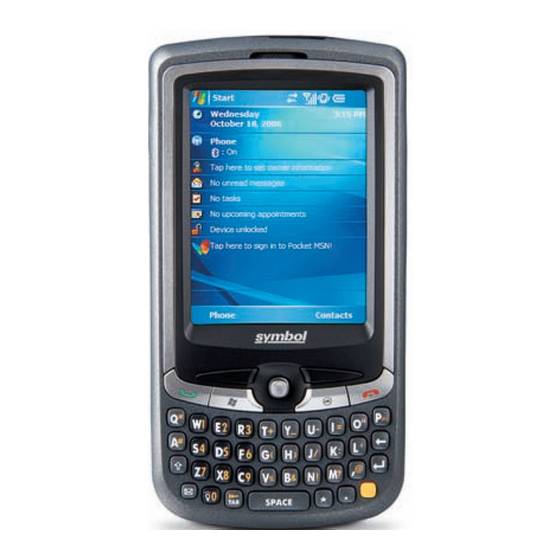

FEATURES
Quick Start Guide
1
2
3
4
5
1 LCD Touch Screen
2 GSM Status/Notification LED
3 Volume Up/Down Button
4 Camera/Bar Code Switch
5 Reset Button
6 Earphone Jack
NOTE : To reset the MC35, press the reset button with the tip of the stylus.
12 Main Battery 18 Stylus
13 Speaker 19 Push To Talk Button
14 Camera Lens (Optional) 20 Power Button
11
15 Camera Flash (Optional) 21 Camera Button*
10
16 Infrared (IR) Port 22 Battery Release Latch
17 SD/MMC Expansion Slot
9
12
13
14
15
8
7
6
16 19
17
18
7 Connector
8 Microphone
9 Keypad
* Programmable on no-camera versions.
10 Charging LED
11 Phone Speaker
KEYPADS GETTING STARTED
1
Install the Battery Pack
1 Send Button 7 End Button
2 Start Button 8 Orange Key
3 Left Soft Button 9 Star Key Align the tabs on the battery pack with the groves on the MC35, then
4 Joystick 10 Backlight/0 Key insert the battery pack into the back of the device.
5 Right Soft Button 11 Messaging Button
6 OK Button
1 3 5 7
4
2 6
22
The battery pack locks to the chassis with an audible click.
2
Charge the MC35
21
NOTE:
Use the clip plug applicable in your country.
20
11 8
10
9
1 Install the replaceable clip plug to the AC adapter. Slide the clip
plug into the clip plug holder and snap into place. The clip plug
locks to the clip plug holder with an audible click.
Orange Key
2 Plug the AC adapter cable into the connector on the bottom of the
Use this key to access the secondary layer of characters and actions.
MC35.
> Press the key once to activate this mode followed by another key.
> Press the key twice to lock this mode. Press the key a third time to unlock.
3 Connect the AC adapter power cable into an electrical outlet.
> Press and hold the key while entering characters or actions.
4
After the AC connection is made, the charging LED indicator on the front
Install ActiveSync
panel lights orange.
Download ActiveSync 4.0 or higher from http://www.microsoft.com and
LED status during charging:
follow the instructions to install ActiveSync onto the host computer.
Flashing orange: Charging
5
Solid orange: Charging complete
Connect the MC35 to a Host Computer
3
Start the MC35
After you have initially charged the MC35 for approximately eight hours,
the device is ready for use.
6
1 Turn on the MC35 by pressing the Power button located on
Create a Partnership
the right side of the device.
Follow the onscreen ActiveSync instructions to establish a connection
between the MC35 and the computer.
IMPORTANT:
For initial use, charge the MC35 for approximately eight hours. Thereafter,
charge the MC35 everyday to recharge the battery to full capacity. Charge
2 Follow the onscreen instructions on the Welcome Screen Wizard.
the MC35 using the USB sync cable.
