Summary of Contents for TYAN Transport GX18 B3095

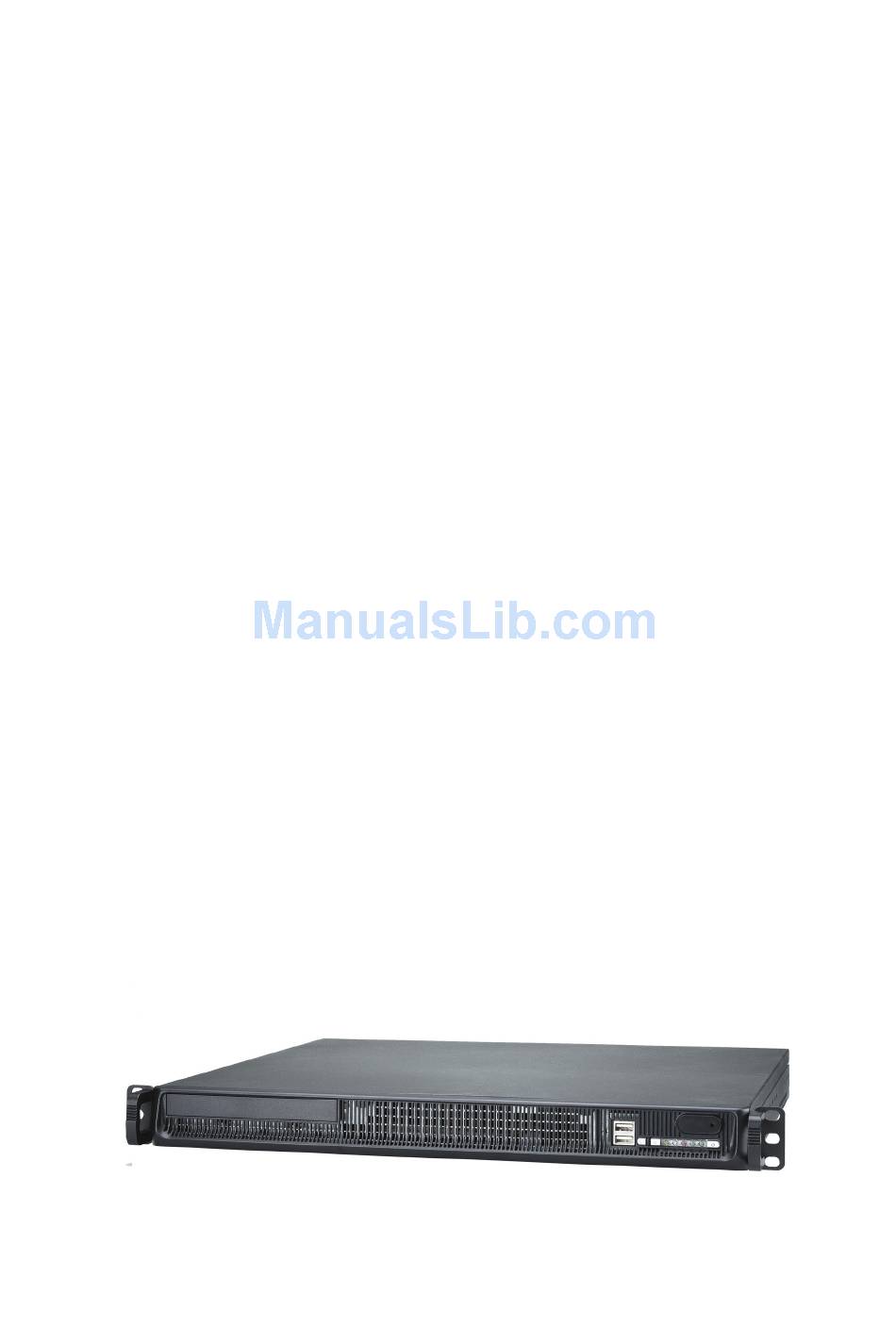

- Page 1 Transport GX18 B3095 Service Engineer’s Manual...
- Page 3 TYAN products including liability or warranties relating to fitness for a par- ticular purpose or merchantability. TYAN retains the right to make changes to product descriptions and/or specifications at any time, without notice.
- Page 4 Federal Communications Commission (FCC) Notice for the USA Compliance Information Statement (Declaration of Conformity Procedure) DoC FCC Part 15: This device complies with part 15 of the FCC Rules Operation is subject to the following conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received including interference that may cause undesired operation.
- Page 5 About this Manual This manual provides you with instructions on installing your Transport GX18 B3095. This manual is intended for experienced users and integrators with hard- ware knowledge of personal computers. This manual consists of the following parts: — Chapter 1: Descrives features of the Transport GX18 B3095 bare- bone, and provides an overview of the system and packing list.
- Page 6 SAFETY INFORMATION Before installing and using the Trophy NR18 B3095, take note of the following precautions: — Read all instructions carefully. — Do not place the unit on an unstable surface, cart, or stand. — Do not block the slots and opening on the unit, which are provided for ventilation.
-
Page 7: Table Of Contents
Table of Contents Chapter 1: Overview About the Trophy NR18 B3095 Features Accessories Product View Chapter 2: System Setup Installing Motherboard Components 2.1.1 Removing the Chassis Cover 2.1.2 Installing CPU and Heatsink 2.1.3 Installing Memory 2.1.4 Installing the HDD 2.1.5 Installing PCI Card (optional) 2-10 Rack Mounting 2-12... -
Page 9: Chapter 1: Overview
Chapter 1: Overview About the Transport GX18 B3095 Congratulations on your purchase of the TYAN Transport GX18 (B3095), a highly-optimized rack-mountable barebone system. The Transport GX18 (B3095) is designed to support single Intel® Yonah/Merom 2.33GHz pro- cessor with 667/533MHz FSB, providing a rich feature set and incredible performance. -
Page 10: Features
Features Enclosure — Industry 1U rack-mount chassis — Dimension: W 17.13” x D 15.47” x H 1.73” (W 435mm x D 393mm x H 43.5mm) — HDD Tray: 3.5” SATA HDD x 2 Processor — Intel 479-pin socket x 1, support single Intel Yonah/Merom 2.33GHz CPU or higher —... -
Page 11: System Cooling
Front Panel I/O Ports — Serial port with D-Sub 9 pin connector x 1 — D-Sub 15 pin VGA Port x 1 — Two USB 2.0 ports with a dual-stacked USB connector + RJ-45 x 1 — RJ-45 GbE LAN connector includes Transformer & LED x 2 (Dual Stacked) —... - Page 12 Environmental Temperature — Operating temperature: 5 C ~ 35 — Non-operating temperature: -40 C ~ 70 Accessories — 1-to-1 PCI Riser Card x 1 (optional) — Al CPU Heatsink x 1 — Power Cord x 1 — Extended Mounting Plate —...
-
Page 13: Accessories
Accessories Open the package carefully and check if all accessories are present. If any of the items is missing or damaged, contact your local dealer for replace- ment. extended plates and screws ears and screws heatsink driver CD MB & HDD screws power cord SATA cables S3095 Manual... -
Page 14: Product View
Product View This section shows the product from different angles. Chassis Internal View 1. Power Supply 2. Memory Slots 3. CPU Socket 4. 3.5” SATA HDD Bay (#1) 5. System Fans 6. - Page 15 System Front View USB x 2 Power Button System Rear View 1. USB Ports 2. COM Port 3. VGA Port 4. LAN Jack + USB Ports 5. PCI Slot 6. GbE LAN Jacks 7.
- Page 16 note...
-
Page 17: Chapter 2: System Setup
Chapter 2: System Setup Before You Begin This chapter explains how to install the CPU, CPU heatsink, memory mod- ules, and hard drives. Instructions on inserting a PCI card are also given. Take note of the precautions mentioned in this section when installing your system. - Page 18 Precautions Components and electronic circuit boards can be damaged by discharges of static electricity. Working on a system that is connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to the Trophy NR18 or injury to yourself. •...
-
Page 19: Installing Motherboard Components
Installing Motherboard Components This section describes how to install components on to the motherboard, including CPU, memory modules and PCI card. Follow these instructions to install the motherboard components. 2.1.1 Removing the Chassis Cover Step 1: Unscrew the chassis cover. Step 2: Pull the chassis cover forwards and then lift it up to remove it from the chassis. -
Page 20: Installing Cpu And Heatsink
2.1.2 Installing CPU and Heatsink Step 1: Locate the CPU socket and place the CPU on top of it. Step 2: Screw to secure the CPU. - Page 21 Step 3: Place the heatsink on top of CPU. Make sure to secure four (4) screws. Step 4: Screw to secure the heatsink.
-
Page 22: Installing Memory
2.1.3 Installing Memory Step 1: Press the locking levers to a fully open position. Step 2: Install memory in pairs of same type and density for optimal performance. Gently press down the memory until it sits firmly into the slots. The locking levers pop up into place. -
Page 23: Installing The Hdd
2.1.4 Installing the HDD Step 1: First unscrew the HDD bay. Push the HDD bay backward and then lift it up. Step 2: Install the hard drive into the HDD bay, then secure the hard drive with six (6) screws. - Page 24 Step 3: Screw the HDD bay back into the chassis and connect the SATA cable and power cord. Step 4: Unscrew the second HDD bay and remove it from the chassis. ...
- Page 25 Step 5: Screw the hard drive into the HDD bay and replace it to the chassis. Remem- ber to connect the HDD power cord and SATA cable.
-
Page 26: Installing Pci Card (Optional)
2.1.5 Installing PCI Card (optional) Step 1: Unscrew the PCI card holder. Step 2: Push the PCI card holder open and move the dummy cover to the left to take it off. 2-10... - Page 27 Step 3: Install the PCI riser card into the PCI slot. Step 4: Connect the PCI card with the riser card. Screw the PCI card to the chassis. 2-11...
-
Page 28: Rack Mounting
Rack Mounting After installing the necessary components, the Trophy NR18 system can be mount- ed in a rack using the supplied rack mounting kit. • Mounting Ears x 2 + Screws • Extended Mounting Plates x 2 + Screws Installing the Server in a Rack Follow these instructions to mount the Trophy NR18 into an industry standard 19”... - Page 29 Step 1: Measure the distance of inner side between the front and rear mounting brack- ets in the rack. Secure the mounting plate to the chassis with two screws for each side. Step 2: Lift and mount the chassis into the rack. Secure the chassis with two screws onto each side of the rack.
- Page 30 Step 3: Secure the mounting plate with 2 screws onto each side of chassis. Step 4: Secure the mounting plate with 2 screws onto each back side of the rack. 2-14...
-
Page 31: Appendix: Bios Differences
Appendix: BIOS Differences The following table displays the differences in BIOS between B3095 and S3095. For a complete review of S3095 BIOS, refer to the motherboard manual. S3095 Mainboard B3095 Barebone CPUFAN1 Fail Action Disable Warning FAN2 Fail Action Disable Warning CPUFAN1 Smart Control Disable... -
Page 32: Technical Support
(which can have expensive consequences). If these options are not available for you then Tyan Computer Corpora- tion can help.Besides designing innovative and quality products for over a decade, Tyan has continuously offered customers service beyond their expectations. - Page 33 Help Resources: 1. See the beep codes section of this manual. 2. See the TYAN website for FAQ’s, bulletins, driver updates, and other information: http://www.tyan.com 3. Contact your dealer for help BEFORE calling TYAN. 4. Check the TYAN user group: alt.comp.periphs.mainboard.TYAN...
