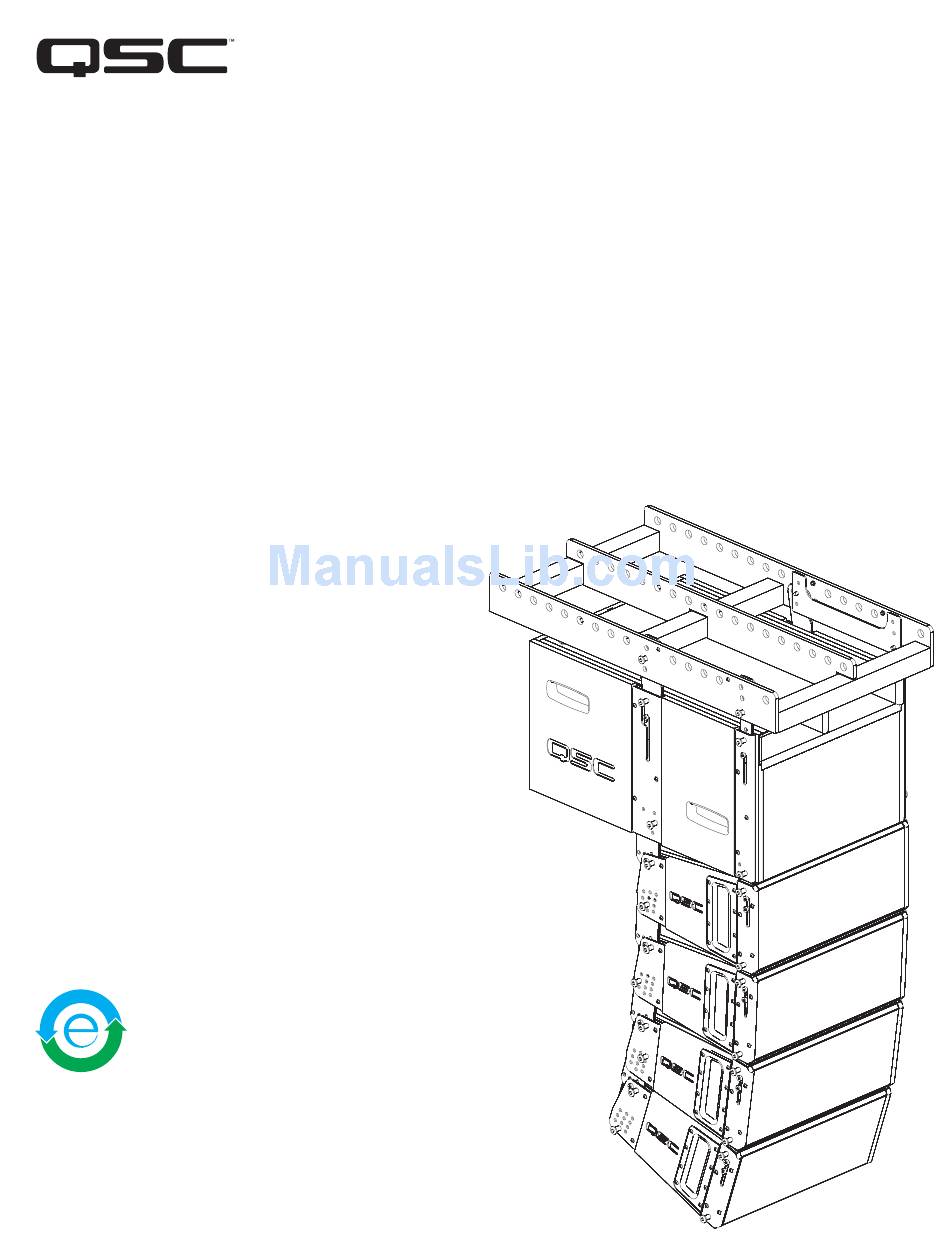

WideLine-8 Series Loudspeaker System User Manual
WL3082
full-range line array loudspeaker, black color (WL3082-WH for white color)
WL212-sw
subwoofer line array loudspeaker, black color (WL212-sw-WH for white color)
AF3082-S
small array frame for WideLine8, black color (AF3082-S-WH for white color)
AF3082-L
large array frame for WideLine8, black color (AF3082-L-WH for white color)
PB3082
pull-back bar, black (PB3082-WH for white color)
EB3082
extension bar, black (EB3082-WH for white color)
CP3082-CT
caster pallet for transport of 4 WL3082 (cart only)
CVR-2082-4
cover for four (4) WL-3082. For use with CP3082-CT caster pallet
CP212-0
caster Pallet for transport of one (1) to three (3) WL212-sw or GP212-sw Subwoofer
CVR212-2
padded soft cover for transport of GP-212-sw Subwoofer
*TD-7000237-
TD-000237-00 rev D
1675 MacArthur Blvd., Costa Mesa, CA, 92626 USA
Main Number (714) 754-6175 Sales & Marketing (714) 957-7100 or toll free (USA only) (800) 854-4079
Customer Service(714) 957-7150 or toll free (USA only) (800) 772-2834
Advertisement
Table of Contents
Related Manuals for QSC WL3082
Summary of Contents for QSC WL3082
- Page 1 Main Number (714) 754-6175 Sales & Marketing (714) 957-7100 or toll free (USA only) (800) 854-4079 Customer Service(714) 957-7150 or toll free (USA only) (800) 772-2834 WideLine-8 Series Loudspeaker System User Manual WL3082 full-range line array loudspeaker, black color (WL3082-WH for white color) WL212-sw subwoofer line array loudspeaker, black color (WL212-sw-WH for white color) AF3082-S...
-
Page 2: Important Safety Precautions
QSC Audio Products 3 Year Limited Warranty QSC, LLC (“QSC”) guarantees its products to be free from defective material and / or workmanship for a period of three (3) years from date of sale, and will replace defective parts and repair malfunctioning products under this warranty when the defect occurs under normal installation and use - provided the unit is returned to our factory or one of our authorized service stations via prepaid trans- portation with a copy of proof of purchase (i.e., sales receipt). - Page 3 The low-frequency capability of a WL3082 array extends to 62 Hz (-10 dB); adequate for speech/vocal and acoustic music program mate- rial. For reinforcement of program material with more demanding low-frequency content, the WL212-sw companion subwoofer is avail- able.
- Page 4 7- Link slider knobs the appropriate suspension accesso- ries, subwoofers may be flown at the 8- NL8 and NL4 Speakon input panel top of or behind a WL3082 array. 9- Rubber feet Suspension 10- Driver access panel Suspending the WideLine-8 array is sim- 11- Mounting screws (Do Not Remove!) ple and flexible.
- Page 5 3- Shackle holes (accept 5/8” (16 mm) screw pin anchor shackle) 4- Suspension plates Figure 7: CP3082-CT Cart Caster pallet for transport of 4 WL3082 (cart only). CVR3082-4 Cover Cover for four (4) WL-3082. For use with CP3082-CT caster pallet...
-
Page 6: Rules For Suspension
Suspending the WideLine-8 Array Rules for Suspension •Correct use of all suspension hardware and components is imperative in sound system suspension and deployment. •Always calculate suspended loads before lifting to ensure suspension components and hardware are used within their respective load limits. •Research local codes and regulations to fully understand the requirements for suspended loads in the venue in which the equipment is to be suspended. - Page 7 For arrays of 4 WL3082 or less, pin together the cluster of enclosures or prepare pre-pinned array Figure 12: Detail of WL3082 from transport cart. Note the QSC logo on the input plate will be right side up when the enclosure is attached to AF3082-L oriented properly.
- Page 8 Figure 15: WL212-sw attached to AF3082-S. Suspending the WL212-sw beneath AF3082-S or AF3082-L All orientation of product is to be viewed from the rear of the enclosure. The QSC logo on the input plate will appear right side up when the enclosure is oriented properly.
-
Page 9: Extension Bar
Professional Engineer responsible for suspension. NOTE: The PB3082 can also be used to suspend small arrays of WL3082 enclosures. See page 10 for detailed information. Extension Bar The extension bar suspension plates can be moved, if required, by removing the two 3/4”mounting bolts, moving to the selected mounting... - Page 10 8 WL3082 loudspeakers. pend the WL212-sw from the PB3082 pull-back bar! 1- For arrays of 4 WL3082 or less, pin together the cluster of enclosures or pre- pare pre-pinned array from transport cart. If constructing larger arrays we recom- mended to first assemble units of four enclosures and then assemble the final array by joining the four enclosure units to one another.
- Page 11 Figure 20: 0° tilt WL3082 on WL212-sw Ground Stack Configurations The WL212-sw enclosure is fitted with rubber feet on the bottom mak- ing the enclosure itself suitable for ground stack applications. Matching recesses in the enclosure’s top sur- face facilitate secure stacking of one WL212-sw atop another.
-
Page 12: Input Connections
WL3082 Connections The WL3082 input connectors are a pair of Neutrik NL8's Table 2: WL3082 Connector Pinout wired in parallel. See Table 2 or the pinout on the WL3082 input plate (on rear of enclosure). Connection Through The WL3082 loudspeaker is not equipped with Through a crossover network. - Page 13 WL3082 Specifications Frequency Response: 68 - 18,000 Hz (+/- 3 dB) Frequency Range: 62 - 20,000 Hz (-10 dB) Maximum SPL (continuous/peak): HF: 127/133 dB LF: 122/128 dB Nominal Coverage (-6 dB included): Horizontal: 140 degrees (500 Hz to 3.2 kHz)Vertical: dependant on cumulative splay angles...
- Page 14 WL212-sw Specifications Frequency Response: 40 - 100 Hz (+/- 3 dB) Frequency Range: 32 - 107 Hz (-10 dB) Maximum SPL (continuous/peak): 129 dB/135 dB Transducer: 1100W, dual 12 inch woofer, 4 inch voice coil, ceramic magnet assembly Recommended Crossover Frequency: 30 - 85 Hz Input Sensitivity: 99 dB...
- Page 15 EB3082 Specifications Material: Aluminum 6061-T6 Finish: Black powder coat (White optional) Working Load Limit Information: Component Weight 7:1 Design Factor 10:1 Design Factor 12:1 Design Factor EB3082 Extension Bar 27 lb 1751 lb 1100 lb 917 lb (12.3 kg) (714.3 kg) (500.0 kg) (416.7 kg) 47.8”...
- Page 16 AF3082-L Specifications Material: Aluminum 6061-T6 Finish: Black powder coat (White optional) Working Load Limit Information: Component Weight 7:1 Design Factor 10:1 Design Factor 12:1 Design Factor AF3082-L Array Frame 27 lb 1274 lb 892 lb 743 lb (12.3 kg) (579.2 kg) (405.5 kg) (337.9 kg) 37.0”...
- Page 17 PB3082 Specifications Material Aluminum 6061-T6 Finish Black powder coat (White optional) Working Load Limit Information: Component Weight 7:1 Design Factor 10:1 Design Factor 12:1 Design Factor PB3082 Pull Back Bar 3 lb 434 lb 304 lb 253 lb (1.4 kg) (197.4 kg) 138.2 kg) (115.2 kg)
- Page 18 This page was left blank intentionally.
- Page 19 This page was left blank intentionally.
- Page 20 Sales & Marketing FAX (714) 754-6174 Customer Service FAX (714) 754-6173 World Wide Web: www.qsc.com E-mail: info@qsc.com service@qsc.com QSC, LLC 1675 MacArthur Boulevard Costa Mesa, California 92626 USA ©2007 “QSC” and the QSC logo are registered with the U.S. Patent and Trademark Office.
