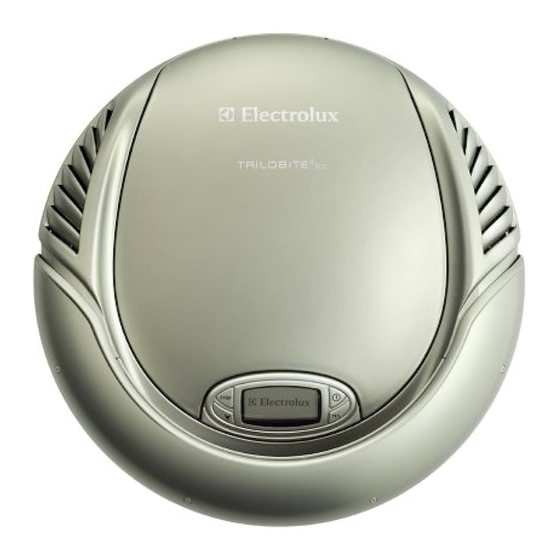

Electrolux Trilobite ZA2 Owner's Manual
  1. Manuals
  2. Brands
  3. Electrolux Manuals
  4. Vacuum Cleaner
  5. Trilobite ZA2
  6. Owner's manual
Electrolux Trilobite ZA2 Owner's Manual

Electrolux Trilobite ZA2 Owner's Manual

Electrolux automatic vacuum cleaner owner's manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Electrolux Trilobite ZA2

Summary of Contents for Electrolux Trilobite ZA2

  • Page 2 Trilobite – a class of arthropods that lived on earth about 250-560 million years ago. Many received nourishment by vacuum- ing the ocean beds for small animals and particles. Their backs were hard, and they are perhaps the most well known fossils we know today, and can often be observed embedded in stone in walls, staircases and floors.

  • Page 3: Table Of Contents

    Table of Contents Quick Start Product Description Functional Description For Your Own Safety 6–7 Preparations Before Use 8–9 Buttons and Display Vacuuming Programs Timer and Changing the Message Display Language Programmable Timer Error Messages Emptying and Cleaning the Dust Collector 14–15 Cleaning the Roller 14–15...
  • Page 4 “I am Trilobite – your personal vacuum cleaner. I do the vacuuming so you can do other things”...

  • Page 5: Quick Start

    Trilobite – a vacuum that cleans by itself. While you do other things instead – one example of how Electrolux makes life a little easier. Quick start Of course you’re impatient and want to switch me on right away. No problem.

  • Page 6: Product Description

    Product description Filter lid lock button Terminals for connection to charger Battery charger Connection terminals Trilobite Trilobite navigates using ultrasound and uses infrared light to detect level differences. During edge cleaning, it receives information about the size of the room. Edge cleaning serves as the basis for the estimated duration for independent vacuuming in the Normal vacuuming mode.

  • Page 7: Functional Description

    Functional Description Charger Place the charger close to a wall. This way, Trilobite will find the charger in the edge cleaning mode. Start Start Trilobite directly from the charger or face it towards a wall at a distance of 0.5 m, to the right of the charger.

  • Page 8: For Your Own Safety

    For Your Own Safety Trilobite is a machine that moves by itself. It is tempting to prying children’s fingers and is at work when nobody is around... With this in mind, it is important to read the following before you put it to work. Danger Warning Caution...
  • Page 9 After vacuuming Batteries Only allow an Electrolux service centre to replace the batteries since the use of incorrect batteries may cause overheating. Not covered by warranty. Do not under any circumstances heat the batteries! Use only the charger Electrolux model ZAC2 to recharge Trilobite.

  • Page 10: Preparations Before Use

    Preparations Before Use Recharging Push the Trilobite unit with its rear against the battery charger’s contact plate. Press it in securely. Keep it pressed in until you hear an acknowledging signal (this may take a few seconds). This is particularly important if the batteries are almost entirely dead.
  • Page 11 Affixing the magnetic strip Clean the surface with the enclosed cleaning pad. Allow to dry. 1. Room with a low landing 2. Room with wall openings Pull off the protective backing. Affix the magnetic strip. Magnetic strips Be sure to block level differences lower than 10 centimetres with the magnetic strips.

  • Page 12: Buttons And Display

    Buttons and Display Stop Next On/Off Press the button for about one second to start and stop Trilobite. Stop button has two functions. Use it to cancel a command or to stop Trilobite during vacuuming. Press the button to confirm a setting shown on the display. Next Use the button to select items on the menu.

  • Page 13: Vacuuming Programs

    Vacuuming Programs Normal. Timer: Auto Select program? Normal vacuuming When you start Trilobite it is ready to start vacuuming using the Normal program and automatic time calculation. 1. When Trilobite is switched off or placed in the charger, press to start. 2.

  • Page 14: Timer And Changing The Message Display Language

    Timer and Changing the Message Display Language Normal. Timer: Auto Select timer? Timer It is possible to set the time duration for Normal or Quick vacuuming. 1. Select the desired vacuum program, or press twice til “Select timer?” is shown. Confirm by pressing 2.

  • Page 15: Error Messages

    Normal. Timer: Auto Select start time? To program the cleaning time: 1. Start Trilobite. 2. Press until “Select start time” is displayed. 3. Press 4. “Timetab.” is displayed. (If the clock is not set, “Set time” is displayed. See above on setting the time.) 5.

  • Page 16: The Dust Collector

    Emptying and Cleaning the Dust Collector Press the button on the ... lift off the lid. rear side of Trilobite, and ... Cleaning the Roller Check the roller each time Turn Trilobite upside down the dust collector is and put it on a soft surface emptied.
  • Page 17 Rinse the dust collector Insert a new filter and under running water. replace the grille. Do not clean in a dish- washer or clothes washing machine. Clean the roller. Use a pair Slide in the roller, take of scissors to cut away care to secure the belt and strings, threads, etc.

  • Page 18: Questions And Answers

    It collects all dust, even very small dust particles (this is why you should also use original Electrolux filters). Just like a dust bag becomes full, so does the filter. There is no dust bag in the Trilobite, but the filter is always a necessity and should be replaced every time you empty the dust collector.
  • Page 19 Why do I have to place magnetic strips by level differences of less than 10 cm? Depending on the floor colour and texture, Trilobite may not detect level differences of less than 10 cm in some cases. Do I need to vacuum myself also? Yes, in areas that Trilobite cannot reach, such as staircases, book- shelves, underneath very low furniture, etc.

  • Page 20: Accessories/After-Sales Service

    Customer Service) – or order them from our web site. Order number: EF 110 Miscellaneous The selection of accessories is continuously updated. Please contact your dealer, Electrolux Customer service or visit our web site for more information about new accessories. 18 English After-Sales Service Customer Service Accessories, service, problems…...

  • Page 21: Technical Specifications

    Cord length Declaration of conformity Concerning Machinery Directive – 98/37/EC Low Voltage Directive – 73/23/ECC EMC-Directive – 89/336/ECC Manufacturer: Electrolux Floor Care & Light Appliances 350 mm S-593 84 Västervik, SWEDEN Declares that the automatic household vacuum cleaner Trilobite 130 mm with charger –...
