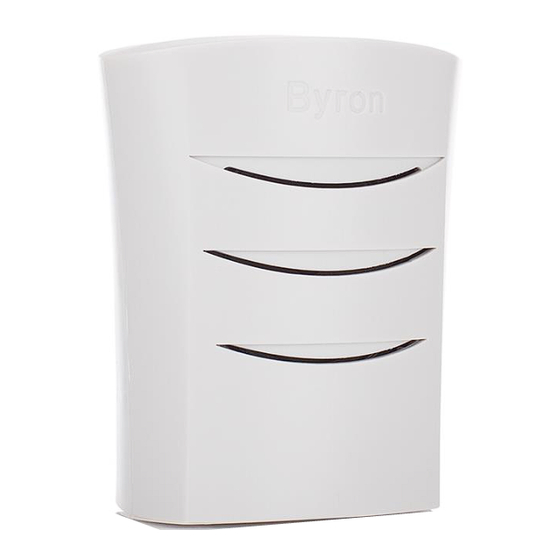

Byron BY112 Installation And Operation Instruction

Plug-in & Portable
™
Wire Free Chime Kit
BY112
5:
7:
6:
6:
4:
1:
2:
:3

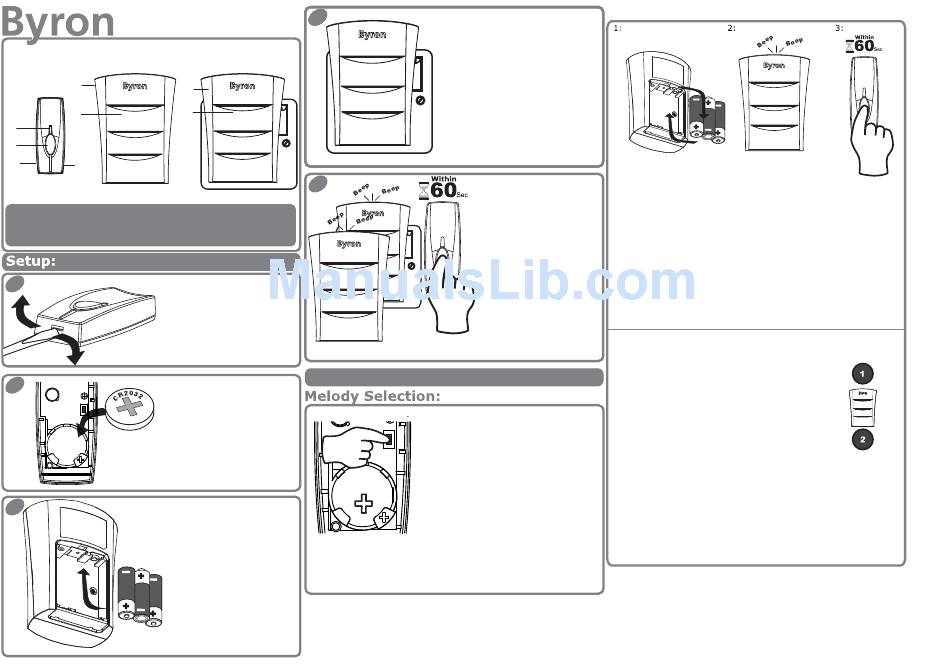

1: Push Button 5: Portable Chime
2: Melody Selector 6: Speaker
3: Bell Push Battery 7: Plug-in Chime
4: Signal Sent LED
1
1: Place a small flat screwdriver
into the locking clip on the
base of the Bell Push
2: Gently twist
3: The backing plate will unclip
2 1: Insert CR2032 battery
(Supplied) into the battery
holder.
2: Make sure the positive side
is facing upwards.
3: Replace back plate.
Warning: Make sure that the batteries are
replaced correctly to avoid battery failure.
Only replace with same or equivalent type.
3
1: Remove the battery cover of
the Door Chime.
2: Insert 3 X 1.5V Size 'AA'
batteries (Not Supplied).
3: Make sure the
Positive/Negative terminals
match the internal markings.
3 x 1.5V 'AA'
3 4
1: plug Chime into a UK 3pin
socket, 220 – 240V ~ 50Hz.
2: Switch the socket on.
1: The Chime will 'Beep Beep'.
5
2: Press the Bell Push within
60 seconds to learn the
Bell Push to the chime.
3: The Chime Will Ring to
confirm setup, wait 60
seconds for the Chimes
to exit the learn mode
before repressing the Bell
Push.
4: Replace the battery cover.
Note: Maximum of 2 Bell
Pushes can be learnt to a
single Chime for Front/Back
Door use.
Functions:
To select a melody for the Door Chime
1: Remove the Back Plate from the Bell
Push
2: Press the Melody Select button.
CR2032
3:The chime will play the newly selected
sound
4: Press again to select the next melody.
Note: For Front/Back door setup, select a
different melody in one of the Bell Pushes.
4 Selectable Melodies
1: Ding Dong (Repeat) 3: Alarm
2: Westminster 4: Ding Dong Ding
Adding Additional Chime/Bell Push:
New Chime
Additional Chime
To add an additional Chime unit to the Door Chime kit
1: Remove the batteries or unplug your NEW Door Chime and wait
for 10 seconds.
2: Replace the batteries, making sure the Positive/Negative
terminals match the internal markings or plug the Door Chime into
the Socket and switch the socket on.
3: The Chime will 'Beep Beep' to indicate that it has entered
the Learn mode.
4: Press the Bell Push within 60 seconds, to pair the additional
Chime to the Bell Push.
5: Chime will ring to confirm setup, wait 60 seconds for the Chime
to exit the learn mode before repressing the Bell Push.
Additional Bell Push
To add an additional Bell Push to the Door Chime kit
1: Remove the batteries or unplug your new Door
Chime and wait for 10 seconds.
2: Replace the batteries, making sure the
Positive/Negative terminals match the internal
markings or plug the Door Chime into the Socket
and switch the socket.
3: The Chime will 'Beep Beep' to indicate that it has
entered the Learn mode.
4: Press both Bell Pushes within 60 seconds, to pair the additional
Bell Push to the Chime.
5: Chime will ring to confirm setup, wait 60 seconds for Chime to exit
the learn mode before repressing the Bell Push. For Front/Back
door setup, select a different melody in one of the Bell Pushes -
See Melody Selection.
Note: Maximum of 2 Bell Pushes can be learnt to a single
Door Chime.
Front Door
Back Door
