Appendix C

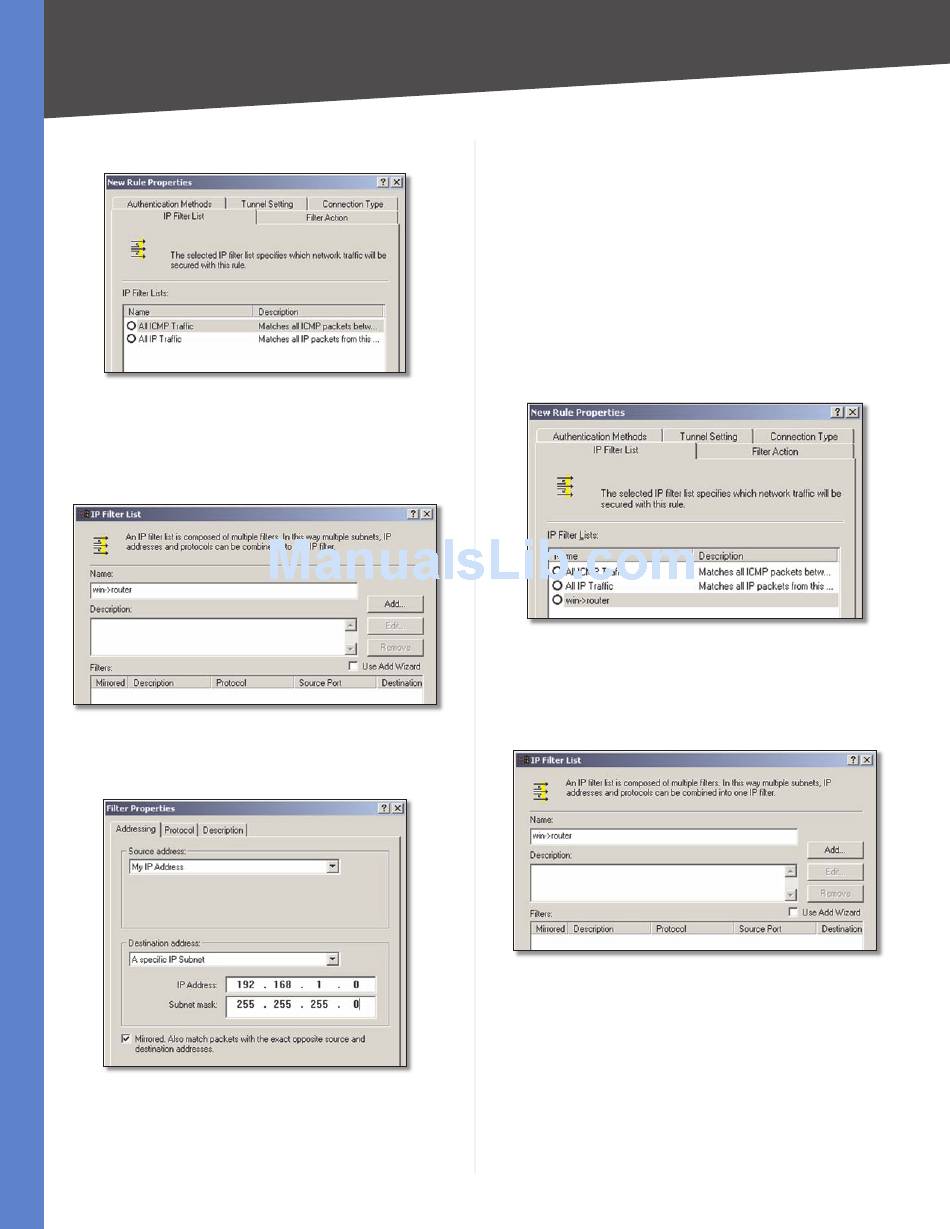

2. Make sure the IP Filter List tab is selected. Click Add.
IP Filter List Tab
3. The IP Filter List screen should appear. Enter an
appropriate name, such as win->Router, for the filter
list, and de-select the Use Add Wizard check box.
Then, click Add.
IP Filter List
4. The Filters Properties screen will appear. Select the
Addressing tab.
Filters Properties
In the Source address field, select My IP Address. In the
Destination address field, select A specific IP Subnet,
and enter the IP Address 192.168.1.0 and Subnet
4-Port Gigabit Security Router with VPN
Configuring IPSec with a Windows 2000 or XP Computer
5.
6.
Filter List 2: router -> win
7.
8.
9.
mask 255.255.255.0. (These are the Router's default
settings. If you have changed these settings, enter
your new values.)
If you want to enter a description for your filter, click
the Description tab and enter the description there.
Click OK. Then, click OK or Close in the IP Filter List
window.
The New Rule Properties screen will appear. Select the
IP Filter List tab, and make sure that win -> Router is
highlighted. Then, click Add.
New Rules Properties
The IP Filter List screen should appear. Enter an
appropriate name, such as Router->win for the filter
list, and de-select the Use Add Wizard check box.
Click Add.
IP Filter List
The Filters Properties screen will appear. Select the
Addressing tab. In the Source address field, select
A specific IP Subnet, and enter the IP Address
192.168.1.0 and Subnet mask 255.255.255.0. (Enter
your new values if you have changed the default
settings.) In the Destination address field, select My IP
Address.
