Cisco Small Business
RV0xx Series Routers

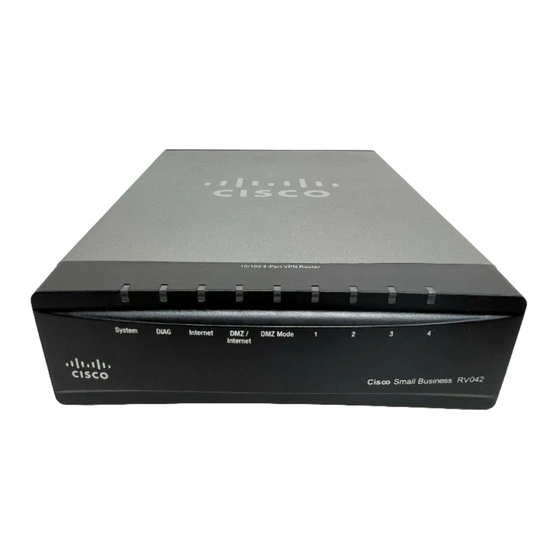

RV042 Dual WAN VPN Router
RV042G Gigabit Dual WAN VPN Router
RV082 Dual WAN VPN Router
RV016 Multi-WAN VPN Router
Package Contents
• VPN Router
• Power Adapter (Cisco RV042 and RV042G) or AC Power Cable
(Cisco RV082 and RV016)
• RJ45 Ethernet Cable
• Rack Mounting Kit (Cisco RV016 and RV082 only)
• Quick Start Guide
• Product CD
Quick Start Guide
Advertisement
Table of Contents
Related Manuals for Cisco RV016 - Small Business - 10/100 VPN Router
Summary of Contents for Cisco RV016 - Small Business - 10/100 VPN Router
-
Page 1: Quick Start Guide
RV082 Dual WAN VPN Router RV016 Multi-WAN VPN Router Package Contents • VPN Router • Power Adapter (Cisco RV042 and RV042G) or AC Power Cable (Cisco RV082 and RV016) • RJ45 Ethernet Cable • Rack Mounting Kit (Cisco RV016 and RV082 only) •... -
Page 2: Rv0Xx Series Router Features
This guide helps you to install your router and to get started using the web- based configuration utility. RV0xx Series Router Features Cisco RV0xx Series dual WAN and multi-WAN VPN routers offer highly secure, high-performance, reliable connectivity. All of these routers can support a second Internet connection to ensure continuous connectivity or to increase available bandwidth and balance traffic. - Page 3 RV042 and RV042G Status Lights System DIAG Internet DMZ/ DMZMode Internet Cisco Small Business RV042 RV082 Ports and Status Lights Cisco Small Business RV082 DMZ/Internet Internet DIAG Internet System Internet Mode 10/100 16-Port VPN Router RV016 Ports and Status Lights...
-
Page 4: Status Lights
Port Description 1-4 (RV042 and Use these numbered ports to connect computers RV042G) or 1-8 and other local network devices. (RV082 and RV016) 9-13 and 3-7 Dual Use these numbered ports as LAN ports Function Ports (numbered 9-13) or configure them for use as (RV016) Internet ports (numbered 3-7). -
Page 5: Other Hardware Features
Other Hardware Features Feature Description Reset The Reset button is an indented black button. On the back panel of the RV042 and RV042G, look for this button near the port labeled 1. On the front panel of the RV082 and RV016, look for this button near the Internet and DMZ ports . -
Page 6: Mounting Options
RV042 and RV042G RV082 and RV016 5-5.5 mm 20-22 mm 6.5-7 mm 16.5-18.5 mm Insecure mounting might damage the router or cause injury. ARNING Cisco is not responsible for damages incurred by insecure wall- mounting. RV0xx Series Routers Quick Start Guide... -
Page 7: Rack Mounting Rv082 Or Rv016
For safety, ensure that the heat dissipation holes are facing ARNING sideways. Drill two pilot holes into the surface. • RV042 and RV042G: 58 mm apart • RV082 and RV016: 94 mm apart Insert a screw into each hole, leaving a gap between the surface and the base of the screw head of 1 to 1.2 mm. -
Page 8: Connecting The Equipment
• RV042, RV042G, and RV082: Connect an Ethernet cable from the broadband network device to the Internet port of the router. RV042 and RV042G Internet Port Internet DMZ/Internet RV082 Internet Port Cisco Small Business RV082 DMZ/Internet Internet DIAG Internet System... -
Page 9: Getting Started With The Configuration
• RV016: Connect an Ethernet cable from the broadband network device to the Internet 1 port of the router. RV016 Internet 1 Port Cisco Small Business RV016 LAN/Act DIAG LAN/Act Internet Internet System Dual-Function Ports Internet/Act 10/100 Internet 2 Internet 1... -
Page 10: Troubleshooting Tips
To configure other settings, use the links in the navigation tree. Cisco strongly recommends setting a strong administrator password to prevent unauthorized access to your router. For more information about all settings, refer to the online Help and the Cisco Small Business RV0xx Series VPN Router Administration Guide. Troubleshooting Tips... -
Page 11: Where To Go From Here
Enter the model number to find the latest firmrware.. Product Documentation Cisco Small Business www.cisco.com/go/smallbizrouters Routers Cisco Small Business Cisco Partner Central for www.cisco.com/web/partners/sell/smb Small Business (Partner Login Required) Cisco Small Business www.cisco.com/smb Home RV0xx Series Routers Quick Start Guide... - Page 12 Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners.
