AWA TFTD81M Owner's Manual

81 cm tft lcd tv & monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for AWA TFTD81M

Summary of Contents for AWA TFTD81M

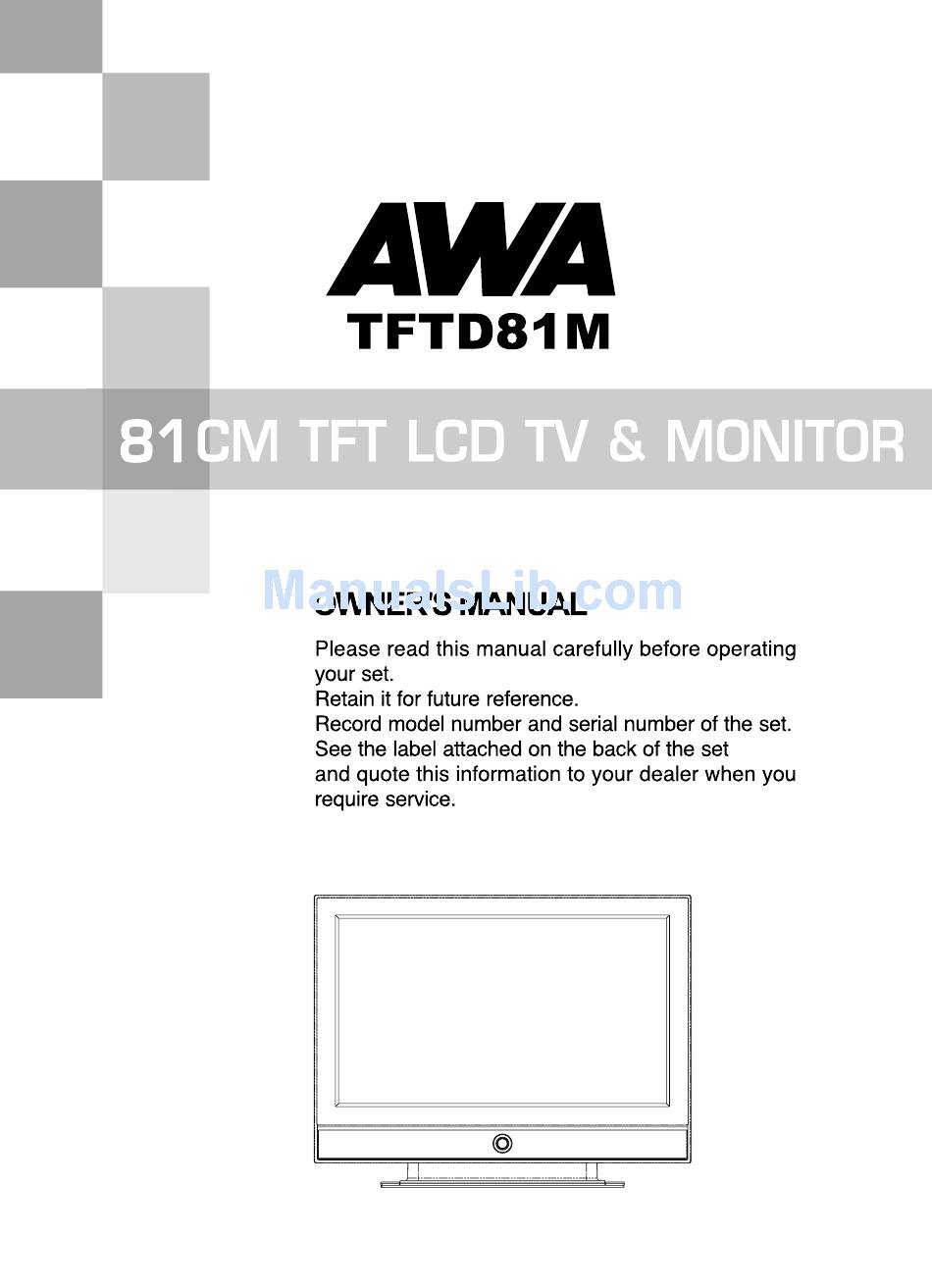

  • Page 2 TFTD81M OWNER’S MANUAL Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the back of the set and quote this information to your dealer when you require service.
  • Page 3 Adjacent Dots Total single Max. No. Adjacent of Dark Dots Total Total dots (Maximum) Further Information Further information regarding AWA's LCD Television Defect Policy can be obtained by calling the AWA Service & Support Hotline on 1366 366 144.

  • Page 4: Table Of Contents

    Table of Contents Important Safety instructions First step Safety instructions LCD TV Overview Front AND Side View Rear View Remote Control Key Functions Using the remote control Accesories Equipment Connections and Setup VCR Setup DTV Setup DVD Setup PC Setup HDMI Setup Basic Features Setup and Operation Turning on the TV...

  • Page 5: Important Safety Instructions

    OWNER’S MANUAL Important Safety Instruction 1) Read all of these instructions. 2) Save these instructions for later use. 3) Follow all warnings and instructions marked on the product. 4) Follow all instructions. 5) Do not use the TV near water. 6) Clean only with dry cloth.

  • Page 6: Safety Instructions

    OWNER’S MANUAL Safety Instructions Indoor Installation WARNING NOTES Do not place the TV in direct sunlight or near heat Do not place inflammable materials sources such as radiators, fires and beside the TV stove etc. • This may cause a fire hazard ! •...
  • Page 7 OWNER’S MANUAL Safety Instructions Outdoor Installation WARNING Do not use the TV in a damp place such as a bathroom where it is likely to get wet. • This may cause a fire or an electric shock hazard ! WARNING In case of using a receiver (VCR, In case of using a receiver (VCR, Digital Digital Set Top Box), do not place an...
  • Page 8 OWNER’S MANUAL Safety Instructions Power NOTES Do not place heavy Do not use too Never touch the power objects on the many plugs on plug with a wet hand the main multi- power cord • This may cause outlet. • This may cause a an electric shock hazard ! fire or an electric...
  • Page 9 OWNER’S MANUAL Safety Instructions Using NOTES Do not allow any objects to fall In case of impact shock or damage into the TV. to the monitor switch it off and • This may cause an electric shock unplug it from the outlet and hazard ! contact your service center.
  • Page 10 OWNER’S MANUAL Safety Instructions Others WARNING NOTES Do not watch the TV while Do not place heavy objects on the TV. driving or walking. • This may cause serious injury to a child or adult. • This may cause an accident. NOTES The distance between eyes and Only use the specified batteries.

  • Page 11: Front And Side View

    OWNER’S MANUAL *FRONT AND SIDE VIEW 1. POWER button : Switches TV set on or off. 2. MENU button : Displays a menu. 3. SELECT button : Selects the A/V source. 4. VOLUME (▲ / ▼) : Adjusts the volume / Adjusts menu settings.

  • Page 12: Remote Control Key Functions

    OWNER’S MANUAL Remote Control Key Functions - When using the remote control aim it at the remote control sensor on the TV 1. POWER Turns the TV on from standby or off to standby mode. 2. MUTE Turns the sound on and off. 3.

  • Page 13: Using The Remote Control

    OWNER’S MANUAL Remote Control Key Functions TV/AV select button on the remote control Each press of this button changes the mode as shown below S-VIDEO COMPONENT HDMI PC ANALOG RGB-DTV MULTI MEDI select button on the remote control Each press of this button changes the mode as belows. COMPONENT RGB-DTV PC ANALOG...

  • Page 14: Accesories

    OWNER’S MANUAL Using the remote control Notes for using the remote control Make sure these are no objects Don’t place the remote control Signal from the remote control between the remote control and near a heater or damp place. may be disturbed by sun light or its sensor.

  • Page 15: Vcr Setup

    OWNER’S MANUAL VCR Setup • Connect an antenna or a coaxial Cable between the ANTENNA jack on the rear of the TV and the ANTENNA OUT jack on the VCR. • Connect the RCA Jack of the VCR to the RCA Jack1 or Jack2 of the set. •...

  • Page 16: Dtv Setup

    OWNER’S MANUAL DTV Setup(SET-TOP BOX) - To watch digital broadcast programs, purchase/connect a digital SET-TOP BOX. How to connect a DTV • You can use either the Monitors COMPONENT (DVD/DTV INPUT) input or the single RGB-DTV/PC INPUT for video connections, depending on your Set Top Box connectors. Then, make the corresponding Audio connections.

  • Page 17: Dvd Setup

    OWNER’S MANUAL DVD Setup How to connect a DVD (digital video disk player) • Connect DVD video inputs to Y, Pb, Pr of COMPONENT (DVD/DTV INPUT) and audio inputs to Audio jacks of AV INPUT. • Component Input is available to 480/576i, 480/576p, 720p, 1080i mode. How to use •...

  • Page 18: Pc Setup

    OWNER’S MANUAL PC Setup - You can easily connect the LCD TV to your PC for outstanding image and sound. Setup Instructions to Connect a PC to your TV • To setup this TV in your PC window environment, select Normal, Standard or Default TV. This TV does not support Plug and Play function •...

  • Page 19: Hdmi Setup

    OWNER’S MANUAL PC Setup TV Image Display Specifications (PC ANALOG) Vertical Vertical Resolution Resolution Frequency (Hz) Frequency (Hz) 720*400 1024*768 640*480 1360*768 1280*768 832*624 800*600 HDMI Setup You can use the HDMI INPUT depending on your Set Top Box or DVD player. * Press TV/AV button on the remote control to select HDMI.

  • Page 20: Turning On The Tv

    OWNER’S MANUAL Turning on the TV - When using the remote control, aim it at the sensor on the TV. Turning on the TV just after installation Connect power cord correctly. At this moment, the TV is switched to Standby mode. Press the POWER button on the TV or press the POWER button on the remote control and then the TV will be turn on.

  • Page 21: Setting Sleep Timer

    OWNER’S MANUAL Checking features Press the PR+/- button. Press the VOL ( + ) button to select a feature to adjust, and then press the PR+/- buttons to adjust the selected item. • Press the MENU button to exit. Setting Sleep Timer Sleep Timer turns the TV off after a preset time Press the SLEEP button to set sleep time.

  • Page 22: Auto Picture Control

    OWNER’S MANUAL Auto picture control Use APC to set the TV for the best picture appearance APC (Auto Picture Control) Press the APC button. Press the APC buttons to select your desired picture condition. CUSTOM • Each press of APC button changes the screen display as shown below. STANDARD SOFT CUSTOM...

  • Page 23: Auto Sound Control

    OWNER’S MANUAL Auto Sound Control ASC(Auto Sound Control) Press the MENU button and then VOL+/- button to select a SOUND setup. Press PR- button and then VOL+ button to select a sound setup. • Each press of ASC or PR+/- button changes the screen display as shown below. STANDARD MUSIC MOVIE...

  • Page 24: Setting Up Tv Stations

    OWNER’S MANUAL Setting up TV stations Up to 100 TV stations can be stored by programme numbers (0 to 99). Once you have preset the stations, you will be able to use the PR+ / PR- or NUMBER buttons to scan the stations you programmed.

  • Page 25: Manual Programme Tuning

    OWNER’S MANUAL Setting up TV stations Press the VOL+ button. Select the beginning programme number with the VOL+/- button or NUMBER buttons on the STORAGE pull-down menu. Any number under 10 is entered with a numeric ‘0’ (or ‘00’) in front of it, i.e. ‘05’ (or ‘005’) for 5 Press the ENTER button.
  • Page 26 OWNER’S MANUAL Setting up TV stations Press the VOL+ button to select the programme number. Select the desired programme number (0 to 99) with the VOL+/- button or NUMBER buttons on the STORAGE pull-down menu. Any number under 10 is entered with a numeric ‘0’ (or ‘00’) in front of it, ie.

  • Page 27: Programme Edit

    OWNER’S MANUAL Setting up TV stations • Press the VOL+ button. Press the VOL+ button to commence searching on the Search pull-down menu. If a station is found the search will stop. • Press the PR+/- button to select NAME. •...
  • Page 28 OWNER’S MANUAL Setting up TV stations Copying a programme • Select a programme to be copied with the PR+/- or VOL+/- button. • Press the GREEN button. All the following programmes are shifted down one position. Moving a programme • Select a programme to be moved with the PR+/- or VOL+/- button.

  • Page 29: Teletext

    OWNER’S MANUAL Teletext (1000 pages) Teletext (or TOP text) is an optional function, therefore only a set with the teletext system can receive the teletext broadcast. Teletext is a free service broadcast by most TV stations which gives up-to-the-minute information on news, weather, television programmes, share prices and many other topics.

  • Page 30: Special Teletext Functions

    OWNER’S MANUAL Teletext (1000 pages) Page selection • Press the INDEX button to select the index page. • You can select the pages which are colour coded along the bottom line with the same coloured buttons. • Corresponding to the SIMPLE teletext mode, you can select a page by entering its three digit page number with the NUMBER buttons in FASTEXT mode.

  • Page 31: Selecting Clock For The Menus

    OWNER’S MANUAL Selecting CLOCK for the menus Press the MENU button and then press the VOL+/- button to select CLOCK menu. Press the PR- button. Press the PR+/- button to select CLOCK and then press the VOL(+) button. Press the PR+/- button and VOL+/- button to select time. Press the ENTER button.

  • Page 32: Selecting Language For The Menus

    OWNER’S MANUAL Selecting LANGUAGE for the menus Press the MENU button and then press the VOL+/- button to select SETUP menu. Press the PR- button. Press the PR+/- button to select Language and then press the VOL +/- button to select the desired language. Press the ENTER button.

  • Page 33: Setting Picture Format

    OWNER’S MANUAL Setting picture format Press the ARC button to select a desired picture format. • Each time you press ARC button, you can select 16:9 or 4:3 or PANORAMA or ZOOM alternatively. 16:9 16:9 PANORAMA PANORAMA ZOOM Picture in picture (PIP) function ZOOM - PIP PICTURE will let you view two seperate inputs on your TV screen at the same time.
  • Page 34 OWNER’S MANUAL Picture in picture (PIP) function Change the main picture and the sub picture Press the SWAP button in PIP mode. when the main picture is tv/av1/av2/s-video the sub picture is component/RGB-DTV/PC ANALOG/HDMI. when the main picture is component/RGB-DTV/PC ANALOG/HDMI the sub picture is tv/av1/av2/s-video Change the TV channel of the sub picture.

  • Page 35: Troubleshooting Check List

    OWNER’S MANUAL Troubleshooting Before you call a service technician, please scan this list of problems and possible solutions. It may save you time and money. Problem Quick action for possible solution �Check whether the LCD TV turns on. �Power cord inserted into wall outlet? No picture &...

  • Page 36: Specification

    OWNER’S MANUAL Specification Specification Contents Aspect Ratio 16 : 9 Low CH : E2 ~ S10 Receving High CH : E5 ~ S41 channel CH : E21 ~E 69 1.0Vp-p / 75 Ϊ 1.0Vp-p / 75 Ϊ VIDEO Y : 1.0Vp-p / 75 Ϊ S-VIDEO C : 0.3Vp-p / 75 Ϊ...
