- Page 1 GA-G41MT-USB3 GA-G41MT-D3V LGA775 socket motherboard for Intel Core processor family/ ® ™ Intel Pentium processor family/Intel Celeron processor family ® ® ® ® User's Manual Rev. 1301 12ME-41MTD3V-1301R...
-
Page 3: Identifying Motherboard Revision
The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE with- out prior notice. -
Page 4: Table Of Contents
Table of Contents GA-G41MT-USB3/GA-G41MT-D3V Motherboard Layout ..........5 Chapter 1 Hardware Installation ..................6 Installation Precautions ..................6 Product Specifications ..................7 Installing the CPU and CPU Cooler ..............9 Installing the Memory ..................10 Installing an Expansion Card ................. 10 Back Panel Connectors .................. 11 Internal Connectors .................. -
Page 5: Ga-G41Mt-Usb3/Ga-G41Mt-D3V Motherboard Layout

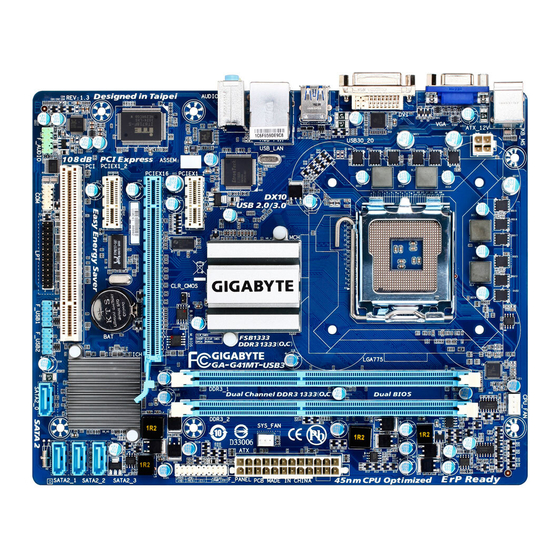

GA-G41MT-USB3/GA-G41MT-D3V Motherboard Layout CPU_FAN KB_MS ATX_12V LGA775 (Note) USB30_20 USB_LAN SYS_FAN Etron AUDIO EJ168 j Intel ® Realtek PCIEX1_1 RTL8111E B_BIOS CLR_CMOS M_BIOS PCIEX16 IT8718 PCIEX1_2 BATTERY CODEC Intel ® ICH7 SATA2_3 SATA2_2 F_USB2 SATA2_1 F_AUDIO F_USB1 SATA2_0 Box Contents GA-G41MT-USB3 or GA-G41MT-D3V motherboard Motherboard driver disk Two SATA cables... -
Page 6: Chapter 1 Hardware Installation
Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty sticker provided by your dealer. -
Page 7: Product Specifications
4 GB. Dual channel memory architecture Š Support for DDR3 1333(O.C.)1066/800 MHz memory modules Š (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Onboard Integrated in the Chipset: Š... - Page 8 Internal 1 x CPU fan header Š Connectors 1 x system fan header Š 1 x front panel header Š 1 x front panel audio header Š 2 x USB 2.0/1.1 headers Š 1 x serial port header Š 1 x parallel port Š...
-
Page 9: Installing The Cpu And Cpu Cooler
Form Factor Micro ATX Form Factor; 24.4cm x 19.4cm Š * GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. Installing the CPU and CPU Cooler Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. -
Page 10: Installing The Memory
• Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage. -
Page 11: Back Panel Connectors
Back Panel Connectors PS/2 Keyboard and PS/2 Mouse Port Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2 keyboard. D-Sub Port The D-Sub port supports a 15-pin D-Sub connector. Connect a monitor that supports D-Sub connection to this port. -
Page 12: Internal Connectors
Line In Jack (Blue) The default line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc. Line Out Jack (Green) The default line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be used to connect front speakers in a 4/5.1/7.1-channel audio configuration. - Page 13 1/2) ATX_12V/ATX (2x2 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the com- ponents on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed.
-
Page 14: Fan Headers
3/4) CPU_FAN/SYS_FAN (Fan Headers) The motherboard has a 4-pin CPU fan header (CPU_FAN) and a 3-pin (SYS_FAN) system fan header. Most fan headers possess a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is the ground wire). The motherboard supports CPU fan speed control, which requires the use of a CPU fan with fan speed control design. -
Page 15: Front Panel Header
6) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker and system status indicator on the chassis front panel to this header according to the pin assignments below. Note the positive and negative pins before con- necting the cables. SPEAK- PWR- Power LED... -
Page 16: Front Panel Audio Header
7) F_AUDIO (Front Panel Audio Header) The front panel audio header supports Intel High Definition audio (HD) and AC'97 audio. You may connect your chassis front panel audio module to this header. Make sure the wire assignments of the module con- nector match the pin assignments of the motherboard header. - Page 17 9) LPT (Parallel Port Header) The LPT header can provide one parallel port via an optional LPT port cable. For purchasing the optional LPT port cable, please contact the local dealer. DEBUG Pin No. Definition Pin No. Definition PORT STB- AFD- ERR- INIT-...
-
Page 18: Clearing Cmos Jumper
11) CLR_CMOS (Clearing CMOS Jumper) Use this jumper to clear the CMOS values (e.g. date information and BIOS configurations) and reset the CMOS values to factory defaults. To clear the CMOS values, place a jumper cap on the two pins to temporarily short the two pins or use a metal object like a screwdriver to touch the two pins for a few seconds. -
Page 19: Chapter 2 Bios Setup
To see more advanced BIOS Setup menu options, you can press <Ctrl> + <F1> in the main menu of the BIOS Setup program. To upgrade the BIOS, use either the GIGABYTE Q-Flash or @BIOS utility. Q-Flash allows the user to quickly and easily upgrade or back up BIOS without entering the operating •... -
Page 20: Mb Intelligent Tweaker(M.i.t.)
• If you do not find the settings you want in the Main Menu or a submenu, press <Ctrl>+<F1> to access more advanced options. • When the system is not stable as usual, select the Load Optimized Defaults item to set your system to its defaults. - Page 21 CMOS Setup Utility-Copyright (C) 1984-2011 Award Software MB Intelligent Tweaker(M.I.T.) Item Help x CAS Latency Time Auto Menu Level x tRCD Auto x tRP Auto x tRAS Auto >>>>> Advanced Timing Control Advanced Timing Control [Press Enter] ******** Mother Board Voltage Control ******** Voltage Types Normal Current...
- Page 22 CPU Host Frequency (Mhz) Allows you to manually set the CPU host frequency. The adjustable range is from 100 MHz to 1200 MHz. This item is configurable only if the CPU Host Clock Control option is enabled. Important: It is highly recommended that the CPU frequency be set in accordance with the CPU specifications.
- Page 23 >>>>> Advanced Timing Control Advanced Timing Control CMOS Setup Utility-Copyright (C) 1984-2011 Award Software Advanced Timing Control Item Help x tRRD Auto Menu Level x tWTR Auto x tWR Auto x tRFC Auto x tRTP Auto x Command Rate (CMD) Auto >>>>>...
- Page 24 Static tRead Value Options are: Auto (default), 1~15. tRD Phase0 Adjustment Options are: Auto (default), 0-Normal, 1-Advanced. tRD Phase1 Adjustment Options are: Auto (default), 0-Normal, 1-Advanced. tRD Phase2 Adjustment Options are: Auto (default), 0-Normal, 1-Advanced. tRD Phase3 Adjustment Options are: Auto (default), 0-Normal, 1-Advanced. Trd2rd(Different Rank) Options are: Auto (default), 1~15.
- Page 25 Channel A/B Driving Settings CMOS Setup Utility-Copyright (C) 1984-2011 Award Software Channel A/B Driving Settings Item Help x Driving Strength Profile Auto Menu Level x Data Driving Pull-Up Level Auto x Cmd Driving Pull-Up Level Auto x Ctrl Driving Pull-Up Level Auto x Clk Driving Pull-Up Level Auto x Data Driving Pull-Down Lev...
-
Page 26: Standard Cmos Features
Standard CMOS Features CMOS Setup Utility-Copyright (C) 1984-2011 Award Software Standard CMOS Features Item Help Date (mm:dd:yy) Thu, Feb 17 2011 Menu Level Time (hh:mm:ss) 22:31:24 IDE Channel 0 Master [None] IDE Channel 0 Slave [None] IDE Channel 1 Master [None] ... -
Page 27: Advanced Bios Features
Advanced BIOS Features CMOS Setup Utility-Copyright (C) 1984-2011 Award Software Advanced BIOS Features Item Help Hard Disk Boot Priority [Press Enter] Menu Level Quick Boot [Disabled] CD/DVD Boot option [Auto] First Boot Device [Hard Disk] Second Boot Device [CDROM] Third Boot Device [Legacy LAN] Password Check... - Page 28 CPU Multi-Threading (Note) Allows you to determine whether to enable all CPU cores and multi-threading function when using an Intel CPU that supports multi-core technology. This feature only works for operating systems that support multi-processor mode. Enabled Enables all CPU cores and multi-threading capability. (Default) Disabled Enables only one CPU core.
-
Page 29: Advanced Chipset Features
Advanced Chipset Features CMOS Setup Utility-Copyright (C) 1984-2011 Award Software Advanced Chipset Features Item Help ** VGA Setting ** Menu Level Onboard VGA [Enable If No Ext PEG] Init Display First [PCI] PAVP Mode [PAVP Lite Mode] PAVP Lite Mode [32MB] x Paranoid PAVP Mode (32+96)128MB... -
Page 30: Integrated Peripherals
Integrated Peripherals CMOS Setup Utility-Copyright (C) 1984-2011 Award Software Integrated Peripherals Item Help Azalia Codec [Auto] Menu Level Onboard H/W LAN [Enabled] SMART LAN [Press Enter] Onboard LAN Boot ROM [Disabled] Onboard USB3.0 Controllerj [Enabled] Onboard Serial Port 1 [3F8/IRQ4] Onboard Parallel Port [378/IRQ7]... -
Page 31: Power Management Setup
Onboard Parallel Port Enables or disables the onboard parallel port (LPT) and specifies its base I/O address and correspond- ing interrupt. Options are: 378/IRQ7 (default), 278/IRQ5, 3BC/IRQ7, Disabled. Parallel Port Mode Selects an operating mode for the onboard parallel (LPT) port. Options are: SPP (Standard Parallel Port) (default), EPP (Enhanced Parallel Port), ECP (Extended Capabilities Port), ECP+EPP. - Page 32 Soft-Off by PWR-BTTN Configures the way to turn off the computer in MS-DOS mode using the power button. Instant-Off Press the power button and then the system will be turned off instantly. (Default) Delay 4 Sec. Press and hold the power button for 4 seconds to turn off the system. If the power button is pressed for less than 4 seconds, the system will enter suspend mode.
-
Page 33: Pnp/Pci Configurations
AC Back Function Determines the state of the system after the return of power from an AC power loss. Soft-Off The system stays off upon the return of the AC power. (Default) Full-On The system is turned on upon the return of the AC power. Memory The system returns to its last known awake state upon the return of the AC power. -
Page 34: Load Fail-Safe Defaults
Current Voltage(V) Vcore/DDR15V/+3.3V/+12V Displays the current system voltages. Current CPU Temperature Displays current CPU temperature. Current CPU/SYSTEM FAN Speed (RPM) Displays current CPU/system fan speed. CPU Warning Temperature Sets the warning threshold for CPU temperature. When CPU temperature exceeds the threshold, BIOS will emit warning sound. -
Page 35: Load Optimized Defaults
2-12 Load Optimized Defaults CMOS Setup Utility-Copyright (C) 1984-2011 Award Software MB Intelligent Tweaker(M.I.T.) PC Health Status Standard CMOS Features Load Fail-Safe Defaults Advanced BIOS Features Load Optimized Defaults Advanced Chipset Features Set Supervisor Password Integrated Peripherals Set User Password ... -
Page 36: Save & Exit Setup
2-14 Save & Exit Setup CMOS Setup Utility-Copyright (C) 1984-2011 Award Software CMOS Setup Utility-Copyright (C) 1984-2011 Award Software MB Intelligent Tweaker(M.I.T.) PC Health Status Standard CMOS Features Load Fail-Safe Defaults Advanced BIOS Features Load Optimized Defaults ... -
Page 37: Chapter 3 Drivers Installation
Chapter 3 Drivers Installation • Before installing the drivers, first install the operating system. • After installing the operating system, insert the motherboard driver disk into your optical drive. The driver Autorun screen is automatically displayed which looks like that shown in the screen shot below. - Page 38 BIOS Setup - 38 -...
- Page 39 - 39 - BIOS Setup...
- Page 40 WEB address (English): http://www.gigabyte.com WEB address (Chinese): http://www.gigabyte.tw You may go to the GIGABYTE website, select your language in the language list on the top right corner of the website. • GIGABYTE Global Service System To submit a technical or non-technical (Sales/Market- ing) question, please link to: http://ggts.gigabyte.com.tw...
