Required Parts

You will have up to four types of system component packages; Figure 1 shows
the contents of each package in the area marked by a dashed line. Check your
packages to be sure you have the parts shown here (if not, call for support as
instructed on the inside front cover).
Primary Carrier
Primary
Cover
Processor
Module
AC Power Cord
Expansion Carrier
Expansion
Cover
Processor Module
AC Power
Cord

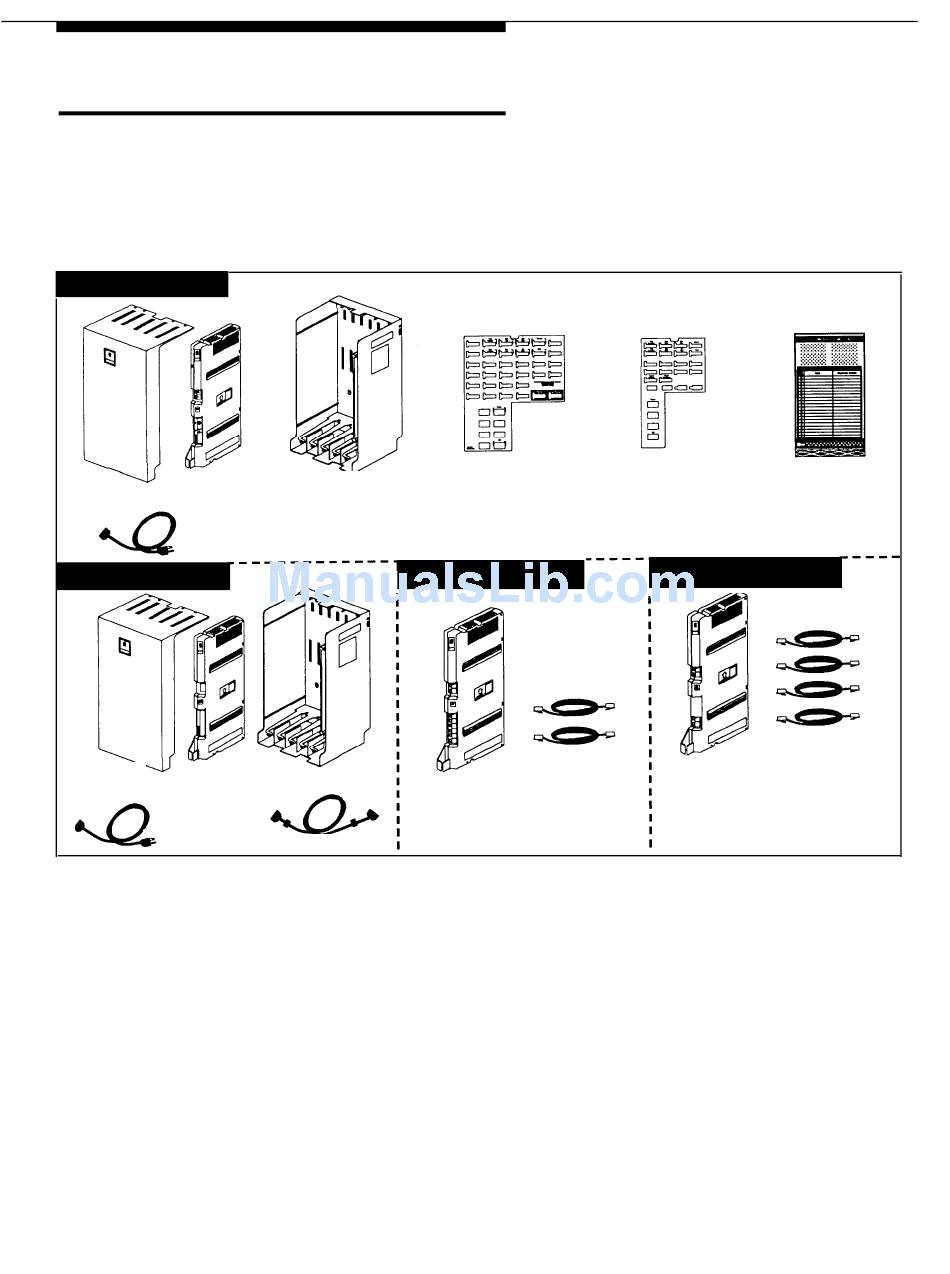

Figure 1. Required Parts
You will need to obtain four #12 screws of the appropriate type for the wall and
weight of the carrier (a carrier with four 206 modules and a processor module
weighs approximately 27.5 pounds or 12.3 kilograms.) You also need a length
of #12 AWG or #14 AWG solid copper wire (not to exceed 25 feet) for grounding.
In addition, if you need modular telephone cords for connecting the extension
jacks on the control unit to the modular connecting blocks for extensions in the
equipment room, short telephone cords for wall mounting MLS-model phones,
or a 355A/355AF adapter and D8W telephone cord for connecting a call
reporting device, order them before installation. Refer to "Product Ordering
Information" in Appendix B of the PARTNER II Communications System
Programming and Use guide for ordering instructions.
