Barco Galaxy NH-12 Option Installation Manual

Pmp kit
Hide thumbs Also See for Galaxy NH-12:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, User Manual
R59770498/01
28/02/2011
Installation manual
Galaxy NH-12, NW-12, Galaxy NW-12
PMP kit
R7649672K
R7649676K

Advertisement

Table of Contents
loading

Related Manuals for Barco Galaxy NH-12

Summary of Contents for Barco Galaxy NH-12

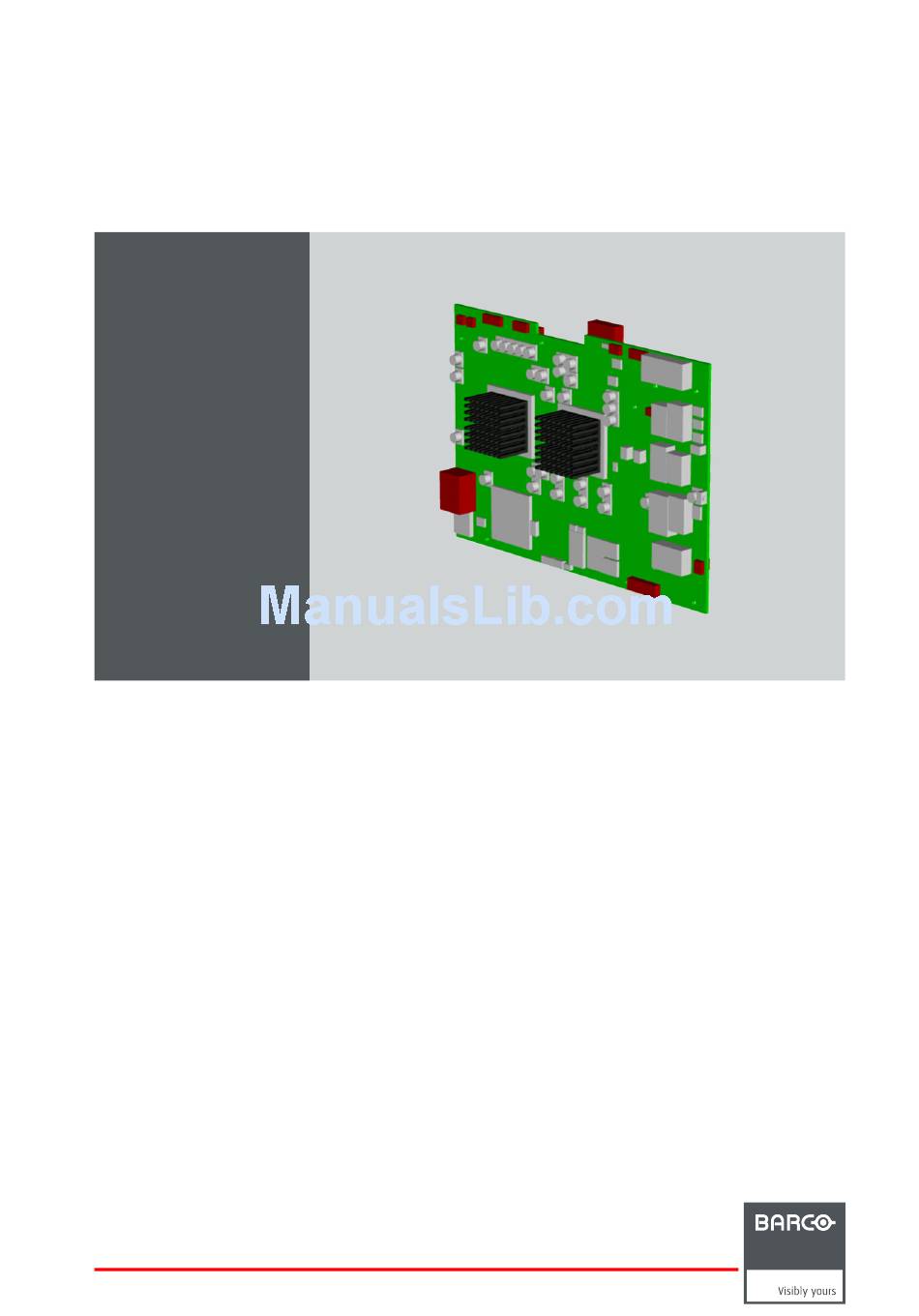

  • Page 1 PMP kit Installation manual Galaxy NH-12, NW-12, Galaxy NW-12 R7649672K R7649676K R59770498/01 28/02/2011...
  • Page 2 Barco nv Simulation Division Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.82.11 Fax: +32 56.36.84.86 E-mail: info@barco.com Visit us at the web: www.barco.com Printed in Belgium...

  • Page 3: Disposal Information

    The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning, at latest 30 days after the transfer of risks. In the event of justified notice of complaint, Barco can repair the fault or provide a replacement at its own discretion within an appropriate period.

  • Page 5: Table Of Contents

    Table of contents TABLE OF CONTENTS 1. Safety instructions ....................3 Safety during kit installation .
  • Page 6 Table of contents R59770498 PMP KIT 28/02/2011...

  • Page 7: Safety Instructions

    1. SAFETY INSTRUCTIONS Safety during kit installation ARNING The procedures below may only be performed by Barco trained and qualified technicians. ARNING Power down the projector and remove the power cord form the wall outlet before removing any of the projector covers.
  • Page 8 1. Safety instructions R59770498 PMP KIT 28/02/2011...

  • Page 9: Pmp Kit

    In the situation where no backup is available and the PMP is not working properly, try to connect to the projector via Ethernet anyway and use the Projector Support tool to make a backup. Most probably, this will be successful. If not, you will have to contact Barco.
  • Page 10 2. PMP kit R59770498 PMP KIT 28/02/2011...

  • Page 11: Kit Installation (Detailed)

    If a PMP fails, communication via Ethernet is most probably still possible. This implies that a backup can still be made using the Projector Support tool. If there is no more communication with the faulty PMP, Barco’s helpdesk must be contacted.

  • Page 12: Removing The Pmp

    3. Kit installation (detailed) 3. Lift the preformatter unit a bit and unplug the following connectors: J100, J101, J102 on the preformatter: data from the PMP J11 on the preformatter: power supply from the power box J410 on the PMP: commands from the local keypad J13 on the PMP: commands from the IR receiver 4.
  • Page 13 3. Kit installation (detailed) How to remove the PMP? 1. Remove the input module (see concerning chapter) 2. Remove both screws fixing the PMP to the front plate Image 3-4 PMP: front fixing screws 3. Remove the side screws fixing the input boards to the PMP Image 3-5 4.

  • Page 14: Installing The Pmp

    3. Kit installation (detailed) Image 3-7 PMP: fixing screws of the LVDS interface 6. Remove the screws fixing the PMP fan assembly to the PMP Image 3-8 Image 3-9 PMP fan assembly: fixing screws (1) PMP fan assembly: fixing screws (2) 3.2.3 Installing the PMP How to install the PMP?
  • Page 15 3. Kit installation (detailed) Image 3-12 PMP: fixing screws of the LVDS interface 3. Connect the PMP to the inputs by plugging in the board-to-board connectors Image 3-13 PMP: plug into the input board connectors 4. Fix the PMP to the input boards using the side screws Image 3-14 PMP: side screws fixing the input boards 5.

  • Page 16: Installing The Input Module

    3. Kit installation (detailed) Image 3-15 PMP: front fixing screws 6. install the input module into the projector (see concerning chapter) 3.2.4 Installing the input module Necessary tools Torx screwdriver T10 How to install the input module? 1. Put the connector next to its correct position and plug in the connectors: J15: power supply from connector 6 on the power box J19: IC2 to connector J320 on the desktop input J23;...

  • Page 17: Restoring The Backup

    3. Kit installation (detailed) Image 3-17 input module: fixing front screws 4. Put the preformatter unit next to its correct position and plug in the connectors: J100, J101, J102 on the preformatter: data from connectors J823, J824 and J825 on the PMP J11on the preformatter: power supply from connector 6 on the power box J410 on the PMP: commands from connector J410 on the local keypad J13 on the PMP: commands from the IR receiver...
  • Page 18 3. Kit installation (detailed) Necessary tools Computer or laptop, connected to the projector through Ethernet How to upgrade the projector software? 1. Enter the correct Ethernet settings in the OSD of the projector 2. Download the desired upgrade tool to your computer or laptop 3.

  • Page 19: Backup And Restore Data

    It is extremely important to make backups of your projector data after each setting change. This chapter describes how to use Barco’s Projector Support software tool to make a backup of the key data of a projector and how to restore this backup.
  • Page 20 A. Backup and restore data Image A-1 Projector Support tool: user interface 4. In the Communication Parameters section, enter the IP address or the hostname of the projector Image A-2 Projector Support tool: enter IP address or hostname R59770498 PMP KIT 28/02/2011...
  • Page 21 A. Backup and restore data Tip: You can also press the Query button. A list appears, showing all the projectors that are connected to the same network. In this list, select the desired projector and hit OK. Image A-3 Projector Support tool: select Query Image A-4 Projector Support tool: example of a query list Special case in the Query list...

  • Page 22: Making A Backup Of The Projector's Key Data

    A. Backup and restore data Select it and hit OK to open a new window where the network settings can be manually changed. It is advised to switch DHCP to On to continue. Image A-6 Projector Support tool: change DHCP setting to ON Image A-7 Projector Support tool: confirm network settings A.2 Making a backup of the projector’s key data...
  • Page 23 A. Backup and restore data Image A-8 Projector Support tool: select browse in the Backup section Select a target folder on the computer to save the backup of the projector data Image A-9 Projector Support tool: browse to the backup folder 3.
  • Page 24 A. Backup and restore data Image A-11 Projector Support tool: start the backup of all settings 5. Wait for the backup process to be finished. Image A-12 Projector Support tool: progress bar A successful backup is indicated by a green oval. Image A-13 Projector Support tool: backup successful An error is indicated by a brief description and a red oval.

  • Page 25: Restoring A Set Of Key Data

    A. Backup and restore data AUTION It is not allowed to do any manual change to a backup file. A changed file cannot be restored! A.3 Restoring a set of key data AUTION If a backup file has been manually changed, it will no longer be possible to restore it in the pro- jector! Different levels of restore Different situations lead to different levels of restore:...
  • Page 26 A. Backup and restore data Image A-15 Projector Support tool: browse to the backup folder 4. In the Restore section, you can select an option (not required): Overwrite serial number Overwrite device type Image A-16 5. In the Restore section, hit All settings Image A-17 Projector Support tool: start the restore of the backup 6.
  • Page 27 A. Backup and restore data Image A-18 Projector Support tool: confirm the restore of the backup 7. Wait for the restore process to be finished Image A-19 Projector Support tool: progress bar Image A-20 Projector Support tool: reboot of the PMP after the restore A successful restore of the backup file is indicated by a green oval.
  • Page 28 A. Backup and restore data Image A-21 Projector Support tool: restore of the backup was successful An error during the restore of the backup file is indicated by a brief description and a red oval. Solve the cause of the error and retry.
  • Page 29 A. Backup and restore data Image A-22 Projector Support Tool: restore of the backup was not successful How to restore the key data in a new PMP? It is assumed that an original backup file is available (zip format). 1. Start the Projector Support tool and select Query in the Communication Parameters section of the user interface 2.
  • Page 30 A. Backup and restore data Image A-23 Projector Support tool: query list Tip: If more then one PMP without serial number is listed, the MAC address must be checked. On the PMP board a label mentioning the MAC address can be found near the power connector on the same side as the heatsinks. 3.
  • Page 31 A. Backup and restore data Image A-24 Projector Support tool: hit browse in the restore section 4. Browse to the folder on the computer where the backup file is stored 5. Select the backup file and hit Open 6. In the Restore section, hit All settings Image A-25 Projector Support tool: browse to the backup folder 7.
  • Page 32 A. Backup and restore data Image A-26 Projector Support tool: overview of the files that will be restored 8. Wait for the restore process to be finished Image A-27 Projector Support tool: progress bar Image A-28 Projector Support tool: reboot of the PMP after the restore R59770498 PMP KIT 28/02/2011...
  • Page 33 A. Backup and restore data A successful restore of the backup file is indicated by a green oval, and the original serial number will be displayed in the Projector identification section of the user interface. Image A-29 An error during the restore of the backup file is indicated by a brief description and a red oval. Solve the cause of the problem and retry.
  • Page 34 A. Backup and restore data R59770498 PMP KIT 28/02/2011...

  • Page 35: Index

    Index INDEX backup 7, 15, 18 7–8, 10 making of backup installing replacing PMP kit Projector Support connecting description removing 7–8 input module input module 7, 12 installing replacing removing installation 5, 7 restore 13, 15, 21 5, 7 backup installing 10, 12 input module...
