KNOWING YOUR SEWING MACHINE —————————————————————————————————————————

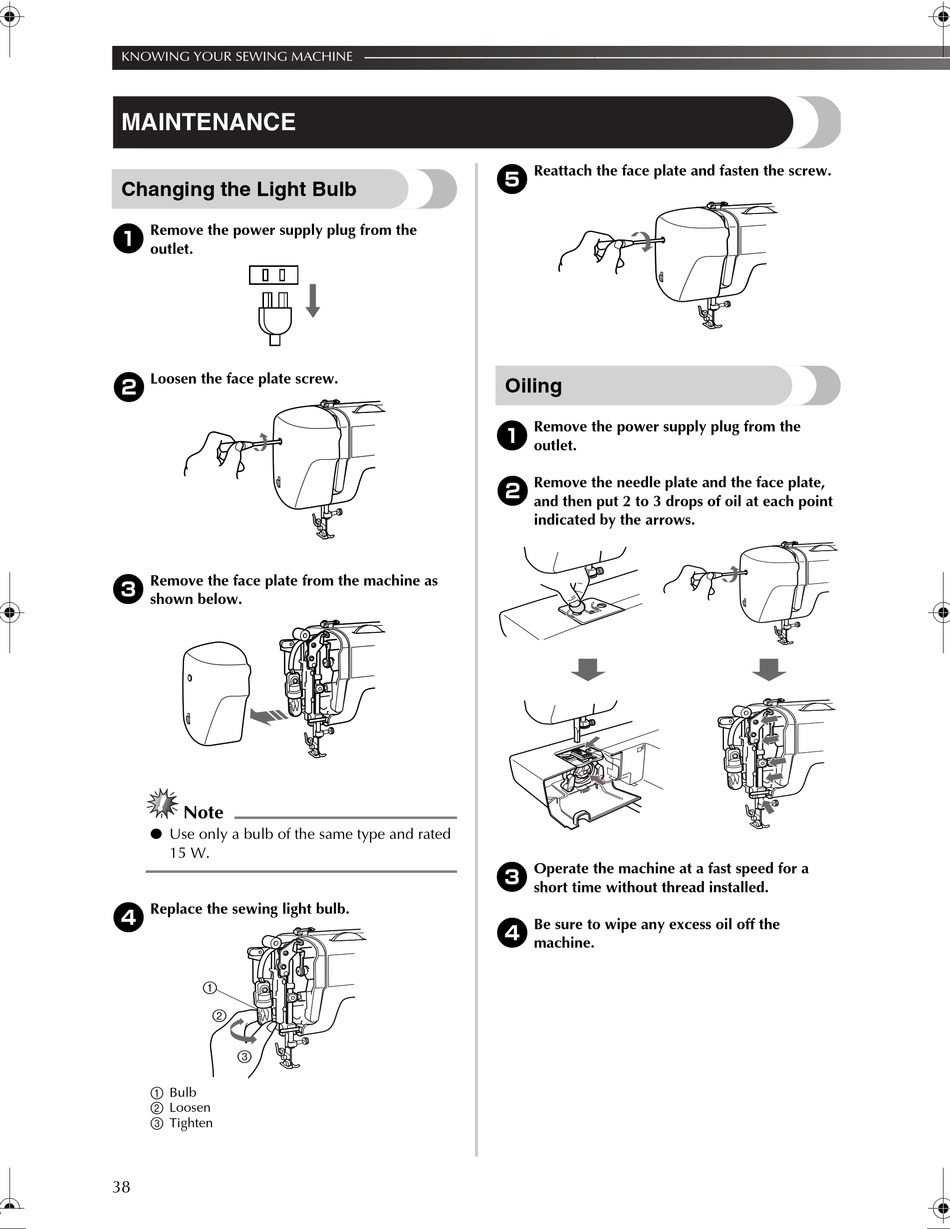

MAINTENANCE

Changing the Light Bulb

1 Remove the power supply plug from the
outlet.
2 Loosen the face plate screw.
3 Remove the face plate from the machine as
shown below.
Note
● Use only a bulb of the same type and rated
15 W.
4 Replace the sewing light bulb.
1
2
3
1 Bulb
2 Loosen
3 Tighten
38
5 Reattach the face plate and fasten the screw.

Oiling

1 Remove the power supply plug from the
outlet.
2 Remove the needle plate and the face plate,
and then put 2 to 3 drops of oil at each point
indicated by the arrows.
3 Operate the machine at a fast speed for a
short time without thread installed.
4
Be sure to wipe any excess oil off the
machine.
