Quick start guide
TL7612
DECT 6.0 cordless headset
and handset lifter

Advertisement

Table of Contents
loading

Related Manuals for AT&T TL7612

Summary of Contents for AT&T TL7612

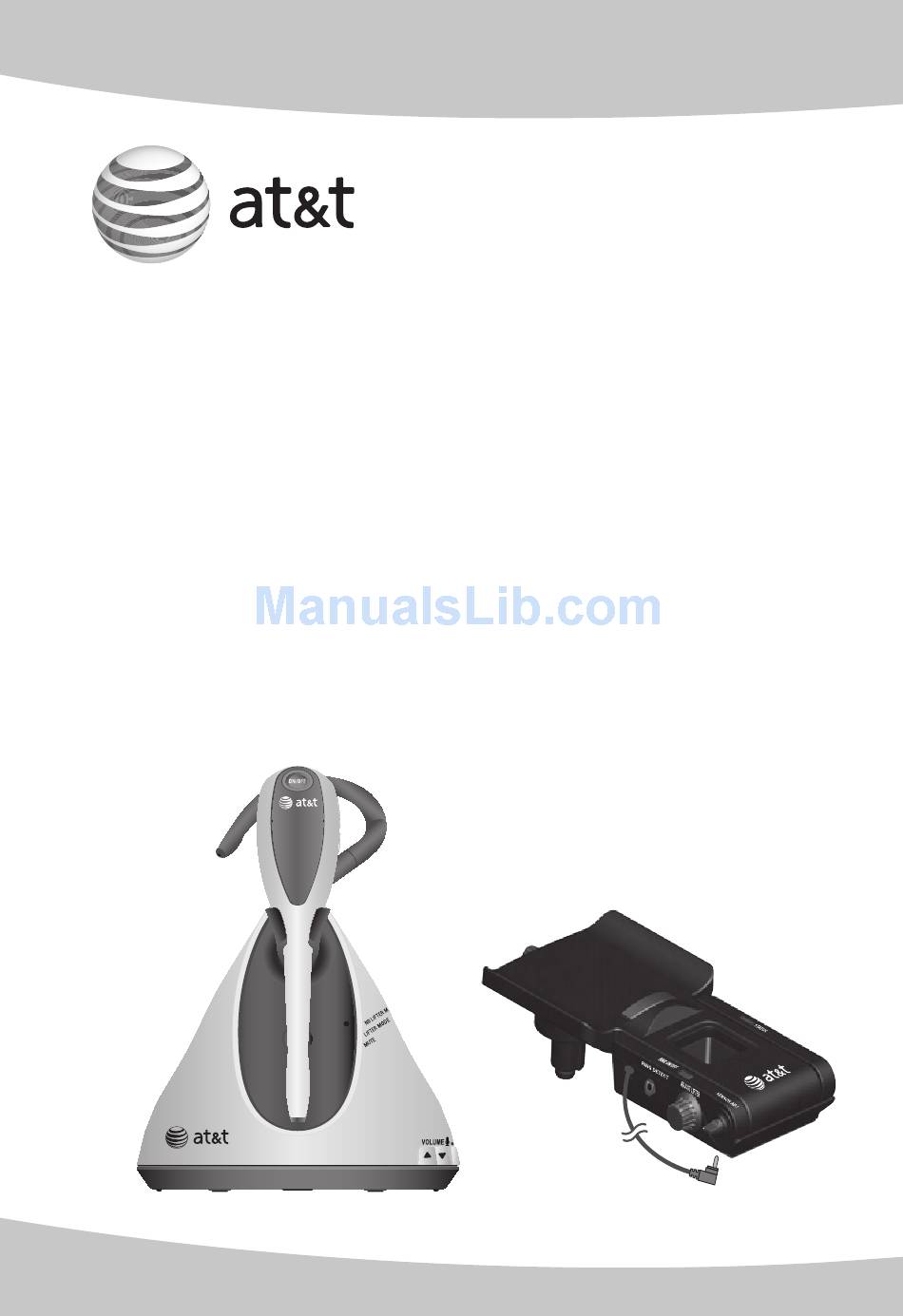

  • Page 1 Quick start guide TL7612 DECT 6.0 cordless headset and handset lifter...

  • Page 2: Installation

    Installation You must install and See pages 10-11 STOP charge the battery before for instructions. using the headset. If you subscribe to high-speed Internet service (DSL - digital subscriber line) through your telephone line, you must install a DSL filter between the telephone line cord and the telephone wall jack.
  • Page 3 Quick reference guide - headset ON/OFF Press to make and/or answer a call, and to end a call. Headset indicator lights ON/OFF light status • Headset is charging in the headset base. • Headset is trying to register to the headset base. •...
  • Page 4 Quick reference guide - headset VOLUME Press the volume keys on the side of the headset to adjust the listening volume when on a call. MUTE/FLASH Press to mute the microphone during a call. Press and hold to answer a call waiting call while on a call.
  • Page 5 Quick reference guide - headset Headset alert tones Three quick beeps • VOLUME keys are pressed when the volume is already at its highest or lowest setting. • The headset is not registered and the headset ON/ button was pressed. •...
  • Page 6 Quick reference guide - headset base Charging cradle Insert the headset here for charging. PAIR Press to register or deregister the headset. NO LIFTER MODE light On when NO LIFTER MODE is selected. Flashes while on a call, or another telephone is in use on the same line.
  • Page 7 Quick reference guide - headset base LIFTER AUDIO ADJUST Switch to choose the best headset audio quality when using LIFTER MODE. VOLUME / Press the volume keys on the side of the headset base to adjust the speaking volume while on a call. MODE Press to choose between NO LIFTER MODE or LIFTER MODE...
  • Page 8 Quick reference guide - headset base Headset base indicator lights NO LIFTER MODE LIFTER MODE MUTE NO LIFTER MODE • On when NO LIFTER MODE is selected (default mode). • Flashes quickly when there is an incoming call. • Flashes when the headset is in use or another telephone on the same line is in use.

  • Page 9: Lifter Arm

    Quick reference guide - handset lifter SENSOR ADJ knob Adjusts the sensitivity of the ring detector. ADJUST LIFTER knob Adjusts the height of the lifter arm. Lifter arm Holds the corded telephone handset. Switch hook presser When the CORDED HANDSET CONNECTED ON/OFF switch is set to YES, pressing on the headset raises or lowers the...
  • Page 10 Quick reference guide - handset lifter RING ON/OFF Press to turn the ring detector on or off. When the ring detector is off, the cordless headset does not ring. Switch hook presser adjustment knob Adjusts the position of the switch hook presser. Small lifter pad Holds the earpiece of the corded telephone handset.
  • Page 11 Quick reference guide - handset lifter STATUS light • On when the headset is not in use and the ring detector is turned off. • Flashes slowly when the headset is in use and the ring detector is turned off. Blue •...

  • Page 12: Battery Installation

    Battery installation Install the battery as shown below. After installing the battery, you may be able to make and receive short calls. For optimal performance, charge the headset battery for at least six hours before use. When the headset is not in use, recharge the headset by returning it to the headset base.

  • Page 13: Battery Charging

    Battery charging After installing the battery, charge the headset by placing it on the headset base as shown below. The headset ON/OFF light is on when the headset is charging. Push ON/OFF light Insert . Insert the headset into . Push the headset downward until the ON/OFF light on the charging cradle.

  • Page 14: Headset Base And Lifter Installation

    Headset base and lifter installation Installation preparation Before installing the headset base, remove the rear bottom piece of the headset base by pushing it away from the base (as shown in Figure ). Figure  Install the headset base as shown on the following pages. After completing installation option ,  or  (see page 5), slide the rear bottom piece towards the headset base until it clicks into place (as shown in Figure ).

  • Page 15: Headset Base And Handset Lifter Installation

    Headset base and handset lifter installation No lifter mode or lifter mode There are two answer modes available on the headset base. The current mode is indicated by the NO LIFTER MODE or LIFTER MODE lights on the front of the headset base. •...
  • Page 16 Headset base and handset lifter installation Cord labels The cords provided with your headset have colored labels attached to help you plug them into the headset base. The back of the headset base has colored dots above the jacks, and the names of the jacks on the rear bottom piece of the headset base corresponding to the colored labels on the cords.

  • Page 17: Installation Options

    Headset base and handset lifter installation Installation options You have three installation options: Option 1: Connect the handset lifter to a corded phone (pages - ). This option enables you to answer calls even if you are away from the telephone base. For this option, you can use the headset with a single line or multiple line corded telephone (such as the AT&T 00, 00 or 00) or a digital business system (such...
  • Page 18 Headset base and handset lifter installation Option 1: Connect the handset lifter to a corded phone . Unplug the curly handset cord from the telephone and plug it into the CURLY CORD jack (light blue dot) on the headset base. .
  • Page 19 Headset base and handset lifter installation Adjust the corded handset audio . Make sure that LIFTER MODE light on the headset base is on. Press the MODE button on the headset base to change the mode. . Lift the corded handset to release the switch hook.

  • Page 20: Attach The Lifter

    Headset base and handset lifter installation Attach the lifter . To choose where to install the lifter on your telephone, look at the space underneath the corded handset. If there is a speaker, the lifter should be centered over the speaker. If there is no speaker, the lifter should be centered within the space.
  • Page 21 Headset base and handset lifter installation Adjust the switch hook presser position Turn the knob to move the switch hook presser until it is lined up with your telephone switch hook. Adjust the height of the lifter arm Turn the ADJUST LIFTER knob to change the height of the lifter arm.
  • Page 22 Headset base and handset lifter installation Lifter adjustments and testing . Make sure that the headset base is set to LIFTER MODE and that the LIFTER AUDIO ADJUST setting is correct. . Turn the switch hook presser adjustment knob until the switch hook presser is just above the switch hook.
  • Page 23 Headset base and handset lifter installation Installation of large lifter pad (optional) If the small lifter pad cannot hold the corded handset steadily, you can attach a large lifter pad (provided) to enlarge the contact area. . Hold the large lifter pad in front of the small lifter pad as shown below.

  • Page 24: About Internal And Auxiliary Ring Detectors

    About internal and auxiliary ring detectors The internal or auxiliary ring detector detects the telephone ringer and sends a ring tone to the headset earpiece. If you installed the lifter over the top of the corded phone speaker, the internal ring detector will recognize when the phone rings.
  • Page 25 About internal and auxiliary ring detectors Ring detector on/off When the ring detector detects an incoming call, it sends a ring tone to the headset earpiece. • Press the RING ON/OFF button on the lifter to turn the ring detector on or off.

  • Page 26: Headset Base Installation

    Headset base installation Option 2: Connect the headset to a telephone wall jack In order to make calls using this installation option, you need a telephone plugged into the same telephone line or a dial pad (TL0 purchased separately). Make sure the headset base mode is set to NO LIFTER MODE.
  • Page 27 Headset base installation Option 3: Connect the headset to a corded or cordless phone To use this installation option, make sure the headset base mode is set to NO LIFTER MODE. • Plug the small end • Plug one end of the telephone of the headset line cord into the TEL WALL base power...

  • Page 28: Headset Operation

    Headset operation Making a call When the headset base is connected to a corded handset of your telephone with the handset lifter installed (option 1): You must select LIFTER MODE on the headset base. Press on the headset. The switch hook presser rises and releases the switch hook.
  • Page 29 Headset operation Answering a call on the headset When the headset base is connected to a corded handset of your telephone with the handset lifter installed (option 1): Press ON/ • on the headset. The switch hook presser rises and releases the switch hook. You hear the caller through the headset earpiece.
  • Page 30 www.telephones.att.com © 2011 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219. Printed in China. Issue 1 AT&T 03/11.
