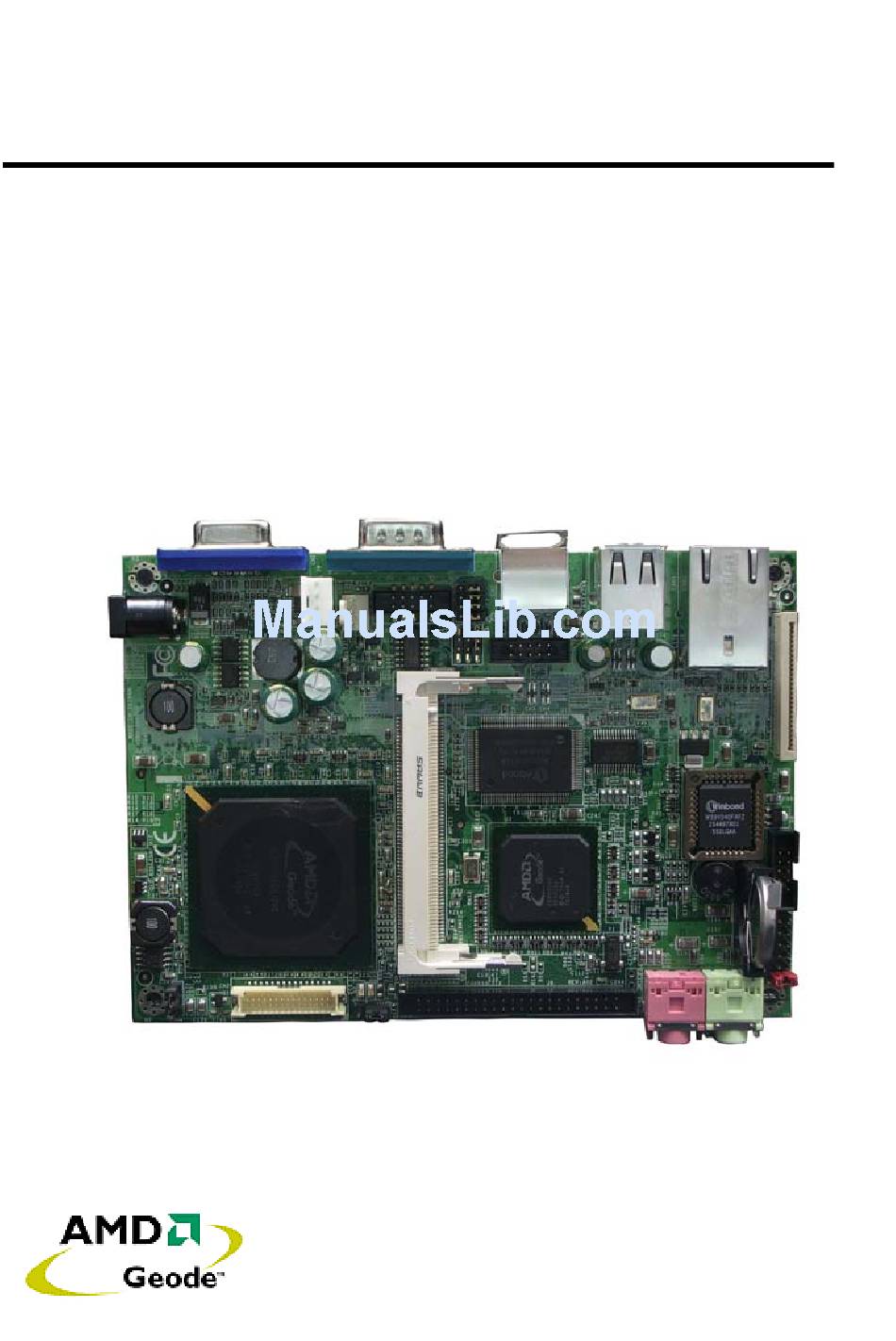

- Page 1 LE-366 AMD Geode LX800 3.5” Embeded Board User’s Manual Edition 1.0 2008/02/20...
- Page 2 LE-366 User’s Manual Copyright Copyright 2006. All rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
LE-366 User’s Manual Packing List Please check the package before you starting setup the system. Hardware: LE-366 series motherboard x 1 Cable Kit: 44pin 44pin 40pin Power Cable x 1 44-pin ATA33 IDE Cable x 1 Floppy Cable x 1 PS2 keyboard &... -
Page 4: Table Of Contents
LE-366 User’s Manual Index Chapter 1 <Introduction> ..............6 1.1 <Product Overview> ................6 1.2 <Product Specification> .................7 1.3 <Mechanical Drawing> ................9 1.4 <Block Diagram>...................10 2.1<Connector Location> ................11 2.1.1 <Connector Reference> ............. 13 2.1.2 <External Connector>..............13 2.2 <CPU and Memory Setup> ..............14 2.2.1 <CPU Setup>... - Page 5 LE-366 User’s Manual A.7 <PS/2 Keyboard & Mouse Port>............35 Appendix B <Flash BIOS> ..............37 BIOS Auto Flash Tool ..............37 Flash Method................37 Appendix C <System Resources> ..........38 Appendix D <Programming GPIO’s> ........42...
- Page 6 LE-366 User’s Manual (The Page is Left For Blank)
-
Page 7: Chapter 1
Low Power Consumption Based on the AMD Geode LX800@500MHz processor onboard, it only takes up to 3.8W at maximum powering, and is completely suitable for fan-less design. Without any cooling fan onboard, it can avoid the heat problem when the cooler failed in accidence. -
Page 8: Product Specification
Green Function ACPI 1.0 and APM 1.2 compliant Watchdog Timer PIT (Programmable Interval Timer) with 3 channels Real Time Clock AMD Geode CS5536 built in RTC with Lithium Enhanced IDE UDMA ATA 33 ATA IDE connection Multi-I/O Port Chipset AMD Geode CS5536+Winbond W83627HG... - Page 9 Power Requirement 12V DC Jack power connector Temperature Operating temperature with 0℃~60℃ (32℉ ~ 140℉) Storage temperature with 20℃~ 80℃ (-68℉ ~ 176℉) Ordering Code LE-366 AMD LX800 processor Mini-ITX with onboard VGA, GigaLAN, RS232, USB2.0, Audio, LCD and DDR DIMM...
-
Page 10: Mechanical Drawing
LE-366 User’s Manual 1.3 <Mechanical Drawing> ‘ ‘ ‘ ‘ ‘ ‘... -
Page 11: Block Diagram
LE-366 User’s Manual 1.4 <Block Diagram> 16Mbx16 DDR DIMM AMD Geode Processor LVDS MiniPCI PCI BUS/33Mhz SLOT RealTek LAN1 IDE X 1 RTL8110SB CFD X 1 Geode CS5536 AUDIO ALC203 4 x USB2.0 ports JACK 83627HF Flash BIOS KB & MS... -
Page 12: Connector Location
LE-366 User’s Manual Chapter 2 <Hardware Setup> 2.1<Connector Location> USB2 CN9 P2 JP3 CN7 LAN1 USB1 FDD1 MPCI1 MIC1 JSPK1 LAN1 USB1 LINE OUT... -
Page 13: Jumper Reference
LE-366 User’s Manual <Jumper Reference> Jumper Function LVDS Panel Voltage Selection (+5V / + 3.3V) COM2 RS232/422/485 Select COM2 RS232/422/485 Select Clear CMOS Selection CFD Master/Slave Selection RS-232 RS-485 RS-422 -12-... -
Page 14: Connector Reference
LE-366 User’s Manual 2.1.1 <Connector Reference> Connector Function Remark VGA Display / Audio Connector Standard Front Audio Connector LVDS Connector Slim Front Panel Connector Slim COM2 RS-232 / RS-422 / RS-485 Connector Standard PS2 Keyboard / Mouse Connector Standard GPIO Connector Standard SYSTEM Fan Connector Standard... -
Page 15: Cpu And Memory Setup
LE-366 User’s Manual 2.2 <CPU and Memory Setup> 2.2.1 <CPU Setup> The board integrates AMD Geode LX800 500MHz processor with special design for power appliance. It requires only 3.8W power consumption at most, and is totally designed for fan-less system. - Page 16 LE-366 User’s Manual 2.5 <CMOS Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. Jumper: J4 Type: Onboard 3-pin jumper Mode...
-
Page 17: Enhanced Ide & Cf Interface
LE-366 User’s Manual 2.3 <Enhanced IDE & CF Interface> The board has one Ultra DMA33 IDE interface to support up to 2 ATAPI devices, and one Compact Flash Type II socket on the solder side. -16-... -
Page 18: Floppy Port
LE-366 User’s Manual 2.4 <Floppy Port> The board provides a slim type floppy port; please use the 26-pin FPC cable in the package to connect the floppy device. Floppy rear side Lift up this plastic bar Slot the cable in (Blue paste for outside) Press back the plastic bar Lift up the brown plastic bar Slot the cable in (Blue paste for... -
Page 19: Analog Vga Interface
LE-366 User’s Manual 2.8 <Onboard Display Interface> The board integrates AMD Geode LX800 processor with built-in 2D video engine, to provide onboard DB15 VGA connector, 18-bit LVDS interface. The built-in 2D video engine supports following specified functions: ● High-performance 2D graphics controller ●... -
Page 20: Digital Display
LE-366 User’s Manual 2.4.2 <Digital Display> The board provides one 30-pin LVDS connector for 18-bit single channel panel, supports up to 1024 x 768 of resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting Connector: JP1 Type: 3-pin Power select Header Description VCC (5V) - Page 21 LE-366 User’s Manual Connector: CN_LVDS (CN2) (for 18 bit Single channel LVDS panel) Type: 30-pin header (15 x 2 pitch 2.0 mm) Connector model: Hirose DF13-40DP-1.25V Assignment Assignment BKL_EN BKL_CTL LVDS_VCC LVDS_CH1_CLK- LVDS_CH1_CLK+ LVDS_VCC LVDS_CH1_DATA0- LVDS_CH1_DATA0+ LVDS_CH1_DATA1- LVDS_CH1_DATA1+ LVDS_CH1_DATA2- LVDS_CH1_DATA2+ LVDS_DDCPDATA LVDS_DDCPCLK LVDS_VCC...
- Page 22 LE-366 User’s Manual To setup the LCD, you need the component below: A panel with LVDS interfaces. An inverter for panel’s backlight power. A LCD cable and an inverter cable. For the cables, please follow the pin assignment of the connector to make a cable, because every panel has its own pin assignment, so we do not provide a standard cable;...
- Page 23 LE-366 User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: Panel Number Resolution 640 x 480 800 x 600 1024x 768 -22-...
- Page 24 LE-366 User’s Manual <USB2.0 Interface> Based on AMD CS5536, the board provides 2 x USB2.0 ports. The USB2.0 interface provides up to 480Mbps of transferring rate. Interface USB2.0 Controller CS5536 Transfer Rate Up to 480Mb/s Output Voltage 500mA...
-
Page 25: Gpio Interface
LE-366 User’s Manual 2.5 <GPIO Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN8 Type: onboard 2 x 6-pin header, pitch=2.0mm Assignment -24-... -
Page 26: Serial Port Jumper Setting
LE-366 User’s Manual 2.6 <Serial Port Jumper Setting > The COM1 RS232 serial port, with jumper selectable RS232/422/485 for CN_COM2 Connector: COM1 Type: 9-pin Dip male connector on I/O Panel Assignment Assignment DCD1# RXD1 TXD1 DTR1# DSR1# RTS1# CTS1# RI1# COM1... -
Page 27: Power Input
LE-366 User’s Manual 2.7 <Power and Fan Connector> The LE-366 provides a standard ATX power supply with 20-pin ATX connector, and the board provides one 4-pin P4 additional use power connector for internal power supply and one 3-pin cooler fan connector for system. 2.6.1 <Power Input>... - Page 28 LE-366 User’s Manual 2.7.3 <Fan Connector> Connector: SYSFAN Type: 3-pin fan wafer connector Description Description Description Ground +12V Fan Control Connector: DC_IN Type: 2-pin DC power connector Description Description +12V +12V Ground Ground SYSFAN...
- Page 29 LE-366 User’s Manual 2.8 <Indicator and Switch> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: CN3 Type: onboard 14-pin (2 x 7) 2.54-pitch header Assignment Assignment Power Switch...
- Page 30 LE-366 User’s Manual (This Page is Left For Blank)
-
Page 31: Chapter 3
LE-366 User’s Manual Chapter 3 <BIOS Setup> The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 32 LE-366 User’s Manual (This Page is Left for Blank)
-
Page 33: Appendix A
LE-366 User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <IDE Port> Connector: J6 Type: 44-pin (22 x 2) box header Assignment Assignment IDERST# PID7 PID8 PID6 PID9 PID5 PID10 PID4 PID11 PID3 PID12 PID2 PID13 PID1 PID14 PID0 PID15 PDREQ PIOR# PIOR#... -
Page 34: A.2
LE-366 User’s Manual A.2 <Floppy Port> Connector: FDD1 Type: 26-pin connector Assignment Assignment INDEX# DRV_SEL# DSK_CH# MOTOR# DIR# DENSEL# STEP# WDATA# WGATE# TRACK# WOROT# RDATA# SIDE# A.3 <Serial Port> Connector: COM2 (CN4) Type: 9-pin D-sub male connector on bracket Assignment Assignment DCD2# (422TXD-/485DATA-) RXD2 (422RXD+) -
Page 35: A.4
LE-366 User’s Manual A.4 <CRT Port> Connector: CRT Type: 15-pin D-sub female connector on I/O Panel Description Description Description Ground GREEN Ground CRT_DDCDATA BLUE Ground HSYNC VGA_VCC VSYNC Ground Ground CRT_DDCCLK A.5 <LAN Port> Connector: RJ45 Type: RJ45 connector with LED on I/O Panel Description MI0+ MI0-... -
Page 36: A.7
LE-366 User’s Manual A.7 <PS/2 Keyboard & Mouse Port> Connector: Mouse / Keyboard Type: 6-pin Mini-DIN connector on bracket Assignment Assignment KB_DATA MS_DATA KB_VCC KB_CLK MS_CLK... - Page 37 LE-366 User’s Manual (This Page is Left for Blank)
-
Page 38: Appendix B
LE-366User’s Manual Appendix B <Flash BIOS> B.1 BIOS Auto Flash Tool The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: h ttp://www.award.com File name of the tool is “awdflash.exe”, it’s the utility that can write the data into the BIOS flash ship and update the BIOS. -
Page 39: Appendix C
LE-366 User’s Manual Appendix C <System Resources> C1. <I/O Port Address Map> -38-... - Page 40 LE-366 User’s Manual...
- Page 41 LE-366 User’s Manual C2. <Memory Address Map> -40-...
- Page 42 LE-366 User’s Manual C3. <System IRQ Resources>...
-
Page 43: Appendix D
LE-366 User’s Manual Appendix D <Programming GPIO’s> The GPIO can be programmed with the MSDOS debug program using simple IN/OUT commands. The following lines show an example how to do this. GPIO0...GPIO7 bit0……bit7 -o 4E 87 ;enter configuration -o 4E 87 -o 4E 2A -o 4F FD ;enable GPIO function... - Page 44 LE-366 User’s Manual Appendix E <Watch Dog timer Setting > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range - 1 to 255 - Second or Minute Program Sample...
- Page 45 LE-366 User’s Manual (This Page is Left for Blank) -44-...
