Aiphone MKW-DK/A Instructions

Remote Activation Interface Adaptor for Video Door Stations
The MKW-DK/A Adaptor allows any standard motion detector or activation device with a normally open
contact to be interfaced with any 2-wire Aiphone Video Door Station (except KB-DAR). When the
activation device is tripped, the camera will turn on, and a chime (or tone) will be heard at the inside
monitor station(s), indicating that there is some activity near the door station location.

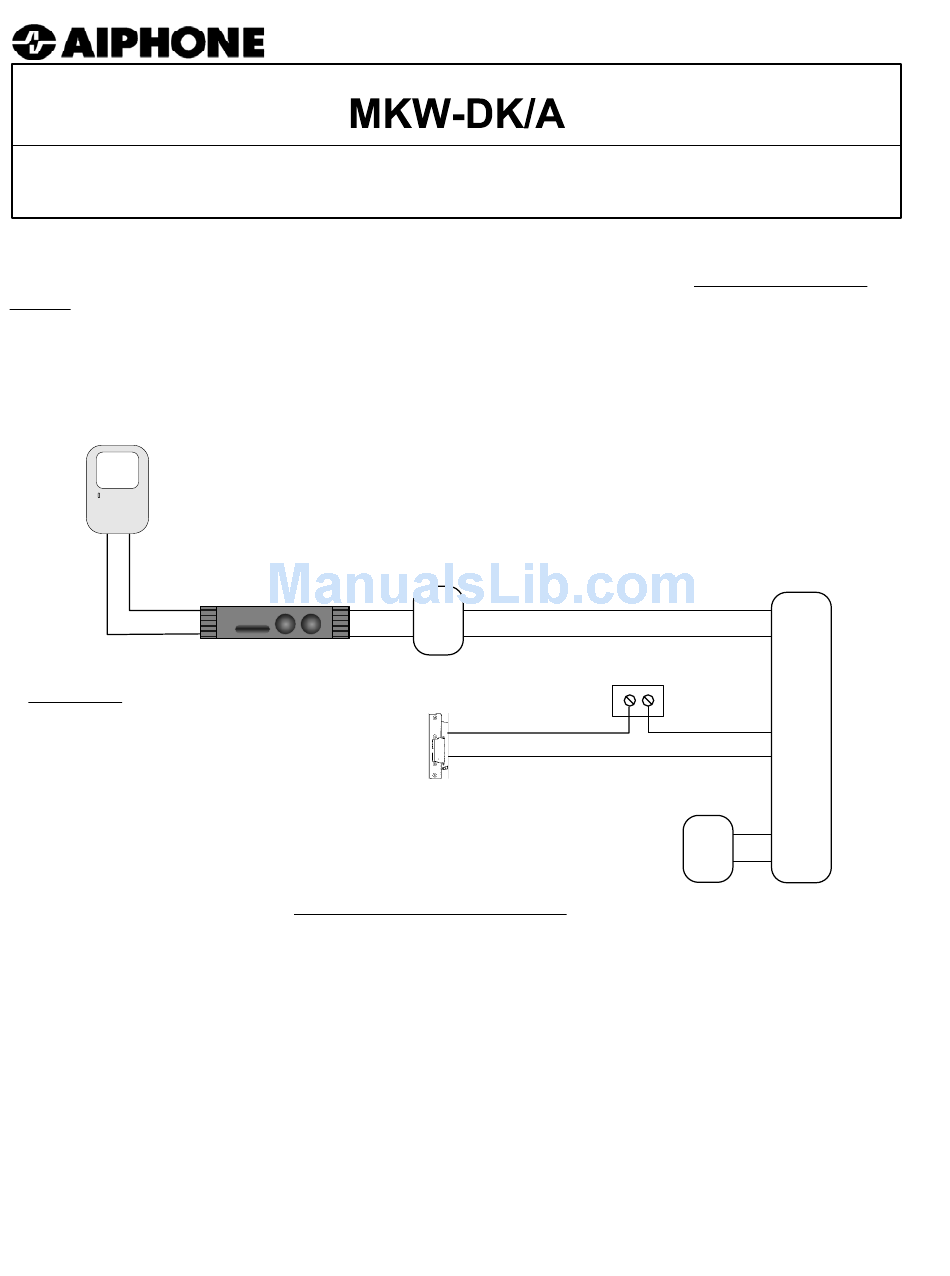

WIRING DIAGRAM:

Motion Detector*
Must be installed within 2' of door station.
White
* Use any activation device that provides a
normally open momentary dry closure.
Motion Detector
Remote Mushroom push button
PIR detector
Pressure Pad
MKW-DK/A Dimensions (HxWxD):
5/8" x 3" x 5/8"
Installation Guidelines:
1. The motion detector must provide a normally open momentary contact. A Photelectric beam, pressure
pad, or remote call button can also be used to activate the video door station.
2. MKW-DK/A must be installed within 2 feet of video door station. The unit is not weather proof, so it should be
installed in a protected enclosure, preferably in the box behind the video door station.
3. The MKW-DK/A can be used to connect a motion detector to all MK, MY, KA, KC, JA, JB and JF series video
door stations.
4. The above diagram is representative of the installation of the MKW-DK/A to an Aiphone video system.
Terminal designations on the monitor/adaptor will vary slightly depending on the system being installed.
5. The MKW-DK/A is not compatible with the KB-DAR. Contact Aiphone for information on model KB-DAR-M
(KB-DAR with input for remote activation).
Note:
For complete system installation, please refer to the instruction manuals included with the video system.
Aiphone Communication Systems
1700 130th Ave. N.E.
Bellevue, WA 98005
(425) 455-0510
FAX (425) 455-0071
- INSTRUCTIONS -
Video Door
MKW-DK/A
Yellow
Door Strike
TOLL FREE TECHNICAL SUPPORT:
TOLL FREE FAX LINE:
E-MAIL: tech-serv@aiphone.com
Station
A1
A2
(AC Transformer)
(800) 692-0200
(800) 832-3765
Aiphone Monitor
1A1
1A2
PT-1210N
Power
Supply
+
-
L
L
+
-
MKW-DK/A Instr.
0207JDJS
