AEG Electrolux U30130 21602 G Operating Instructions Manual

Electrolux gas hob operating instructions

Advertisement

Quick Links

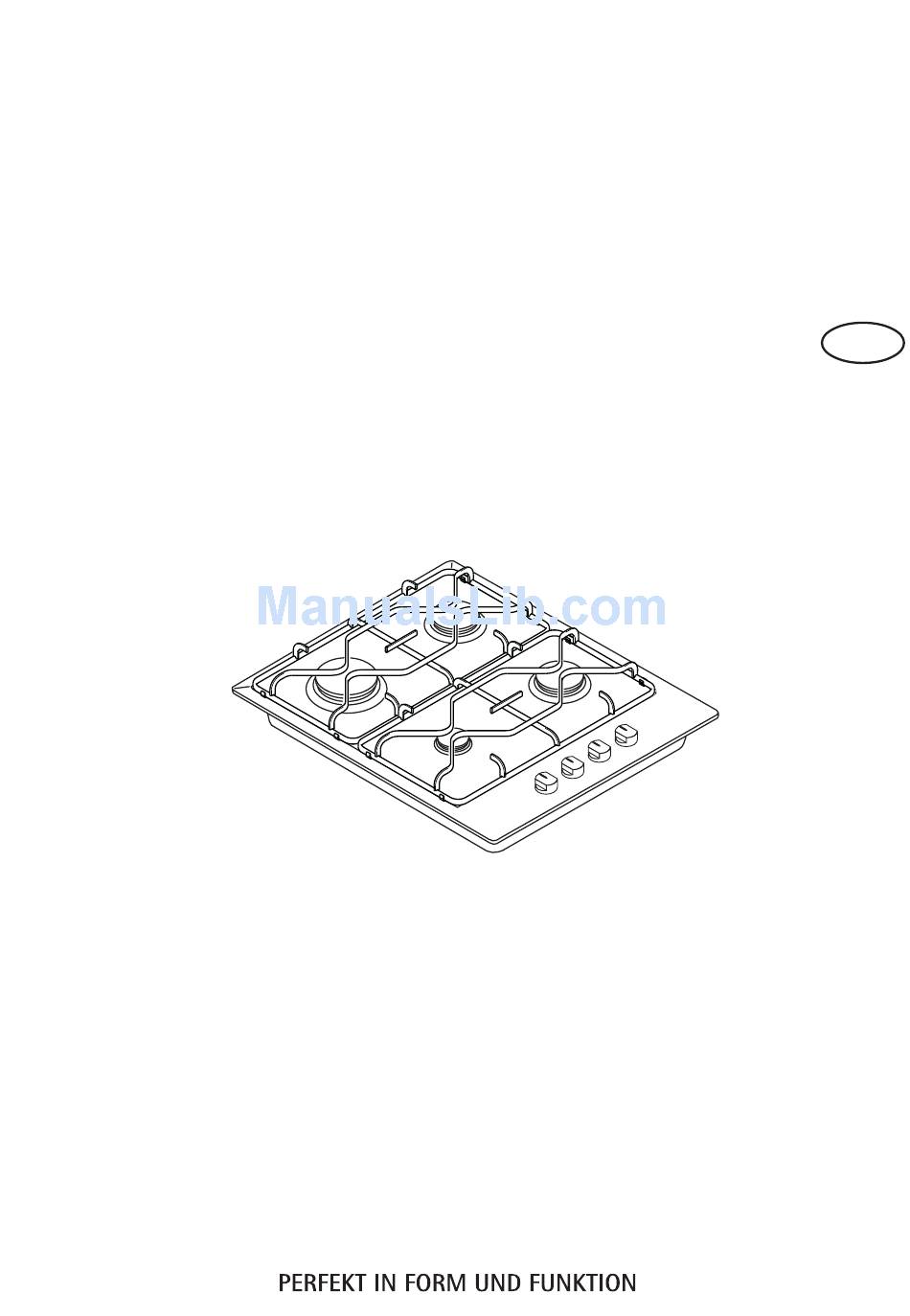

21602 G
Gas hob
Operating Instructions
GB

Advertisement

Table of Contents
loading

Summary of Contents for AEG Electrolux U30130 21602 G

  • Page 1 21602 G Gas hob Operating Instructions...
  • Page 3: Important Safety Information

    Important Safety Information You MUST read these warnings carefully before installing or using the hob. If you need assistance, contact our Customer Care Department on 08705 350350 Installation This hob must be installed by qualified personnel, according to the manufacturer’s instructions and to the relevant British Standards.
  • Page 4 Ensure the control knobs are in the ‘OFF’ position when not in use. When using other electrical appliances, ensure the cable does not come into contact with the hot surfaces of the cooking appliance. Unstable or misshapen pans should not be used on the hob as unstable pans can cause an accident by tipping or spillage.
  • Page 5: Table Of Contents

    Contents Important Safety Information ... 3 Description of the Hob ... 6 Operation ... 7 Maintenance and Cleaning ... 8 The Hob Top... 8 Pan Supports ... 8 The Burners ... 8 Something Not Working? ... 9 Service and Spare Parts ... 10 Guarantee Conditions ...
  • Page 6: Description Of The Hob

    Description of the Hob 1. Hob Top 2. Rapid Burner 3. Semi-rapid Burners 4. Auxiliary Burner 5. Control knob for back right burner (semi-rapid) 6. Control knob for back left burner (semi-rapid) 7. Control knob for front left burner (rapid) 8.
  • Page 7: Operation

    Take care when frying food in hot oil or fat, as the overheated splashes could easily ignite If the control knobs become difficult to turn, please contact your local AEG-Electrolux Service Force Centre. minimum...
  • Page 8: Maintenance And Cleaning

    Maintenance and Cleaning Before any maintenance or cleaning can be carried out, you must DISCONNECT the hob from the electricity supply. The hob is best cleaned whilst it is still warm, as spillage can be removed more easily than if it is left to cool. The Hob Top Regularly wipe over the hob top using a soft cloth well wrung out in warm water to which a little wasing up liquid has been added.
  • Page 9: Something Not Working

    There is no spark when lighting the The gas ring burns unevenly If after all these checks, your hob still does not operate correctly, contact your local AEG-Electrolux Service Force Centre. Please note that it will be necessary to provide proof of purchase for any in-guarantee service calls.
  • Page 10: Service And Spare Parts

    5. Date of purchase CUSTOMER CARE For general enquiries concerning your AEG-Electrolux appliance and for further information on AEG-Electrolux products, contact our Customer Care Department by letter or telephone at the address below or visit our website at www.aeg.co.uk...
  • Page 11: Guarantee Conditions

    Standard guarantee conditions We, AEG-Electrolux, undertake that if within 12 months of the date of the purchase this AEG-Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our discretion repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: •...
  • Page 12: Instructions For The Installer

    Instructions for the Installer Engineer technical data OVERALL DIMENSIONS CUT OUT DIMENSIONS SUPPLY CONNECTIONS HEAT INPUT Rear Left Burner (semi rapid) Front Left Burner (rapid) Rear Right Burner (semi rapid) Front Right Burner (auxiliary) APPLIANCE CLASS APPLIANCE CATEGORY GAS SUPPLY Width: 580 mm Depth: 500 mm Width: 550 mm...
  • Page 13 BURNER TYPE OF GAS POSITION NOMINAL THERMAL POWER NATURAL GAS 20 mbar NOMINAL FLOW VALUE = RATE 37.78 MJ/m NOZZLE REFERENCE Ws - 50.7 MJ/ m 1/100 mm NOMINAL THERMAL LPG GAS POWER 28-30/37 mbar NOMINAL FLOW VALUE = RATE 49.92 MJ/Kg NOZZLE REFERENCE 1/100 mm...
  • Page 14: Important Safety Requirements

    Important safety requirements This hob must be installed in accordance with the Gas Safety (Installation and Use) Regulations (Current Edition) and the IEE Wiring Regulations (Current Edition). Detailed recommendations are contained in the following British Standards Codes Of Practice: B.S. 6172/ B.S. 5440, Par. 2 and B.S. 6891 Current Editions. The hob should not be installed in a bed sitting room with a volume of less than 20 m .
  • Page 15: Installation

    CLEARANCES REQUIRED WHEN FITTING THE GAS HOB WITHOUT A COOKER HOOD ABOVE 700 mm 400 mm FO 0812 Installation IMPORTANT This hob must be installed by qualified personnel to the relevant British Standards. Any gas installation must be carried out by a registered CORGI installer. The manufacturer will not accept liability, should the above instructions or any of the other safety instructions incorporated in this book be ignored.
  • Page 16: Gas Connection

    FO 0264 A) End of shaft with nut B) Washer C) Elbow On the end of the shaft, which includes the G 1/2" threaded elbow, adjustment is fixed so that the washer is fitted between the components as shown in the diagram. Screw the parts together without using excessive force.
  • Page 17: Cut Out Size

    Cut Out Size The dimensions of the cut-out are given in the diagram. FO 2109 Building In Building over a cupboard or drawer If the hob is to be installed above a cupboard or drawer it will be necessary to fit a heat resistant board below the base of the hob on the underside of the work surface.
  • Page 18: Building Over A Kitchen Unit With Door

    ON/OFF SWITCH FLEX OUTLET FO 0763 Building over a kitchen unit with door Proper arrangements must be taken in designing the furniture unit, in order to avoid any contact with the bottom of the hob which can be heated when it is operated.
  • Page 19: Fitting The Hob To The Worktop

    Fitting the hob to the worktop Before fitting the hob into the cut out, a sealing gasket supplied with the hob must be fitted to the edge of the cut out. It is essential that no gaps are left in this seal in order to prevent spillage near the hob seeping into the cabinet below.
  • Page 20: Electrical Connections

    Electrical connections Any electrical work required to install this hob should be carried out by a qualified electrician or competent person, in accordance with the current regulations. THIS HOB MUST BE EARTHED. The manufacturer declines any liability should these safety measures not be observed. This hob is designed to be connected to a 230 V 50 Hz AC electrical supply.
  • Page 21: Permanent Connection

    Permanent Connection In the case of a permanent connection, it is necessary that you install a double pole switch between the hob and the electricity supply (mains), with a minimum gap of 3 mm. between the switch contacts and of a type suitable for the required load in compliance with the current electric regulations.
  • Page 22: Fault Finding

    Fault Finding Preliminary Electrical Systems Check START Isolate appliance and carry out: A: Earth Continuity check. Y E S Has inlet fuse blown? Inlet wiring faulty. Rectify any fault. Isolate appliance and carry out: B: Insulation check. Rectify any fault including replacing fuses as necessary.
  • Page 23 A. EARTH CONTINUITY CHECK Appliance must be electrically disconnected - meter set on W (Ohms) x 1 scale and adjust zero if necessary. — Test leads from any appliance earth point to earth pin on plug. Resistance should be less than 0.1 W (Ohm), check all earth wires for continuity and all contacts clean and tight.
  • Page 24: Ignition System / Gas Ignition

    Ignition System / Gas Ignition Ignitor does not spark Check plug top fuse and replace if necessary Check polarity and earth continuity of supply point Check earth continuity of appliance Check continuity from 'N' on the mains connector block and "O" on the ignitor unit Check continuity from 'L' on the mains connector block and the...
  • Page 25: Commissioning

    Commissioning When the hob has been fully installed it will be necessary to check the minimum flame setting. To do this, follow the procedure below. 1) Turn the gas tap to the MAX position and ignite. 2) Set the gas tap to the MIN flame position then turn the control knob from MIN to MAX several times.
  • Page 26: Conversion From Natural Gas To Lpg

    Conversion from Natural Gas to LPG It is important to note that this model is designed for use with natural gas but can be converted for use with butane or propane gas providing the correct injectors are fitted. The gas rate is adjusted to suit.
  • Page 28 © Copyright by AEG From the Electrolux Group. The world’s No.1 choice. The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
