Installation Wizard; Iscsi Initiator Properties: Discovery Tab - HP StorageWorks 6400/8400 - Enterprise Virtual Array User Manual

Figure 29 Installation Wizard
.
c. Click the Microsoft iSCSI initiator icon to open the Control Panel applet.
The iSCSI Initiator Properties window opens.
d. Select the Discovery tab

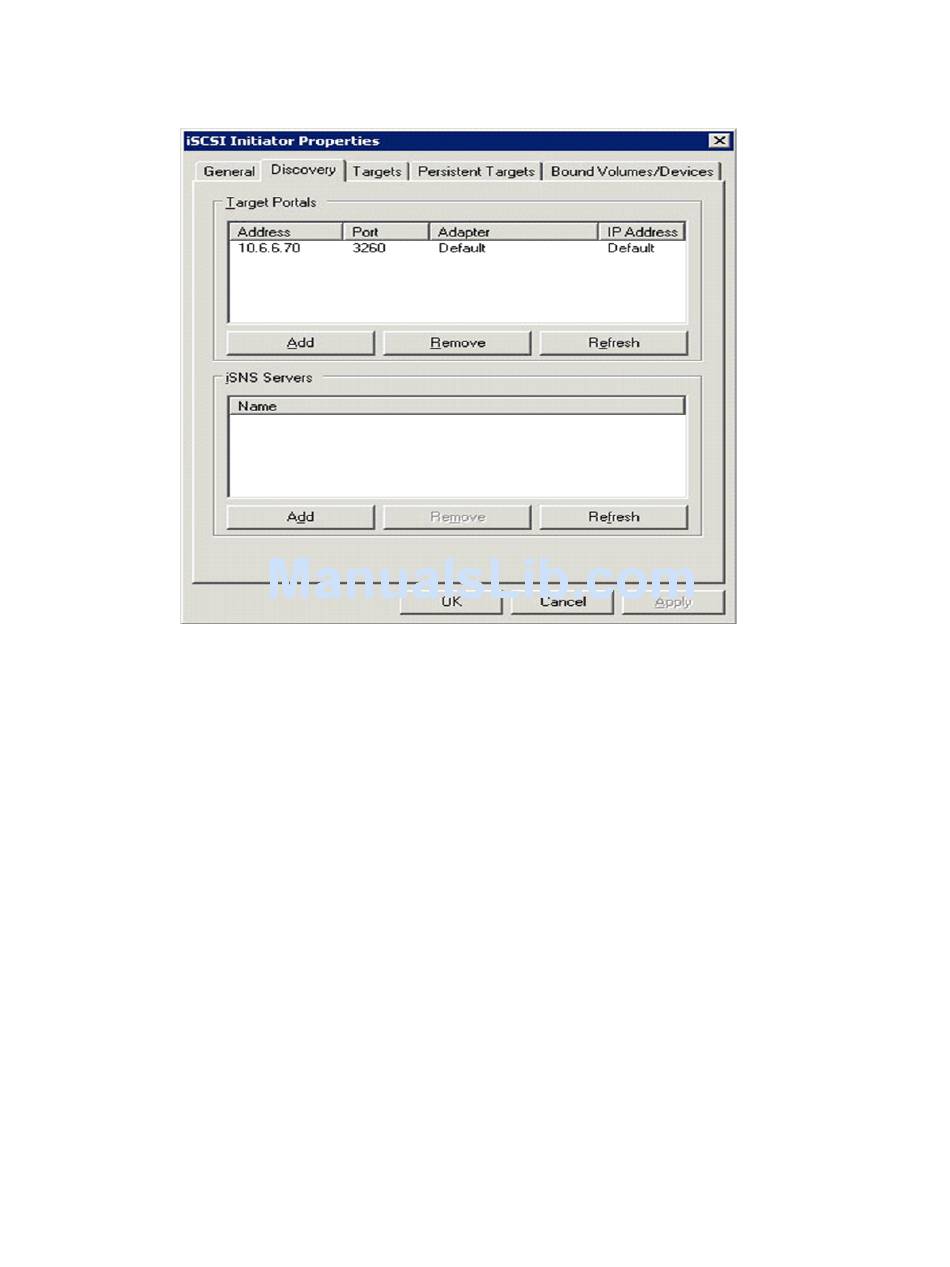

Figure 30 iSCSI initiator properties: Discovery tab
.
e. In the Target Portals section, click Add.
A dialog box opens.
f. Enter the iSCSI port IP address.
g. Click OK.
The discovery is complete.
(Figure 30).
MPX200 Multifunction Router 57
