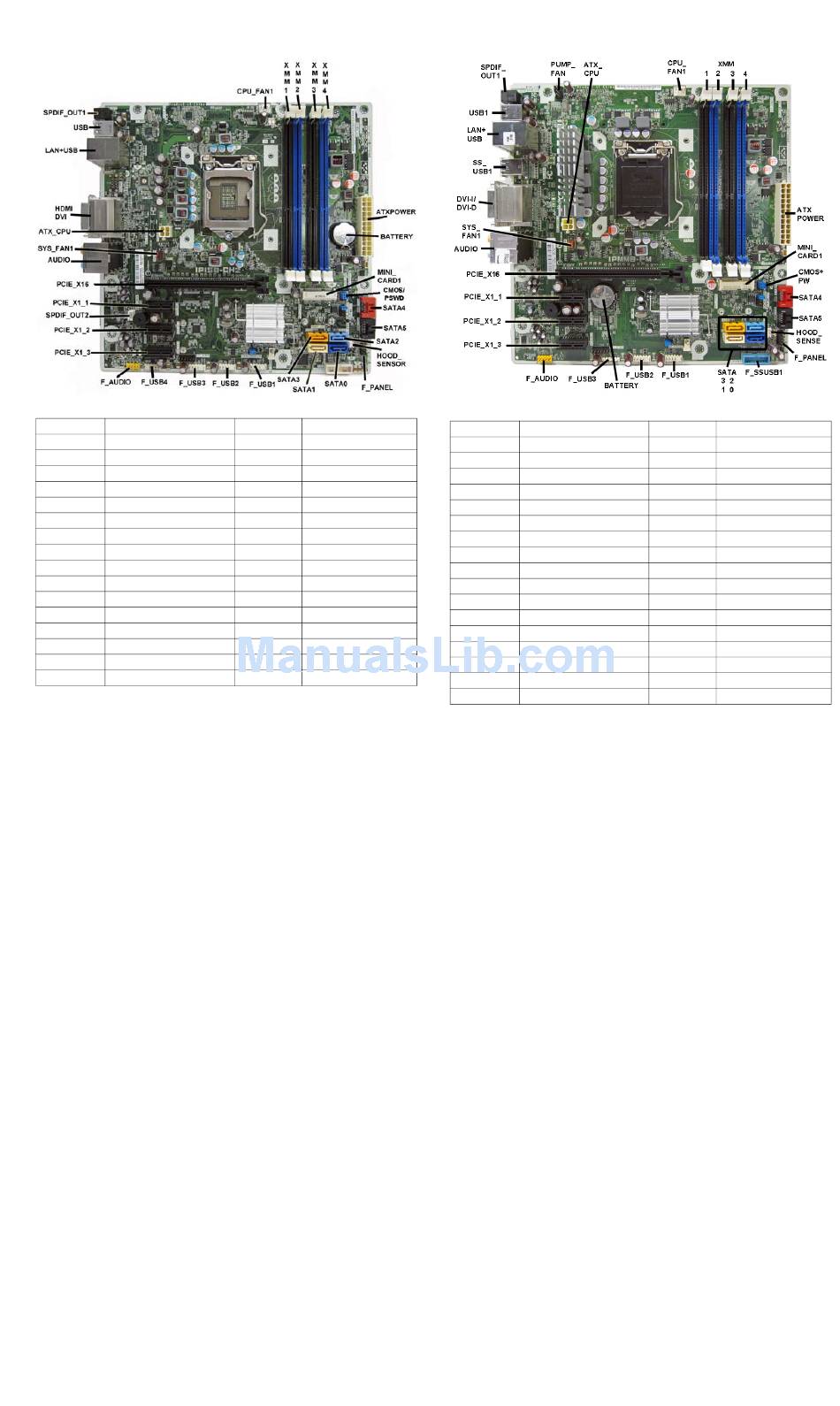

System Board for use in HP Pro 7300 models
System Board Connectors and Jumpers (component location may vary)
CPU_FAN1 Heat sink fan connector
XMM1 Memory socket - channel A
XMM2 Memory socket - channel B
XMM3 Memory socket - channel A
XMM4 Memory socket - channel B
ATXPOWER Main power connector
BATTERY RTC battery socket
MINI_CARD1 Mini PCIe connector
CMOS/PSWD CMOS/password header
SATA4 SATA drive
SATA5 SATA drive
SATA2 1st optical drive
HOOD_SENSOR Hood sensor connector
F_PANEL Front panel connector
SATA0 1st hard drive
SATA1 2nd hard drive
SATA3 2nd optical drive
HP Elite 7300/7500, MT
F_USB1 1st USB connector
F_USB2 2nd USB connector
F_USB3 3rd USB connector
F_USB4 4th USB connector
F_AUDIO Front audio connector
PCIEX1_3 PCIe X1 slot
PCIEX1_2 PCIe X1 slot
SPDIF_OUT2 Internal SPDIF connector
PCIEX1_1 PCIe X1 slot
PCIEX16 PCIe X16 slot
AUDIO Audio connectors
SYS_FAN1 Fan connector
ATX_CPU CPU power connector
HDMI/DVI Combo HDMI/DVI connector
LAN+USB LAN + USB connector
USB USB connectors
SPDIF_OUT21 External SPDIF connector
663324-003
System Board for use in HP Pro 7500 models
System Board Connectors and Jumpers (component location may vary)
SPDIF_OUT1 Internal SPDIF connector
PUMP_FAN CPU cooler connector
ATX_CPU CPU power connector
CPU_FAN1 Heat sink fan connector
XMM1 Memory socket - channel A
XMM2 Memory socket - channel B
XMM3 Memory socket - channel A
XMM4 Memory socket - channel B
ATXPOWER Main power connector
MINI_CARD1 Mini PCIe connector
CMOS/PW CMOS/password header
SATA4 SATA drive
SATA5 SATA drive
HOOD_SENSE Hood sensor connector
F_PANEL Front panel connector
F_SSUSB1 Internal USB 3.0 connector
SATA0 1st hard drive
SATA1 2nd hard drive
SATA2 1st optical drive
SATA3 2nd optical drive
F_USB1 1st USB connector
F_USB2 2nd USB connector
BATTERY RTC battery socket
F_USB3 3rd USB connector
F_AUDIO Front audio connector
PCIEX1_3 PCIe X1 slot
PCIEX1_2 PCIe X1 slot
PCIEX1_1 PCIe X1 slot
PCIEX16 PCIe X16 slot
AUDIO Audio connectors
SYS_FAN1 Fan connector
DVI-D//DVI-I Combo HDMI/DVI connector
SS_USB1 USB 3.0 connectors
LAN+USB LAN + USB connector
USB1 USB 2.0 connectors
