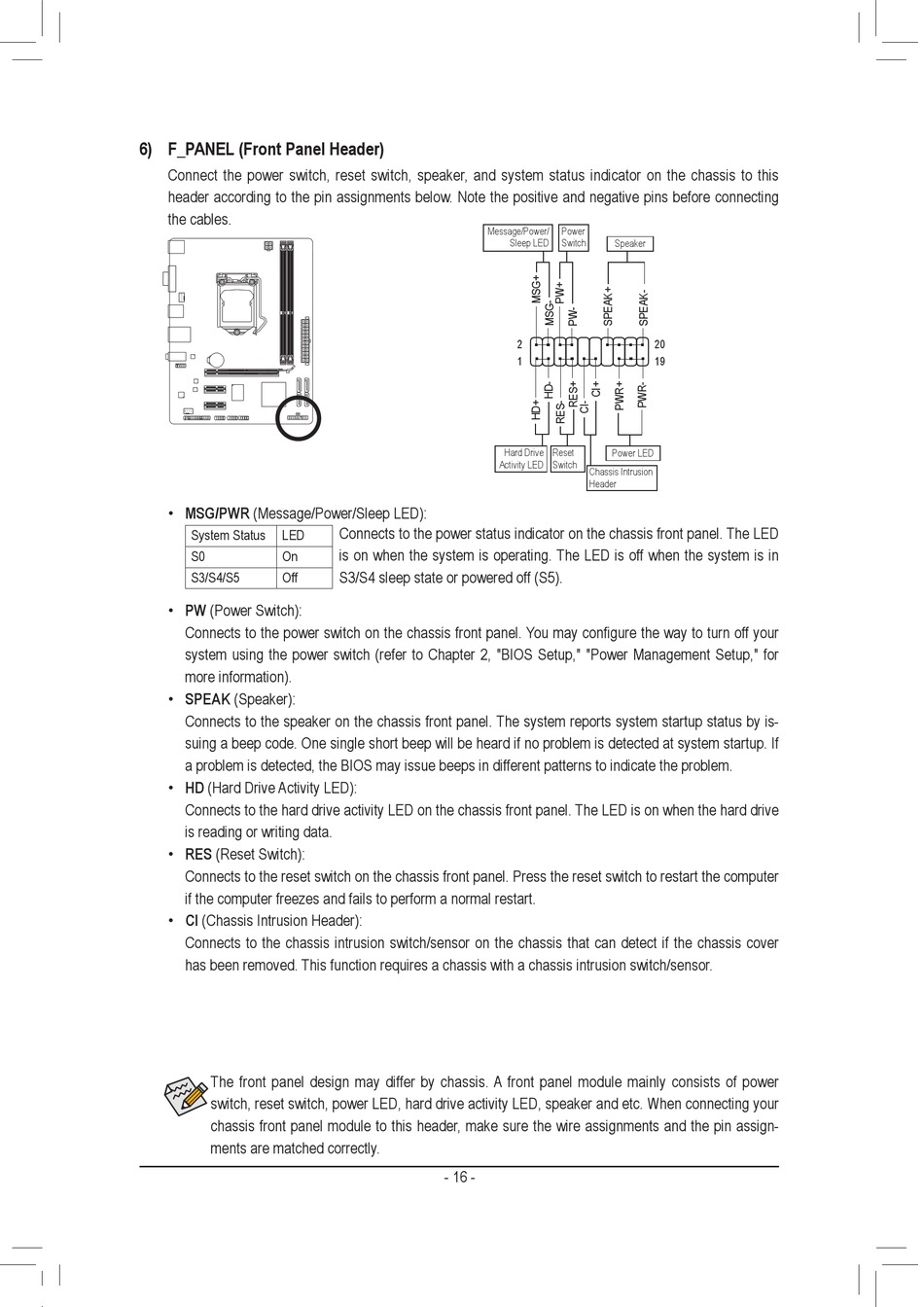

6) F_PANEL (Front Panel Header)
Connect the power switch, reset switch, speaker, and system status indicator on the chassis to this
header according to the pin assignments below. Note the positive and negative pins before connecting
the cables.
F_AUDIO(H)
MSG/PWR (Message/Power/Sleep LED):
•
System Status
S0
DB_PORT
S3/S4/S5
PW (Power Switch):
•
Connects to the power switch on the chassis front panel. You may configure the way to turn off your
system using the power switch (refer to Chapter 2, "BIOS Setup," "Power Management Setup," for
Voltage measurement module(X58A-OC)
more information).
SPEAK (Speaker):
•
Connects to the speaker on the chassis front panel. The system reports system startup status by is-
suing a beep code. One single short beep will be heard if no problem is detected at system startup. If
a problem is detected, the BIOS may issue beeps in different patterns to indicate the problem.
HD
(Hard Drive Activity LED):
•
PCIe power connector (SATA)(X58A-OC)
Connects to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive
is reading or writing data.
RES
(Reset Switch):
•
Connects to the reset switch on the chassis front panel. Press the reset switch to restart the computer
if the computer freezes and fails to perform a normal restart.
CI (Chassis Intrusion Header):
•
Connects to the chassis intrusion switch/sensor on the chassis that can detect if the chassis cover
has been removed. This function requires a chassis with a chassis intrusion switch/sensor.
The front panel design may differ by chassis. A front panel module mainly consists of power
switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your
chassis front panel module to this header, make sure the wire assignments and the pin assign-
ments are matched correctly.
F_PANEL(NH)
Connects to the power status indicator on the chassis front panel. The LED
LED
BIOS Switcher (X58A-OC)
is on when the system is operating. The LED is off when the system is in
On
S3/S4 sleep state or powered off (S5).
Off
1
M_SATA
1
PWM Switch (X58A-OC)
3 2 1
DIP
DIP
1 2 3
- 16 -
Message/Power/ Power
Sleep LED Switch
Speaker
2 20
1 19
Hard Drive Reset
Power LED
Activity LED Switch
Chassis Intrusion
Header
F_PANEL
(H61M-D2)
