NOTE Be sure SCSI channels are appropriately terminated.

Attach Data Cables to Other Components

1. Using the colored cable ties and labels attached to each data cable
previously, connect each cable to its component.
2. Fasten cable connectors to each component using captive screws.

Using Multiple Console Switches

You may choose to connect more than eight servers to a single monitor-
keyboard-mouse console. To do this, you will have to set up a stacked console
switch configuration as shown below.
To access servers connected to slave console switches, simply press [Print
Screen] followed by the master port number, then a dash, then the slave port
number followed by enter. To select the switch port shown in the previous
illustration, enter:
[Print Screen]2-3[Enter]
28
Connecting and Routing Cables to the HP NetServer LPr

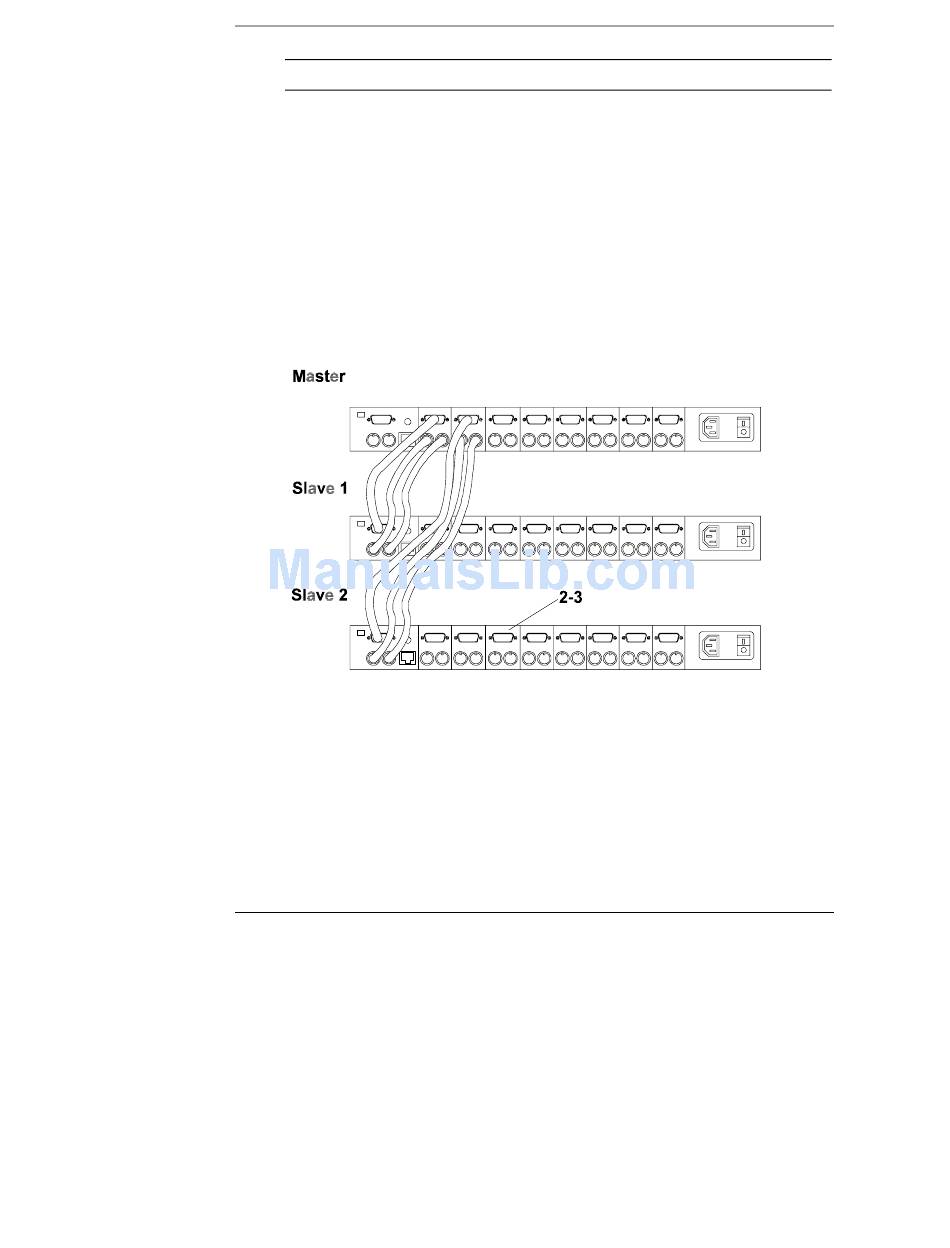

Figure 2-8. Stacked Console Switches
