ASROCK Fatal1ty Z68 Professional Gen3 Series Quick Installation Manual
ASROCK Fatal1ty Z68 Professional Gen3 Series Quick Installation Manual

ASROCK Fatal1ty Z68 Professional Gen3 Series Quick Installation Manual

Quick installation guide
Hide thumbs Also See for Fatal1ty Z68 Professional Gen3 Series:

Advertisement

Fatal1ty Story
Who knew that at age 19, I would be a World Champion PC gamer. When I was 13, I
actually played competitive billiards in professional tournaments and won four or five
games off guys who played at the highest level. I actually thought of making a career
of it, but at that young age situations change rapidly. Because I've been blessed with
great hand-eye coordination and a grasp of mathematics (an important element in video
gaming) I gravitated to that activity.
GOING PRO
I started professional gaming in 1999 when I entered the CPL (Cyberathlete Professional
League) tournament in Dallas and won $4,000 for coming in third place. Emerging as one
of the top players in the United States, a company interested in sponsoring me fl ew me
to Sweden to compete against the top 12 players in the world. I won 18 straight games,
lost none, and took fi rst place, becoming the number one ranked Quake III player in the
world in the process. Two months later I followed that success by traveling to Dallas
and defending my title as the world's best Quake III player, winning the $40,000 grand
prize. From there I entered competitions all over the world, including Singapore, Korea,
Germany, Australia, Holland and Brazil in addition to Los Angeles, New York and St.
Louis.
WINNING STREAK
I was excited to showcase my true gaming skills when defending my title as CPL
Champion of the year at the CPL Winter 2001 because I would be competing in a totally
different first person shooter (fps) game, Alien vs. Predator II. I won that competition
and walked away with a new car. The next year I won the same title playing Unreal
Tournament 2003, becoming the only three-time CPL champion of the year. And I did it
playing a different game each year, something no one else has ever done and a feat of
which I am extremely proud.
At QuakeCon 2002, I faced off against my rival ZeRo4 in one of the most highly
anticipated matches of the year, winning in a 14 to (-1) killer victory. Competing at
Quakecon 2004, I became the World's 1st Doom3 Champion by defeating Daler in a
series of very challenging matches and earning $25,000 for the victory.
Since then Fatal1ty has traveled the globe to compete against the best in the world,
winning prizes and acclaim, including the 2005 CPL World Tour Championship in New
York City for a $150,000 fi rst place triumph. In August 2007, Johnathan was awarded the
fi rst ever Lifetime Achievement Award in the four year history of the eSports-Award for
"showing exceptional sportsmanship, taking part in shaping eSports into what it is today
and for being the prime representative of this young sport. He has become the fi gurehead
for eSports worldwide".
1

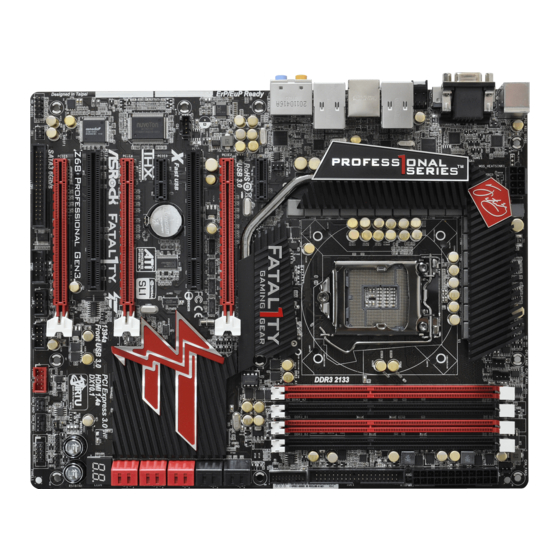

Fatal1ty Z68 Professional Gen3 Series Motherboard

Advertisement

Table of Contents
loading

Summary of Contents for ASROCK Fatal1ty Z68 Professional Gen3 Series

  • Page 1 fi rst ever Lifetime Achievement Award in the four year history of the eSports-Award for “showing exceptional sportsmanship, taking part in shaping eSports into what it is today and for being the prime representative of this young sport. He has become the fi gurehead for eSports worldwide”. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 2 The Fatal1ty name, Fatal1ty logos and the Fatal1ty likeness are registered trademarks of Fatal1ty, Inc., and are used under license. © 2011 Fatal1ty, Inc. All rights reserved. All other trademarks are the property of their respective owners. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 3: Copyright Notice

    ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this guide. With respect to the contents of this guide, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or condi- tions of merchantability or fi...
  • Page 4: Motherboard Layout

    Chassis Speaker Header (SPEAKER 1, Black) 41 PCI Express 2.0 x1 Slot (PCIE1, Black) Power LED Header (PLED1) Power Fan Connector (PWR_FAN1) System Panel Header (PANEL1, Black) 1155-Pin CPU Socket Chassis Fan Connector (CHA_FAN1) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 5 See the table below for connection details in accordance with the type of speaker you use. TABLE for Audio Output Connection Audio Output Channels Front Speaker Rear Speaker Central / Bass Line In or (No. 11) (No. 8) (No. 7) Side Speaker (No. 10) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 6 USB Keyboard and do not use the PS/2 Keyboard port. For the other users, apply it either on HDMI1 or HDMI2. HDMI connector HDMI to DVI adapter DVI connector Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 7: Package Contents

    In case any modifi cations of this manual occur, the updated version will be available on ASRock website without further notice. You may fi nd the latest VGA cards and CPU support lists on ASRock website as well.
  • Page 8: Specifications

    - Supports DVI with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 9 (SATA3_A4 connector is shared with eSATA3 port) USB3.0 - 4 x Rear USB 3.0 ports by ASMedia ASM1042, support USB 1.0/2.0/3.0 up to 5Gb/s - 1 x Front USB 3.0 header (supports 2 USB 3.0 ports) by Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 10 - CPU Core, IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock Software Suite (CyberLink DVD Suite - OEM and Trial) Unique Feature - F-Stream (see CAUTION 10)
  • Page 11 - FCC, CE, WHQL - ErP/EuP Ready (ErP/EuP ready power supply is required) (see CAUTION 20) * For detailed product information, please visit our website: http://www.asrock.com WARNING Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using the third-party over- clocking tools.
  • Page 12 In IES (Intelligent Energy Saver) mode, the voltage regulator can reduce the number of output phases to improve effi ciency when the CPU cores are idle without sacri- fi cing computing performance. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 13 11. ASRock Instant Flash is a BIOS fl ash utility embedded in Flash ROM. This convenient BIOS update tool allows you to update system BIOS ® without entering operating systems fi rst like MS-DOS or Windows . With this utility, you can press <F6> key during the POST or press <F2> key to BIOS setup menu to access ASRock Instant Flash.
  • Page 14 Intel’s suggestion, the EuP ready power supply must meet the standard of 5v standby power effi ciency is higher than 50% under 100 mA current consumption. For EuP ready power supply selection, we recommend you checking with the power supply manufacturer for more details. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 15: Cpu Installation

    CPU surface is unclean or if there is any bent pin on the socket. Do not force to insert the CPU into the socket if above situation is found. Other- wise, the CPU will be seriously damaged. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 16 Pin1 Pin1 alignment key 1155-Pin Socket orientation key notch 1155-Pin CPU For proper inserting, please ensure to match the two orientation key notches of the CPU with the two alignment keys of the socket. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 17: Installation Of Cpu Fan And Heatsink

    Option (C.C.O.), which provides the fl exible option to adopt three dif- ferent CPU cooler types, Socket LGA 775, LGA 1155 and LGA 1156. The white throughholes are for Socket LGA 1155/1156 CPU fan. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 18: Installation Of Memory Modules (Dimm)

    DDR3 slot; otherwise, this motherboard and DIMM may be dam- aged. Some DDR3 1GB double-sided DIMMs with 16 chips may not work on this motherboard. It is not recommended to install them on this motherboard. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 19: Installing A Dimm

    DIMM if you force the DIMM into the slot at incorrect orientation. Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully snap back in place and the DIMM is properly seated. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 20: Installing An Expansion Card

    Remove the bracket facing the slot that you intend to use. Keep the screws for later use. Step 4. Align the card connector with the slot and press fi rmly until the card is completely seated on the slot. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 21: Graphics Card Setup

    PCIE2 slot and the other graphics card to PCIE4 slot. Make sure that the cards are properly seated on the slots. Step2. If required, connect the auxiliary power source to the PCI Express graphics cards. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 22: Driver Installation And Setup

    Step3. Align and insert ASRock SLI_Bridge_2S Card to the goldfi ngers on each graphics card. Make sure ASRock SLI_Bridge_2S Card is fi rmly in place. ASRock SLI_Bridge_2S Card Step4. Connect a VGA cable or a DVI cable to the monitor connector or the DVI connector of the graphics card that is inserted to PCIE2 slot.
  • Page 23 Quad SLI feature. ® * SLI appearing here is a registered trademark of NVIDIA Technologies Inc., and is used only for identifi cation or explanation and to the owners’ benefi t, without intent to infringe. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 24: Operation Guide

    Step 1. Insert one Radeon graphics card into PCIE2 slot and the other Radeon graphics card to PCIE4 slot. Make sure that the cards are properly seated on the slots. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 25 PCIE2 slot. (You may use the DVI to D-Sub adapter to convert the DVI connector to D-Sub interface, and then connect the D-Sub monitor cable to the DVI to D-Sub adapter.) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 26 Bridge to connect Radeon graphics cards on PCIE4 and PCIE5 slots. (CrossFire Bridge is provided with the graphics card you purchase, not bundled with this motherboard. Please refer to your graphics card vendor for details.) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 27 PCIE2 slot. (You may use the DVI to D-Sub adapter to convert the DVI connector to D-Sub interface, and then connect the D-Sub monitor cable to the DVI to D-Sub adapter.) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 28 ”, and then check the item “Enable CrossFireX ”. Select “2 GPUs” and click “Apply” (if you install two Radeon graphics cards). Select “3 GPUs” and click “OK” (if you install three Radeon graphics cards). Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 29 Technologies Inc., and is used only for identifi cation or explanation and to the owners’ benefi t, without intent to infringe. * For further information of AMD CrossFireX technology, please check AMD website for updates and details. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 30: Dual Monitor And Surround Display Features

    VGA driver from our support CD to your system and restart your computer. D-Sub, HDMI and DVI-D (by the bundled HDMI to DVI adapter) monitors cannot be enabled at the same time. You can only choose two of them. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 31 D. Click “Extend my Windows desktop onto this monitor”. E. Right-click the display icon and select “Attached”, if necessary. F. Set the “Screen Resolution” and “Color Quality” as appropriate for the second monitor. Click “Apply” or “OK” to apply these new values. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 32 PCs requires a secure connection to a compliant display. Due to the increase in manufacturers employing HDCP in their equipment, it is highly recommended that the HDTV or LCD monitor you purchase is compatible. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 33: Jumpers Setup

    Please be noted that the password, date, time, user default profi le, 1394 GUID and MAC address will be cleared only if the CMOS battery is removed. The Clear CMOS Switch has the same function as the Clear CMOS jumper. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 34: Onboard Headers And Connectors

    The current SATA3 (SATA3_A3_A4: see p.4, No. 16) interface allows up to 6.0 Gb/s data transfer rate. If you install the HDD on the eSATA port on the rear I/O, the internal SATA3_A4 will not function. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 35 Besides four default USB 3.0 ports on the I/O panel, there is (19-pin USB3_4_5) one USB 3.0 header on this (see p.4 No. 9) motherboard. This USB 3.0 header can support two USB 3.0 ports. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 36 (see p.4 No. 21) Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 37 (see p.4 No. 22) ground pin. CHA_FAN1/2/3 fan speed can be controlled through UEFI or AXTU. (3-pin CHA_FAN2) (see p.4 No. 23) (3-pin CHA_FAN3) (see p.4 No. 6) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 38 4-pin ATX 12V power supply. To use the 4-pin ATX power supply, please plug your power supply along with Pin 1 and Pin 5. 4-Pin ATX 12V Power Supply Installation Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 39 Step 3 Intall the Front USB 3.0 Panel into Step 4 Screw the Front USB 3.0 Panel to the 2.5” drive bay of the chassis. the drive bay with six chassis screws. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 40: Smart Switches

    (RSTBTN) the system. (see p.4 No. 18) Clear CMOS Switch Clear CMOS Switch is a smart switch, allowing users to quickly (CLRCBTN) clear the CMOS values. (see p.5 No. 17) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 41: Dr. Debug

    CPU post-memory initialization is started 0x33 CPU post-memory initialization. Cache initialization 0x34 CPU post-memory initialization. Application Processor(s) (AP) initialization 0x35 CPU post-memory initialization. Boot Strap Processor (BSP) selection 0x36 CPU post-memory initialization. System Management Mode (SMM) initialization Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 42 Reserved for future AMI progress codes 0xF8 Recovery PPI is not available 0xF9 Recovery capsule is not found 0xFA Invalid recovery capsule 0xFB – 0xFF Reserved for future AMI error codes 0x60 DXE Core is started 0x61 NVRAM initialization Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 43 USB Detect 0x9D USB Enable 0x9E – 0x9F Reserved for future AMI codes 0xA0 IDE initialization is started 0xA1 IDE Reset 0xA2 IDE Detect 0xA3 IDE Enable 0xA4 SCSI initialization is started 0xA5 SCSI Reset Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 44 No Console Input Devices are found 0xD8 Invalid password 0xD9 Error loading Boot Option (LoadImage returned error) 0xDA Boot Option is failed (StartImage returned error) 0xDB Flash update is failed 0xDC Reset protocol is not available Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 45: Driver Installation Guide

    B. Set the option “SATA Mode” to [IDE]. (For SATA3_0, SATA3_1, and SATA2_2 to SATA2_5 ports.) Set the option “SATA3 Mode” to [IDE]. (For SATA3_A1 to SATA3_A4 ports.) ® STEP 2: Install Windows XP / XP 64-bit OS on your system. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 46: Installing Windows

    B. Set the option “SATA Mode” to [AHCI]. (For SATA3_0, SATA3_1, and SATA2_2 to SATA2_5 ports.) Set the option “SATA3 Mode” to [AHCI]. (For SATA3_A1 to SATA3_A4 ports.) ® STEP 2: Install Windows 7 / 7 64-bit / Vista / Vista 64-bit OS on your system. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 47: Teaming Function Operation Guide

    Please choose Continue Anyway and keep installing driver. 2. After installing driver, please open Teaming Utility in Programs. (Start > Programs > Realtek > Teaming Utility) 3. Click Teaming item and then press Create Team button. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 48 Continue Anyway.) 6. After doing above settings, system will auto create a new Local Area Connection. 7. Reboot your system. Then, you will fi nd the Speed column of new Local Area Connection show 2.0Gbps. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 49 2. After installing driver, please open Teaming Utility in Programs. (Start > Programs > Realtek > Teaming Utility) 3. Click Teaming item and then press Create Team button. 4. Key in Team Name and choose Link Aggregation \ LACP (802.3ad) for Settings. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 50 Continue Anyway.) 6. After doing above settings, system will auto create a new Local Area Connection. 7. Reboot your system. Then, you will fi nd the Speed column of new Local Area Connection show 2.0Gbps. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 51: Bios Information

    It will display the Main Menu automatically if “AUTORUN” is enabled in your computer. If the Main Menu does not appear automatically, locate and double-click on the fi le “ASSETUP.EXE” from the BIN folder in the Support CD to display the menus. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 52 1. Einführung Wir danken Ihnen für den Kauf des Fatal1ty Z68 Professional Gen3 Series Moth- erboard, ein zuverlässiges Produkt, welches unter den ständigen, strengen Qual- itätskontrollen von ASRock gefertigt wurde. Es bietet Ihnen exzellente Leistung und robustes Design, gemäß der Verpfl ichtung von ASRock zu Qualität und Halbarkeit.
  • Page 53 HDMI-zu-DVI-Adapters (siehe VORSICHT 7) - Unterstützt HDMI 1.4a mit einer maximalen Aufl ösung von 1920 x 1200 bei 60 Hz - Unterstützt DVI mit einer maximalen Aufl ösung von 1920 x 1200 bei 60 Hz Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 54 RAID- (RAID 0, RAID 1, RAID 10, RAID 5, Intel Rapid Storage und Intel Smart Response-Technologie), NCQ-, AHCI-und „Hot Plug“ (Hot-Plugging)-Funktionen - 4 x SATA 3-Anschlüsse (6,0 Gb/s) durch ASMedia ASM1061; unterstützt NCQ-, AHCI-und „Hot Plug“ (Hot- Plugging)-Funktionen Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 55 - SMBIOS 2.3.1 - CPU Core, IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Stromspannung Multianpassung Support-CD - Treiber, Dienstprogramme, Anti-Virus-Software (Testversion), CyberLink MediaEspresso 6.5-Testversion, ASRock Software Suite (CyberLink DVD Suite – OEM- und Testversion) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 56 Einzigartige - F-Stream (siehe VORSICHT 10) Eigenschaft - ASRock Sofortstart - ASRock Instant Flash (siehe VORSICHT 11) - ASRock APP Charger (siehe VORSICHT 12) - ASRock SmartView (siehe VORSICHT 13) - ASRock XFast USB (siehe VORSICHT 14) - Lucid Virtu (siehe VORSICHT 15)
  • Page 57 OC-Einstellungen erzielen. Per IES (Intelligent Energy Saver) kann der Spannungsregulator bei Inaktivität der CPU- Kerne die Anzahl an Ausgangsphasen zur Steigerung der Effi zienz reduzieren – ohne die Rechenleistung zu beeinträchtigen. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 58 APP Charger. Installieren Sie einfach den ASRock APP Charger-Treiber; dadurch lädt sich Ihr iPhone wesentlich schneller über einen Computer auf – genaugenommen bis zu 40 % schneller als zuvor. Der ASRock APP Charger ermöglicht Ihnen die schnelle Aufl adung mehrerer Apple-Geräte gleichzeitig;...
  • Page 59 Motherboard und eine EuP-fähige Stromversorgung erforderlich. Gemäß einer Empfehlung von Intel muss eine EuP-fähige Stromversorgung dem Standard entsprechen, was bedeutet, dass bei einem Stromverbrauch von 100 mA die 5-Volt-Standby-Energieeffi zienz höher als 50% sein sollte. Für Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 60 Bevor Sie die 1155-Pin CPU in den Sockel sitzen, prüfen Sie bitte, ob die CPU-Oberfl äche sauber ist und keine der Kontakte verbogen sind. Setzen Sie die CPU nicht mit Gewalt in den Sockel, dies kann die CPU schwer beschädigen. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 61 Schritt 3-2. Halten Sie das Teil mit dem IHS (Integrated Heat Sink – integ- rierter Kühlkörper) nach oben. Suchen Sie Pin 1 und die zwei Orientierungseinkerbungen. Ausrichtungsmarkierung Orientierungskerbe Pin1 Pin1 Ausrichtungsmarkierung Orientierungskerbe 1155-Pin Sockel 1155-Pin CPU Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 62 Schritt 4-1. Drehen Sie die Ladeplatte auf den Kühlkörper (IHS). Schritt 4-2. Drücken Sie leicht auf die Lade- platte und schließen Sie den Ladehebel. Schritt 4-3. Sichern Sie Ladehebel und Ladeplatte mithilfe des Hebelver- schlusses. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 63 fl exible Möglichkeit zur Aufnahme von drei verschiedenen CPU-Kühlertypen, Socket LGA 775, LGA 1155 und LGA 1156, bietet. Das weiße Durchgangsloch ist für den CPU-Lüfter im Socket LGA 1155/1156 vorgesehen. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 64 2.3 Installation der Speichermodule (DIMM) Die Motherboards Fatal1ty Z68 Professional Gen3 Series bieten vier 240-pol. DDR3 (Double Data Rate 3) DIMM-Steckplätze und unterstützen die Dual-Kanal- Speichertechnologie. Für die Dual-Kanalkonfi guration dürfen Sie nur identische (gleiche Marke, Geschwindigkeit, Größe und gleicher Chiptyp) DDR3 DIMM-Paare in den Steckplätzen gleicher Farbe installieren.
  • Page 65 Steckplätze zu zwingen, führt dies zu dauerhaften Schäden am Mainboard und am DIMM-Modul. Schritt 3: Drücken Sie die DIMM-Module fest in die Steckplätze, so dass die Halteklammern an beiden Enden des Moduls einschnappen und das DIMM-Modul fest an Ort und Stelle sitzt. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 66 Netzteil ausgeschaltet und das Netzkabel abgezogen ist. Bitte lesen Sie die Dokumentation zur Erweiterungskarte und nehmen Sie nötige Hardware-Einstellungen für die Karte vor, ehe Sie mit der Installation beginnen. Schritt 2: Entfernen Sie das Abdeckungsblech (Slotblende) von dem Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 67 -und Quad CrossFireX -Funktion wird nur vom Betriebssys- ® tem Windows Vista / 7 unterstützt. Schauen Sie auf der AMD-Website nach, ob es ATI CrossFireX -Treiber-Updates gibt. Beachten Sie den detailliert erklärten Installationsablauf auf Seite 24. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 68: Einstellung Der Jumper

    CMOS-Löschung herunter. Bitte beachten Sie, dass Kennwort, Datum, Uhrzeit, benutzerdefi niertes Profi l, 1394 GUID und MAC-Adresse nur gelöscht werden, wenn die CMOS-Batterie entfernt wird. Der CMOS löschen-Schalter hat dieselbe Funktion wie der CMOS löschen-Jumper. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 69 (SATA3-)Verbínder (SATA3_0_1: siehe S.4 - No. 14) unterstützten SATA-Datenkabel (SATA3_A1_A2: siehe S.4 - No. 15) für interne (SATA3_A3_A4: siehe S.4 - No. 16) Massenspeichergeräte. Die aktuelle SATA3- Schnittstelle ermöglicht eine Datenübertragungsrate bis 6,0 Gb/s. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 70 USB 3.0-Header Neben vier Standard-USB 3.0-Ports am E/A-Panel (19-pol. USB3_4_5) befi ndet sich ein USB 3.0- (siehe S.4 - No. 9) Header an diesem Motherboard. Dieser USB 3.0- Header kann zwei USB 3.0- Ports unterstützen. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 71 / Vista 64 Bit: Wählen Sie im Realtek-Bedienfeld die „FrontMic“ (Vorderes Mikrofon)- Registerkarte. Passen Sie die „Recording Volume“ (Aufnahmelautstärke) System Panel-Header Dieser Header unterstützt mehrere Funktion der (9-pin PANEL1) Systemvorderseite. (siehe S.4 - No. 21) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 72 Anzeige des (siehe S.4 - No. 20) Systembetriebsstatus an diesem Header an. Die LED leuchtet, wenn das System in Betrieb ist. Die LED blinkt im S1-Zustand. Im S3-/S4- oder S5-Zustand (ausgeschaltet) leuchtet die LED nicht. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 73 Stromanschluss bietet, kann es auch mit einem modifi zierten traditionellen 20-pol. ATX-Netzteil verwendet werden. Um ein 20-pol. ATX-Netzteil zu verwenden, stecken Sie den Stecker mit Pin 1 und Pin 13 ein. Installation eines 20-pol. ATX-Netzteils Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 74 Audioausgang für eine HDMI- (siehe S.4 - No. 32) VGA-Karte zur Verfügung und ermöglicht den Anschluss von HDMI-Digitalgeräten wie Fernsehgeräten, Projektoren, LCD-Geräten an das System. Bitte verbinden Sie den HDMI_SPDIF-Anschluss der HDMI-VGA-Karte mit diesem Anschluss. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 75 Schließen Sie das USB 3.0-Kabel an USB 3.0-Panel. das USB 3.0-Blech an. Schritt 3 Schritt 4 Fixieren Sie das USB 3.0-Blech mit Setzen Sie das USB 3.0-Blech an Schrauben an der Rückwand. der Rückwand des Gehäuses ein. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 76 Reset Benutzer das System schnell (siehe S.4 - No. 18) zurücksetzen können. CMOS löschen-Schalter Der CMOS löschen-Schalter ist ein Schnellschalter, mit dem (CLRCBTN) Benutzer die CMOS-Werte (siehe S.5 - No. 17) schnell löschen können. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 77 A. Rufen Sie das UEFI SETUP UTILITY auf, wählen Sie den „Advanced“- Bildschirm (Erweitert), dann „Storage Confi guration“. B. Stellen Sie “SATA Mode” auf [IDE]. (Für SATA3_0, SATA3_1 und SATA2_2 zu SATA2_5.) Stellen Sie “SATA3 Mode” auf [IDE]. (Für SATA3_A1 zu SATA3_A4.) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 78 B. Stellen Sie “SATA Mode” auf [AHCI]. (Für SATA3_0, SATA3_1 und SATA2_2 zu SATA2_5.) Stellen Sie “SATA3 Mode” auf [AHCI]. (Für SATA3_A1 zu SATA3_A4.) ® SCHRITT 2: Installieren Sie Windows 7 / 7 64-Bit / Vista / Vista 64-Bit in Ihrem System. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 79 ASSETUP.EXE im BIN-Verzeichnis der Support-CD, um die Menüs aufzurufen. Das Setup-Programm soll es Ihnen so leicht wie möglich machen. Es ist menüges- teuert, d.h. Sie können in den verschiedenen Untermenüs Ihre Auswahl treffen und die Programme werden dann automatisch installiert. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 80 à jour serait dispo- nible sur le site web ASRock sans nouvel avis. Vous trouverez les listes de prise en charge des cartes VGA et CPU également sur le site Web ASRock.
  • Page 81 - Quatre options de sortie VGA : Un port D-Sub, deux ports HDMI et un port DVI-D avec adaptateur HDMI/DVI intégré (voir ATTENTION 7) - Prend en charge le HDMI 1.4a avec une résolution maximale jusqu’à 1920x1200 @ 60Hz Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 82 LED VITESSE) - 1 x port IEEE 1394 - 1 x interrupteur d’effacement du CMOS avec LED - Prise HD Audio: Haut-parleur arrière / Central / Basses / Entrée Ligne / Haut-parleur frontal / Microphone Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 83 - 1 x Dr. Debug (LED de débogage à 7 segments) Interrupteur - 1 x interrupteur d’effacement du CMOS avec LED rapide - 1 x interrupteur d’alimentation avec LED - 1 x interrupteur de réinitialisation avec LED Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 84 - CPU Core, IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Tension Multi-ajustement CD d’assistance - Pilotes, utilitaires, logiciel anti-virus (version d’évaluation), CyberLink MediaEspresso 6.5 Trial, suite logicielle ASRock (suite CyberLink DVD - OEM et version d’évaluation) Caractéristique - F-Stream (voir ATTENTION 10) unique - ASRock l’Instant Boot...
  • Page 85 2-canaux, 4-canaux, 6-canaux et 8-canaux. Veuillez vous référer au tableau en page 5 pour effectuer la bonne connexion. F-Stream est un utilitaire tout-en-un qui permet de régler précisément dif- férentes fonctions du système, via une interface facile à utiliser, incluant Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 86 CPU ne sont pas utilisées, sans diminuer les performances de l’ordinateur. O ASRock Instant Flash é um utilitário de fl ash do BIOS incorporado na memória Flash ROM. Esta prática ferramenta de actualização do BIOS permite-lhe actualizar o BIOS do sistema sem necessitar de entrar nos sistemas operativos, como o MS-DOS ou o Windows®.
  • Page 87 IE8. Site Internet ASRock : http://www.asrock. com/Feature/SmartView/index.asp 14. ASRock XFast USB permet d’améliorer les performances de votre péri- phérique de stockage USB. Les performances réelles dépendent des propriétés du périphérique. 15. Avec la technologie Lucid Virtu, vous pouvez regarder les performances 3D du GPU discret et les fonctions multimédia avancées des graphiques...
  • Page 88 Si c’est le cas, ne forcez pas pour insérer le processeur dans le socket. Sinon, le processeur sera gravement endommagé. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 89 Etape 3-2. Orientez le paquet avec le dissipa- teur thermique intégré (IHS) vers le haut. Repérez la broche 1 et les deux encoches d’orientation. Encoche d’orientation Détrompeur broche 1 broche 1 Détrompeur Socket 1155 broches Encoche d’orientation Processeur 1155 broches Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 90 L’exemple ci-dessous illustre l’installation du dissipateur thermique pour un proces- seur 1155 broches. Etape 1. Appliquez le matériau d’interface thermique (Appliquez le matériau au centre de IHS sur la surface du socket. d’interface thermique) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 91 Cooler Option (C.C.O.), qui offre un choix fl exible pour adopter trois types différents de refroidisseurs de CPU, les sockets LGA 775, LGA 1155 et LGA 1156. Les trous traversant blancs sont pour le ventila- teur de CPU au socket LGA 1155/1156. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 92 2.3 Installation des modules m émoire [DIMM] La carte mère Fatal1ty Z68 Professional Gen3 Series dispose de quatre emplace- ments DIMM DDR3 (Double Data Rate 3) de 240-broches, et supporte la Techno- logie de Mémoire à Canal Double. Pour effectuer une confi guration à canal double, vous devez toujours installer des paires de DIMM DDR3 identiques (de la même...
  • Page 93 DIMM. Etape 3. Insérez fermement le module DIMM dans son emplacement jusqu’à ce que les clips de maintien situés aux deux extrémités se ferment complètement et que le module DIMM soit inséré correctement. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 94 Etape 2. Retirez l’équerre correspondant au connecteur que vous voulez utiliser. Gardez la vis pour un usage ultérieur. Etape 3. Alignez la carte sur le connecteur et appuyez fermement jusqu’à l’insertion Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 95 Windows Vista / 7 uniquement. Veuillez consulter le site d’AMD pour les mises à jour de driver ATI CrossFireX . Veuillez suivre les instructions d’installation de la page 24 pour plus de détails. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 96 Le fait de placer les capuchons de cavalier sur les en-têtes et connecteurs causera à la carte mère des dommages irréversibles! Connecteur du lecteur de disquette (FLOPPY1 br. 33) (voir p.4 No. 31) le côté avec fi l rouge côté Broche1 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 97 Connectez ensuite l’extrémité c o n n e c t e r à d’alimentation du blanche du cordon l’unité disque d’alimentation d’alimentation SATA sur le dur SATA électrique connecteur d’alimentation de l’unité d’alimentation électrique. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 98 Cette barrette USB 3.0 peut prendre en charge deux ports USB 3.0. En-tête du module infrarouge Cet en-tête supporte un module infrarouge optionnel de (IR1 br.5) transfert et de réception sans (voir p.4 No. 33) fi l. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 99 Connectez l’interrupteur d’alimentation, l’interrupteur de réinitialisation et l’indicateur d’état du système du châssis sur cette barrette en respectant l’affectation des broches décrite ci-dessous. Faites attention aux broches positives et négatives avant de connecter les câbles. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 100 Connecteur pour châssis et ventilateur Branchez les câbles du ventilateur aux connecteurs pour (CHA_FAN1 br. 4) (voir p.4 No. 22) ventilateur et faites correspondre le fi l noir à la broche de terre. La Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 101 à l’alimentation électrique ainsi qu’aux broches 1 et 13. 20-Installation de l’alimentation électrique ATX Connecteur ATX 12V Veuillez connecter une unité d’alimentation électrique ATX (ATX12V1 br.8) 12V sur ce connecteur. (voir p.4 No. 1) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 102 (voir p.4 No. 32) et permettant au système de se connecter au un téléviseur numérique HDMI /un projecteur / un périphérique LCD. Veuillez brancher le connecteur HDMI_SPDIF de la carte VGA HDMI sur ce connecteur. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 103 Assemblez le câble USB 3.0 et le avant USB 3.0. support arrière USB 3.0. Étape 3 Étape 4 Vissez les deux vis dans le support Placez le support arrière USB 3.0 arrière USB 3.0. dans le châssis. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 104 à l’utilisateur de réinitialiser rapidement le système. Interrupteur d’effacement de CMOS L’interrupteur d’effacement de (CLRCBTN) CMOS est un interrupteur rapide (voir p.5 No. 17) qui permet à l’utilisateur d’effacer rapidement les valeurs du CMOS. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 105 A. Accédez à UEFI SETUP UTILITY (Utilitaire de confi guration UEFI) → écran Avancé → Confi guration Storage. B. Réglez «SATA Mode « sur [IDE]. (Pour SATA3_0, SATA3_1 et SATA2_2 à SATA2_5.) Réglez «SATA3 Mode « sur [IDE]. (Pour SATA3_A1 à SATA3_A4.) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 106 B. Réglez «SATA Mode « sur [AHCI]. (Pour SATA3_0, SATA3_1 et SATA2_2 à SATA2_5.) Réglez «SATA3 Mode « sur [AHCI]. (Pour SATA3_A1 à SATA3_A4.) ® ETAPE 2: Installer le système d’exploitation Windows 7 / 7 64-bit / Vista / Vista 64-bit sur votre système. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 107: Informations Sur Le Cd De Support

    CD-ROM. Le Menu principal s’affi che automatiquement si “AUTORUN” est activé dans votre ordinateur. Si le Menu principal n’apparaît pas automatiquement, locali- sez dans le CD technique le fi chier “ASSETUP.EXE” dans le dossier BIN et double- cliquez dessus pour affi cher les menus. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 108 1. Introduzione Grazie per aver scelto una scheda madre Fatal1ty Z68 Professional Gen3 Series, una scheda madre affi dabile prodotta secondo i severi criteri di qualità ASRock. Le prestazioni eccellenti e il design robusto si conformano all’impegno di ASRock nella ricerca della qualità...
  • Page 109 - Supporta HDMI 1.4a con risoluzione massima fi no a 1920x1200 @ 60Hz - Supporta DVI con risoluzione massima fi no a 1920x1200 @ 60Hz - Supporta D-Sub con risoluzione massima fi no a 2048x1536 @ 75Hz Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 110 NCQ, AHCI e “Hot Plug” (il connettore SATA3_A4 è condiviso con la porta eSATA3) USB 3.0 - 4 x porte USB 3.0 posteriori amministrate dal controller ASMedia ASM1042, supporto di USB 1.0/2.0/3.0 fi no a 5Gb/s Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 111 - F-Stream (vedi ATTENZIONE 10) speciale - ASRock Instant Boot - ASRock Instant Flash (vedi ATTENZIONE 11) - Caricatore ASRock APP Charger (vedi ATTENZIONE 12) - ASRock SmartView (vedi ATTENZIONE 13) - ASRock XFast USB (vedi ATTENZIONE 14) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 112 - Predisposto ErP/EuP (è necessaria l’alimentazione predisposta per il sistema ErP/EuP) (vedi ATTENZIONE 20) * Per ulteriori informazioni, prego visitare il nostro sito internet: http://www.asrock.com AVVISO Si prega di prendere atto che la procedura di overclocking implica dei rischi, come anche la regolazione delle impostazioni del BIOS, l’applicazione della tecnologia...
  • Page 113 CPU sono inattivi senza sacrifi care le prestazioni di computazione. 11. ASRock Instant Flash è una utilità Flash BIOS integrata nella Flash ROM. Questo comodo strumento d’aggiornamento del BIOS permette di aggior- nare il sistema BIOS senza accedere a sistemi operativi come MS-DOS ®...
  • Page 114 ® diali avanzate delle grafi che 3D Intel 16. La tecnologia ASRock On/Off Play consente agli utenti di godere di una esperienza audio eccezionale tramite i dispositivi audio portatili come i lettori MP3 o il cellulare sul proprio PC, anche quando il PC è spento (op- pure in modalità...
  • Page 115 5. Nell’usare i giraviti per fi ssare la scheda madre al telaio non ser- rare eccessivamente le viti! Altrimenti si rischia di danneggiare la scheda madre. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 116 Fase 3-1. Tenere la CPU dai bordi segnati con linee nere. Fase 3-2. Orientare il pacchetto con l’IHS (Integrated Heat Sink: dispersore di calore integrato) verso l’alto. Individuare il Pin1 ed i due dentelli chiave d’orientamento. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 117 Fase 4-3. Fissare la leva di carico con la linguetta della piastra di carico che si trova sulla parte inferiore della linguetta di ritenzione della leva di carico. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 118 Cooler Option), che fornisce la fl essibilità di impiegare tre tipi diversi di dispersori di calore CPU, Socket LGA 775, LGA 1155 e LGA 1156. I fori di colore bianco sono per la ventola CPU Socket LGA 1155/1156. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 119 2.3 Installazione dei moduli di memoria (DIMM) La scheda madre Fatal1ty Z68 Professional Gen3 Series fornisce quattro alloggia- menti DIMM DDR3 (Double Data Rate 3) a 240 pin, e supporta la tecnologia Dual Channel Memory. Per la confi gurazione a due canali, è necessario installare sempre coppie identiche (stessa marca, velocità, dimensioni e tipo di chip) di DIMM DDR3...
  • Page 120 Fase 3. Inserire saldamente la DIMM nello slot fi no a far scattare completamente in posizione i fermagli di ritegno alle due estremità e fi no ad installare correttamente la DIMM nella sua sede. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 121 2.4 Slot di espansione (Slot PCI ed Slot PCI Express) Sulla scheda madre Fatal1ty Z68 Professional Gen3 Series c’è 2 slot PCI ed 5 slot PCI Express. Slot PCI: Sono utilizzati per installare schede di espansione con Interfaccia PCI a 32-bit.
  • Page 122 è supportata solo dal sistema operati- ® vo Windows Vista / 7. Visitare il sito AMD per gli aggiornamenti dei driver ATI CrossFireX . Attenersi alle procedure d’installazione, a pagina 24, per i dettagli. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 123 1394 GUID e indirizzo MAC saranno cancellati solo se è rimossa la batteria della CMOS. L’interruttore Clear CMOS (Cancella CMOS) ha la stessa funzione del jumper Clear CMOS. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 124 (SATA3_A1_A2: vedi p.2 Nr. 15) immagazzinamento interni. (SATA3_A3_A4: vedi p.2 Nr. 16) ATA3 (SATA3) supportano cavi SATA per dispositivi di memoria interni. L’interfaccia SATA3 attuale permette velocità di trasferimento dati fi no a 6.0 Gb/s. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 125 Collettore USB 3.0 Oltre alle quattro porte USB 3.0 standard del pannello I/O, (19-pin USB3_4_5) questa scheda madre è dotata (vedi p.4 Nr. 9) di un header USB 3.0 che supporta due porte USB 3.0. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 126 Andare alla scheda “FrontMic” (Microfono frontale) del pannello di controllo Realtek. Regolare la voce “Recording Volume” (Volume registrazione). Collettore pannello di sistema Questo collettore accomoda diverse funzioni di sistema (9-pin PANEL1) pannello frontale. (vedi p.4 Nr. 21) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 127 Il (vedi p.4 Nr. 20) LED è acceso quando il sistema è in funzione. Il LED continua a lampeggiare in stato S1. Il LED è spento in stato S3/S4 o S5 (spegnimento). Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 128 ATX a 24 pin, ma può funzionare lo stesso se si adotta un alimentatore ATX a 20 pin. Per usare l’alimentatore ATX a 20 pin, collegare l’alimentatore con il Pin 1 e il Pin 13. Installazione dell’alimentatore ATX a 20 pin Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 129 SPDIF su scheda (2-pin HDMI_SPDIF1) HDMI VGA, consente al (vedi p.4 Nr. 32) sistema di collegare dispositivi per TV digitale HDMI/proiettori/ LCD . Collegare il connettore HDMI_SPDIF della scheda VGA HDMI a questo header. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 130 Punto 2 Collegare il cavo USB 3.0 e il anteriore. supporto USB 3.0 posteriore. Punto 3 Punto 4 Avvitare le due viti nel supporto USB 3.0 Inserire il supporto USB 3.0 posteriore. posteriore nel telaio. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 131 (vedi p.4 Nr. 18) agli utenti di resettare rapidamente il sistema. Interruttore pulizia CMOS L’interruttore di pulizia CMOS è (CLRCBTN) un interruttore rapido che (vedi p.5 Nr. 17) consente agli utenti di cancellare velocemente i valori CMOS. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 132 B. Impostare “SATA Mode” su [IDE]. (Per SATA3_0, SATA3_1 e SATA2_2 a SATA2_5.) Impostare “SATA3 Mode” su [IDE]. (Per SATA3_A1 a SATA3_A4.) ® Passo 2: Installazione di Windows XP / XP 64-bit sul sistema. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 133 B. Impostare “SATA Mode” su [AHCI]. (Per SATA3_0, SATA3_1 e SATA2_2 a SATA2_5.) Impostare “SATA3 Mode” su [AHCI]. (Per SATA3_A1 a SATA3_A4.) ® Passo 2: Installazione di Windows 7 / 7 64-bit / Vista / Vista 64-bit sul sistema. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 134 Inserire il CD di supporto nel lettore CD-ROM. Se la funzione “AUTORUN” è attivata nel computer, apparirà automaticamente il Menù principale. Se il Menù principale non appare automaticamente, posizionarsi sul fi le “ASSETUP.EXE” nel CESTINO del CD di supporto e cliccare due volte per visualizzare i menù. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 135 1. Introducción Gracias por su compra de Fatal1ty Z68 Professional Gen3 Series placa madre, una placa de confi anza producida bajo el control de calidad estricto y persistente. La placa madre provee realización excelente con un diseño robusto conforme al compromiso de calidad y resistencia de ASRock.
  • Page 136 - Admite DVI con una resolución máxima de 1920x1200 a 60 Hz - Admite D-Sub con una resolución máxima de 2048x1536 a Color (12 bpc), xvYCC y HBR (audio de alta tasa de bits) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 137 - 4 x conectores SATA3 de 6,0 Gb/s con chip ASMedia ASM1061 con funciones NCQ, AHCI y de “Hot Plug” (conexión en cali-ente) (los puertos SATA3_A4 y eSATA3 son compartidos) USB 3.0 - 4 x puertos USB 3.0 traseros de ASMedia ASM1042, Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 138 - Múltiple ajuste de CPU Core, IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage CD de soport - Controladores, utilidades, software de antivirus (versión de prueba), Prueba de CyberLink MediaEspresso 6.5, ASRock Software Suite (CyberLink DVD Suite: versión OEM y de prueba) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 139 Característica - F-Stream (AXTU) (vea ATENCIÓN 10) Única - Instant Boot - ASRock Instant Flash (vea ATENCIÓN 11) - ASRock APP Charger (vea ATENCIÓN 12) - SmartView (vea ATENCIÓN 13) - ASRock XFast USB (vea ATENCIÓN 14) - Lucid Virtu (vea ATENCIÓN 15) - Tecnología de activación y desactivación de la reproducción...
  • Page 140 Después, sus amistados pueden cargar el perfi l OC en sus propios sistemas para obtener la misma confi guración OC. En el protec- tor de energía inteligente (IES, Intelligent Energy Saver), el regulador Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 141 . Gracias a esta utilidad, sólo necesitará pulsar <F6> durante la fase POST o pulsar <F2> para acceder al menú de confi guración del BIOS y a la utilidad ASRock Instant Flash. Ejecute esta herramienta y guarde el archivo correspondiente al sistema BIOS nuevo en su unidad fl...
  • Page 142 50% con un consumo de corriente de 100mA. Para seleccionar una fuente de alimentación que cumpla la directiva EuP, le recomendamos que consulte con el fabricante de la fuente de alimentación para obtener más detalles. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 143 CPU se encuentra limpia y no hay ninguna aguja torcida en el socket. No introduzca la CPU en el socket por la fuerza si se produce la situación anterior. Si lo hace, puede producir daños graves en la CPU. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 144 Busque la aguja 1 y las dos muescas de orientación. Muesca de orientación Tecla de alineación aguja 1 aguja 1 Tecla de alineación Muesca de orientación Socket de 1155 agujas CPU de 1155 agujas Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 145 A continuación se ofrece un ejemplo para ilustrar la instalación del disipador para la CPU de 1155 agujas. (Aplique el material termal de Paso 1. Aplique el material termal de interfaz en el interfaz) centro del IHS de la superfi cie del socket. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 146 CPU diferentes, correspondientes a los zócalos LGA 775, LGA 1155 y LGA 1156. Los orifi cios perforados de color blanco están destinados al ventilador de CPU para zócalos LGA 1155/1156. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 147 2.3 Instalación de Memoria La placa Fatal1ty Z68 Professional Gen3 Series ofrece cuatro ranuras DIMM DDR3 de 240 pines, y soporta Tecnología de Memoria de Doble Canal. Para la con- fi guración de doble canal, necesitará instalar siempre pares DIMM DDR3 idénticos (de la misma marca, velocidad, tamaño y tipo) en las ranuras del mismo color.
  • Page 148 Paso 3. Inserte la DIMM con fi rmeza dentro de la ranura hasta que los clips de sujeción de ambos lados queden completamente introducidos en su sitio y la DIMM se haya asentado apropiadamente. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 149 2.4 Ranuras de Expansión (ranuras PCI y ranuras PCI Express) La placa madre Fatal1ty Z68 Professional Gen3 Series cuenta con 2 ranuras PCI y 5 ranuras PCI Express. Ranura PCI: Para instalar tarjetas de expansión que tienen 32-bit Interface PCI.
  • Page 150 / 7. Consulte el sitio web de AMD si desea obtener más información acerca de las actualizaciones de los controladores de ATI CrossFireX . Por favor, siga los procedimientos de instalación de la página 24 para conocer las instrucciones detalladas. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 151 1 Atención: Asegúrese que la banda roja del cable queda situado en el mismo lado que el contacto 1 de la conexión. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 152 ATA (SATA) cable de SATA al conector de energía de la unidad. A (Opcional) Connettere all’ailmentazione continuación, conecte el dei dischi SATA Connettere al gruppo extremo blanco del cable de di alimentazione Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 153 (vea p.4, N. 33) wireless opcional. Conector de audio interno Permite recepción de input audio de fuente sónica como (4-pin CD1) CD-ROM, DVD-ROM, TV tuner, (vea p.4, N. 38) o tarjeta MPEG. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 154 PWRBTN (interruptor de alimentación): Conecte el interruptor de encendido situado en el panel frontal del chasis. Puede confi gurar la forma de apagar su sistema mediante el interruptor de alimentación. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 155 (4-pin CHA_FAN1) (vea p.4, N. 22) cable negro con la patilla de masa.La velocidad del ventilador (3-pin CHA_FAN2) CHA_FAN1/2/3 se puede con- (vea p.4, N. 23) trolar mediante UEFI o AXTU. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 156 20 pins tradicional. Para usar una fuente de alimentación ATX de 20 pins, por favor, conecte su fuente de alimentación usando los Pins 1 y 13. Instalación de una Fuente de Alimentación ATX de 20 Pins Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 157 (HDMI_SPDIF1 de 2 pin) VGA HDMI, permite al sistema (vea p.4, N. 32) conectarse a dispositivos de TV Digital HDMI / proyectores / Dispositivos LCD. Conecte el conector HDMI_SPDIF de la tarjeta VGA HDMI a esta cabecera. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 158 Guía de instalación del soporte USB 3.0 posterior Paso 1 Paso 2 Desatornille los dos tornillos del panel Coloque el cable USB 3.0 el soporte USB 3.0 frontal. USB 3.0 posterior juntos. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 159 CMOS. Conmutador de borrado de memoria CMOS El conmutador de encendido es (CLRCBTN) un conmutador rápido que (vea p.5, N. 17) permite al usuario encender / apagar rápidamente el sistema. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 160 RAID, por favor siga los pasos siguientes. Uso de dispositivos SATA / SATAII / SATA3 sin funciones NCQ PASO 1: Confi guración de la UEFI. A. Entre en UEFI SETUP UTILITY → Òpantalla Avanzada → Storage Confi guración. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 161 B. Confi gure la “SATA Mode” a [AHCI]. (Para SATA3_0, SATA3_1 y SATA2_2 a SATA2_5.) Confi gure la “SATA3 Mode” a [AHCI]. (Para SATA3_A1 a SATA3_A4.) ® PASO 2: Instale Windows 7 / 7 64 bits / Vista / Vista 64 bits en su sistema. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 162 Para iniciar la instalación, ponga el CD en el lector de CD y se des- plegará el Menú Principal automáticamente si «AUTORUN» está habilitado en su computadora. Si el Menú Principal no aparece automáticamente, localice y doble-pulse en el ar- chivo “ASSETUP.EXE” para iniciar la instalación. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 163 1. Введение Благодарим вас за покупку материнской платы Fatal1ty Z68 Professional Gen3 Series надежной материнской платы, изготовленной в соответствии с постоянно предъявляемыми ASRock жесткими требованиями к качеству. Она обеспечивает превосходную производительность и отличается отличной конструкцией, которые отражают приверженность ASRock качеству и долговечности.
  • Page 164 - Поддержка Auto Lip Sync, Deep Color (12 бит на цветовой канал), xvYCC и HBR (High Bit Rate Audio) через HDMI (необходим монитор с разъемом HDMI) (см. ОСТОРОЖНО, пункт 8) - Поддержка стандарта Blu-ray Stereoscopic 3D со спецификацией Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 165 (RAID 0, RAID 1, RAID 10, RAID 5, Intel Rapid Storage и технологии Intel Smart Response), NCQ, AHCI и «горячего подключения» - 6 x разъема SATA3 6,0 Гбит/с - 1 x разъема ATA133 IDE (Поддерживает до 2 устройств IDE) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 166 - ASRock SmartView (см. ОСТОРОЖНО, пункт 13) - ASRock XFast USB (см. ОСТОРОЖНО, пункт 14) - Lucid Virtu (см. ОСТОРОЖНО, пункт 15) - Технология ASRock для воспроизведения звука во включенном и выключенном состоянии (см. ОСТОРОЖНО, пункт 16) - Hybrid Booster: - плавная...
  • Page 167 изображения одновременно. Задействовать сразу четыре подключения - D-Sub, DVI-D и HDMI - невозможно. При помощи адаптера HDMI-to-DVI порт HDMI будет поддерживать те же функции, что и DVI-D. ® Функции xvYCC и Deep Color поддерживаются только в Windows 7 64- Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 168 регулятор напряжения так, что он будет уменьшать количество работающих линий питания, чтобы поднять КПД системы без ущерба для ее производительности во время простоя ядер ЦПУ. 11. ASRock Instant Flash – программа для прошивки BIOS, встроенная в Flash ROM. Данное средство для обновления BIOS умеет работать без ®...
  • Page 169 возможностей Интернета. Системные платы ASRock эксклюзивно снабжаются программой ASRock SmartView, помогающей поддерживать ® связь с друзьями. Программа ASRock SmartView работает в ОС Windows 7 / 7 64 bit / Vista / Vista 64 bit и браузере IE8. Веб-сайт ASRock: http:// www.asrock.com/Feature/SmartView/index.asp...
  • Page 170 в корпусе компьютера, не затягивайте их слишком сильно! Это может привести к повреждению материнской платы. 2.1 Установка процессора Для установки процессора Intel в 1155-контактном корпусе выполните следующие действия. Прижимная пластина Корпус гнезда Матрица контактов Общий вид 1155-контактного гнезда Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 171 Шаг 3-2. Поверните корпус интегрированным радиатором вверх. Найдите контакт 1 и два ключевых выреза для ориентации. Ключевой вырез для ориентации Ключ выравнивания контакт 1 контакт 1 Ключ выравнивания Ключевой вырез для ориентации 1155-контактное гнездо 1155-контактный процессор Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 172 Шаг 5. Подсоедините контактную колодку вентилятора к разъему вентилятора процессора на материнской плате. Шаг 6. Закрепите свободную часть кабеля с помощью стяжки, чтобы кабель не мог помешать работе вентилятора или соприкасаться с другими компонентами. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 173 Отверстия с белой каймой предназначены для установки кулеров под Socket LGA1155/1156. 2.3 Установка модулей памяти (DIMM) Материнская плата Fatal1ty Z68 Professional Gen3 Series включает четыре 240-контактных гнезда DDR3 (Double Data Rate 3) DIMM и поддерживает технологию Dual Channel Memory Technology. В двухканальной конфигурации...
  • Page 174 Применение силы при попытке вставить модуль в гнездо в неправильной ориентации может привести к повреждению модуля и системной платы. Шаг 3. Плотно вставьте DIMM-модуль в гнездо – фиксаторы по обоим концам гнезда должны полностью защелкнуться. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 175 2.4 Гнезда расширения (PCI и PCI Express) Материнские платы Fatal1ty Z68 Professional Gen3 Series включают 2 гнезда PCI и 5 гнездо PCI Express. Гнезда PCI: Гнезда PCI предназначены для карт расширения с 32- разрядным интерфейсом PCI. Гнезда PCIE: Гнездо PCIE1 / PCIE3 (PCIE x1; черный) используется...
  • Page 176 / 7. Функция 3-стороннем режиме CrossFi- и Quad CrossFireX поддерживается только с операционной системой ® Windows Vista / 7. Посетите веб-сайт AMD для обновления драйверов ATI CrossFireX . См. процедуры установки на стр. 24 для детальной информации. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 177 гибких дисков (33-контактный FLOPPY1) la banda roja debe quedar en el (см. стр. 4, п. 31) mismo lado que el contacto 1 Примечание. Убедитесь, что сторона кабеля с красной полосой соответствует контакту 1 на разъеме. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 178 соединителей на его черном (дополнительно) конце с ответными подключите к соединителю соединителями питания на питания жесткого диска каждом из жестких дисков. подключите к интерфейса SATA Затем соедините белый источнику конец кабеля питания стандарта питания Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 179 (см. стр. 4, п. 33) инфракрасного приемопередатчика. Внутренние аудиоразъемы Эти разъемы позволяют получать входной (4-контактный CD1) стереофонический аудиосигнал (см. cтр. 4, п.38) от таких источников, как дисковод CD-ROM, DVD-ROM ТВ- тюнер или карта MPEG. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 180 (см. стр. 4, п. 21) Подключите к этому разъему кнопку питания, кнопку сброса и индикатор состояния системы на корпусе в соответствии с указанным ниже назначением контактов. При подключении кабелей необходимо соблюдать полярность положительных и отрицательных контактов. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 181 (4-контактный CHA_FAN1) к соединителям и присоедините (см. стр. 4, п. 22) черный шнур к штырю заземления. Управление (3-контактный CHA_FAN2) скоростью вентиляторов CHA_ (см. стр. 4, п. 23) FAN1/2/3 может осуществляться посредством UEFI или AXTU. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 182 ивает 24-штыревой разъем питания ATX, работа будет продолжаться, даже если адаптируется традиционный 20-штыревой разъем питания ATX. Для использования 20-штыревого разъема питания ATX вставьте источник питания вместе со штекером 1 и штекером 13. Установка 20-штыревого разъема питания ATX Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 183 обеспечивает подачу выходного (2-контактный HDMI_SPDIF1) аудиосигнала на VGA-карту (см. стр. 4, п. 32) HDMI, что позволяет подключать к системе цифровые телевизоры, проекторы или жидкокристаллические панели HDMI. Соедините эту колодку с разъемом HDMI_SPDIF на VGA- карте HDMI. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 184 USB 3.0 (USB3_4_5) на материнской плате. Руководство по установке кронштейна заднего разъема USB 3.0 Шаг 1 Шаг 2 Открутите два винта на передней Соедините кабель USB 3.0 и панели USB 3.0. кронштейн разъема USB 3.0. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 185 Reset Switch Кнопка Reset Switch позволяет (RSTBTN) быстро перезагрузить систему. Reset (см. стр. 4, п. 18) Clear CMOS Switch Кнопка Clear CMOS Switch (CLRCBTN) позволяет быстро сбросить (см. стр. 5, п. 17) установки CMOS. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 186 горячего подключения ШАГ 1. Установите параметры UEFI. A. Войдите в утилиту настройки UEFI → экран Advanced → Storage Confi guration. B. Установите для “SATA Mode” значение [IDE]. (Для SATA3_0, SATA3_1 и SATA2_2 к SATA2_5) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 187 B. Установите для “SATA Mode” значение [AHCI]. (Для SATA3_0, SATA3_1 и SATA2_2 к SATA2_5) Установите для “SATA3 Mode” значение [AHCI]. (Для SATA3_A1 к SATA3_A4.) ® ШАГ 2. Установите на свою систему Windows 7 / 7 64-bit / Vista Vista 64-bit. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 188 Если в вашем компьютере включена функция автозапуска (AUTORUN), то на экране автоматически появится главное меню компакт-диска (Main Menu). Если этого не произошло, найдите в папке BIN на компакт-диске поддержки файл ASSETUP.EXE и дважды щелкните на нем, чтобы открыть меню. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 189 önceden haber verilmeksizin değişebilir. Bu belgede değişiklik yapılması durumun -da, güncelleştirilmiş sürüm ayrıca haber verilmeksizin ASRock web sitesinde sunulur. En son VGA kartlarını ve CPU destek listelerini de ASRock web sitesinde bulabilirsiniz. ASRock web sitesi http://www.asrock.com Bu anakartla ilgili teknik desteğe ihtiyacınız olursa, kullandığınız modele özel bilgiler için lütfen web sitemizi ziyaret edin.
  • Page 190 - 75Hz’de 2048x1536’ya kadar maks. çözünürlükle D-Sub’ı destekler - Auto Lip Sync, Deep Color (12bpc), HDMI ile xvYCC ve HBR’yi (Yüksek Bit Hızlı Ses) destekler (Uyumlu HDMI monitör gerekir) (bkz. DİKKAT 8) - HDMI 1.4a bulunan Blu-Ray stereoskopik 3D’yi desteklemektedir Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 191 USB 3.0 bağlantı noktasını destekler), 5Gb/s’ye kadar USB 1.0/2.0/3.0 Konektör - 4 x SATA2 3,0Gb/sn, donanım RAID (RAID 0, RAID 1, RAID 10, RAID 5, Intel Rapid Storage ve Intel Smart Response Teknolojisini), NCQ, AHCI ve “Sistem Açıkken Bileşen Takma” işlevlerini Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 192 - CPU Core, IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltaj Çoklu ayarı Destek CD’si - Sürücüler, Yardımcı Programlar, AntiVirüs Yazılımı (Deneme Sürümü), CyberLink MediaEspresso 6.5 Deneme Sürümü, ASRock Yazılım Paketi (CyberLink DVD Paketi - OEM ve Deneme) Benzersiz - F-Stream (bkz. DİKKAT 10) Özellik - ASRock Anında Önyükleme...
  • Page 193 - FCC, CE, WHQL - ErP/EuP Hazır (ErP/EuP hazır güç kaynağı gerekli) (bkz. DİKKAT 20) * Ayrıntılı ürün bilgileri için lütfen web sitemizi ziyaret edin: http://www.asrock.com UYARI Lütfen, ayarı BIOS'da ayarlama, Untied Overclocking Teknolojisi'ni uygulama veya üçüncü taraf aşırı hızlandırma araçlarını kullanma gibi durumlarda aşırı hızlandırmayla ilgili risk olduğunu unutmayın.
  • Page 194 IES’de (Akıllı Enerji Tasarrufu), CPU çekirdekleri boşta olduğunda bilgisayarın performansından ödün vermeden gerilim düzenleyicisi çıkış fazlarının sayısını düşürerek verimliliği iyileştirir. 11. ASRock Anında Flash, Flash ROM’a katıştırılmış bir BIOS fl ash yardımcı programıdır. Bu kullanışlı BIOS güncelleme aracı, sistem BIOS’unu MS- ®...
  • Page 195 13. İnternet tarayıcısının yeni bir işlevi olan ASRock SmartView, en sık ziyaret ettiğiniz web sitelerini, geçmişinizi, Facebook arkadaşlarınızı ve sizin gerçek zamanlı haber beslemelerinizi, daha kişisel bir İnternet deneyimi için geliştirilmiş bir görünümde birleştiren IE için akıllı başlangıç sayfasıdır. ASRock anakartları, hareket halindeki arkadaşlarınızla irtibat halinde kalmanıza yardım eden ASRock SmartView yardımcı...
  • Page 196 1155-Pinli Sokete Genel Bakış 1155-Pin CPU'yu soketine takmadan önce, lütfen CPU yüzeyinin temiz olduğundan ve sokette eğrilmiş pin olmadığından emin olun. Yukarıdaki durum oluşmuşsa CPU'yu sokete zorla takmaya çalışmayın. Aksi halde, CPU ciddi şekilde zarar görecektir. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 197 çentiği bulun. yönlendirme dişi çentiği hizalama dişi Pin1 Pin1 hizalama dişi yönlendirme dişi çentiği 1155-Pin-Socket 1155-Pin-CPU Düzgün şekilde takmak için, lütfen CPU'daki iki yönlendirme dişi çentiğini soketteki iki hizalama dişiyle eşleştirdiğinizden emin olun. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 198 Kalan sabitleyicilerle de aynı işlemi yapın. Sabitleyicileri saat yönünde döndürmeden bastırırsanız, ısı emici anakarta sabitlenemez. Adım 5. Fan fi şini anakarttaki CPU fanı konektörüne bağlayın. Adım 6. Kabloların fanın çalışmasını engellemediğinden ve diğer bileşenlere temas etmediğinden emin olmak için kablo bağıyla sabitleyin. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 199 Lütfen anakartın üç farklı CPU soğutucu tipi olan Soket LGA 775, LGA 1155 ve LGA 1156'yı çalıştıracak esnek seçeneğe sahip olan Kombo Soğutucu Seçeneğini (C.C.O.) desteklediğini unutmayın. Beyaz delikler Soket LGA 1155/1156 CPU fanı içindir. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 200 4. Bir DDR veya DDR2 bellek modülünü DDR3 yuvasına takmaya izin verilmez; aksi halde bu anakart ve DIMM zarar görebilir. 5. 16 adet yongaya sahip bazı DDR3 1GB çift tarafl ı DIMM’ler bu ana kartta çalışmayabilir. Bu ana karta kurmanız önerilememektedir. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 201 DIMM'nin takılabileceği yalnızca bir doğru yön vardır. DIMM'yi yanlış yönde zorla yuvaya takarsanız anakart ve DIMM kalıcı hasar görür. Adım 3. İki uçtaki tutucu klipsler yerine geri oturuncaya ve DIMM düzgün şekilde yerleşinceye kadar DIMM'yi yuvanın içinde bastırın. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 202 Sistem ünitesi kapağını çıkarın (anakartınız zaten kasada takılıysa). Adım 3. Kullanmak istediğiniz yuvaya bakan braketi çıkarın. Vidaları daha sonra kullanmak üzere saklayın. Adım 4. Kartın konektörünü yuvaya hizalayın ve kart yuvaya tam olarak otu- runcaya kadar sıkıca bastırın. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 203 / 7 İS ile desteklenir. 3-Way ® CrossFireX ve Quad CrossFireX özelliği yalnızca Windows Vista / 7 İS’de desteklenir. ATI CrossFireX sürücü güncellemeleri için lütfen AMD web sitesini kontrol edin. Lütfen ayrıntılar için sayfa 24’ye bakın. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 204 YERLEŞTİRMEYİN. Fişlerin ve konektörlerin üzerine jumper kapakları yerleştirmek anakartın kalıcı olarak zarar görmesine neden olabilir! Disket Konektörü (33-pinli DİSKET1) (bkz. s.4 No. 31) kırmızı çizgili taraf Pin1'e Not: Kablonun kırmızı çizgili tarafının konektörün Pin1 tarafına takıldığından emin olun. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 205 Seri ATA (SATA) Güç Kablosu Lütfen SATA güç kablosunun siyah ucunu her sürücüde (İsteğe bağlı) bulunan güç konektörüne bağlayın. Sonra, SATA güç SATA HDD güç konektörüne kablosunun beyaz ucunu güç bağlama güç kaynağına bağlama kaynağının güç konektörüne bağlayın. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 206 (bkz. s.4 No. 33) Dahili Ses Konektörleri Bu konektör, CD-ROM, DVD- ROM, TV tuner kartı veya (4-pinli CD1) MPEG kartı gibi ses (bkz. s.4 No. 38) kaynaklarından stereo ses girişi almanızı sağlar. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 207 Kasa üzerindeki sıfırlama anahtarını ön panele bağlayın. Bilgisayar donarsa veya normal bir yeniden başlatma gerçekleştirilemezse, bilgisayarı yeniden başlatmak için sıfırlama anahtarına basın. PLED (Sistem Gücü LED’i): Kasa üzerindeki güç durumu göstergesini ön panele bağlayın. Sistem Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 208 (3-pinli CHA_FAN3) (bkz. s.4 No. 6) (3-pinli PWR_FAN1) (bkz. s.4 No. 42) CPU Fan Konektörü Lütfen fan kablolarını CPU fanına bu konektöre bağlayın (4-pinli CPU_FAN1) ve siyah kabloyu toprak pinine (bkz. s.2 No. 3) bağlayın. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 209 Bu anakartta G/Ç panelindeki bir varsayılan IEEE 1394 portu (9-pinli FRONT_1394) nun yanı sıra, bir IEEE 1394 fi ş (bkz. s.4 No. 24) (FRONT_1394) de bulunur. Bu IEEE 1394 fi şi bir IEEE 1394 portunu destekler. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 210 HDMI_SPDIF fi şi, SPDIF ses çıkışını HDMI VGA kartına (2-pinli HDMI_SPDIF1) sağlar, sistemin HDMI Dijital (bkz. s.4 No. 32) TV/projektör/LCD cihazlarını bağlamasına izin verir. Lütfen HDMI VGA kartının HDMI_SPDIF konektörünü bu fi şe bağlayın. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 211 Ön USB 3.0 Panelinden iki vidayı sökün. USB 3.0 kablosunu ve arka USB 3.0 braketini bir araya getirin. Adım 3 Adım 4 İki vidayı arka USB 3.0 braketine Arka USB 3.0 braketini kasaya vidalayın. yerleştirin. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 212 şekilde (RSTBTN) Reset sistemi sıfırlamalarını (bkz. s.4 No.18) sağlayan akıllı bir anahtardır. CMOS'u Temizleme Anahtarı CMOS'u Temizleme Anahtarı, kullanıcıların hızlı bir şekilde (CLRSBTN) CMOS değerlerini (bkz. s.5 No.17) temizlemelerini sağlayan akıllı bir anahtardır. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 213 B. "SATA Modu" seçeneğini [IDE] olarak ayarlayın. (Için SATA3_0, SATA3_1 ve SATA2_2 için SATA2_5) “SATA3 Modu” seçeneğini [IDE] olarak ayarlayın. (Için SATA3_A1 için SATA3_A4.) ® ADIM 2: Windows XP / XP 64-bit İS'yi sisteminize yükleyin. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 214 B. “SATA Modu” seçeneğini [AHCI] olarak ayarlayın. (Için SATA3_0, SATA3_1 ve SATA2_2 için SATA2_5) “SATA3 Modu” seçeneğini [AHCI] olarak ayarlayın. (Için SATA3_A1 için SATA3_A4.) ® ADIM 2: Windows 7 / 7 64-bit / Vista / Vista 64-bit İS'yi sisteminize yükleyin. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 215 Destek CD'sini kullanmaya başlamak için, CD'yi CDROM sürücünüze takın. Bilgisayarınızda "OTOMATİK KULLAN" özelliği etkinleştirilmişse, Ana Menüyü otomatik olarak görüntüler. Ana Menü otomatik olarak görüntülenmezse, menüleri görüntülemek için Destek CD'sinin “BIN” klasöründeki "ASSETUP.EXE" dosyasını bulun ve çift tıklatın. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 216 Fatal1ty Z68 Professional Gen3 Series 메인 보드를 구매하여 주신것에 대하여 감 사 드립니다 . 이 메인보드는 엄격한 품질관리 하에 생산되어진 신뢰성 있는 메인보드 입니다 . 이 제품은 고 품격 디자인과 함께 ASRock 의 우수한 품질과 최고의 안정성 을 자랑하고 있습니다 . 이 빠른 설치 안내서에는 마더보드에 대한 설명과 단계별 설...
  • Page 217 (HDMI 호환 모니터 필요 ) ( 주의 8 참조 ) - HDMI 1.4a 로 블루레이 스테레오스코픽 3D 를 지원합니다 - DVI 및 HDMI 포트를 이용한 HDCP 기능 지원 - DVI 및 HDMI 포트를 이용한 1080p Blu-ray (BD) / HD-DVD 재생을 지원 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 218 - 6 개 의 SATA3 6.0Gb/s 커넥터 - ATA133 IDE 커넥터 1 개 ( 최고 2 개의 IDE 장치 지원 ) - 플로피 포트 1 개 - 적외선 모듈 헤더 1 개 - COM 포트 헤더 1 개 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 219 - ASRock XFast USB ( 주의 14 참조 ) - Lucid Virtu ( 주의 15 참조 ) - ASRock On/Off Play 기술 ( 주의 16 참조 ) - 하이드브리 부스터 : - CPU 주파수의 단계적인 조절 ( 주의 17 참조 ) - ASRock U-COP ( 주의...
  • Page 220 - FCC, CE, WHQL - ErP/EuP 지원 (ErP/EuP 지원 전원 공급기가 요구됨 ) ( 주의 20 참조 ) * 상세한 제품정보는 당사의 웹사이트를 방문할수있습니다 . http://www.asrock.com 경고 오버클로킹에는 BIOS 설정을 조정하거나 Untied Overclocking Technology 를 적 용하거나타업체의 오버클로킹 도구를 사용하는 것을 포함하여 어느 정도의 위험이...
  • Page 221 용하려면 OS 버전이 Windows 7 / 7 64 비트 / Vista / Vista 64 비트이고 브라우저 버전이 IE8 인지 확인하십시오 . ASRock 웹사이트 : http://www.asrock.com/Feature/SmartView/index.asp 14. ASRock XFast USB 는 USB 스토리지 장치 성능을 높여줍니다 . 성능은 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 222 HD 그래픽 의 첨단 미디어 기능의 이점을 모두 즐길 수 있습니다 . 16. ASRock On/Off Play 기술은 사용자가 MP3 플레이어 또는 휴대전화와 같은 이동식 오디오 장치에서 PC 에 이르는 여러 장치에서 고음질 오디오 경험을 즐길 수 있게 하며 PC 가 꺼져 있을 때도 ( 또는 ACPI S5 모드에 있...
  • Page 223 1155 핀 소켓 개요 1155 핀 CPU 를 소켓에 삽입하기 전에 CPU 표면이 더럽거나 소켓에 구부러진 핀이 있는지 점검하십시오 . 이런 상태라면 CPU 를 소켓에 억지로 삽입하지 마십시오 . 그렇지않으면 CPU 가 심각하게 손상됩 니다 . Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 224 올바른 삽입을 위하여 CPU 의 방향 키 노치 두 개와 소켓의 정렬 키 두 개를 맞추십시오 . 3-3 단계 . CPU 를 소켓에 순전히 수직 방향으 로 주의하여 배치합니다 . 3-4 단계 . CPU 가 소켓에 있고 방향 키와 제대 로 일치하는지 확인합니다 . Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 225 이 메인보드는 3 개의 다른 CPU 쿨러 타입 , 소켓 LGA 775, LGA 1155 와 LGA 1156 을 채택할 수 있는 유연한 옵션을 제공하는 콤 보 쿨러 옵션 (C.C.O.) 을 지원합니다 . 하얀색 구멍은 소켓 LGA 1155/1156 CPU 팬용입니다 . Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 226 2.3 메모리 모듈 설치하기 Fatal1ty Z68 Professional Gen3 Series 마더보드는 4 개의 240 핀 DDR3 ( 더블 데 이트 레이트 3) DIMM 슬롯을 제공하고 듀얼 채널 메모리 기술을 지원합니다 . 듀얼 채널 구성을 위해서는 반드시 같은 색깔 슬롯에 동일한 DDR3 DIMM 한 쌍 ( 즉 동일...
  • Page 227 주어 잘못 삽입하면 DIMM 이나 메인보드에 치명적인 불량을 유발 시킵니다 . 단계 3. DIMM 모듈을 삽입 시 바깥에 있는 손잡이 두개가 완전히 돌아 올 때 까지 ( 끼워 질 때 까지 ) 눌러서 정확히 장착 될 수 있도록 하여야 합니다 . Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 228 2.4 확장 슬롯 (PCI 슬롯 , PCI Express 슬롯 ) Fatal1ty Z68 Professional Gen3 Series 메인보드는 2 개의 PCI 슬롯을 , 및 5 PCI Express 슬롯 제공합니다 . PCI 슬롯 : PCI 슬롯은 32bit PCI 인터페이스를 가지는 확장카드들을 설치하여 사용 합니다 .
  • Page 229 / 7 OS 에서 지원됩니다 . 3-Way CrossFireX 및 Quad CrossFi- ® 기능은 Windows Vista / 7 OS 에서만 지원됩니다 . AMD 웹 사이트에서 CrossFireX 드라이버 업데이트를 확인하십시오 . 자세한 내용은 24 페이지 의 설치 절차를 참조하십시오 . Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 230 설명 FDD 콘넥터 (33 핀 FLOPPY1) (4 페이지 , 31 번 항목 참조 ) 빨간색 줄무늬 쪽을 1 번 핀에 참고 : 케이블의 빨간색 줄무늬가 있는 쪽을 커넥터의 1 번 핀에 맞추어 연결하십시오 . Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 231 SATA 전원 케이블의 검은 전원 케이블 색끝부분을 드라이브의 전원 커넥터에 연결하십시오 . 그 ( 선택 사양 ) 다음에 SATA 전원 케이블의 SATA HDD 전원 커넥터에 연결 흰색 끝을 전원 공급장치의 전원 공급장치에 전원 커넥터에 연결합니다 . 연결 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 232 내부 오디오 콘넥터 이 콘넥터는 CD-ROM, DVD- ROM, TV 튜너 , 또는 MPEG (4 핀 CD1) 카드의 사운드 소스로부터 (CD1: 4 페이지 , 38 번 항목 참조 ) 스테레오 입력을 받기 위한 것입니다 . Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 233 섀시 전면 패널의 전원 스위치에 연결합니다 . 전원 스위치를 이용해 시스 템을 끄는방법을 구성할 수 있습니다 . RESET( 리셋 스위치 ): 섀시 전면 패널의 리셋 스위치에 연결합니다 . 컴퓨터가 정지하고 정상적 재시작을수행하지 못할 경우 리셋 스위치를 눌러 컴퓨터를 재시작합니 다 . Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 234 통하여 제어할 수 있습니다 . (4 페이지 , 23 번 항목 참조 ) (3 핀 CHA_FAN3) (4 페이지 , 6 번 항목 참조 ) (3 핀 PWR_FAN1) (4 페이지 , 42 번 항목 참조 ) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 235 비록 본 마더보드는 8- 핀 ATX 12V 전원 연결기를 제공하지만 이것은 여전히작업할수있습니다 . 만약 전통적인 4- 핀 ATX 12V 전원공급을 채 용하여 4- 핀 ATX 전력을 사용하는경우 , 반드시 전원 공급을 핀 1 과 핀 5 에전원공급을 삽입해야합니다 . 4- 핀 ATX 12V 전원공급장치 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 236 HDMI_SPDIF 헤더는 시스템 (4 페이지 , 32 번 항목 참조 ) 이 HDMI 디지털 TV/ 프로젝 터 /LCD 장치에 연결할 수 있 게 합니다 . HDMI VGA 카드의 HDMI_SPDIF 커넥터를 이 헤 더에 연결하십시오 . Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 237 전면 USB 3.0 패널에서 두 개의 나사를 USB 3.0 케이블과 후면 USB 3.0 제거합니다. 브래킷을 연결합니다. 4 단계 단계 3 단계 단계 후면 USB 3.0 패널에 두 개의 나사를 후면 USB 3.0 브래킷을 섀시에 장착합니다. 장착합니다. Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 238 (4 페이지 , 18 번 항목 참조 ) 할 수 있습니다 . CMOS 삭제 스위치 CMOS 삭제 스위치는 빠른 스위 (CLRCBTN) 치로서 , 사용자가 CMOS 값을 (5 페이지 , 17 번 항목 참조 ) 빠르게 삭제할 수 있습니다 . Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 239 2.13.1 RAID 기능이 지원되지 않는 Windows / XP 64 비트 ® 설치 SATA / SATAII / SATA3 HDD 에 RAID 기능을 지원하지 않는 Windows XP / XP 64 비트 를 설치하거나 , 다음 단계 를 따르십시오 . Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 240 에 SATA2_5.) “SATA3 Mode”을 [AHCI] 로 설정한 . ( 용 SATA3_A1 에 SATA3_A4.) ® 단계 2: 시스템에 Windows 7 / 7 64 비트 / Vista / Vista 64 비트 OS 를 설치합 니다 . Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 241 뉴를 모니터에 디스플레이 시켜 줄 것입니다 . 만일 자동으로 메인 메뉴가 나타나지 않는다면 , 보조 CD 의 디스플레이 메뉴 안에 있는 BIN 폴더 ASSETUP.EXE 파일을 더블 클릭하여 주시기 바랍니다 . (D: \ BIN \ ASSETUP.EXE, D: 는 CD-ROM 드라이브 ) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 242 Fatal1ty Z68 Professional Gen3 Series マザーボード: (ATX フォームファクター : 12.0-in x 9.6-in, 30.5 cm x 24.4 cm) Fatal1ty Z68 Professional Gen3 Series クイックインストレーションガイド Fatal1ty Z68 Professional Gen3 Series サポート CD 1 x Ultra ATA 66/100/133 IDE リボンケーブル ( 導線数:80) 1 x 3.5 インチフロッピードライブ用リボンケーブル...
  • Page 243 (x1) ( 注意 7 を参照 ) - 1920x1200 @ 60Hz の最大解像度で HDMI 1.4a をサポート - 1920x1200 @ 60Hz の最大解像度で DVI をサポート - 2048x1536 @ 75Hz の最大解像度で D-Sub をサポート - オート・リップシンク、ディープカラー(12bpc)、xvYCC、HBR(High Bit Rate)オーディオ、HDMI (HDMI 準拠モニタが必要)をサ Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 244 グ ) 機能 (SATA3_A4 コネクタは eSATA3 ポートと共有 ) USB 3.0 - 4 x リア USB 3.0 ポート (ASMedia ASM1042)、USB 1.0/2.0/3.0 に最高 5Gb/s まで対応 - 1 x フロント USB 3.0 ヘッダ (USB 3.0 ポート 2 基対応 ) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 245 特徴 - F-Stream ( 注意 10 参照 ) - ASRock インスタントブート - ASRock Instant Flash ( 注意 11 参照 ) - ASRock APP ヱャージャー ( 注意 12 を参照 ) - ASRock SmartView ( 注意 13 を参照 ) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 246 - ASRock XFast USB ( 注意 14 を参照 ) - Lucid Virtu ( 注意 15 を参照 ) - ASRock オン / オフ再生技術 ( 注意 16 を参照 ) - ハイブリッドブースタ : - CPU 周波数無段階制御 ( 注意 17 を参照 ) - ASRock U-COP ( 注意 18 を参照 ) - 起動障害保護...
  • Page 247 せずに BIOS を更新することができます。ご使用の際には、USB フラッシュドラ イブあるいはハードドライブが FAT32/16/12 ファイルシステムを使用してい ることを確認してください。 iPhone/iPod/iPad Touch など Apple デバイスを迅速かつお手軽に充 電するために、ASRock では ASRock APP チャージャーという素晴らしいソ リューションをご用意しています。APP チャージャードライバをインストールす るだけで、ご使用の iPhone をコンピュータから素早く充電することができま す。充電時間は従来より最高 40% も速くなります。ASRock APP チャージャー をお使いいただくと複数の Apple デバイスを同時に素早く充電できます。本 製品は PC がスタンバイモード (S1)、メモリサスペンドモード (S3)、休止モード Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 248 ではないことにご注意ください。 Energy Using Product(エコデザイン)の略語 EuP は完成システムの消 費電力を定義するために欧州連合により規制された条項です。 EuP に従っ て、管制システムの総 AC 電力はオフモード条件下で 1.00W 未満に抑える必 要があります。EuP 規格を満たすには、EuP 対応マザーボードと EuP 対応電 源が必要です。 Intel の提案に従い、EuP 対応電源装置は規格を満たす必 要があります、つまり 5v のスタンバイ電力効率は 100 mA の消費電流下で 50% 以上でなければなりません。 EuP 対応電源装置を選択する場合、電源 装置製造元に詳細を確認するようにお勧めします。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 249 れて放電しておくことに留意してください。 IC には触れないように部品の角を持ちます。 部品を取り外す場合は、外した部品は必ず静電気防止パッドに置くか部品が 梱包されていたバッグに収納してください。マザーボードをシャーシに取り 付ける為にネジをネジ穴に入れるときは、ネジを締め過ぎないようにしてく ださい。締めすぎるとマザーボードを傷つけます。 2.1 CPU インストレーション Intel 1155-LAND CPU の取り付けについては、 以下のステップに従ってください。 1155 ピンソケットの概要 1155-LAND CPU をソケットに挿入する前に、CPU の表面が汚れていない か、ソケットに曲がったピンがないか確認してください。上の状況が見つ かった場合、CPU をソケットに無理に挿入しないでください。CPU がひど く損傷します。 ステップ 1. ソケットを開く : ステップ 1-1. レバーをフックまで押し下げて 保持タブを取り外します。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 250 の 2 つの刻み目を探します。 方向キーの刻み目 位置合わせキー ピン 1 ピン 1 位置合わせキー 方向キーの刻み目 1155 ピンソケット 1155-LAND CPU 正しく挿入するために、CPU の 2 つの方向キーの刻み目がソケットの 2 つの 位置合わせキーに一致していることを確認してください。 ステップ 3-3. ソケットを完全に垂直移動するこ とによって、CPU をソケットに慎 重に配置します。 ステップ 3-4. CPU がソケット内部にあり、方向 キーに正しく一致していることを 確認します。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 251 け、ロックします。残りのファスナー についても、上の操作を繰り返します。 ファスナーを時計回りに回転せずに押すと、ヒートシンクはマザーボード に固定できません。 ステップ 5. ファンヘッダをマザーボードの CPU ファンコネクタに説明します。 ステップ 6. ケーブルがファン動作の邪魔をしたり他のコンポーネントに触れな いように、余分なケーブルをタイラップでまとめます。 このマザーボードはコンボクーラーオプション (C.C.O.) に対応しており、 Socket LGA 775、LGA 1155 と LGA 1156 の 3 つの異なる CPU クーラー タイプを採用できる、柔軟なオプションを用意しています。白い貫通穴は Socket LGA 1155/1156 CPU 用です。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 252 2.3 メモリーモジュール (DIMM) 取り付け Fatal1ty Z68 Professional Gen3 Series マザーボードには、240 ピン DDR3 (Double Data Rate 3) DIMM 用スロットが 4 カ所あり、デュアルチャンネルメモリーテク ノロジーをサポートしています。デュアルチャンネルコンフィギュレーションに関しては、常に 同一 ( 同じメーカー、同じ速度、同じサイズ、同じチップタイプ ) の DDR3 DIMM ペアを同 じ色のスロットに取り付ける必要が有ります。つまり、同一の DDR3 DIMM ペアをデュアル チャンネル A (DDR3_A1 および DDR3_B1、赤のスロット、4 ページの No.4 を参照 ) に挿...
  • Page 253 DIMM やシステムコンポーネントの着脱の前は電源が OFF になっているこ とを確認してください。 ステップ 1. 固定クリップを外側に押して DIMM スロットのロックを外します。 ステップ 2. DIMM のノッチがスロットの切れ目の位置に対応するように DIMM とスロット を合わせます。 notch break notch break DIMM は 1 つの正しい向きでのみ装着されるようになっています。DIMM を間違った向きでスロットに装着すると、マザーボードや DIMM に重大な 損傷がもたらされることがあります。 ステップ 3. 最後に、DIMM をスロットに挿入し、両端の固定クリップを所定の位置まで 戻して、DIMM をしっかり装着してください。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 254 2.4 拡張スロット(PCI スロット、PCI Express スロット) Fatal1ty Z68 Professional Gen3 Series マザーボードには、PCI スロット 2 基、 PCI Express スロット 5 基が備わっています。 PCI スロット : PCI スロットは、32 ビット PCI インターフェイスを持つ拡張 カードのインストールに使用します。 PCIE スロット : PCIE1 / PCIE3 (PCIE x1 スロット、黒 ) は Gigabit LAN カード、...
  • Page 255 ションで、考えられるもっとも高いレベルのパフォーマンスと画像品質を可能にします。現 ® 在、CrossFireX 機能は Windows XP with Service Pack 2 / Vista OS でサポートされています。3-Way CrossFireX と Quad CrossFireX 機能は ® Windows Vista / 7 OS でのみサポートされます。ATI CrossFireX ドライバ更新 については、AMD の Web サイトをチェックしてください。詳細は、24 ページの取り付け手 順に従ってください。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 256 注 : CLRCMOS1 により、CMOS のデータをクリアできます。システムパラメータをクリアしデフォルト設定にリ セットするには、コンピュータの電源をオフにし、電源装置から電源コードを抜いてください。15 秒待って から、ジャンパキャップを使用して CLRCMOS1 のピン 2 とピン 3 を 5 秒間ショートしてください。ただし、 BIOS 更新の後すぐには CMOS をクリアしないでください。BIOS の更新の終了後直ちに CMOS をクリア する必要がある場合、まずシステムを起動してからシャットダウンし、その後クリア CMOS アクションを実 行する必要があります。パスワード、日付、時刻、ユーザーデフォルトのプロファイルを忘れずにメモして ください。1394 GUID と MAC アドレスは、CMOS バッテリを取り外した場合のみ消去されます。 クリアCMOSスイッチには、クリアCMOSジャンパと同じ機能があります。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 257 SATA3_A1_A2: ページ 4, アイテム 15 を参照 データケーブルに対応していま SATA3_A3_A4: ページ 4, アイテム 16 を参照 す。現在の SATA3 インタフェー スの最大データ転送速度は 6.0 Gb/s です。 SATA データケーブルのどちらかの シリアル ATA(SATA) 端をマザーボードの SATA /SATAII / データケーブル(オプション) SATA3 ハードディスク、または SATAII / SATA3 コネクタに接続できます。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 258 す。この USB 3.0 ヘッダは USB 3.0 ポート 2 基をサポートできます。 赤外線モジュールコネクタ このコネクタは赤外線の無線送受信 モジュールに対応します。 (5 ピン IR1) ページ 4, アイテム 33 を参照 内部オーディオコネクタ このコネクタを使うと、CD- ROM、DVD-ROM、TV チュー (4 ピン CD1) ナーカード、MPEG カードといっ ページ 4, アイテム 38 を参照 た音楽ソースからステレオオー ディオ入力を受信できます。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 259 ク ) タブを開きます。 “ Recording Volume ” ( 録音音量 ) を調 整します。 システムパネルコネクタ このコネクタは数種類のシステム フ ロントパネルの機能を提供しま (9 ピン PANEL1) す。 ページ 4, アイテム 21 を参照 シャーシに付いている電源スイッチ、リセットスイッチ、システムステータ スインジケータを下記のピン割り当て指示に従ってこのヘッダに接続します。 ケーブルを接続する前にピンの正負極性にご注意ください。 PWRBTN ( 電源スイッチ ): 前面パネルに付いている電源スイッチに接続します。電源スイッチによるシス テム電源オフ方法を設定して変更することも可能です。 RESET ( リセットスイッヱ ): Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 260 ページ 4, アイテム 22 を参照 ンに合わせてください。CHA_ FAN1/2/3 ファン速度は、UEFI また は AXTU を通して制御可能できま (3 ピン CHA_FAN2) す。 ページ 4, アイテム 23 を参照 (3 ピン CHA_FAN3) ページ 4, アイテム 6 を参照 (3 ピン PWR_FAN1) ページ 4, アイテム 42 を参照 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 261 (8 ピン ATX12V1) プラグを備えたサワーサプライを ページ 4, アイテム 1 を参照 接続する必要があることに注意し てください。接続に問題があると、電源 は正しく供給されません。 このマザーボードで 8-pin ATX 12V 電源コネクタが提供されたが、従来の 4-pin ATX 12V 電源でも動作できます。 4-pin ATX 電源を使用する場合、電源を Pin 1 と Pin 5 とともに差し込んでください。 4-Pin ATX 12V 電源の取り付け Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 262 バンドルされた前面 USB 3.0 パネル、4 本の 2.5” HDD/SSD を 4 本の HDD ねじで前 手順 手順 2 HDD ねじ、6 本のシャーシねじを準備します。 面 USB 3.0 パネルに取り付けます。 手順 手順 3 手順 手順 4 前面USB 3.0パネルを筐体の2.5インチドライブ 正面 USB 3.0 パネルを 6 本のシャーシ ベイに取り付けます。 ねじでドライブベイに取り付けます。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 263 システム電源のオン / オフを素早く切 Power ページ 4, アイテム 26 を参照 り替えることができます。 リセットスイッヱ リセットスイッヱはクイックスイッヱ (RSTBTN) で、システムを素早くリセットするこ Reset ページ 4, アイテム 18 を参照 とができます。 クリア CMOS スイッヱはクイックス クリア CMOS スイッヱ イッヱで、CMOS 値を素早くクリア (CLRCBTN) ページ 5, アイテム 17 を参照 できます。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 264 A. UEFI セットアップユーティリティ、詳細画面、Storage 構成に入ります。 B. 「SATA Mode」を [IDE] に設定し。( について SATA3_0、SATA3_1 と SATA2_2 に SATA2_5。) 「SATA3 Mode」を [IDE] に設定し。( について SATA3_A1 に SATA3_A4。) ® ステップ 2: システムに Windows XP / XP 64- ビット OS をインストールします。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 265 B. 「SATA Mode」を [AHCI] に設定し。( について SATA3_0、SATA3_1 と SATA2_2 に SATA2_5。) 「SATA3 Mode」を [AHCI] に設定し。( について SATA3_A1 に SATA3_A4。) ® ステップ 2: システムに Windows 7 / 7 64- ビット / Vista / Vista 64 ビ ト OS をインストールします。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 266 7 / 7 64-bit / Vista / Vista bit / XP / XP 64-bit といった様々なマイクロソフト ウインドウズ オペレーティングシ ステムをサポートします。マザーボードに付属しているサポート CD はマザーボードの特徴 を有効にするために必要なドライバやユーティリティを含んでいます。サポート CD を使用 するには、CDROM ドライブに CD を挿入してください。AUTORUN 機能が有効な場合、自 動的にメインメニュウが立ち上がります。AUTORUN 機能が無効な場合、サポート CD 内の BIN フォルダにある ASSETUP.EXE をダブルクリックすることにより、メインメニュウが立ち 上がります。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 267 1. 主板簡介 謝謝你采用了 Fatal1ty Z68 Professional Gen3 Series 主板 , 本主板由華擎嚴格制 造 , 質量可靠 , 穩定性好 , 能夠獲得卓越的性能。本安裝指南介紹了安裝主板的步驟。 更加詳細的主板信息可參看驅動光盤的用戶手冊。 由于主板規格和 BIOS 軟件將不斷升級 , 本手冊之相關內容變更恕不另 行通知。請留意華擎网站上公布的升級版本。你也可以在華擎網站找 到最新的顯卡和 CPU 支持表。 華擎网址:http://www.asrock.com 如果您需要與此主板有關的技術支持 , 請參觀我們的網站以了解您使用機 種的規格信息。 www.asrock.com/support/index.asp 1.1 包裝盒內物品 Fatal1ty Z68 Professional Gen3 Series 主板...
  • Page 268 - 支持藍光立体 3D 和 HDMI 1.4a - 通過 DVI 和 HDMI 接口支持 HDCP 功能 - 通過 DVI 和 HDMI 接口可播放 10800 線藍光光盤 (BD) / HD- DVD 光盤 音效 - 7.1 聲道高保真音頻 , 支持內容保護功能 (Realtek ALC892 音頻編解碼器 ) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 269 - 1 x ATA133 IDE 插座 ( 最高支持 2 個 IDE 驅動器 ) - 1 x 軟驅接口 - 1 x 紅外線模塊接頭 - 1 x 串行接口 - 1 x HDMI_SPDIF 接頭 - 1 x IEEE 1394 接頭 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 270 - ASRock U-COP(見警告 18) - Boot Failure Guard (B.F.G., 啟動失敗恢復技術 ) - 組合散熱器選項 (C.C.O.)(見警告 19) - 晚安指示燈 硬件監控器 - CPU 溫度偵測 - 主板溫度偵測 - CPU/ 機箱 / 電源風扇轉速計 - CPU/ 机箱靜音風扇(允許根据 CPU 溫度自動調整机箱風扇速 度) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 271 10、 F - S t r e a m 是一個多合一的工具,可在用戶友好的界面中微調不同的系統 功能,包括硬件監控、風扇控制、超頻、O C D N A 和 I E S。在 H a r d w a r e Monitor(硬件監控)中,顯示系統的主要參數。在 Fan Control(風扇控 制)中,顯示風扇速度和溫度,以便您進行調整。在 Overclocking(超頻) 中,您可以對 C P U 進行超頻,以优化系統性能。在 O C D N A 中,您可以將 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 272 消耗必須在 1.00W 以下。為滿足 Eu P 標準 , 您需要同時具備支持 Eu P 的主 ® 板和支持 EuP 的電源供應器。根據 Intel 的建議 , 支持 EuP 的電源供應器 必須滿足在 100m A 電流消耗時 ,5V s b 電源效率高于 50%。有關支持 E u P 的 電源供應器選擇方面的更多細節 , 我們建議您諮詢電源供應器的製作商。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 273 要安裝 Intel 1155 針 CPU, 請按下面的步驟操作。 ( 承載金屬框 ) ( 接觸隊列 ) ( 插槽體 ) 1155 針插槽圖 在您將 1155 針 CPU 嵌入插槽之前,請檢查 CPU 表面是否不潔或者插 槽上是否有歪斜的針腳。如果發現以上情形,切勿強行將 CPU 嵌入插 槽。否則,CPU 將會嚴重受損。 步驟 1. 掀開插槽: 步驟 1-1. 通過按壓和向外使力使杠杆脫離 挂鉤解開扣具。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 274 找到第 1 針和兩個方向標誌的凹 口。 方向標誌凹口 基準標誌 第 1 針 第 1 針 基準標誌 方向標誌凹口 1155 針插槽 1155 針 CPU 為了正確嵌入,請確保 CPU 的兩個方向標誌凹口與插槽的基準標誌對 齊。 步驟 3-3. 使用完全垂直的動作將 CPU 小心 地放置到插槽上。 步驟 3-4. 檢查 CPU 是否已經方向正確地放 入插槽內。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 275 ( 按壓 (4 位置 )) 安裝並鎖住。其餘的扣具也依次重復操作。 如果您按壓扣具但沒有順時針方向旋轉,那么散熱片不能可靠地固定 到主板上。 步驟 5. 將風扇導線接頭接到主板上的 CPU 風扇接口。 步驟 6. 以打結方式安全處理過長的導線,確保不影響 風扇的運轉或者接觸其他部件。 請注意 : 本主板支持組合散熱器選項 (C.C.O.), 提供靈活的選項 , 讓您可使用三種不同的 CPU 散熱器類型 , 分別是 LGA775,LGA1155 與 LGA1156。白色的通孔是供 LGA1155/1156 CPU 風扇使用。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 276 和 DDR3_B1 或 DDR3_A2 和 DDR3_B2。 2. 如果僅僅在這款主板的 DDR3 DIMM 內存插槽上安裝單條內存模組或 者三條內存模組,這將無法激活雙通道內存技術。 3. 如果一對內存模組並未安裝在相同的“雙通道”上,例如將一對內存 模組安裝在了 DDR3_A1 和 DDR3_A2,這將不能激活雙通道內存技術。 4. 不允許將 DDR 或 DDR2 內存條插入 DDR3 插槽,否則主板和 DIMM 有可 能損壞。 5. 一些 16 晶片的 DDR3 1GB 雙面 DIMM 可能無法在此主板上使用。建議 您不要在此主板上安裝它們。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 277 安裝步驟: 請確保在添加或移走 DIMM 內存或系統部件之前切斷電源適配器。 1、 DIMM 插槽兩端的起拔器向外扳開。 2、 將每個 DIMM 插槽的凹口与 DIMM 內存上凸出部分對應,使凹口与凸出部 分吻合,內存即能正确安裝。 notch break notch break DIMM 內存只能以正確的方向安裝。如果你以錯誤的方向強行將 DIMM 內 存插入插槽 , 那將會導致主板和 DIMM 內存的永久性損壞。  3、 將 DIMM 內存平穩地插入插槽直至兩端卡子迅速而充分地歸位以及 DIMM 內存完全就位。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 278 Gen 3 的 Ivy Bridge CPU。若您安裝了 Sandy Bridge CPU,則 PCI Express 將運行于 PCI Express Gen 2 速度。 安裝步驟: 步驟 1、 在安裝擴展卡之前,請確認已經關閉電源或拔掉電源線。在你安裝之前 , 請閱讀擴展卡的說明並完成必需的硬件設置。 步驟 2、 移動机箱擋板,以便使用擴展槽。 步驟 3、 選擇一個擴展槽安裝擴展卡,裝進机箱并用螺絲固定。 步驟 4、 确定接触正确,沒有單邊翹起的現象。 步驟 5、 用螺絲把擴展卡固定在机箱上。 步驟 6、 蓋上机箱擋板。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 279 使任何 3D 應用軟件的畫質和性能盡可能達到最高的水準。目前 , C r o s s F i r e X 支 ® 持 Windows XP(Service Pack 2) / Vista / 7 操作系統,3-Way CrossFireX 和 ® Quad CrossFireX 僅支持 Windows Vista / 7 操作系統。請檢查 AMD 網站了解 CrossFireX 驅動程序更新情況。請參閱第 24 頁了解詳細的安裝步驟。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 280 線帽將 C L R C M O S1 上的插針 2 和插針 3 短接 5 秒。但是,請勿在更新 B I O S 后 立即清除 C M O S。如果需要在更新 B I O S 后立即清除 C M O S,必須在執行 C M O S 清除操作之前,先啟動然后關閉系統。請注意,只有取出 C M O S 電池,密碼、 日期、時間、用戶默認配置文件、1394 GUID 和 MAC 地址才會被清除。 清除CMOS開關与清除CMOS跳線具有相同的功能。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 281 (SATA3_A1_A2: 見第 4 頁第 15 項 ) 設置。目前 SATA3 界面理論 (SATA3_A3_A4: 見第 4 頁第 16 項 ) 上可提供高達 6.0Gb/s 的數 據傳輸速率。 Serial ATA (SATA) SATA 數據線的任意一端均可 數據線 連接 SATA/SATAII/SATA3 硬 盤或者主板上的 SATAII/ ( 選配 ) SATA3 接口。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 282 兩個 USB 3.0 接口。 紅外線模塊接頭 這個接頭支持一個選配的無 線發送和接受紅外線的 (5 針 IR1) 模塊。 ( 見第 4 頁第 33 項 ) 內置的音頻接頭 可以通過 CD-ROM,DVD-ROM, TV 調諧器或 MPEG 卡接收音頻 (4 針 CD1) 輸入。 (CD1 見第 4 頁第 38 項 ) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 283 ( 見第 4 頁第 21 項 ) 根據下面的針腳說明連接機箱上的電源開關、重啟按鈕與系統狀態 指示燈到這個排針。根據之前請注意針腳的正負極。 PWRBTN( 電源開關 ): 連接機箱前面板的電源開關。您可以設置用電源鍵關閉系統的方式。 RESET( 重啟開關 ): 連接機箱前面板的重啟開關。當電腦死機且無法正常重新啟動時 , 可 按下重啟開關重新啟動電腦。 PLED( 系統電源指示燈 ): 連接機箱前面板的電源狀態指示燈。當系統運行時 , 此指示燈亮起。 當系統處于 S1 待機模式時 , 此指示燈保持閃爍。當系統處于 S3/S4 待 機模式或關機 (S5) 模式時 , 此指示燈熄滅。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 284 ( 見第 4 頁第 3 項 ) 雖然此主板支持 4-Pin CPU 風扇 (Quiet Fan, 靜音風扇 ), 但是沒有調速功能的 3-Pin CPU 風扇仍然可以在此主板上正常運行。如果您打算將 3-Pin CPU 風扇 連接到此主板的 CPU 風扇接口 , 請將它連接到 Pin 1-3。 Pin 1-3 連接 3-Pin 風扇的安裝 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 285 款主板有一組 IEEE 1394 接 ( 見第 4 頁第 24 項 ) 針。這組 IEEE 1394 接針可 以支持一個 IEEE 1394 接口。 串行接口連接器 這個 COM1 端口支持一個串行 接口的外設。 (9 針 COM1) ( 見第 4 頁第 29 項 ) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 286 步驟 4 用六個機箱螺絲將前部USB 將前部USB 3.0面板裝入机箱的2.5”驅動器托 3.0面板裝入驅動器托槽并擰 槽。 上螺絲。 步驟 步驟 5 步驟 步驟 6 將前部USB 3.0線插入主板上的USB 3.0接頭 現在,即可使用USB 3.0面板 (USB3_4_5)。 了。 后部USB 3.0面板安裝指南 步驟 步驟 1 擰下前部USB 3.0面板上的兩個螺絲。 步驟 步驟 2 將USB 3.0線連接到后部USB 3.0面板。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 287 ( 見第 4 頁第 26 項 ) 復位開關 復位開關是一種快速開關 , 可 讓用戶快復位系統。 (RSTBTN) Reset ( 見第 4 頁第 18 項 ) CMOS 數據清除開關 CMOS 數據清除開關是一種快 速開關 , 可讓用戶快速清除 (CLRCBTN) CMOS 中的數據。 ( 見第 5 頁第 17 項 ) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 288 將”SATA Mode”(SATA 模式 ) 設置為 [IDE]。( 用于 SATA3_0,SATA3_1 和 SATA2_2 到 SATA2_5 接口。) 將”SATA3 Mode”(SATA3 操作模式 ) 設置為 [IDE]。( 用于 SATA3_A1 到 SATA3_A4 接口。) ® 步驟 2: 在系統上安裝 Windows XP / XP 64 位元操作系統。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 289 將”SATA Mode”(SATA 模式 ) 設置為 [AHCI]。( 用于 SATA3_0,SATA3_1 和 SATA2_2 到 SATA2_5 接口。) 將”SATA3 Mode”(SATA3 操作模式 ) 設置為 [AHCI]。( 用于 SATA3_A1 到 SATA3_A4 接口。) ® 步驟 2: 在系統上安裝 Windows 7 / 7 64 位元 / Vista / Vista 64 位元操作系統。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 290 進行常規檢驗。如果你需要在開機自檢 ( P O S T ) 之后進入 B I O S 設置程序,請按下 <Ctrl>+<Alt>+<Delete> 鍵重新啟動電腦,或者按下系統面板上的重啟按鈕。有關 BIOS 設置的詳細信息,請查閱隨機支持光盤裡的用戶手冊 (PDF 文件 )。 4. 支持光盤信息 ® ® 本主板支持各種微軟視窗操作系統:Microsoft Windows 7/7 64 位元 /Vista Vista 64 位元 /XP/XP 64 位元。主板隨機支持光盤包含各種有助于提高主板效能的 必要驅動和實用程序。請將隨機支持光盤放入光驅裡,如果電腦的“自動運行”功能 已啟用,屏幕將會自動顯示主菜單。如果主菜單不能自動顯示,請查找支持光盤內 BIN 文件夾下的“ASSETUP.EXE”,并雙擊它,即可調出主菜單。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 291 部件名稱 鉛 (Pb) 鎘 (Cd) 汞 (Hg) 六价鉻 (Cr(VI)) 多溴聯苯 (PBB) 多溴二苯醚 (PBDE) 印刷電路板 及電子組件 外部信號連 接頭及線材 O: 表示該有毒有害物質在該部件所有均質材料中的含量均在 SJ/T 11363-2006 標準規定 的限量要求以下。 X: 表示該有毒有害物質至少在該部件的某一均質材料中的含量超出 SJ/T 11363-2006 標準 規定的限量要求,然該部件仍符合歐盟指令 2002/95/EC 的規範。 備註 : 此產品所標示之環保使用年限,系指在一般正常使用狀況下。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 292 1. 主機板簡介 謝謝你採用了 Fatal1ty Z68 Professional Gen3 Series 主機板 , 本主機板由華擎嚴 格製造 , 品質可靠 , 穩定性好 , 能夠獲得卓越的性能。此快速安裝指南包括了主機板 介紹和分步驟安裝指導。您可以查看支持光碟裡的使用手冊了解更詳細的資料。 由於主機板規格和 BIOS 軟體將不斷更新 , 本手冊之相關內容變更恕不另 行通知。請留意華擎網站上公布的更新版本。你也可以在華擎網站找到最 新的顯示卡和 CPU 支援列表。 華擎網址:http://www.asrock.com 如果您需要與此主機板有關的技術支援 , 請參觀我們的網站以了解您使用 機種的規格訊息。 www.asrock.com/support/index.asp 1.1 包裝盒內物品 Fatal1ty Z68 Professional Gen3 Series 主機板...
  • Page 293 - 支援使用 HDMI 1.4a 播放藍光立體 3D 影像 - DVI 和 HDMI 接口支援 HDCP 功能 - DVI 和 HDMI 接口可播放 1080p 藍光光碟 (BD) / HD-DVD 光碟 音效 - 7.1 聲道高清晰音效,支援內容保護功能 (Realtek ALC892 音效編解碼器 ) - 支援高級藍光音效 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 294 - 1 x ATA133 IDE 插座 ( 最高支援 2 個 IDE 驅動器 ) - 1 x 磁碟機接頭 - 1 x 紅外線模組接頭 - 1 x 序列埠 - 1 x HDMI_SPDIF 接頭 - 1 x IEEE 1394 接頭 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 295 - Boot Failure Guard (B.F.G.,啟動失敗恢復技術 ) - 組合散熱片選項 (C.C.O.)(見警告 19) - 晚安 LED 指示燈 硬體監控 - CPU 溫度偵測 - 主機板溫度偵測 - CPU/ 機箱 / 電源風扇轉速計 - CPU/ 機箱靜音風扇 ( 可透過 CPU 溫度自動調節機箱的風扇速 度 ) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 296 10、 F - S t r e a m 是一款多合一的工具,易於操作的使用者介面便於微調不同的 系統功能(例如:Hardware Monitor、Fan Control、Overclocking、OC DNA 及 IES)。Hardware Monitor 可顯示系統的主要讀數;Fan Control 可顯示並可供您調整風扇速度及溫度;Overclocking 可供您進行 CPU 超頻 以獲得最佳系統效能。透過 O C DN A,您可將自己的 OC 設定另存為設定檔 並與朋友分享,您的朋友可將此 O C 設定檔上傳至自己的系統中,以取得 相同的 OC 設定。透過 IES (Intelligent Energy Saver),當 CPU 處於閒 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 297 電量的規定。根據 EuP 的規定 , 一個完整系統在關機模式下的交流電總消耗 必須在 1.00W 以下。為符合 EuP 標準 , 您需要同時具備支援 EuP 的主機板和 ® 支援 EuP 的電源供應器。根據 Intel 的建議 , 支援 EuP 的電源供應器必須 符合在 100mA 電流消耗時 ,5Vsb 電源效率高於 50%。有關支援 EuP 的電源供 應器選擇方面的詳情 , 我們建議您諮詢電源供應器的製造商。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 298 要安裝 Intel 1155 針 CPU, 請按下面的步驟操作。 ( 承載金屬框 ) ( 插槽 ) ( 接觸列 ) 1155 針插槽圖 在您將 1155 針 CPU 嵌入插槽之前,請檢查 CPU 表面是否不潔或者插 槽上是否有歪斜的針腳。如果發現以上情形,切勿強行將 CPU 嵌入插 槽。否則,CPU 將會嚴重受損。 步驟 1. 掀開插槽: 步驟 1-1. 按壓並向外使力使杠桿脫離掛鉤 解開扣具。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 299 到第 1 針和兩個方向標誌的凹口。 方向標誌凹口 基準標誌 第 1 針 第 1 針 基準標誌 方向標誌凹口 1155 針插槽 1155 針 CPU 為了正確嵌入,請確認 CPU 的兩個方向標誌凹口與插槽的基準標誌對 齊。 步驟 3-3. 使用完全垂直的動作將 CPU 小心 地放置到插槽上。 步驟 3-4. 檢查 CPU 是否已經方向正確地放 入插槽內。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 300 ( 按壓 (4 位置 )) 如果您按壓扣具但沒有順時針方向旋轉,那麼散熱片將無法穩固地固 定到主機板上。 步驟 5. 將風扇導線接頭接到主機板上的 CPU 風扇接 口。 步驟 6. 以打結方式安全處理過長的導線,以確保不影 響風扇的運轉或者接觸其他部件。 請注意 : 本主機板支援組合散熱片選項 (C.C.O.) 提供具有彈性的選 項 , 讓您可使用三種不同的 CPU 散熱片類型 , 分別是 LGA775,LGA1155 與 LGA1156。白色的穿孔是供 LGA1155/1156 CPU 風扇使用。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 301 2. 如果僅僅在這款主機板的 D D R3 記憶體插槽上安裝單條記憶體或者三 條記憶體,這將無法啟動雙通道記憶體技術。 3. 如果一對記憶體並未安裝在相同的“雙通道"上,例如將一對記憶體 安裝在 DDR3_A1 和 DDR3_A2,這將不能開啟雙通道記憶體技術。 4. 請勿將 DDR 或 DDR2 記憶體插入 DDR3 插槽,否則主機板和 DIMM 有可 能損壞。 5. 某些包含 16 晶片的 D D R3 1G B 雙面記憶體可能無法在此主機板上運 作。不建議在此主機板上安裝此類記憶體。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 302 安裝步驟: 請確保在增加或移除記憶體或系統組件之前切斷電源適配器。 1、 記憶體插槽兩端的起拔器向外扳開。 2、 將每個記憶體插槽的凹口与記憶體上凸出部分對應,使凹口与凸出部 分吻合,記憶體即能正確安裝。 notch break notch break 您的記憶體只能以正確的方向安裝。如果以錯誤的方向強行將記憶體插 入插槽,那將會導致主機板和記憶體的永久性損壞。  3、 將記憶體平穩地插入插槽直至兩端卡子迅速而完全地歸位以及記憶體完 全就位。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 303 Gen3 的 Ivy Bridge CPU。若安裝 Sandy Bridge CPU,則 PCI Express 只能以 PCI Express Gen 2 速度執行。 安裝步驟: 步驟 1、 在安裝擴充卡之前,請確認已經關閉電源或拔掉電源線。在您安裝之前, 請閱讀擴充卡的說明並完成必需的硬體設置。 步驟 2、 移動機箱擋板,以便使用擴充槽。 步驟 3、 選擇一個擴充槽安裝擴充卡,裝進機箱並用螺絲固定。 步驟 4、 確定接觸正確,沒有單邊翹起的現象。 步骤 5、 用螺絲把擴充卡固定在機箱上。 步骤 6、 蓋上機箱擋板。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 304 技術可以在一台電腦上提供最有利的方法來整合多個高性能顯示處理 器 (GPU)。透過智能軟體設計和創新的互連裝置整合不同的運行模式,CrossFireX 使任何 3D 應用軟體的畫質和性能盡可能達到最高的水準。目前,CrossFireX 支援 ® Windows XP(Service Pack 2) / Vista / 7 操作系統,3-Way CrossFireX 和僅支 ® 援 Windows Vista / 7 操作系統。請參閱 AMD 網站了解 ATI CrossFireX 驅動程 式更新情況。請參閱第 24 頁了解詳細的安裝步驟。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 305 註: C L R C M O S1 可供您清除 C M O S 中的資料。若要清除及重設系統參數並恢復為預設設 定,請先關閉電腦電源,並從電源插座中拔下電源線,等待 15 秒鐘之後,使用跳 線帽使 CLRCMOS1 的 pin2 及 pin3 短路 5 秒的時間。但請勿於更新 BIOS 後立即清除 CMOS。如需於更新 BIOS 後立即清除 CMOS,您必須先開機再關機,然後再執行 CMOS 清除操作。請注意,只有在移除 C M O S 電池的情況下,密碼、日期、時間、使用者 預設設定檔、1394 GUID 及 MAC 位址才會清除。 Clear CMOS開關的功能與Clear CMOS跳線相同。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 306 這裡有六組 Serial ATA3 (SATA3) 接口支援 SATA 數據 (SATA3_0_1: 見第 4 頁第 14 項 ) 線作為內部儲存設置。 (SATA3_A1_A2: 見第 4 頁第 15 項 ) 目前 SATA3 界面理論上 (SATA3_A3_A4: 見第 4 頁第 16 項 ) 可提供高達 6.0Gb/s 的數據 傳輸速率。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 307 主機板有一組 USB 3.0 接 ( 見第 4 頁第 9 項 ) 針。這組 USB 3.0 接針可以 支援兩個 USB 3.0 接口。 紅外線模組接頭 這個接頭支援一個選配的模 組 , 可用來無線傳輸和接收紅 (5 針 IR1) 外線。 ( 見第 4 頁第 33 項 ) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 308 統中 : 在 Realtek 控制面板中點選"FrontMic"。調整"Recording Volume"。 系統面板接頭 可接各種不同燈,電源開關及 重啟鍵等各種連線。 (9 針 PANEL1) ( 見第 4 頁第 21 項 ) 請根據下面的腳位說明連接機箱上的電源開關、重開按鈕與系統狀 態指示燈到這個接頭。請先注意針腳的正負極。 PWRBTN( 電源開關 ): 連接機箱前面板的電源開關。您可以設定用電源鍵關閉系統的方式。 RESET( 重開開關 ): 連接機箱前面板的重開開關。當電腦當機且無法正常重新啟動時 , 可 按下重開開關重新啟動電腦。 PLED( 系統電源指示燈 ): Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 309 ( 見第 4 頁第 3 項 ) 雖然此主板支持 4-Pin CPU 風扇 (Quiet Fan, 靜音風扇 ), 但是沒有調速功能的 3-Pin CPU 風扇仍然可以在此主板上正常運行。如果您打算將 3-Pin CPU 風扇 連接到此主板的 CPU 風扇接口 , 請將它連接到 Pin 1-3。 Pin 1-3 連接 3-Pin 風扇的安裝 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 310 (9 針 FRONT_1394) 款主機板有一組 IEEE 1394 ( 見第 4 頁第 24 項 ) 接針。這組 IEEE 1394 接針 可支援一個 IEEE 1394 接口。 序列埠 這個序列埠 COM1 支援一個序 列埠的裝置。 (9 針 COM1) ( 見第 4 頁第 29 項 ) Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 311 將前USB 3.0面板裝入底座的 2.5 吋磁碟機槽 用六顆機殼螺絲,將 USB 3.0 中。 前面板鎖至硬碟槽內。 步驟 步驟 5 步驟 步驟 6 前USB 3.0面板隨即可供使用。 將前USB 3.0纜線插入主機板上的USB 3.0座 (USB3_4_5)。 後USB 3.0托架安裝指南 步驟 步驟 1 鬆開前USB 3.0面板上的兩顆螺絲。 步驟 步驟 2 將USB 3.0纜線和後USB 3.0托 架放在一起。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 312 如果您想在帶 RAID 功能的 SATA / SATAII / SATA3 硬碟上安裝 Windows 7 / 7 64 位元 / Vista / Vista 64 位元 / XP / XP 64 位元操作系統 , 請查閱隨機支援光 碟如下路徑裡的文件了解詳細步驟 : ..\ RAID Installation Guide Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 313 將"SATA Mode"(SATA 模式 ) 設置為 [IDE]。( 用於 SATA3_0, SATA3_1 和 SATA2_2 到 SATA2_5 接頭。) 將"SATA3 Mode"(SATA3 操作模式 ) 設置為 [IDE]。( 用於 SATA3_A1 到 SATA3_A4 接頭。) ® 步驟 2: 在系統上安裝 Windows 7 / 7 64 位元 / Vista / Vista 64 位元操作系統。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 314 將"SATA Mode"(SATA 模式 ) 設置為 [AHCI]。( 用於 SATA3_0, SATA3_1 和 SATA2_2 到 SATA2_5 接頭。) 將"SATA3 Mode"(SATA3 操作模式 ) 設置為 [AHCI]。( 用於 SATA3_A1 到 SATA3_A4 接頭。) ® 步驟 2: 在系統上安裝 Windows 7 / 7 64 位元 / Vista / Vista 64 位元操作系統。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 315 運行需要時,測試和初始化元件。有關 B I O S 設置的詳細訊息,請查閱隨機支援光碟 裡的使用手冊 (PDF 文件 )。 4. 支援光碟訊息 ® ® ® 本主板支援各種微軟 Windows 操作系統:Microsoft Windows 7/7 64 位元 / Vista /Vista 64 位元 /XP/XP 64 位元。主板附帶的支援光碟包含各種有助於提高主 板效能的必要驅動和實用程式。請將隨機支援光碟放入光碟機裡,如果系統的“自動 運行"功能已啟用,銀幕將會自動顯示主菜單。如果主菜單不能自動顯示,請查閱支 援光碟內 BIN 文件夾下的 ASSETUP.EXE 文件並雙點它,即可調出主菜單。 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 316: Installing Os On A Hdd Larger Than 2Tb

    ® 4. Start Windows installation. ® 5. If you install Windows 7 64-bit OS, OS will be formatted by GPT (GUID Partition ® Table). Please install the hotfi x fi le from Microsoft http://support.microsoft.com/kb/979903 Fatal1ty Z68 Professional Gen3 Series Motherboard...
  • Page 317 TrueTheater Technology. Try it today. Limitations: * 30-day trial limitation * Convert videos to the H.264 format 50 times Fatal1ty Z68 Professional Gen3 Series Motherboard...

Table of Contents
