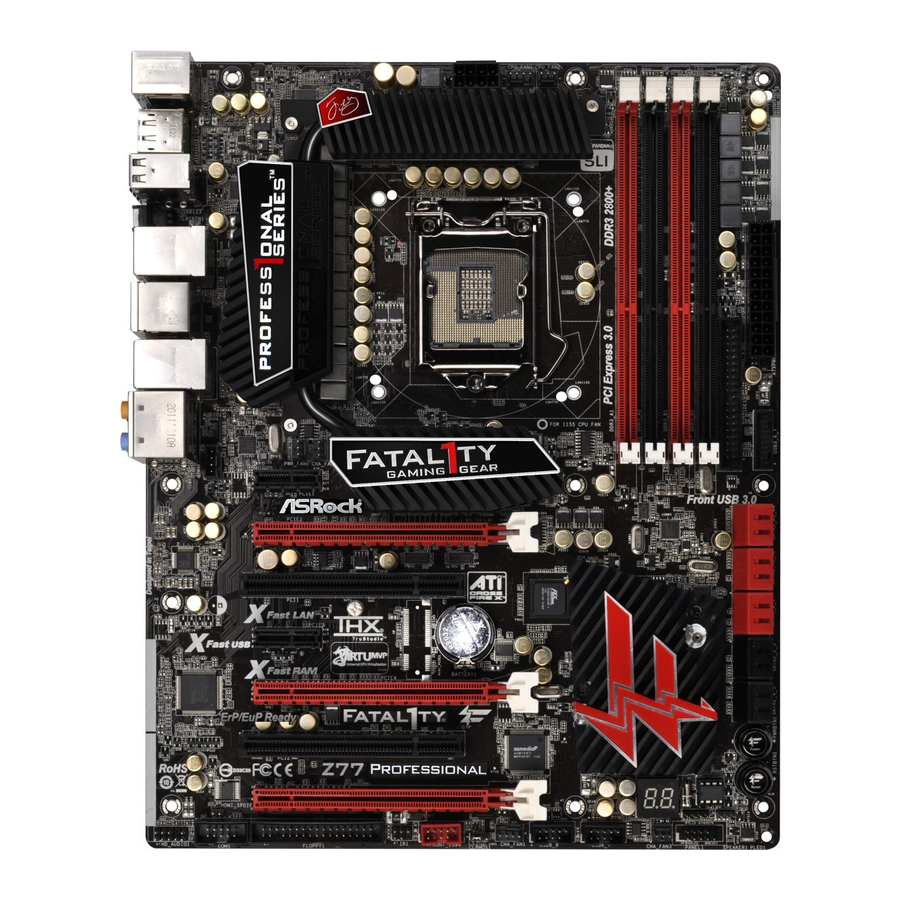

Fatal1ty Z77 Professional Series Motherboard

Advertisement

Table of Contents
loading

Summary of Contents for ASROCK Fatal1ty Z77 Professional Series

  • Page 1 fi rst ever Lifetime Achievement Award in the four year history of the eSports-Award for “showing exceptional sportsmanship, taking part in shaping eSports into what it is today and for being the prime representative of this young sport. He has become the fi gurehead for eSports worldwide”. Fatal1ty Z77 Professional Series Motherboard...
  • Page 2 The Fatal1ty name, Fatal1ty logos and the Fatal1ty likeness are registered trademarks of Fatal1ty, Inc., and are used under license. © 2011 Fatal1ty, Inc. All rights reserved. All other trademarks are the property of their respective owners. Fatal1ty Z77 Professional Series Motherboard...
  • Page 3: Copyright Notice

    The Fatal1ty name, Fatal1ty logos and the Fatal1ty likeness are registered trade- marks of Fatal1ty, Inc., and are used under license. © 2010 Fatal1ty, Inc. All rights reserved. All other trademarks are the property of their respective owners. Fatal1ty website: www.fatal1ty.com Published December 2011 Fatal1ty Z77 Professional Series Motherboard...
  • Page 4: Motherboard Layout

    Power LED Header (PLED1) PCI Express 2.0 x1 Slot (PCIE1, Black) Chassis Speaker Header (SPEAKER1, Black) Power Fan Connector (PWR_FAN1) System Panel Header (PANEL1, Black) Internal Audio Connector: CD1 (Black) Chassis Fan Connector (CHA_FAN3) Chassis Fan Connector (CHA_FAN2) Fatal1ty Z77 Professional Series Motherboard...
  • Page 5 See the table below for connection details in accordance with the type of speaker you use. TABLE for Audio Output Connection Audio Output Channels Front Speaker Rear Speaker Central / Bass Line in (No. 12) (No. 9) (No. 8) (No. 11) Fatal1ty Z77 Professional Series Motherboard...
  • Page 6 “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. *** eSATA3 connector supports SATA Gen3 in cable 1M. Fatal1ty Z77 Professional Series Motherboard...
  • Page 7: Package Contents

    In case any modifi cations of this manual occur, the updated version will be available on ASRock website without further notice. You may fi nd the latest VGA cards and CPU support lists on ASRock website as well.
  • Page 8: Specifications

    - Supports Intel HD Graphics Built-in Visuals: Intel Quick ® ® Sync Video, Intel InTru 3D, Intel Clear Video HD ® ® Technology, Intel Insider , Intel HD Graphics 2500/4000, ® Intel Advanced Vector Extensions (AVX) Fatal1ty Z77 Professional Series Motherboard...
  • Page 9 - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) - 1 x IEEE 1394 Port - 1 x Clear CMOS Switch with LED - HD Audio Jack: Rear Speaker/Central/Bass/Line in/Front Speaker/Microphone (see CAUTION 7) Fatal1ty Z77 Professional Series Motherboard...
  • Page 10 - 1 x Reset Switch with LED BIOS Feature - 64Mb AMI UEFI Legal BIOS with GUI support - Supports “Plug and Play” - ACPI 1.1 Compliance Wake Up Events - Supports jumperfree - SMBIOS 2.3.1 Support Fatal1ty Z77 Professional Series Motherboard...
  • Page 11 XP / XP 64-bit compliant (see CAUTION 20) Certifi cations - FCC, CE, WHQL - ErP/EuP Ready (ErP/EuP ready power supply is required) (see CAUTION 21) * For detailed product information, please visit our website: http://www.asrock.com Fatal1ty Z77 Professional Series Motherboard...
  • Page 12 ® Vista / XP. For Windows OS with 64-bit CPU, there is no such limita- tion. You can use ASRock XFast RAM to utilize the memory that Win- ® dows cannot use. Only PCIE2 and PCIE4 slots support Gen 3 speed. To run the PCI Ex- press in Gen 3 speed, please install an Ivy Bridge CPU.
  • Page 13 CPU cores are idle without sacri- fi cing computing performance. ASRock Instant Flash is a BIOS fl ash utility embedded in Flash ROM. This convenient BIOS update tool allows you to update system BIOS ®...
  • Page 14 14. ASRock XFast RAM is a new function that is included into F-Stream. It ® fully utilizes the memory space that cannot be used under Windows 32-bit CPU. ASRock XFast RAM shortens the loading time of previously visited websites, making web surfi ng faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster.
  • Page 15: Screw Holes

    Before you install or remove any component, ensure that the power is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, and/or components. Fatal1ty Z77 Professional Series Motherboard...
  • Page 16: Cpu Installation

    Remove the PnP Cap (Pick and Place Cap). 1. It is recommended to use the cap tab to handle and avoid kicking off the PnP cap. 2. This cap must be placed if returning the motherboard for after service. Fatal1ty Z77 Professional Series Motherboard...
  • Page 17 Step 4. Close the socket: Step 4-1. Flip the load plate onto the IHS. Step 4-2. Press down the load lever, and se- cure it with the load plate tab under the retention tab. Fatal1ty Z77 Professional Series Motherboard...
  • Page 18: Installation Of Cpu Fan And Heatsink

    Please be noticed that this motherboard supports Combo Cooler Option (C.C.O.), which provides fl exible options to adopt three dif- ferent CPU cooler types, Socket LGA 775, LGA 1155 and LGA 1156. The white throughholes are for Socket LGA 1155/1156 CPU fan. Fatal1ty Z77 Professional Series Motherboard...
  • Page 19: Installation Of Memory Modules (Dimm)

    It is not recommended to install them on this motherboard. For optimal compatibility and stability while overclocking memory frequency, it is recommended to install one memory module on DDR3_B2 slot or two memory modules on DDR3_A2 and DDR3_ B2 slots. Fatal1ty Z77 Professional Series Motherboard...
  • Page 20: Installing A Dimm

    DIMM if you force the DIMM into the slot at incorrect orientation. Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully snap back in place and the DIMM is properly seated. Fatal1ty Z77 Professional Series Motherboard...
  • Page 21 PCIE slots: PCIE1 (PCIE 2.0 x1 slot) is used for a PCI Express x1 lane width card, such as a Gigabit LAN card, SATA2 card or ASRock Game Blaster, etc. PCIE3 (PCIE 2.0 x1 slot) is used for a PCI Express x1 lane width card, such as a Gigabit LAN card, SATA2 card, etc.
  • Page 22: Installing An Expansion Card

    Align the card connector with the slot and press fi rmly until the card is completely seated on the slot. Step 5. Fasten the card to the chassis with screws. Step 6. Replace the system cover. Fatal1ty Z77 Professional Series Motherboard...
  • Page 23: Graphics Card Setup

    PCIE2 slot and the other graphics card to PCIE4 slot. Make sure that the cards are properly seated on the slots. Step2. If required, connect the auxiliary power source to the PCI Express graphics cards. Fatal1ty Z77 Professional Series Motherboard...
  • Page 24 Make sure SLI_Bridge_2S Card is fi rmly in place. Step4. Connect a VGA cable or a DVI cable to the monitor connector or the DVI connector of the graphics card that is inserted to PCIE2 slot. Fatal1ty Z77 Professional Series Motherboard...
  • Page 25 Set PhysX GPU acceleration item, please select Enabled. In Select an SLI confi guration item, please select Enable SLI. And click Apply. C. Reboot your system. D. You can freely enjoy the benefi t of SLI feature. Fatal1ty Z77 Professional Series Motherboard...
  • Page 26 Quad SLI feature. ® * SLI appearing here is a registered trademark of NVIDIA Technologies Inc., and is used only for identifi cation or explanation and to the owners’ benefi t, without intent to infringe. Fatal1ty Z77 Professional Series Motherboard...
  • Page 27: Installing Two Crossfirex

    AMD graphics card manuals for detailed installation guide. Step 1. Insert one Radeon graphics card into PCIE2 slot and the other Radeon graphics card to PCIE4 slot. Make sure that the cards are properly seated on the slots. Fatal1ty Z77 Professional Series Motherboard...
  • Page 28 Connect the DVI monitor cable to the DVI connector on the Radeon graphics card on PCIE2 slot. (You may use the DVI to D-Sub adapter to convert the DVI connector to D-Sub interface, and then connect the D-Sub monitor cable to the DVI to D-Sub adapter.) Fatal1ty Z77 Professional Series Motherboard...
  • Page 29 Bridge to connect Radeon graphics cards on PCIE4 and PCIE5 slots. (CrossFire Bridge is provided with the graphics card you purchase, not bundled with this motherboard. Please refer to your graphics card vendor for details.) Fatal1ty Z77 Professional Series Motherboard...
  • Page 30 Connect the DVI monitor cable to the DVI connector on the Radeon graph- ics card on PCIE2 slot. (You may use the DVI to D-Sub adapter to convert the DVI connector to D-Sub interface, and then connect the D-Sub monitor cable to the DVI to D-Sub adapter.) Fatal1ty Z77 Professional Series Motherboard...
  • Page 31: Driver Installation And Setup

    ”, and then check the item “Enable CrossFireX ”. Select “2 GPUs” and click “Apply” (if you install two Radeon graphics cards). Select “3 GPUs” and click “OK” (if you install three Radeon graphics cards). Fatal1ty Z77 Professional Series Motherboard...
  • Page 32 Technologies Inc., and is used only for identifi cation or explanation and to the owners’ benefi t, without intent to infringe. * For further information of ATI CrossFireX technology, please check AMD website for updates and details. Fatal1ty Z77 Professional Series Motherboard...
  • Page 33: Dual Monitor And Surround Display Features

    If you haven’t installed onboard VGA driver yet, please install onboard VGA driver from our support CD to your system and restart your computer. Fatal1ty Z77 Professional Series Motherboard...
  • Page 34 F. Set the appropriate “Screen Resolution” and “Color Quality” for the second monitor. Click “Apply” or “OK” to apply these new values. G. Repeat steps C through E for the display icon identifi ed by the numbers three to eight. Fatal1ty Z77 Professional Series Motherboard...
  • Page 35 PCs requires a secure connection to a compliant display. Due to the increase in manufacturers employing HDCP in their equipment, it is highly recommended that the HDTV or LCD monitor you purchase is compatible. Fatal1ty Z77 Professional Series Motherboard...
  • Page 36: Jumpers Setup

    Please be noted that the password, date, time, user default profi le, 1394 GUID and MAC address will be cleared only if the CMOS battery is removed. The Clear CMOS Switch has the same function as the Clear CMOS jumper. Fatal1ty Z77 Professional Series Motherboard...
  • Page 37: Onboard Headers And Connectors

    (SATA3_A3_A4: see p.4, No. 11) interface allows up to 6.0 Gb/s SATA3_A1 SATA3_A2 data transfer rate. If the eSATA3 port on the rear I/O has been connected, the internal SATA3_0 SATA3_1 SATA3_A4 will not function. Fatal1ty Z77 Professional Series Motherboard...
  • Page 38 Internal Audio Connectors This connector allows you CD-L to receive stereo audio input (4-pin CD1) from sound sources such as (CD1: see p.4 No. 42) CD-R a CD-ROM, DVD-ROM, TV tuner card, or MPEG card. Fatal1ty Z77 Professional Series Motherboard...
  • Page 39 The LED keeps blinking when the sys- tem is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5). Fatal1ty Z77 Professional Series Motherboard...
  • Page 40 +12V CPU Fan Connectors Please connect the CPU fan FAN_SPEED_CONTROL CPU_FAN_SPEED cable to the connector and (4-pin CPU_FAN1) +12V match the black wire to the (see p.4, No. 3) ground pin. 1 2 3 4 Fatal1ty Z77 Professional Series Motherboard...
  • Page 41 I/O panel, there (9-pin FRONT_1394) RXTPBM_0 +12V is one IEEE 1394 header (see p.4 No. 28) (FRONT_1394) on this +12V motherboard. This IEEE 1394 RXTPBP_0 RXTPAP_0 header can support one IEEE 1394 port. Fatal1ty Z77 Professional Series Motherboard...
  • Page 42 SPDIF audio output to HDMI (2-pin HDMI_SPDIF1) SPDIFOUT VGA card, allows the system to (see p.4, No. 33) connect HDMI Digital TV/ projector/LCD devices. Please connect the HDMI_SPDIF connector of HDMI VGA card to this header. Fatal1ty Z77 Professional Series Motherboard...
  • Page 43 Put the USB 3.0 cable and the rear Panel. USB 3.0 bracket together. Step 3 Step 4 Screw the two screws into the rear USB 3.0 Put the rear USB 3.0 bracket into the bracket. chassis. Fatal1ty Z77 Professional Series Motherboard...
  • Page 44: Smart Switches

    (RSTBTN) Reset the system. (see p.4 No. 17) Clear CMOS Switch Clear CMOS Switch is a smart switch, allowing users to quickly (CLRCBTN) CMOS clear the CMOS values. (see p.5 No. 18) Fatal1ty Z77 Professional Series Motherboard...
  • Page 45 CPU post-memory initialization is started 0x33 CPU post-memory initialization. Cache initialization 0x34 CPU post-memory initialization. Application Processor(s) (AP) initialization 0x35 CPU post-memory initialization. Boot Strap Processor (BSP) selection 0x36 CPU post-memory initialization. System Management Mode (SMM) initialization Fatal1ty Z77 Professional Series Motherboard...
  • Page 46 Reserved for future AMI progress codes 0xF8 Recovery PPI is not available 0xF9 Recovery capsule is not found 0xFA Invalid recovery capsule 0xFB – 0xFF Reserved for future AMI error codes 0x60 DXE Core is started 0x61 NVRAM initialization Fatal1ty Z77 Professional Series Motherboard...
  • Page 47 USB Detect 0x9D USB Enable 0x9E – 0x9F Reserved for future AMI codes 0xA0 IDE initialization is started 0xA1 IDE Reset 0xA2 IDE Detect 0xA3 IDE Enable 0xA4 SCSI initialization is started 0xA5 SCSI Reset Fatal1ty Z77 Professional Series Motherboard...
  • Page 48 No Console Input Devices are found 0xD8 Invalid password 0xD9 Error loading Boot Option (LoadImage returned error) 0xDA Boot Option is failed (StartImage returned error) 0xDB Flash update is failed 0xDC Reset protocol is not available Fatal1ty Z77 Professional Series Motherboard...
  • Page 49: Driver Installation Guide

    B. Set the option “SATA Mode Selection” to [IDE] for SATA2_2 to SATA2_5 and SATA3_0 and SATA3_1 ports. Set the option “ASMedia SATA3 Mode” to [IDE] for SATA3_A1 to SATA2_A4 ports. ® STEP 2: Install Windows XP / XP 64-bit OS on your system. Fatal1ty Z77 Professional Series Motherboard...
  • Page 50: Installing Windows

    B. Set the option “SATA Mode Selection” to [AHCI] for SATA2_2 to SATA2_5 and SATA3_0 and SATA3_1 ports. Set the option “ASMedia SATA3 Mode” to [AHCI] for SATA3_A1 to SATA2_A4 ports. ® STEP 2: Install Windows XP / XP 64-bit OS on your system. Fatal1ty Z77 Professional Series Motherboard...
  • Page 51: Teaming Function Operation Guide

    “Unassigned Adapters” sections, which means all adapters are already assigned to teams. 3. Click Expert Mode. * If you want to always use Expert Mode to create a team, click Default to Expert Mode on next start. Fatal1ty Z77 Professional Series Motherboard...
  • Page 52 * Adding a network adapter to a team where its driver is disabled may negatively affect the offl oading capabilities of the team. This may have an impact on the team’s performance. Therefore, it is recommended that only driver-enabled network adapters be added as members to a team. Fatal1ty Z77 Professional Series Motherboard...
  • Page 53 * When confi guring an SLB team, although connecting team members to a hub is supported for testing, it is recommended to connect team members to a switch. * Not all network adapters made by others are supported or fully certifi ed for teaming. Fatal1ty Z77 Professional Series Motherboard...
  • Page 54 On the General tab, click Internet Protocol (TCP/IP), and then click Properties. d. Confi gure the IP address and any other necessary TCP/IP confi guration for the team, and then click OK when fi nished. Fatal1ty Z77 Professional Series Motherboard...
  • Page 55: Bios Information

    It will display the Main Menu automatically if “AUTORUN” is enabled in your computer. If the Main Menu does not appear automatically, locate and double-click on the fi le “ASSETUP.EXE” from the BIN folder in the Support CD to display the menus. Fatal1ty Z77 Professional Series Motherboard...
  • Page 56 1. Einführung Wir danken Ihnen für den Kauf des ASRock Fatal1ty Z77 Professional Series Motherboard, ein zuverlässiges Produkt, welches unter den ständigen, strengen Qualitätskontrollen von ASRock gefertigt wurde. Es bietet Ihnen exzellente Leis- tung und robustes Design, gemäß der Verpfl ichtung von ASRock zu Qualität und Halbarkeit.
  • Page 57 Ausgänge können nur durch GPU-integrierte Prozessoren unterstützt werden. ® - Unterstützt hochaufl ösende integrierte Intel -Grafi klösungen: ® ® ® Intel Quick-Sync-Video, Intel InTru 3D, Intel Clear- ® ® Video-Technik (HD), Intel HD Graphics 2500/4000, Intel Advanced Vector Extensions (AVX) Fatal1ty Z77 Professional Series Motherboard...
  • Page 58 - 1 x eSATA3-Anschluss - 6 x Standard-USB 3.0-Anschlüsse - 2 x RJ-45 LAN Port mit LED (ACT/LINK LED und SPEED LED) - 1 x IEEE 1394 Port - 1 x CMOS löschen-Schalter mit LED Fatal1ty Z77 Professional Series Motherboard...
  • Page 59 - 1 x USB 3.0-Anschlüsse (Unterstützung 2 zusätzlicher USB 3.0-Anschlüsse) - 1 x Dr. Debug (Debug-LED mit 7 Segmenten) Schnellschalter - 1 x CMOS löschen-Schalter mit LED - 1 x Netzschalter mit LED - 1 x Rücksetzschalter (Reset) mit LED Fatal1ty Z77 Professional Series Motherboard...
  • Page 60 Einzigartige - F-Stream (siehe VORSICHT 8) Eigenschaft - ASRock Sofortstart - ASRock Instant Flash (siehe VORSICHT 9) - ASRock APP Charger (siehe VORSICHT 10) - ASRock SmartView (siehe VORSICHT 11) - ASRock XFast USB (siehe VORSICHT 12) - ASRock XFast LAN (siehe VORSICHT 13)
  • Page 61 Windows OS mit 64-Bit-CPU besteht diese Einschränkung nicht. Sie ® können ASRock XFast RAM zur Nutzung des Speichers, den Windows nicht verwenden kann, einsetzen. Unterstützt nur der PCIE2 und PCIE4-Steckplatz Geschwindigkeiten der 3ten Generation. Damit Sie PCI Express mit der Geschwindigkeit der 3ten Generation nutzen können, müssen Sie einen Ivy Bridge-Prozessor...
  • Page 62 APP Charger. Installieren Sie einfach den ASRock APP Charger-Treiber; dadurch lädt sich Ihr iPhone wesentlich schneller über einen Computer- auf – genaugenommen bis zu 40 % schneller als zuvor. Der ASRock APP Charger ermöglicht Ihnen die schnelle Aufl adung mehrerer Apple-Geräte gleichzeitig;...
  • Page 63 Youtube-Videos in HD anzeigen und gleichzeitig Dateien herunterladen. Echtzeitanalyse Ihrer Daten: Über das Statusfenster können Sie schnell ermitteln, welche Datenströme zur Zeit übertragen werden. 14. ASRock XFast RAM ist eine neue Funktion, die beim F-Stream integriert ist. Sie ermöglicht die vollständige Nutzung des Speicherplatzes, der ®...
  • Page 64 CPU-Kühlertypen, Socket LGA 775, LGA 1155 und LGA 1156. Beachten Sie bitte, dass nicht alle 775 und 1156 CPU-Lüfter verwen- det werden können. ® ® 20. ASRock XFast RAM wird von Microsoft Windows XP / XP 64 Bit nicht ® ®...
  • Page 65 CMOS-Löschung herunter. Bitte beachten Sie, dass Kennwort, Datum, Uhrzeit, benutzerdefi niertes Profi l, 1394 GUID und MAC-Adresse nur gelöscht werden, wenn die CMOS-Batterie entfernt wird. Der CMOS löschen-Schalter hat dieselbe Funktion wie der CMOS löschen-Jumper. Fatal1ty Z77 Professional Series Motherboard...
  • Page 66 S.4 - No. 13) für interne (SATA3_A1_A2: Massenspeichergeräte. Die siehe S.4 - No. 12) SATA3_A1 SATA3_A2 aktuelle SATA3- Schnittstelle (SATA3_A3_A4: ermöglicht eine siehe S.4 - No. 11) Datenübertragungsrate bis 6,0 SATA3_0 SATA3_1 Gb/s. Wenn Sie die Fatal1ty Z77 Professional Series Motherboard...
  • Page 67 USB 3.0- (siehe S.4 - No. 9) IntA_P6_SSRX+ Header an diesem IntA_P7_SSTX- IntA_P6_SSTX- IntA_P7_SSTX+ Motherboard. Dieser USB 3.0- IntA_P6_SSTX+ Header kann zwei USB 3.0- IntA_P7_D- IntA_P6_D- IntA_P7_D+ Ports unterstützen. IntA_P6_D+ DUMMY Fatal1ty Z77 Professional Series Motherboard...
  • Page 68 / Vista 64 Bit: Wählen Sie im Realtek-Bedienfeld die „FrontMic“ (Vorderes Mikrofon)- Registerkarte. Passen Sie die „Recording Volume“ (Aufnahmelautstärke) an. System Panel-Header Dieser Header unterstützt mehrere Funktion der (9-pin PANEL1) Systemvorderseite. (siehe S.4 - No. 21) Fatal1ty Z77 Professional Series Motherboard...
  • Page 69 Lautsprechern, etc. Stellen Sie beim Anschließen des Frontblendenmoduls Ihres Gehäuses an diesem Header sicher, dass die Kabel- und Pinbelegung korrekt übereinstimmen. Gehäuselautsprecher-Header Schließen Sie den Gehäuselautsprecher an (4-pin SPEAKER1) diesen Header an. (siehe S.4 - No. 20) Fatal1ty Z77 Professional Series Motherboard...
  • Page 70 Sie einen dreipoligen CPU-Lüfter an den CPU-Lüferanschluss dieses Motherboards anschließen möchten, verbinden Sie ihn bitte mit den Pins 1 – 3. Pins 1–3 anschließen Lüfter mit dreipoligem Anschluss installieren (3-pin CPU_FAN2) +12V (sieche S.4 - No. 4) CPU_FAN_SPEED Fatal1ty Z77 Professional Series Motherboard...
  • Page 71 IEEE-1394 Port auf dem Ein-/ (9-pin FRONT_1394) RXTPBM_0 +12V Ausgabe Paneel, gibt es einen (siehe S.4 - No. 28) IEEE-1394 Header +12V (FRONT_1394) auf dieser RXTPBP_0 Hauptplatine. Dieser IEEE-1394 RXTPAP_0 Header kann einen IEEE-1394 Port unterstützen. Fatal1ty Z77 Professional Series Motherboard...
  • Page 72 Audioausgang für eine HDMI- (siehe S.4 - No. 33) VGA-Karte zur Verfügung und ermöglicht den Anschluss von HDMI-Digitalgeräten wie Fernsehgeräten, Projektoren, LCD-Geräten an das System. Bitte verbinden Sie den HDMI_SPDIF-Anschluss der HDMI-VGA-Karte mit diesem Anschluss. Fatal1ty Z77 Professional Series Motherboard...
  • Page 73 USB 3.0-Frontblende am USB 3.0-Header einsatzbereit. (USB3_6_7) am Motherboard an. Installationsanleitung zum USB 3.0-Blech an der Rückwand Schritt 1 Schritt 2 Lösen Sie die beiden Schrauben am Schließen Sie das USB 3.0-Kabel an USB 3.0-Panel. das USB 3.0-Blech an. Fatal1ty Z77 Professional Series Motherboard...
  • Page 74 (RSTBTN) Reset Benutzer das System schnell (siehe S.4 - No. 17) zurücksetzen können. CMOS löschen-Schalter Der CMOS löschen-Schalter ist ein Schnellschalter, mit dem (CLRCBTN) Benutzer die CMOS-Werte (siehe S.5 - No. 18) schnell löschen können. Fatal1ty Z77 Professional Series Motherboard...
  • Page 75 ASSETUP.EXE im BIN-Verzeichnis der Support-CD, um die Menüs aufzurufen. Das Setup-Programm soll es Ihnen so leicht wie möglich machen. Es ist menüges- teuert, d.h. Sie können in den verschiedenen Untermenüs Ihre Auswahl treffen und die Programme werden dann automatisch installiert. Fatal1ty Z77 Professional Series Motherboard...
  • Page 76 Series, une carte mère très fi able produite selon les critères de qualité rigoureux de ASRock. Elle offre des performances excellentes et une conception robuste confor- mément à l’engagement d’ASRock sur la qualité et la fi abilité au long terme. Ce Guide d’installation rapide présente la carte mère et constitue un guide d’installation pas à...
  • Page 77 - 2 x slots PCI Express 2.0 x1 - 2 x slots PCI - Prend en charge AMD Quad CrossFireX , 3-Way CrossFireX et CrossFireX ® - Prend en charge NVIDIA Quad SLI et SLI Fatal1ty Z77 Professional Series Motherboard...
  • Page 78 - Prend en charge le Dual LAN avec la fonction Teaming (pairage) - Supporte PXE Panneau arrière I/O Panel - 1 x port clavier/souris PS/2 - 1 x port HDMI - 1 x DisplayPort - 1 x port de sortie optique SPDIF Fatal1ty Z77 Professional Series Motherboard...
  • Page 79 - 1 x Port Disquette - 1 x En-tête du module infrarouge - 1 x En-tête de port COM - 1 x Connecteur HDMI_SPDIF - 1 x Connecteur IEEE 1394 - 1 x Connecteur de LED d’alimentation Fatal1ty Z77 Professional Series Motherboard...
  • Page 80 Caractéristique - F-Stream (voir ATTENTION 8) unique - ASRock l’Instant Boot - ASRock Instant Flash (voir ATTENTION 9) - Chargeur ASRock APP (voir ATTENTION 10) - ASRock SmartView (voir ATTENTION 11) - ASRock XFast USB (voir ATTENTION 12) - ASRock XFast LAN (voir ATTENTION 13)
  • Page 81 ® Vista / XP. Avec Windows OS avec CPU 64 bits, il n’y a pas ce genre de limitation. Vous pouvez utiliser ASRock XFast RAM pour accéder à la ® mémoire que Windows ne peut pas utiliser. PCIE2 et PCIE4 prend en charge une vitesse pouvant atteindre Gen 3.
  • Page 82 10. Si vous désirez un moyen plus rapide et moins contraignant de recharger vos appareils Apple tels que iPhone/iPad/iPod Touch, ASRock a préparé pour vous la solution idéale - le chargeur ASRock APP. Il suffi t d’installer le pilote du chargeur APP, et vous pourrez recharger rapidement votre iPhone à...
  • Page 83 USB. Les performances réelles dépendent des propriétés du périphérique. 13. ASRock XFast LAN fournit un accès Internet plus rapide, avec les avan- tages suivants. Priorisation d’application LAN : Vous pouvez confi gurer votre priorité d’application idéalement et/ou ajouter des nouveaux pro- grammes.
  • Page 84 LGA 1155 et LGA 1156. Veuillez noter que tous les ventilateurs de CPU 775 et 1156 ne peuvent pas être utilisés. ® ® 20. ASRock XFast RAM n’est pas pris en charge par Microsoft Windows ® ® XP / XP 64-bit. Les technologie Intel Smart Connect et ports Intel ®...
  • Page 85 CMOS. Veuillez noter que le mot de passe, la date, l’heure, le profi l par défaut de l’utilisateur, 1394 GUID et l’adresse MAC seront effacés seulement si la batterie du CMOS est enlevée. Le commutateur Effacer CMOS présente la même fonction que le cavalier Effacer CMOS. Fatal1ty Z77 Professional Series Motherboard...
  • Page 86 (SATA3_A3_A4: voir p.4 No. 11) internes. L’interface SATA3 SATA3_A1 SATA3_A2 actuelle permet des taux transferts de données pouvant aller jusqu’à 6,0 Gb/s. Si vous SATA3_0 SATA3_1 installez le disque dur sur le Fatal1ty Z77 Professional Series Motherboard...
  • Page 87 E/S, il y a une barrette USB 3.0 (voir p.4 No. 9) IntA_P6_SSRX+ sur la carte mère. Cette barrette IntA_P7_SSTX- IntA_P6_SSTX- IntA_P7_SSTX+ USB 3.0 peut prendre en IntA_P6_SSTX+ IntA_P7_D- charge deux ports USB 3.0. IntA_P6_D- IntA_P7_D+ IntA_P6_D+ DUMMY Fatal1ty Z77 Professional Series Motherboard...
  • Page 88 Allez sur l’onglet “FrontMic” (Micro avant) sur le Panneau de contrôle Realtek. Ajustez “Recording Volume” (Volume d’enregistrement). En-tête du panneau système Cet en-tête permet d’utiliser plusieurs fonctions du panneau (PANEL1 br. 9) système frontal. (voir p.4 No. 21) Fatal1ty Z77 Professional Series Motherboard...
  • Page 89 Il (voir p.4 Nr. 19) PLED+ LED è acceso quando il sistema è in funzione. Il LED continua a lampeggiare in stato S1/S3. Il LED è spento in stato S4 o S5 (spegnimento). Fatal1ty Z77 Professional Series Motherboard...
  • Page 90 ATX 24 broches, elle peut encore fonctionner si vous adopter une alimentation traditionnelle ATX 20 broches. Pour utiliser une alimentation ATX 20 broches, branchez à l’alimentation électrique ainsi qu’aux broches 1 et 13. 20-Installation de l’alimentation électrique ATX Fatal1ty Z77 Professional Series Motherboard...
  • Page 91 (voir p.4 No. 33) SPDIFOUT et permettant au système de se connecter au un téléviseur numérique HDMI /un projecteur / un périphérique LCD. Veuillez brancher le connecteur HDMI_SPDIF de la carte VGA HDMI sur ce connecteur. Fatal1ty Z77 Professional Series Motherboard...
  • Page 92 être utilisé. mère. Le Guide d'installation du Support arrière USB 3.0 Étape 1 Étape 2 Dévissez les deux vis du panneau Assemblez le câble USB 3.0 et le avant USB 3.0. support arrière USB 3.0. Fatal1ty Z77 Professional Series Motherboard...
  • Page 93 à l’utilisateur de réinitialiser rapidement le système. Interrupteur d’effacement de CMOS L’interrupteur d’effacement de (CLRCBTN) CMOS est un interrupteur rapide (voir p.5 No. 18) qui permet à l’utilisateur d’effacer rapidement les valeurs du CMOS. Fatal1ty Z77 Professional Series Motherboard...
  • Page 94: Informations Sur Le Cd De Support

    CD-ROM. Le Menu principal s’affi che automatiquement si “AUTORUN” est activé dans votre ordinateur. Si le Menu principal n’apparaît pas automatiquement, locali- sez dans le CD technique le fi chier “ASSETUP.EXE” dans le dossier BIN et double- cliquez dessus pour affi cher les menus. Fatal1ty Z77 Professional Series Motherboard...
  • Page 95 1. Introduzione Grazie per aver scelto una scheda madre ASRock Fatal1ty Z77 Professional Series, una scheda madre affidabile prodotta secondo i severi criteri di qualità ASRock. Le prestazioni eccellenti e il design robusto si conformano all’impegno di ASRock nella ricerca della qualità e della resistenza.
  • Page 96 ® ® - Supporta Intel HD Graphics Built-in Visuals: Intel Quick Sync ® ® Video, Intel InTru 3D, Intel Clear Video HD Technology, ® ® Intel HD Graphics 2500/4000, Intel Advanced Vector Extensions (AVX) Fatal1ty Z77 Professional Series Motherboard...
  • Page 97 - 1 x porte IEEE 1394 - 1 x interruttore di pulizia CMOS con LED - Connettore HD Audio: cassa posteriore / cassa centrale / bassi / ingresso linea / cassa frontale / microfono (vedi ATTENZIONE 7) Fatal1ty Z77 Professional Series Motherboard...
  • Page 98 - 1 x interruttore di reset con LED BIOS - 64Mb AMI UEFI Legal BIOS con interfaccia di supporto - Supporta “Plug and Play” - Compatibile con ACPI 1.1 wake up events - Supporta jumperfree - Supporta SMBIOS 2.3.1 Fatal1ty Z77 Professional Series Motherboard...
  • Page 99 XP 64 bit (vedi ATTENZIONE 20) Certifi cazioni - FCC, CE, WHQL - Predisposto ErP/EuP (è necessaria l’alimentazione predisposta per il sistema ErP/EuP) (vedi ATTENZIONE 21) * Per ulteriori informazioni, prego visitare il nostro sito internet: http://www.asrock.com Fatal1ty Z77 Professional Series Motherboard...
  • Page 100 Windows 7 / Vista / XP. Per Windows OS con CPU 64-bit, non c’è tale limitazione. Si può usare ASRock XFast RAM per ® fare uso della memoria che Windows non può utilizzare. Solo lo slot PCIE2 e PCIE4 supporta velocità fi no a Gen 3. Per utilizzare PCI Express a velocità...
  • Page 101 12. ASRock XFast USB può accelerare le prestazioni del dispositivo d’archi- viazione USB. Le prestazioni dipendono dalle proprietà del dispositivo. 13. ASRock XFast LAN offre un accesso a Internet più veloce, che compren- de i seguenti benefi ci. Priorità alle applicazioni LAN: è possibile confi gu- rare la priorità...
  • Page 102 14. ASRock XFast RAM è una nuova funzione inclusa in F-Stream. Utilizza completamente lo spazio che non può essere utilizzato da CPU Win- ® dows 32-bit. ASRock XFast RAM accorcia i tempi di caricamento dei siti visitati in precedenza, rendendo la navigazione più veloce che mai. Inol- tre accelera di 5 volte la velocità...
  • Page 103 1394 GUID e indirizzo MAC saranno cancellati solo se è rimossa la batteria della CMOS. L’interruttore Clear CMOS (Cancella CMOS) ha la stessa funzione del jumper Clear CMOS. Fatal1ty Z77 Professional Series Motherboard...
  • Page 104 (SATA3_A1_A2: vedi p.4 Nr. 12) immagazzinamento interni. (SATA3_A3_A4: vedi p.4 Nr. 11) L’interfaccia SATA3 attuale SATA3_A1 SATA3_A2 permette velocità di trasferimento dati fi no a 6.0 Gb/s. Se si installa l’HD SATA3_0 SATA3_1 sulla porta eSATA3 con la Fatal1ty Z77 Professional Series Motherboard...
  • Page 105 IntA_P6_SSTX+ IntA_P7_D- IntA_P6_D- IntA_P7_D+ IntA_P6_D+ DUMMY Collettore modulo infrarossi Questo collettore supporta IRTX +5VSB moduli ad infrarossi optional per (5-pin IR1) DUMMY la trasmissione e la ricezione (vedi p.4 Nr. 29) senza fi li. IRRX Fatal1ty Z77 Professional Series Motherboard...
  • Page 106 Collegare l’interruttore d’alimentazione, l’interruttore di ripristino, l’indicatore di stato del sistema del pannello frontale del telaio a questo header in base all’assegnazione dei pin defi nita di seguito. Determinare i pin positivi e negativi prima di collegare i cavi. Fatal1ty Z77 Professional Series Motherboard...
  • Page 107 (4-pin CHA_FAN1) facendo combaciare il cavo (vedi p.4 Nr. 26) FAN_SPEED_CONTROL +12V CHA_FAN_SPEED nero col pin di terra. CHA_FAN1, CHA_FAN2 e (3-pin CHA_FAN2) CHA_FAN3 supportano la (vedi p.4 Nr. 43) funzione Fan Control. Fatal1ty Z77 Professional Series Motherboard...
  • Page 108 ATX a 20 pin, collegare l’alimentatore con il Pin 1 e il Pin 13. Installazione dell’alimentatore ATX a 20 pin Connettore ATX 12 V Collegare un alimentatore ATX 12 V a questo connettore. (8-pin ATX12V1) (vedi p.4 Nr. 2) Fatal1ty Z77 Professional Series Motherboard...
  • Page 109 SPDIF su scheda (2-pin HDMI_SPDIF1) SPDIFOUT HDMI VGA, consente al (vedi p.4 Nr. 33) sistema di collegare dispositivi per TV digitale HDMI/proiettori/ LCD . Collegare il connettore HDMI_SPDIF della scheda VGA HDMI a questo header. Fatal1ty Z77 Professional Series Motherboard...
  • Page 110 Punto 2 Collegare il cavo USB 3.0 e il anteriore. supporto USB 3.0 posteriore. Punto 3 Punto 4 Avvitare le due viti nel supporto USB 3.0 Inserire il supporto USB 3.0 posteriore. posteriore nel telaio. Fatal1ty Z77 Professional Series Motherboard...
  • Page 111 (vedi p.4 Nr. 17) agli utenti di resettare rapidamente il sistema. Interruttore pulizia CMOS L’interruttore di pulizia CMOS è (CLRCBTN) un interruttore rapido che (vedi p.5 Nr. 18) consente agli utenti di cancellare velocemente i valori CMOS. Fatal1ty Z77 Professional Series Motherboard...
  • Page 112 Inserire il CD di supporto nel lettore CD-ROM. Se la funzione “AUTORUN” è attivata nel computer, apparirà automaticamente il Menù principale. Se il Menù principale non appare automaticamente, posizionarsi sul fi le “ASSETUP.EXE” nel CESTINO del CD di supporto e cliccare due volte per visualizzare i menù. Fatal1ty Z77 Professional Series Motherboard...
  • Page 113 1. Introducción Gracias por su compra de ASRock Fatal1ty Z77 Professional Series placa madre, una placa de confi anza producida bajo el control de calidad estricto y persistente. La placa madre provee realización excelente con un diseño robusto conforme al compromiso de calidad y resistencia de ASRock.
  • Page 114 GPU integrada. ® ® - Admite Intel HD Graphics Built-in Visuals: Intel Quick Sync ® ® Video, Intel InTru 3D, Intel Clear Video HD Technology, ® ® Intel HD Graphics 2500/4000 e Intel Advanced Vector Fatal1ty Z77 Professional Series Motherboard...
  • Page 115 - 6 x puertos USB 3.0 predeterminados - 2 x puertos LAN RJ-45 con LED (LED de ACCIÓN/ENLACE y LED de VELOCIDAD) - 1 x puerto IEEE 1394 - 1 x conmutador de borrado de memoria CMOS con Fatal1ty Z77 Professional Series Motherboard...
  • Page 116 - 2 x Cabezal USB 2.0 (admite 4 puertos USB 2.0 adicionales) - 1 x Cabezal USB 3.0 (admite 2 puertos USB 3.0 adicionales) - 1 x Dr. Debug (indicador LED de avería de 7 segmentos) Fatal1ty Z77 Professional Series Motherboard...
  • Page 117 Característica - F-Stream (vea ATENCIÓN 8) Única - ASRock Instant Boot - ASRock Instant Flash (vea ATENCIÓN 9) - ASRock APP Charger (vea ATENCIÓN 10) - ASRock SmartView (vea ATENCIÓN 11) - ASRock XFast USB (vea ATENCIÓN 12) - ASRock XFast LAN (vea ATENCIÓN 13) - ASRock XFast RAM (vea ATENCIÓN 14)
  • Page 118 7 / Vista / XP. Para equipos con Windows OS con CPU de 64-bit, no existe dicha limitación. Puede usar ASRock XFast RAM para utilizar la ® memoria que no puede usar Windows Además, solamente la ranura PCIE2 y PCIE4 admite la velocidad Gen 3.
  • Page 119 . Gracias a esta utilidad, sólo necesitará pulsar <F6> durante la fase POST o pulsar <F2> para acceder al menú de confi guración del BIOS y a la utilidad ASRock Instant Flash. Ejecute esta herramienta y guarde el archivo correspondiente al sistema BIOS nuevo en su unidad fl...
  • Page 120 Windows 7 / 7 64 bits / Vista / Vista bits y que la versión de su explorador es IE8. Sitio Web de ASRock: http://www.asrock.com/Feature/SmartView/index.asp 12. ASRock XFast USB puede aumentar el rendimiento de los dispositivos de almacenamiento USB.
  • Page 121 LGA 775, LGA 1155 y LGA 1156. Recuerde que no es posible el uso de todos los ventiladores para CPU 775 y 1156. ® ® 20. ASRock XFast RAM no se admite en Microsoft Windows XP / XP 64 ® ®...
  • Page 122 Tenga en cuenta que la contraseña, la fecha, la hora, el perfi l predeterminado del usuario, el GUID 1394 y la dirección MAC solamente se borrará si la batería CMOS se quita. El conmutador Borrar CMOS tiene la misma función que el puente Borrar CMOS. Fatal1ty Z77 Professional Series Motherboard...
  • Page 123 (SATA3_A3_A4: vea p.4, N. 11) interfaz SATA2 / SATA3 actual SATA3_A1 SATA3_A2 permite una velocidad de transferencia de 6.0 Gb/s. Si instala la unidad de disco duro SATA3_0 SATA3_1 en el puerto eSATA3 situado en Fatal1ty Z77 Professional Series Motherboard...
  • Page 124 IntA_P6_SSRX- panel E/S, encontrará una (vea p.4, N. 9) IntA_P6_SSRX+ cabecera USB 3.0 en esta IntA_P7_SSTX- IntA_P6_SSTX- IntA_P7_SSTX+ placa base. Esta cabecera USB IntA_P6_SSTX+ IntA_P7_D- 3.0 admiten dos puertos USB IntA_P6_D- IntA_P7_D+ 3.0. IntA_P6_D+ DUMMY Fatal1ty Z77 Professional Series Motherboard...
  • Page 125 Acceda a la fi cha “FrontMic” (Micrófono frontal) del panel de control Realtek. Ajuste la posición del control deslizante “Recording Volume” (Volumen de grabación). Cabezal de panel de sistema Este cabezar acomoda varias dunciones de panel frontal de (9-pin PANEL1) sistema. (vea p.4, N. 21) Fatal1ty Z77 Professional Series Motherboard...
  • Page 126 PLED+ (3-pin PLED1) PLED+ estado de encendido del (vea p.4, N. 19) sistema. El indicador LED se encenderá si el sistema se encuentra en funcionamiento. El indicador LED parpadeará en el estado S1/S3. El indicador Fatal1ty Z77 Professional Series Motherboard...
  • Page 127 Contacto 1-3 conectado Instalación del ventilador de 3 contactos (3-pin CPU_FAN2) +12V (vea p.4, N. 4) CPU_FAN_SPEED Cabezal de alimentación ATX Conecte la fuente de alimentación ATX a su cabezal. (24-pin ATXPWR1) (vea p.4, N. 7) Fatal1ty Z77 Professional Series Motherboard...
  • Page 128 (HDMI_SPDIF1 de 2 pin) SPDIFOUT VGA HDMI, permite al sistema (vea p.4, N. 33) conectarse a dispositivos de TV Digital HDMI / proyectores / Dispositivos LCD. Conecte el conector HDMI_SPDIF de la tarjeta VGA HDMI a esta cabecera. Fatal1ty Z77 Professional Series Motherboard...
  • Page 129 Guía de instalación del soporte USB 3.0 posterior Paso 1 Paso 2 Desatornille los dos tornillos del panel Coloque el cable USB 3.0 el soporte USB 3.0 frontal. USB 3.0 posterior juntos. Fatal1ty Z77 Professional Series Motherboard...
  • Page 130 CMOS. Conmutador de borrado de memoria CMOS El conmutador de encendido es (CLRCBTN) un conmutador rápido que (vea p.5, N. 18) permite al usuario encender / apagar rápidamente el sistema. Fatal1ty Z77 Professional Series Motherboard...
  • Page 131 Para iniciar la instalación, ponga el CD en el lector de CD y se des- plegará el Menú Principal automáticamente si «AUTORUN» está habilitado en su computadora. Si el Menú Principal no aparece automáticamente, localice y doble-pulse en el ar- chivo “ASSETUP.EXE” para iniciar la instalación. Fatal1ty Z77 Professional Series Motherboard...
  • Page 132 1. Введение Благодарим вас за покупку материнской платы ASRock Fatal1ty Z77 Professional Series надежной материнской платы, изготовленной в соответствии с постоянно предъявляемыми ASRock жесткими требованиями к качеству. Она обеспечивает превосходную производительность и отличается отличной конструкцией, которые отражают приверженность ASRock качеству и долговечности.
  • Page 133 Advanced Vector Extensions (AVX) ® - Pixel Shader 5.0, DirectX 11 с процессором Intel Ivy Bridge, Pixel ® Shader 4.1, DirectX 10.1 с процессором Intel Sandy Bridge - Макс. объем разделяемой памяти 1760Мб (см. ОСТОРОЖНО, пункт 5) Fatal1ty Z77 Professional Series Motherboard...
  • Page 134 NCQ, AHCI и «горячего подключения» (порт SATA3_A4 объединен с портом eSATA3) ® USB 3.0 - 2 x задних порта USB 3.0 на контроллере Intel Z77 с поддержкой интерфейсов USB 1.0/2.0/3.0 и скорости передачи данных до Fatal1ty Z77 Professional Series Motherboard...
  • Page 135 - Регулировка напряжений CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Компакт- диск - Драйверы, служебные программы, антивирусное программное поддержки обеспечение (пробная версия), Пробная версия программы CyberLink MediaEspresso 6.5, ASRock MAGIX Multimedia Suite - поставщик Уникальная - F-Stream (см. ОСТОРОЖНО, пункт 8) Особенность - ASRock Instant Boot - ASRock Instant Flash (см.
  • Page 136 - ASRock XFast USB (см. ОСТОРОЖНО, пункт 12) - ASRock XFast LAN (см. ОСТОРОЖНО, пункт 13) - ASRock XFast RAM (см. ОСТОРОЖНО, пункт 14) - ASRock Crashless BIOS (см. ОСТОРОЖНО, пункт 15) - Lucid Virtu Universal MVP (см. ОСТОРОЖНО, пункт 16) * Lucid Virtu Universal MVP поддерживается...
  • Page 137 использования системой Windows 7 / Vista / XP. Таких ограничений нет ® для Windows OS с 64-bit центральным процессором. Технология ASRock XFast RAM помогает использовать память, которая не используется ОС ® Windows Tолько PCIE2 и PCIE4 поддерживает скорость Gen 3. Для работы...
  • Page 138 работающих линий питания, чтобы поднять КПД системы без ущерба для ее производительности во время простоя ядер ЦПУ. ASRock Instant Flash – программа для прошивки BIOS, встроенная в Flash ROM. Данное средство для обновления BIOS умеет работать без входа в ®...
  • Page 139 14. ASRock XFast RAM – новая функция, входящая в состав утилиты F-Stream. Благодаря ей, используется область памяти, использование ® которой не возможно на процессоре с 32-битной ОС Windows ASRock XFast RAM сокращает время загрузки истории посещения веб- сайтов, существенно ускоряя навигацию по сети Интернет. Кроме того, скорость...
  • Page 140 затем завершить ее работу. Примите во внимание, что пароль, дата, время, профиль пользователя по умолчанию, идентификатор 1394 GUID и MAC-адрес будут очищены только тогда, когда будет извлечена из своего гнезда батарейка CMOS. Переключатель Clear CMOS работает так же, как перемычка Clear CMOS. Fatal1ty Z77 Professional Series Motherboard...
  • Page 141 (SATA3_A3_A4, см. стр. 4, п. 11) использованием нтерфейсных SATA3_A1 SATA3_A2 кабелей SATA3. В настоящее время интерфейс SATA допускает скорость передачи данных до \ 6,0 Гбит/с. При установке жесткого SATA3_0 SATA3_1 диска в порт eSATA3 задней Fatal1ty Z77 Professional Series Motherboard...
  • Page 142 IntA_P7_SSTX+ IntA_P6_SSTX+ поддерживает два порта USB 3.0. IntA_P7_D- IntA_P6_D- IntA_P7_D+ IntA_P6_D+ DUMMY Колодка инфракрасного модуля Данная колодка позволяет IRTX +5VSB подключить дополнительный (5-контактный IR1) DUMMY модуль беспроводного (см. стр. 4, п. 29) инфракрасного приемопередатчика. IRRX Fatal1ty Z77 Professional Series Motherboard...
  • Page 143 Перейдите к вкладке «FrontMic» (Передний микрофон) в панели управления Realtek. Отрегулируйте уровень «Recording Volume» (Громкость записи). Колодка системной панели Данная колодка обеспечивает работу нескольких функций (9-контактный PANEL1) передней панели системы. (см. стр. 4, п. 21) Fatal1ty Z77 Professional Series Motherboard...
  • Page 144 к этому разъему для отображения (3-контактный PLED1) PLED- PLED+ статуса питания системы. Этот (см. стр. 4, п. 19) PLED+ светодиод продолжит мигать в режиме S1/S3. Светодиод будет выключен в режимах S4 или S5 (система выключена). Fatal1ty Z77 Professional Series Motherboard...
  • Page 145 ивает 24-штыревой разъем питания ATX, работа будет продолжаться, даже если адаптируется традиционный 20-штыревой разъем питания ATX. Для использования 20-штыревого разъема питания ATX вставьте источник питания вместе со штекером 1 и штекером 13. Установка 20-штыревого разъема питания ATX Fatal1ty Z77 Professional Series Motherboard...
  • Page 146 обеспечивает подачу выходного (2-контактный HDMI_SPDIF1) аудиосигнала на VGA-карту HDMI, (см. стр. 4, п. 33) SPDIFOUT что позволяет подключать к системе цифровые телевизоры, проекторы или жидкокристаллические панели HDMI. Соедините эту колодку с разъемом HDMI_SPDIF на VGA- карте HDMI. Fatal1ty Z77 Professional Series Motherboard...
  • Page 147 USB 3.0 (USB3_6_7) на материнской плате. Руководство по установке кронштейна заднего разъема USB 3.0 Шаг 1 Шаг 2 Открутите два винта на передней Соедините кабель USB 3.0 и панели USB 3.0. кронштейн разъема USB 3.0. Fatal1ty Z77 Professional Series Motherboard...
  • Page 148 систему. Reset Switch Кнопка Reset Switch позволяет (RSTBTN) быстро перезагрузить систему. (см. стр. 4, п. 17) Reset Clear CMOS Switch Кнопка Clear CMOS Switch (CLRCBTN) позволяет быстро сбросить (см. стр. 5, п. 18) установки CMOS. Fatal1ty Z77 Professional Series Motherboard...
  • Page 149 Если в вашем компьютере включена функция автозапуска (AUTORUN), то на экране автоматически появится главное меню компакт-диска (Main Menu). Если этого не произошло, найдите в папке BIN на компакт-диске поддержки файл ASSETUP.EXE и дважды щелкните на нем, чтобы открыть меню. Fatal1ty Z77 Professional Series Motherboard...
  • Page 150 önceden haber verilmeksizin değişebilir. Bu belgede değişiklik yapılması durumunda, güncelleştirilmiş sürüm ayrıca haber verilmeksizin ASRock web sitesinde sunulur. En son VGA kartlarını ve CPU destek listelerini de ASRock web sitesinde bulabilirsiniz. ASRock web sitesi http://www.asrock.com Bu anakartla ilgili teknik desteğe ihtiyacınız olursa, kullandığınız modele özel bilgiler için lütfen web sitemizi ziyaret edin.
  • Page 151 Gelişmiş Vektör Uzantıları (AVX) ® - Pixel Shader 5.0, Intel Ivy Bridge işlemciye sahip DirectX 11. ® Pixel Shader 4.1,Intel Sandy Bridge işlemciye sahip DirectX 10.1 - Maks. paylaюэlan bellek 1760 MB (bkz. DЭKKAT 5) Fatal1ty Z77 Professional Series Motherboard...
  • Page 152 Z77 konektör, donanım RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage ve Intel Smart Response Teknolojisini), NCQ, AHCI ve “Sistem Açıkken Bileşen Takma” işlevlerini - 4 x SATA3 6,0Gb/sn ASMedia ASM1061 konektör, donanım Fatal1ty Z77 Professional Series Motherboard...
  • Page 153 - SMBIOS 2.3.1 Desteği - CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltaj Çoklu ayarı Destek CD’si - Sürücüler, Yardımcı Programlar, AntiVirüs Yazılımı (Deneme Sürümü), CyberLink MediaEspresso 6.5 Deneme Sürümü, ASRock MAGIX Multimedya Seti - OEM Fatal1ty Z77 Professional Series Motherboard...
  • Page 154 - FCC, CE, WHQL - ErP/EuP Hazır (ErP/EuP hazır güç kaynağı gerekli) (bkz. DİKKAT 21) * Ayrıntılı ürün bilgileri için lütfen web sitemizi ziyaret edin: http://www.asrock.com UYARI Lütfen, ayarı BIOS'da ayarlama, Untied Overclocking Teknolojisi'ni uygulama veya üçüncü taraf aşırı hızlandırma araçlarını kullanma gibi durumlarda aşırı hızlandırmayla ilgili risk olduğunu unutmayın.
  • Page 155 IES’de (Akıllı Enerji Tasarrufu), CPU çekirdekleri boşta olduğunda bilgisayarın performansından ödün vermeden gerilim düzenleyicisi çıkış fazlarının sayısını düşürerek verimliliği iyileştirir. ASRock Anında Flash, Flash ROM’a katıştırılmış bir BIOS fl ash yardımcı programıdır. Bu kullanışlı BIOS güncelleme aracı, sistem BIOS’unu MS- ®...
  • Page 156 10. iPhone/iPad/iPod Touch gibi Apple cihazlarınızı şarj etmek için daha hızlı ve daha özgür bir biçimde şarj etmek istiyorsanız, ASRock sizin için mükemmel bir çözüm hazırladı - ASRock APP Charger. Sadece APP Charger sürücünü kurarak, iPhone’unuzu bilgisayarınızdan daha çabuk ve eskisinden 40% daha hızlı...
  • Page 157 15. ASRock Crashless BIOS kullanıcıların arıza çıkma korkusu olmadan BIOS’larını güncellemesine imkan verir. BIOS güncelleme işlemi sırasında güç kaybı yaşanırsa, ASRock Crashless BIOS güç geri geldiğinde BIOS güncelleme işlemini otomatik olarak tamamlayacaktır. Lütfen, BIOS dosyalarının USB diskinizin kök dizinine yerleştirilmesi gerektiğini unutmayın.
  • Page 158 CMOS temizleme işlemini gerçekleştirmeden önce kapatmanız gereklidir. Parola, tarih, saat, kullanıcı varsayılan profi li, 1394 GUID ve MAC adresinin yalnızca CMOS pili çıkarıldığında temizleneceğini lütfen aklınızda bulundurunuz. CMOS Devresini Temizle, CMOS Ayarı'nı Temizle ile aynı işleve sahiptir. Fatal1ty Z77 Professional Series Motherboard...
  • Page 159 (SATA3_A1_A2: bkz. s.4, No. 12) kablolarını destekler. Geçerli (SATA3_A3_A4: bkz. s.4, No. 11) SATA3 arayüzü 6,0 Gb/sn veri SATA3_A1 SATA3_A2 aktarım hızına izin verir. Arka I/O’daki eSATA3 bağlantı noktasındaki HDD’yi yüklemek SATA3_0 SATA3_1 isterseniz, dahili SATA3_A4 çalışmayacaktır. Fatal1ty Z77 Professional Series Motherboard...
  • Page 160 USB 3.0 IntA_P7_D- IntA_P6_D- IntA_P7_D+ bağlantı noktasını IntA_P6_D+ DUMMY destekleyebilir. Kızılötesi Modülü Fişi Bu fi ş, isteğe bağlı bir kablosuz IRTX +5VSB aktarma ve alma kızılötesi (5-pinli IR1) DUMMY modülünü destekler. (bkz. s.4 No. 29) IRRX Fatal1ty Z77 Professional Series Motherboard...
  • Page 161 Kabloları bağlamadan önce pozitif ve negatif pinlere dikkat edin. PWRBTN (Güç Anahtarı): Kasa üzerindeki güç anahtarını ön panele bağlayın. Güç anahtarını kullanarak sisteminizi kapatma şeklinizi yapılandırabilirsiniz. RESET (Sıfırlama Anahtarı): Kasa üzerindeki sıfırlama anahtarını ön panele bağlayın. Bilgisayar Fatal1ty Z77 Professional Series Motherboard...
  • Page 162 (bkz. s.4 No. 26) FAN_SPEED_CONTROL +12V CHA_FAN_SPEED bağlayın. CHA_FAN1, CHA_FAN2 ve CHA_FAN3 (3-pinli CHA_FAN2) destekli Fan Denetimi. (bkz. s.4 No. 43) (3-pinli CHA_FAN3) (bkz. s.4 No. 22) (3-pinli PWR_FAN1) PWR_FAN_SPEED (bkz. s.4 No. 41) +12V Fatal1ty Z77 Professional Series Motherboard...
  • Page 163 Bu anakart 8-pinli ATX 12V güç konektörü sağlasa da geleneksel bir 4-pinli ATX 12V güç kaynağı bağlarsanız da çalışabilir. 4-pinli ATX güç kaynağını kullanmak için, lütfen güç kaynağınızı Pin 1 ve Pin 5'le birlikte takın. 4-Pinli ATX 12V Güç Kaynağını Takma Fatal1ty Z77 Professional Series Motherboard...
  • Page 164 HDD vidasını kullanarak vidasını ve altı şasi vidasını hazırlayın. vidalayın. Adım 3 Adım 4 Ön USB 3.0 Panelini altı şasi vidası ile Ön USB 3.0 Panelini şasinin 2,5” sürücü sürücü yuvasına vidalayın. yuvasına kurun. Fatal1ty Z77 Professional Series Motherboard...
  • Page 165 Güç Anahtarı, kullanıcıların hızlı bir şekilde sistemi açıp (PWRBTN) Power kapatmalarını sağlayan akıllı (bkz. s.4 No.16) bir anahtardır. Sıfırlama Anahtarı Sıfırlama Anahtarı, kullanıcıların hızlı bir şekilde (RSTBTN) Reset sistemi sıfırlamalarını (bkz. s.4 No.17) sağlayan akıllı bir anahtardır. Fatal1ty Z77 Professional Series Motherboard...
  • Page 166 Destek CD'sini kullanmaya başlamak için, CD'yi CDROM sürücünüze takın. Bilgisayarınızda "OTOMATİK KULLAN" özelliği etkinleştirilmişse, Ana Menüyü otomatik olarak görüntüler. Ana Menü otomatik olarak görüntülenmezse, menüleri görüntülemek için Destek CD'sinin “BIN” klasöründeki "ASSETUP.EXE" dosyasını bulun ve çift tıklatın. Fatal1ty Z77 Professional Series Motherboard...
  • Page 167 ASRock 의 Fatal1ty Z77 Professional Series 메인 보드를 구매하여 주신것에 대하 여 감사 드립니다 . 이 메인보드는 엄격한 품질관리 하에 생산되어진 신뢰성 있는 메 인보드 입니다 . 이 제품은 고 품격 디자인과 함께 ASRock 의 우수한 품질과 최고의 안정성을 자랑하고 있습니다 . 이 빠른 설치 안내서에는 마더보드에 대한 설명과 단계...
  • Page 168 Technology, Intel HD Graphics 2500/4000, Intel Advanced Vector Extensions (AVX) ® - Intel Ivy Bridge CPU 를 탑재한 DirectX 11, Pixel Shader 5.0. ® Intel Sandy Bridge CPU 를 탑재한 DirectX 10.1, Pixel Shader 4.1 Fatal1ty Z77 Professional Series Motherboard...
  • Page 169 Smart Response 기술 ), NCQ, AHCI 및 Hot Plug ( 핫플러그 ) 기능 지원 - ASMedia ASM1061 SATA3 6.0Gb/s 커넥터 4 개 , 하드웨어 NCQ, AHCI 및 “Hot Plug” ( 핫플러그 ) 기능 지원 (SATA3_A4 커넥터는 eSATA3 포트와공유됨 ) Fatal1ty Z77 Professional Series Motherboard...
  • Page 170 - CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA 전압 멀 티 조절 지원 CD - 드라이버 , 유틸리티 , 백신 소프트웨어 ( 시험판 ), CyberLink MediaEspresso 6.5 평가판 , ASRock MAGIX Multimedia Suite - OEM Fatal1ty Z77 Professional Series Motherboard...
  • Page 171 특점및 특성 - F-Stream ( 주의 8 참조 ) - ASRock Instant Boot - ASRock Instant Flash ( 주의 9 참조 ) - ASRock APP Charger ( 주의 10 참조 ) - ASRock SmartView ( 주의 11 참조 ) - ASRock XFast USB ( 주의 12 참조 ) - ASRock XFast LAN ( 주의...
  • Page 172 체제에 들어가지 않고도 시스템 BIOS 를 업데이트할 수 있습니다 . POST 중 에 BIOS 셋업 메뉴에서 <F6> 키를 누르거나 <F2> 키를 누르면이 유틸리티로 ASRock Instant Flash 에 액세스할 수 있습니다 .. 이제 이 툴을 시작하여 USB 플래시 드라이브 , 플로피 디스크 또는 하드 드라이브에 새 BIOS 파일을 저장...
  • Page 173 XFast RAM 은 이전에 방문했던 웹사이트의로딩 시간을 단축하며 웹 서핑을 이전보다 더 빠르게 합니다 . 또한 Adobe Photoshop 속도를 5 배 증가 시킵니 다 . ASRock XFast RAM 의 또 다른 장점은 SSD 또는 HDD 의 액세스 빈도를 줄여 수명을 확장 늘입니다 .
  • Page 174 1155 와 LGA 1156 을 채택할 수 있는 유연한 옵션을 제공합니다 . 모든 775 와 1156 CPU 팬을 사용할 수 있는 겻은 아닙니다 . ® ® 20. ASRock XFast RAM 은 Microsoft Windows XP / XP 64- 비트 규격에서 ®...
  • Page 175 삭제해야 하는 경우 먼저 시스템을 부팅하고 CMOS 를 종료하고 삭제 작업을 해 야 합니다 . CMOS 배터리를 제거할 경우에만 암호 , 날짜 , 시간 , 사용자 기본 프 로파일 , 1394 GUID, MAC 주소가 삭제됩니다 . Clear CMOS Switch는 Clear CMOS 점퍼와 동일한 기능을 갖고 있습니다. Fatal1ty Z77 Professional Series Motherboard...
  • Page 176 4 페이지 , 12 번 항목 참조 ) 다 . 현재의 SATA3 인터페이스 (SATA3_A3_A4: 는 최고 6.0 Gb/s 의 데이터 전송 4 페이지 , 11 번 항목 참조 ) SATA3_0 SATA3_1 속도를 지원합니다 . 뒷면 I/O Fatal1ty Z77 Professional Series Motherboard...
  • Page 177 IntA_P7_D- 습니다 . IntA_P6_D- IntA_P7_D+ IntA_P6_D+ DUMMY 적외선 모듈 헤더 이 헤더는 선택품목인 무선 적외 IRTX +5VSB 선 송수신 모듈을 지원합니다 . (5 핀 IR1) DUMMY (4 페이지 , 29 번 항목 참조 ) IRRX Fatal1ty Z77 Professional Series Motherboard...
  • Page 178 (4 페이지 , 21 번 항목 참조 ) 섀시의 전원 스위치 , 리셋 스위치 , 시스템 상태 표시등을 아래의 핀 할당 에 따라 이헤더에 연결합니다 . 케이블을 연결하기 전에 양극 핀과 음극 핀 을 기록합니다 . Fatal1ty Z77 Professional Series Motherboard...
  • Page 179 (3 핀 CHA_FAN2) (4 페이지 , 43 번 항목 참조 ) (3 핀 CHA_FAN3) (4 페이지 , 22 번 항목 참조 ) PWR_FAN_SPEED +12V (3 핀 PWR_FAN1) (4 페이지 , 41 번 항목 참조 ) Fatal1ty Z77 Professional Series Motherboard...
  • Page 180 비록 본 마더보드는 8- 핀 ATX 12V 전원 연결기를 제공하지만 이것은 여 전히작업할수있습니다 . 만약 전통적인 4- 핀 ATX 12V 전원공급을 채용 하여 4- 핀 ATX 전력을 사용하는경우 , 반드시 전원 공급을 핀 1 과 핀 5 에전원공급을 삽입해야합니다 . 4- 핀 ATX 12V 전원공급장치 Fatal1ty Z77 Professional Series Motherboard...
  • Page 181 여섯 개의 섀시 나사를 준비합니다 . 고정합니다 . 여섯 개의 섀시 나사를 사용하여 프론트 3 단계 단계 4 단계 단계 전면 USB 3.0 패널을 섀시의 2.5” 드라이브 USB 3.0 패널을 드라이브 베이에 베이에 설치합니다. 고정합니다 . Fatal1ty Z77 Professional Series Motherboard...
  • Page 182 (4 페이지 , 16 번 항목 참조 ) 나 끌 수 있습니다 . 리셋 스위치 리셋 스위치는 빠른 스위치로서 , (RSTBTN) 사용자가 시스템을 빠르게 리셋 Reset (4 페이지 , 17 번 항목 참조 ) 할 수 있습니다 . Fatal1ty Z77 Professional Series Motherboard...
  • Page 183 뉴를 모니터에 디스플레이 시켜 줄 것입니다 . 만일 자동으로 메인 메뉴가 나타나지 않는다면 , 보조 CD 의 디스플레이 메뉴 안에 있는 BIN 폴더 ASSETUP.EXE 파일을 더블 클릭하여 주시기 바랍니다 . (D: \ BIN \ ASSETUP.EXE, D: 는 CD-ROM 드라이브 ) Fatal1ty Z77 Professional Series Motherboard...
  • Page 184 ASRock Fatal1ty Z77 Professional Series マザーボード: (ATX フォームファクター : 12.0-in x 9.6-in, 30.5 cm x 24.4 cm) ASRock Fatal1ty Z77 Professional Series クイックインストレーションガイド ASRock Fatal1ty Z77 Professional Series サポート CD 6 x シリアル ATA (SATA) データケーブル(オプション) 2 x シリアル l ATA (SATA) HDD 用電源変換ケーブル(オプション)...
  • Page 185 HD Graphics Built-in Visuals および VGA 出力 に対応するのは、GPU が内蔵されているプロセッサを使用する 場合だけです。 ® ® - Intel HD グラフィックス内蔵ビジュアルのサポート :Intel ® ® Quick Sync Video、Intel InTru 3D、Intel Clear ® Video HD Technology、Intel HD Graphics ® 2500/4000、Intel Advanced Vector Extensions (AVX) Fatal1ty Z77 Professional Series Motherboard...
  • Page 186 ポート x 2 - IEEE 1394 ポート x 1 - クリア CMOS スイッヱ(LED 付き)x 1 - オーディオジャック: 後部スピーカー、中央、低音、入力、前部スピー カー、マイク入力 ( 注意 7 参照 ) ® SATA3 - Intel Z77 SATA3 6.0Gb/ 秒 コネクタ x 2 ハードウェア Fatal1ty Z77 Professional Series Motherboard...
  • Page 187 - 1 x リセットスイッヱ(LED 付き) BIOS 関連機能 - 64Mb AMI UEFI Legal BIOS(GUI サポート) - プラグ&プレイをサポート - ACPI 1.1 準拠ウェイクアップイベント - jumperfree モードサポート - SMBIOS 2.3.1 サポート - CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA 電圧のマ ルチ調整 Fatal1ty Z77 Professional Series Motherboard...
  • Page 188 特徴 - F-Stream ( 注意 8 参照 ) - ASRock インスタントブート - ASRock Instant Flash ( 注意 9 参照 ) - ASRock APP ヱャージャー ( 注意 10 を参照 ) - ASRock SmartView ( 注意 11 を参照 ) - ASRock XFast USB ( 注意 12 を参照 ) - ASRock XFast LAN ( 注意...
  • Page 189 クロックして最適のシステムパフォーマンスを出すことができます。OC DNA で は、プロファイルとして OC 設定を保存し友人と共有することができます。友人 は OC プロファイルを自分のシステムに読み込んで、同じ OC 設定にすること が可能です。IES ( インテリジェントエネルギーサーバー ) では、電圧レギュレー タにより、CPU コアがアイドルになっているときコンピュータの性能を犠牲にす ることなく、多くの出力位相を削減して効率性の向上を図ります。 ASRock Instant Flash は、Flash ROM(フラッシュ ROM)に組み込まれて いる BIOS フラッシュユーティリティです。この便利な BIOS 更新ツールにより、 ® MS-DOS あるいは Windows のように最初にオペレーティングシステムに入 る必要なしに、システム BIOS を更新することができます。このユーティリティ では、POST の間に <F6> キーを、 あるいは BIOS 設置アップメニューの際に...
  • Page 190 タスウィンドウがあれば、現在転送しているデータストリームを容易に認識でき ます。 ® ASRock XFast RAM は、F-Stream を含む新機能です。Windows オ ペレーティングシステム 32 ビット CPU の下では使用できないメモリ空間を 利用します。 ASRock XFast RAM は、以前に訪れたウェブサイトの表示 にかかる時間を短縮し、これまで以上に迅速にネットサーフィンを行えるように します。 また、Adobe Photoshop の処理速度を 5 倍に押し上げます。 ASRock XFast RAM の他の利点は、お使いの SSD または HDD へのア クセスを減らして、それらの寿命を延ばすことです。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 191 ASRock Crashless BIOS を使って、ユーザーは失敗のおそれなく BIOS を更新することができます。 BIOS 更新プロセス中に電源損失が発生した場 合、ASRock Crashless BIOS は電源回復後、自動的に BIOS 更新プロ セスを完了させます。 BIOS ファイルを USB ディスクのルートディレクトリに 配置する必要があることに注意してください。 USB 2.0 ポートのみがこの機 能をサポートします。 VIRTU Universal MVP は、Virtu Universal テクノロジの基本機能を 含んでおり、統合 GPU および離散 GPU を最高機能に仮想化します。 ま た、妥協を許さない表示品質を実現するため Virtual Vsync を備えて...
  • Page 192 CMOS の消去 注 : CLRCMOS1 により、CMOS のデータをクリアできます。システムパラメータをクリアしデフォルト設定にリ セットするには、コンピュータの電源をオフにし、電源装置から電源コードを抜いてください。15 秒待って から、ジャンパキャップを使用して CLRCMOS1 のピン 2 とピン 3 を 5 秒間ショートしてください。ただし、 BIOS 更新の後すぐには CMOS をクリアしないでください。BIOS の更新の終了後直ちに CMOS をクリア する必要がある場合、まずシステムを起動してからシャットダウンし、その後クリア CMOS アクションを実 行する必要があります。パスワード、日付、時刻、ユーザーデフォルトのプロファイルを忘れずにメモして ください。1394 GUID と MAC アドレスは、CMOS バッテリを取り外した場合のみ消去されます。 クリアCMOSスイッチには、クリアCMOSジャンパと同じ機能があります。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 193 ページ 4, アイテム 13 を参照 います。現在の SATA3 インタフェース SATA3_A1_A2: の最大データ転送速度は 6.0Gb/s で ページ 4, アイテム 12 を参照 SATA3_A1 SATA3_A2 す。背面 I/O の eSATA3 ポートに HDD SATA3_A3_A4: を取り付ける場合、内部 SATA3_A4 は ページ 4, アイテム 11 を参照 機能しません。 SATA3_0 SATA3_1 Fatal1ty Z77 Professional Series Motherboard...
  • Page 194 IntA_P6_D+ DUMMY 赤外線モジュールコネクタ このコネクタは赤外線の無線送受信モ IRTX +5VSB ジュールに対応します。 (5 ピン IR1) DUMMY ページ 4, アイテム 29 を参照 IRRX 内部オーディオコネクタ このコネクタを使うと、CD- CD-L ROM、DVD-ROM、TV チュー (4 ピン CD1) ナーカード、MPEG カードといっ ページ 4, アイテム 42 を参照 CD-R た音楽ソースからステレオオー ディオ入力を受信できます。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 195 Realtek コントロールパネルから “ FrontMic ” ( フロントマイ ク ) タブを開きます。 “ Recording Volume ” ( 録音音量 ) を 調整します。 システムパネルコネクタ このコネクタは数種類のシステムフ ロ ントパネルの機能を提供します。 (9 ピン PANEL1) ページ 4, アイテム 21 を参照 シャーシに付いている電源スイッチ、リセットスイッチ、システムステータスイン ジケータを下記のピン割り当て指示に従ってこのヘッダに接続します。ケーブ ルを接続する前にピンの正負極性にご注意ください。 PWRBTN ( 電源スイッチ ): 前面パネルに付いている電源スイッチに接続します。電源スイッチによるシス テム電源オフ方法を設定して変更することも可能です。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 196 ください。CHA_FAN1、CHA_FAN2 およ FAN_SPEED_CONTROL +12V び CHA_FAN3 は、ファンコントロールを CHA_FAN_SPEED サポートします。 (3 ピン CHA_FAN2) ページ 4, アイテム 43 を参照 (3 ピン CHA_FAN3) ページ 4, アイテム 22 を参照 PWR_FAN_SPEED (3 ピン PWR_FAN1) +12V ページ 4, アイテム 41 を参照 Fatal1ty Z77 Professional Series Motherboard...
  • Page 197 I/O パネルには、デフォルトの 1 RXTPAM_0 つの IEEE 1394 ポート以外に、 (9 ピン FRONT_1394) RXTPBM_0 +12V このマ ザーボードに 1 つの ジ2, アイテム 28 を参照 ペー IEEE 1394 ヘッダが搭載されてい ます。それぞれの IEEE 1394 +12V RXTPBP_0 ヘッダは 1 つの IEEE 1394 RXTPAP_0 ポートをサポートできます。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 198 HDD ねじ、6 本のシャーシねじを準備します。 面 USB 3.0 パネルに取り付けます。 手順 手順 3 手順 手順 4 前面USB 3.0パネルを筐体の2.5インチドライブ 正面 USB 3.0 パネルを 6 本のシャーシ ベイに取り付けます。 ねじでドライブベイに取り付けます。 手順 手順 5 手順 手順 6 前面USB 3.0ケーブルをマザーボードのUSB これで前面USB 3.0パネルの 3.0ヘッダ(USB3_6_7)に差し込みます。 使用準備は完了です。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 199 システム電源のオン / オフを素早く切 Power ページ 4, アイテム 16 を参照 り替えることができます。 リセットスイッヱ リセットスイッヱはクイックスイッヱ (RSTBTN) で、システムを素早くリセットするこ Reset ページ 4, アイテム 17 を参照 とができます。 クリア CMOS スイッヱはクイックス クリア CMOS スイッヱ イッヱで、CMOS 値を素早くクリア (CLRCBTN) ページ 5, アイテム 18 を参照 できます。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 200 7 / 7 64-bit / Vista / Vista bit / XP / XP 64-bit といった様々なマイクロソフト ウインドウズ オペレーティングシ ステムをサポートします。マザーボードに付属しているサポート CD はマザーボードの特徴 を有効にするために必要なドライバやユーティリティを含んでいます。サポート CD を使用 するには、CDROM ドライブに CD を挿入してください。AUTORUN 機能が有効な場合、自 動的にメインメニュウが立ち上がります。AUTORUN 機能が無効な場合、サポート CD 内の BIN フォルダにある ASSETUP.EXE をダブルクリックすることにより、メインメニュウが立ち 上がります。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 201 1. 主板簡介 謝謝你采用了華擎 Fatal1ty Z77 Professional Series 主板 , 本主板由華擎嚴格制造 , 質量可靠 , 穩定性好 , 能夠獲得卓越的性能。本安裝指南介紹了安裝主板的步驟。更 加詳細的主板信息可參看驅動光盤的用戶手冊。 由于主板規格和 BIOS 軟件將不斷升級 , 本手冊之相關內容變更恕不另行 通知。請留意華擎网站上公布的升級版本。你也可以在華擎網站找到最新 的顯卡和 CPU 支持表。 華擎网址:http://www.asrock.com 如果您需要與此主板有關的技術支持 , 請參觀我們的網站以了解您使用機 種的規格信息。 www.asrock.com/support/index.asp 1.1 包裝盒內物品 華擎 Fatal1ty Z77 Professional Series 主板...
  • Page 202 Ivy Bridge CPU 支持 Pixel Shader 5.0、DirectX 11 ® 技術 Intel Sandy Bridge CPU 支持 Pixel Shader 4.1、 。 DirectX 10.1 技術 - 最大共享內存 1760MB(見警告 5) - 雙 VGA 輸出 : 通過獨立顯示控制器提供 HDMI 和 DisplayPort 接口 Fatal1ty Z77 Professional Series Motherboard...
  • Page 203 AHCI 和熱插拔功能 (SATA3_A4 連接頭和 eSATA3 接口共享資源 ) ® USB 3.0 - 2 x Intel Z77 的后置 USB 3.0 連接頭, 支持 USB 1.0/2.0/3.0 到 5Gb/s - 4 x Etron EJ188H 的后置 USB 3.0 連接頭,支持 USB 1.0/2.0/3.0 到 5Gb/s Fatal1ty Z77 Professional Series Motherboard...
  • Page 204 獨家功能 - F-Stream(詳見警告 8) - 華擎即時開機功能 - 華擎 Instant Flash(見警告 9) - 華擎 APP Charger(見警告 10) - 華擎 SmartView(見警告 11) - 華擎 XFast USB(見警告 12) - 華擎 XFast LAN(見警告 13) - 華擎 XFast RAM(見警告 14) Fatal1ty Z77 Professional Series Motherboard...
  • Page 205 4、 只有 P C I E2 和 P C I E4 插槽支持 G e n 3 速度。若要使 P C I E x p r e s s 運行 于 Gen 3 速度,您必須安裝 Ivy Bridge CPU。若您安裝了 Sandy Bridge CPU,則 PCI Express 只能運行于 Gen 2 速度。 ® 5、 最大共享內存大小由芯片組廠商定義並且可以更改。請查閱 I n t e l 網站 了解最新資訊。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 206 時与朋友保持聯系。為使用 SmartView 功能,請确保您操作系統的版本是 ® Windows 7 / 7 64 位元 / Vista / Vista 64 位元,瀏覽器的版本是 IE8。 華擎网站:http://www.asrock.com/Feature/SmartView/index.asp 12、 華擎 XFast USB 可以提升 USB 存儲設備性能。性能可能因設備特性不同而 存在差异。 13、 華擎 XFast LAN 可提供更快的网絡訪問,包括以下諸多好處。网絡應用程 序优先級:您可以設置理想的應用程序优先級,并可以添加新程序。游戲 更少延遲:將在線游戰設置為較高的优先級,可降低游戰中的延遲。流量 定形:您可以在觀看 Youtube 高清視頻的同時進行文件下載。實時分析您 的數据:通過狀態窗口,您可以清楚地看到目前正在傳輸的是哪個數据流。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 207 消耗必須在 1.00W 以下。為滿足 EuP 標準 , 您需要同時具備支持 Eu P 的主 ® 板和支持 EuP 的電源供應器。根據 Intel 的建議 , 支持 EuP 的電源供應器 必須滿足在 100m A 電流消耗時 ,5V s b 電源效率高于 50%。有關支持 E u P 的 電源供應器選擇方面的更多細節 , 我們建議您諮詢電源供應器的製作商。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 208 線帽將 C L R C M O S1 上的插針 2 和插針 3 短接 5 秒。但是,請勿在更新 B I O S 后 立即清除 C M O S。如果需要在更新 B I O S 后立即清除 C M O S,必須在執行 C M O S 清除操作之前,先啟動然后關閉系統。請注意,只有取出 C M O S 電池,密碼、 日期、時間、用戶默認配置文件、1394 GUID 和 MAC 地址才會被清除。 清除CMOS開關与清除CMOS跳線具有相同的功能。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 209 (SATA3_A3_A4: 見第 4 頁第 11 項 ) 6.0Gb/s 的數據傳輸速率。若您 SATA3_A1 SATA3_A2 將硬盤連接到后側面板 I/O 的 eSATA3 接口,則內部的 SATA3_0 SATA3_1 SATA3_A4 將失效。 Serial ATA (SATA) SATA 數據線的任意一端均可連 數據線 接 SATA/SATA2/SATA3 硬盤或者 ( 選配 ) 主板上的 SATA2/SATA3 接口。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 210 TV 調諧器或 MPEG 卡接收音頻 (4 針 CD1) CD-R 輸入。 (CD1 見第 4 頁第 42 項 ) 前置音頻面板接頭 可以方便連接音頻設備。 PRESENCE# (9 針 HD_AUDIO1) MIC_RET OUT_RET ( 見第 4 頁第 32 項 ) OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L Fatal1ty Z77 Professional Series Motherboard...
  • Page 211 統處于 S1/S3 待機模式時 , 此指示燈保持閃爍。當系統處于 S4 待機模式 或關機 (S5) 模式時 , 此指示燈熄滅。 HD LED( 硬盤活動指示燈 ): 連接機箱前面板的硬盤動作指示燈。當硬盤正在讀取或寫入數據時 , 此指 示燈亮起。 前面板設計因機箱不同而有差異。前面板模塊一般由電源開關、重啟開 關、電源指示燈、硬盤動作指示燈、喇叭等構成。將您的機箱前面板連接 到此排針時 , 請確認連接線與針腳上的說明相對應。 機箱喇叭接頭 請將機箱喇叭連接到這個接頭。 (4 針 SPEAKER1) ( 見第 4 頁第 20 項 ) Fatal1ty Z77 Professional Series Motherboard...
  • Page 212 連接到此主板的 CPU 風扇接口 , 請將它連接到 Pin 1-3。 Pin 1-3 連接 3-Pin 風扇的安裝 (3 針 CPU_FAN2) +12V ( 見第 4 頁第 4 項 ) CPU_FAN_SPEED ATX 電源接頭 請將 ATX 電源供應器連接到這個 接頭。 (24 針 ATXPWR1) ( 見第 4 頁第 7 項 ) Fatal1ty Z77 Professional Series Motherboard...
  • Page 213 ( 見第 4 頁第 31 項 ) HDMI_SPDIF 接頭 HDMI_SPDIF 接頭,提供 SPDIF 音頻輸出至 HDMI 顯卡,支持將 (2 針 HDMI_SPDIF1) SPDIFOUT 電腦連接至帶 HDMI 的數字電視 ( 見第 4 頁第 33 項 ) / 投影儀 / 液晶顯示器等設備。 請將 HDMI 顯卡的 HDMI_SPDIF 接 口連接到這個接頭。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 214 步驟 5 步驟 步驟 6 將前部USB 3.0線插入主板上的USB 3.0接頭 現在,即可使用USB 3.0面板 (USB3_6_7)。 了。 后部USB 3.0面板安裝指南 步驟 步驟 1 步驟 步驟 2 擰下前部USB 3.0面板上的兩個螺絲。 將USB 3.0線連接到后部USB 3.0面板。 步驟 步驟 3 步驟 步驟 4 將兩個螺絲擰入后部USB 3.0面板。 將后部USB 3.0面板裝到机箱 上。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 215 ( 見第 4 頁第 16 項 ) 復位開關 復位開關是一種快速開關 , 可 讓用戶快復位系 (RSTBTN) Reset 統。 ( 見第 4 頁第 17 項 ) CMOS 數據清除開關 CMOS 數據清除開關是一種快 速開關 , 可讓用戶快速清除 (CLRCBTN) CMOS 中的數據。 ( 見第 5 頁第 18 項 ) Fatal1ty Z77 Professional Series Motherboard...
  • Page 216 進行常規檢驗。如果你需要在開機自檢 ( P O S T ) 之后進入 B I O S 設置程序,請按下 <Ctrl>+<Alt>+<Delete> 鍵重新啟動電腦,或者按下系統面板上的重啟按鈕。有關 BIOS 設置的詳細信息,請查閱隨機支持光盤裡的用戶手冊 (PDF 文件 )。 3. 支持光盤信息 ® ® 本主板支持各種微軟視窗操作系統:Microsoft Windows 7/7 64 位元 /Vista Vista 64 位元 /XP/XP 64 位元。主板隨機支持光盤包含各種有助于提高主板效能的 必要驅動和實用程序。請將隨機支持光盤放入光驅裡,如果電腦的“自動運行”功能 已啟用,屏幕將會自動顯示主菜單。如果主菜單不能自動顯示,請查找支持光盤內 BIN 文件夾下的“ASSETUP.EXE”,并雙擊它,即可調出主菜單。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 217 有害物質或元素 部件名稱 鉛 (Pb) 鎘 (Cd) 汞 (Hg) 六价鉻 (Cr(VI)) 多溴聯苯 (PBB) 多溴二苯醚 (PBDE) 印刷電路板 及電子組件 外部信號連 接頭及線材 O: 表示該有毒有害物質在該部件所有均質材料中的含量均在 SJ/T 11363-2006 標準規定 的限量要求以下。 X: 表示該有毒有害物質至少在該部件的某一均質材料中的含量超出 SJ/T 11363-2006 標準 規定的限量要求,然該部件仍符合歐盟指令 2002/95/EC 的規範。 備註 : 此產品所標示之環保使用年限,系指在一般正常使用狀況下。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 218 1. 主機板簡介 謝謝你採用了華擎 Fatal1ty Z77 Professional Series 主機板 , 本主機板由華擎嚴格 製造 , 品質可靠 , 穩定性好 , 能夠獲得卓越的性能。此快速安裝指南包括了主機板介 紹和分步驟安裝指導。您可以查看支持光碟裡的使用手冊了解更詳細的資料。 由於主機板規格和 BIOS 軟體將不斷更新 , 本手冊之相關內容變更恕不另 行通知。請留意華擎網站上公布的更新版本。你也可以在華擎網站找到最 新的顯示卡和 CPU 支援列表。 華擎網址:http://www.asrock.com 如果您需要與此主機板有關的技術支援 , 請參觀我們的網站以了解您使用 機種的規格訊息。 www.asrock.com/support/index.asp 1.1 包裝盒內物品 華擎 Fatal1ty Z77 Professional Series 主機板...
  • Page 219 HD Graphics ® 2500/4000、Intel Advanced Vector Extensions (AVX) ® - Intel Ivy Bridge CPU 支援 Pixel Shader 5.0、DirectX 11 ® 技術。Intel Sandy Bridge CPU 支援 Pixel Shader 4.1、 DirectX 10.1 技術 - 最大共享記憶體 1760MB(見警告 5) Fatal1ty Z77 Professional Series Motherboard...
  • Page 220 Smart Response 技術 ), NCQ, AHCI 和熱插拔功能 - 4 x ASMedia ASM1061 的 SATA3 6.0Gb/s 接頭,支援 NCQ, AHCI 和熱插拔功能 (SATA3_A4 接頭和 eSATA3 接口共享資源 ) ® USB 3.0 - 2 x Intel Z77 的後置 USB 3.0 接頭,支援 USB 1.0/2.0/3.0 到 5Gb/s Fatal1ty Z77 Professional Series Motherboard...
  • Page 221 MediaEspresso 6.5 試用版 , 華擎 MAGIX 多媒體套餐 - OEM 獨家功能 - F-Stream(詳見警告 8) - 華擎即時開機功能 - 華擎 Instant Flash(見警告 9) - 華擎 APP Charger(見警告 10) - 華擎 SmartView(見警告 11) - 華擎 XFast USB(見警告 12) - 華擎 XFast LAN(見警告 13) Fatal1ty Z77 Professional Series Motherboard...
  • Page 222 不會存在這樣的限制。您可以透過華擎 XFast RAM 來利用 Windows 無法使 用的記憶體。 4、 僅 PCIE2 和 PCIE4 插槽可支援 Gen 3 速度。若要以 Gen 3 速度執行 PCI Express,請務必安裝 Ivy Bridge CPU。如果安裝 Sandy Bridge CPU,則僅 會以 PCI Express Gen 2 速度執行 PCI Express。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 223 ® Windows 7 / 7 64 位元 / Vista / Vista 64 位元,而且您的瀏覽器 版本是 IE8。 ASRock 網站:http://www.asrock.com/Feature/SmartView/index.asp 12、 華擎 XFast USB 可提升 USB 儲存裝置的效能(效能可能須視裝置特性而定)。 13、 華擎 XFast LAN 可提供更快的互聯網連接,包含以下諸多優勢。局域網優先 應用:您可以設置理想的優先應用程式,並可以添加新程式。減少遊戲延遲: 在設置優先級更高的網路遊戲時,可降低遊戲中的延遲。流量定形:您可以 在觀看 Youtube 高解析影片的同時還進行文件下載。及時分析您的數據:透 過狀態窗口,您可以清楚地看到目前正在傳輸的是哪個數據流。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 224 電量的規定。根據 EuP 的規定 , 一個完整系統在關機模式下的交流電總消耗 必須在 1.00W 以下。為符合 EuP 標準 , 您需要同時具備支援 EuP 的主機板和 ® 支援 EuP 的電源供應器。根據 Intel 的建議 , 支援 EuP 的電源供應器必須 符合在 100mA 電流消耗時 ,5Vsb 電源效率高於 50%。有關支援 EuP 的電源供 應器選擇方面的詳情 , 我們建議您諮詢電源供應器的製造商。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 225 註: C L R C M O S1 可供您清除 C M O S 中的資料。若要清除及重設系統參數並恢復為預設設 定,請先關閉電腦電源,並從電源插座中拔下電源線,等待 15 秒鐘之後,使用跳 線帽使 CLRCMOS1 的 pin2 及 pin3 短路 5 秒的時間。但請勿於更新 BIOS 後立即清除 CMOS。如需於更新 BIOS 後立即清除 CMOS,您必須先開機再關機,然後再執行 CMOS 清除操作。請注意,只有在移除 C M O S 電池的情況下,密碼、日期、時間、使用者 預設設定檔、1394 GUID 及 MAC 位址才會清除。 Clear CMOS開關的功能與Clear CMOS跳線相同。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 226 界面理論上可提供高達 6.0Gb/s (SATA3_A3_A4: 見第 4 頁第 11 項 ) 的數據傳輸速率。若在後方 I/O SATA3_A1 SATA3_A2 的 eSATA3 連接埠安裝硬碟,內 部 SATA3_A4 將失去作用。 SATA3_0 SATA3_1 Serial ATA (SATA) SATA 數據線的任意一端均可連 數據線 接 SATA/SATA2/SATA3 硬碟或者 主機板上的 SATA2/SATA3 接口。 ( 選配 ) Fatal1ty Z77 Professional Series Motherboard...
  • Page 227 T V T u n e r 或 M P E G 卡接收音效 (4 針 CD1) CD-R 輸入。 (CD1 見第 4 頁第 42 項 ) 前置音效接頭 可以方便連接音效設備。 PRESENCE# (9 針 HD_AUDIO1) MIC_RET OUT_RET ( 見第 4 頁第 32 項 ) OUT2_L J_SENSE OUT2_R MIC2_R MIC2_L Fatal1ty Z77 Professional Series Motherboard...
  • Page 228 統處於 S1/S3 待命模式時 , 此指示燈保持閃爍。當系統處於 S4 待命模式 或關機 (S5) 模式時 , 此指示燈熄滅。 HD LED( 硬碟活動指示燈 ): 連接機箱前面板的硬碟動作指示燈。當硬碟正在讀取或寫入數據時 , 此指 示燈亮起。 前面板設計因機箱不同而有差異。前面板模組一般由電源開關、重開開 關、電源指示燈、硬碟活動指示燈、喇叭等構成。將您的機箱前面板連接 到此接頭時 , 請確認連接線與針腳上的說明相對應。 機箱喇叭接頭 請將機箱喇叭連接到這個接頭。 (4 針 SPEAKER1) ( 見第 4 頁第 20 項 ) Fatal1ty Z77 Professional Series Motherboard...
  • Page 229 連接到此主板的 CPU 風扇接口 , 請將它連接到 Pin 1-3。 Pin 1-3 連接 3-Pin 風扇的安裝 (4 針 CPU_FAN2) +12V CPU_FAN_SPEED ( 見第 4 頁第 4 項 ) ATX 電源接頭 請將 ATX 電源供應器連接到這個 接頭。 (24 針 ATXPWR1) ( 見第 4 頁第 7 項 ) Fatal1ty Z77 Professional Series Motherboard...
  • Page 230 ( 見第 4 頁第 31 項 ) HDMI_SPDIF 接頭 HDMI_SPDIF 接頭,提供 SPDIF 音效輸出至 HDMI 顯示卡,支援 (2 針 HDMI_SPDIF1) SPDIFOUT 將電腦連接至帶 HDMI 的數位電 ( 見第 4 頁第 33 項 ) 視 / 投影機 / 液晶銀幕等設備。 請將 HDMI 顯示卡的 HDMI_SPDIF 接口連接到這個接頭。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 231 步驟 6 步驟 步驟 5 將前USB 3.0纜線插入主機板上的USB 3.0座 前USB 3.0面板隨即可供使用。 (USB3_6_7)。 後USB 3.0托架安裝指南 步驟 步驟 1 步驟 步驟 2 鬆開前USB 3.0面板上的兩顆螺絲。 將USB 3.0纜線和後USB 3.0托 架放在一起。 步驟 步驟 3 步驟 步驟 4 將兩顆螺絲鎖回後USB 3.0托架。 將後USB 3.0托架放入底座中。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 232 ( 見第 4 頁第 16 項 ) 重置開關 重置開關是一種快速開關 , 可 讓用戶快重置系統。 (RSTBTN) Reset ( 見第 4 頁第 17 項 ) CMOS 數據清除開關 CMOS 數據清除開關是一種快 速開關 , 可讓用戶快速清除 (CLRCBTN) CMOS 中的數據。 ( 見第 5 頁第 18 項 ) Fatal1ty Z77 Professional Series Motherboard...
  • Page 233 運行需要時,測試和初始化元件。有關 B I O S 設置的詳細訊息,請查閱隨機支援光碟 裡的使用手冊 (PDF 文件 )。 3. 支援光碟訊息 ® ® ® 本主板支援各種微軟 Windows 操作系統:Microsoft Windows 7/7 64 位元 / Vista /Vista 64 位元 /XP/XP 64 位元。主板附帶的支援光碟包含各種有助於提高主 板效能的必要驅動和實用程式。請將隨機支援光碟放入光碟機裡,如果系統的“自動 運行"功能已啟用,銀幕將會自動顯示主菜單。如果主菜單不能自動顯示,請查閱支 援光碟內 BIN 文件夾下的 ASSETUP.EXE 文件並雙點它,即可調出主菜單。 Fatal1ty Z77 Professional Series Motherboard...
  • Page 234 Series, motherboard andal yang diproduksi berdasarkan kontrol kualitas tinggi ASRock secara konsisten. Motherboard ini memberikan performa terbaik dengan desain yang kokoh sesuai komitmen ASRock untuk kualitas dan daya tahan. Panduan Pemasangan Ringkas ini berisi pendahuluan tentang motherboard dan panduan pemasangan langkah demi langkah. Informasi lengkap lainnya tentang motherboard ini tersedia di buku panduan yang diberikan bersama Support CD (CD Pendukung).
  • Page 235 GPU. ® ® - Mendukung Intel HD Graphics Built-in Visuals: Intel Quick ® ® Sync Video, Intel InTru 3D, Intel Clear Video HD ® ® Technology, Intel HD Graphics 2500/4000, Intel Advanced Vector Extensions (AVX) Fatal1ty Z77 Professional Series Motherboard...
  • Page 236 - 2 x RJ-45 LAN Port LED (ACT/LINK LED dan SPEED LED) - 1 x Port IEEE 1394 - 1 x Tombol Clear CMOS dengan LED - HD Audio Jack: Penyuara Belakang/Pusat/Bass/Line in/ Penyuara Depan/mikropon Fatal1ty Z77 Professional Series Motherboard...
  • Page 237 - 1 x ulang beralih LED Ciri-ciri BIOS - 64Mb AMI UEFI Legal BIOS dengan dukungan GUI - Menggunakan “Plug and Play” - ACPI 1.1 Compliance Wake Up Events - Menggunakan jumperfree - Penyokong AMBIOS 2.3.1 Fatal1ty Z77 Professional Series Motherboard...
  • Page 238 7 / 7 64-bit / Vista Vista 64-bit / XP / XP 64-bit Sertifi kasi - FCC, CE, WHQL - ErP/EuP Ready (memerlukan catu daya ErP/EuP ready) * Untuk informasi rinci, silakan kunjungi website kami: http://www.asrock.com Fatal1ty Z77 Professional Series Motherboard...
  • Page 239 (“xxx” is the device which contains your Windows installation fi les. Normally it is an optical drive.) You can also press <F11> to launch boot menu at system POST and choose the item “UEFI:xxx“ to boot. ® 4. Start Windows installation. Fatal1ty Z77 Professional Series Motherboard...
  • Page 240: Installing Os On A Hdd Larger Than 2Tb In Raid Mode

    RAID drivers into a USB fl ash disk. You can download the driver from ASRock's website and unzip the fi le into a USB fl ash disk OR copy the fi le from ASRock motherboard support CD. (please copy the fi les under following directory: 32 bit: ..\i386\Win7_Vista_Intel_v11.0.0.1032...
  • Page 241 's suggested solution: A. Disable System Restore. a. Type “systempropertiesprotection” in the Start Menu. Then press "Enter". b. De-select Local Disks for System Restore. Then Click “Turn System Restore Off” to confi rm. Then Press “Ok”. Fatal1ty Z77 Professional Series Motherboard...
  • Page 242 B. Disable “Volume Shadow Copy” service. a. Type “computer management” in the Start Menu, then press “Enter”. b. Go to “Services and Applications>Services”; Then double click “Volume Shadow Copy”. Fatal1ty Z77 Professional Series Motherboard...
  • Page 243 C. Reboot your system. (It may take about 5 minutes to reboot.) ® D. Windows will install this hotfi x then reboot by itself. E. Please start to install motherboard drivers and utilities. 6. Finish. Fatal1ty Z77 Professional Series Motherboard...

Table of Contents
