I
RF-WHD210 4-port Wireless HD Kit
Quick Setup Guide
Introduction
Thank you for purchasing the Rocketfish 4-port WirelessHD Kit. This product is designed to
wirelessly send fully uncompressed signals from up to four HDMI source devices, such as a
Blu-ray player, cable/satellite set-top box, gaming console, laptop, etc., to a HDTV or projector
at a distance of up to 30 feet within the same room. It is important to note that the 60 GHz
frequency with which this product transmits provides the necessary bandwidth to send every
bit of information from the source device to the display with no compression or bit dropping,
but does not penetrate wall or floors. Therefore, this product is not designed to send signals
from one room to another.
Please follow the steps in this Quick Setup Guide to ensure a successful installation of this
product. If you experience any difficulty setting the product up after referring to this guide,
please consult the more detailed User Guide, also included in the package, which contains some
troubleshooting techniques that may help. If the additional instructions and troubleshooting
section of the User Guide prove unsuccessful for your setup, please contact our customer service
department at 800-620-2790 or visit www.rocketfishproducts.com for additional assistance.

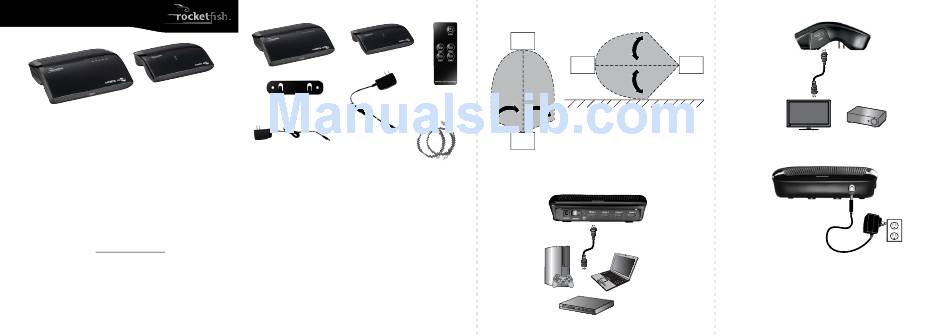

Package contents
60 GHz WirelessHD receiver
60 GHz WirelessHD transmitter
AC power adapter
Wall mounting bracket
for receiver
(for use with the receiver)
High-speed HDMI cables (2)
AC power adapter
for transmitter
Setting up the WirelessHD Kit
Tips:
• The WirelessHD transmitter and receiver are pre-paired at the factory, and should discover
each other within about one minute after being set up and powered on as described in
these instructions.
• Test the placement of the transmitter and receiver for a good signal prior to permanently
mounting or installing everything.
• For best performance and range, mount the receiver vertically on the wall next to the TV
(not behind the TV), or upside-down on the ceiling next to the projector. Make sure that
you can see the Rocketfish and WiHD logos on the receiver from the location in the room
where the transmitter is located. For more details about mounting the receiver, see your
User Guide.
• Use only good quality high-speed HDMI cables for all connections, such as Rocketfish brand
cables. Poorly constructed HDMI cables can negatively impact performance and may not
support all of the features included in your connected devices.
• Do not place the transmitter or receiver inside a cabinet or other location where they will
not have a clear view of the room.
Top view
Transmitter
Transmitter
32.8 ft.
(10 m)
Remote control
82° 82°
16.4 ft. 16.4 ft.
(5 m) (5 m)
Receiver
1 Connect your HDMI source devices (up to four) to the WirelessHD transmitter with
high-speed HDMI cables.
HDMI cable(s)
2 Connect the WirelessHD receiver to the TV or projector with a high-speed HDMI cable.
Side view
16.4 ft. (5 m)
47°
32.8 ft.
(10 m)
Receiver
47°
16.4 ft. (5 m)
Floor
3 Connect the included AC adapters for the transmitter and receiver to the DC input jacks,
then plug them both into an available AC outlet.
Note: The included AC adapters are labeled to ensure the correct adapter is used with the
transmitter and receiver.
4 Power on the TV or projector and at least one of the source devices that is connected to the
transmitter.
Note: Be sure the TV or projector is switched to the HDMI input to which the WirelessHD
receiver is connected.
HDMI cable
OR
