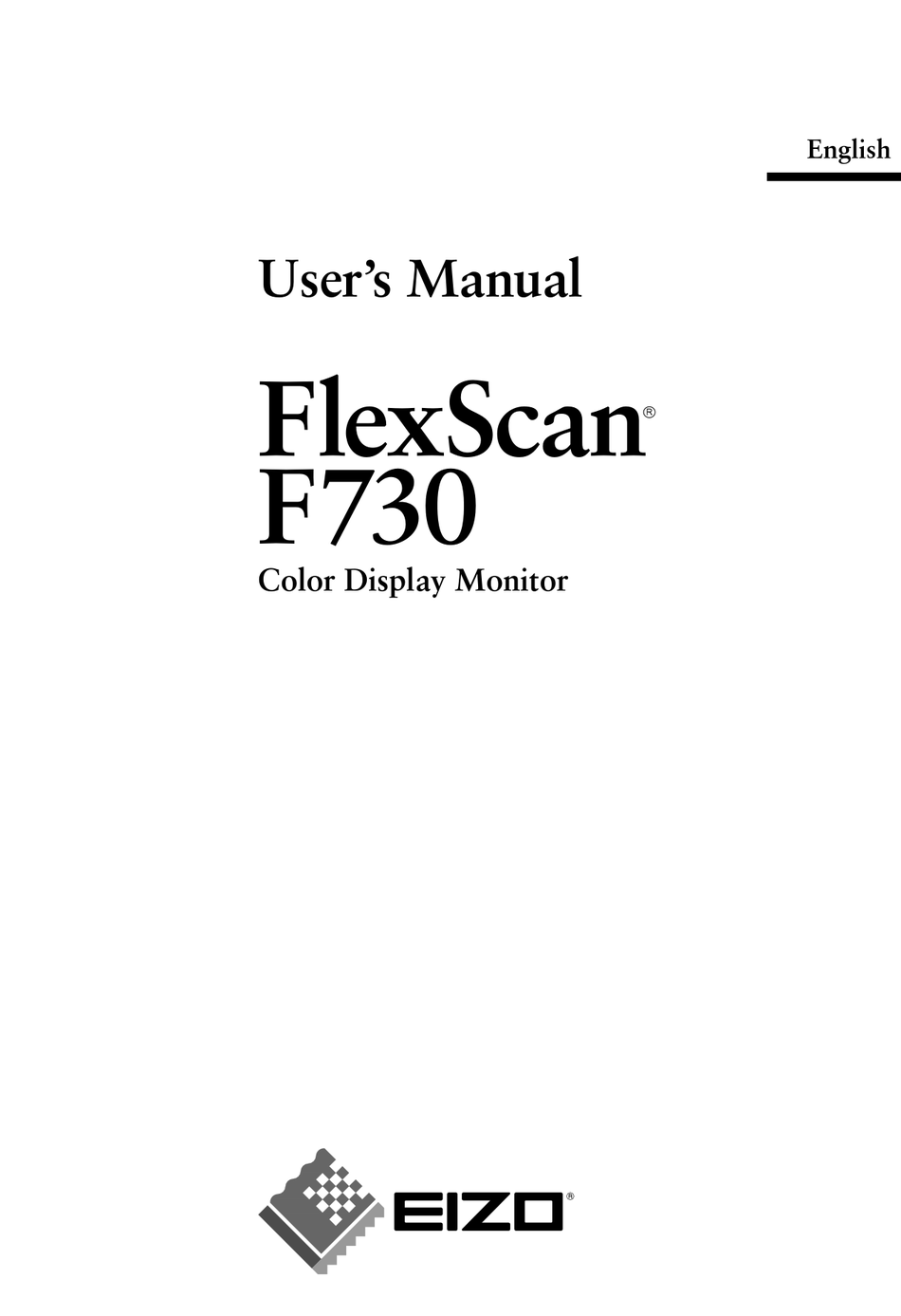

- Page 1 English User’s Manual FlexScan â F730 Color Display Monitor...
-
Page 2: Table Of Contents
4 CLEANING ...23 5 SPECIFICATIONS ... 24 Copyright© 2001 by EIZO NANAO CORPORATION. All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of Eizo Nanao Corporation. -
Page 3: Precautions
PRECAUTIONS IMPORTANT! * This product has been adjusted specifically for use in the region to which it was originally shipped. The performance of the product, (i.e. picture geometry, picture positioning and color convergence and purity in the case of color monitors) is optimally adjusted to the earth's magnetic field of the specific destination. - Page 4 WARNING • If the monitor begins to emit smoke, smells like something is burning, or makes strange noises, disconnect all power connections immediately and contact your dealer for advice. Attempting to use a malfunctioning monitor can be dangerous. • Do not dismantle the cabinet or modify the monitor. Dismantling the cabinet or modifying the monitor may result in electric shock or burn.
- Page 5 • Do not overload your power circuit, as this may result in fire or electric shock. • For proper connections of the power cord, be certain to plug the power cord to the provided monitor connector and directly to a wall outlet.
- Page 6 • Do not remove the tilt-swivel stand. The stand is required to maintain clearance for the ventilation slots on the bottom of the cabinet. Removing the stand will block these slots and may result in fire or electric shock. • Do not touch the plug with wet hands. Touching the plug with wet hands is dangerous and can cause electrical shock.
-
Page 7: Introduction
INTRODUCTION About This Manual This manual explains the precautions, specifications, and operation of your EIZO monitor. Please read through this manual as it will help you to get the most out of your monitor. Controls & Connectors: Front AUTO-SIZING Button... -
Page 8: Installation
3) Plug the other end of the cable into the video connector on the rear of the PC. Standard PC graphics board Using the monitor with Windows 95/98 A monitor information file is in the EIZO CRT Utility disk enclosed with the package. It includes all the required information for best operation with Windows 95/98. -
Page 9: Using The Auto-Sizing Button
WARNING • Use the enclosed power cord. If using the power cord other than the enclosed one, use the following cord. In USA and Canada, use a UL LISTED/CSA LABELED or CERTIFIED power cord set meeting the following specifications: * Rating: min. -
Page 10: Setting The Resolution
1-3. Setting the resolution The following look-up table shows the maximum (Non-interlaced) vertical refresh rates for this model with regard to standard resolutions set forth by VESA. The best way to see if the monitor will work with a given resolution and rate, is to compare the vertical refresh rate of the graphics board to the monitor’s range (Refer to the graphics board manual for specifications). -
Page 11: Screen Adjustment
2 SCREEN ADJUSTMENT 2-1. How to use the ScreenManager Entering the ScreenManager Press the ENTER key to display the ScreenManager Main menu. Enter Key Arrow Key Control Pad Making the Adjustments and Settings 1) Select the desired icon using the Arrow keys, and then press the ENTER key to display the each adjustment/setting menu. - Page 12 Position Side-Pin Balance/ Side-Pincushion Parallelogram/ Trapezoidal Tilt Uniformity Moiré SCREEN ADJUSTMENT Function Adjusts: Screen Position Adjusts: Side-pin Balance/Side-pincushion · Tilts: Image Sides to Sides · Expands: Top Side/Bottom Side, Shrinking the Other Side Tilts: The Image Adjusts: Uniformity Adjusts: Horizontal Moiré Adjusts: Vertical Moiré...
- Page 13 Computer monitors generally give best performance at high temperature settings. 6,500K: This temperature is good for video-image display. 9,300K: This is the default setting for your EIZO monitor. SCREEN ADJUSTMENT...
- Page 14 Custom Mode Color Temperature (Custom Mode) SCREEN ADJUSTMENT Function Adjusts: Color Temperature Gain Cutoff Cutoff and Gain adjustments Monitors use red, green and blue (R, G, and B) to convey color information. They use an additive method to combine different amounts of the primary colors to produce a desired color.
- Page 15 Cutoff (Custom Mode) Gain (Custom Mode) · If an inappropriate adjustment is made, corrections can be made by repeating the above procedure starting from Step 3 (temperature setting). · The values shown in percentages (%) for both the Cutoff and Gain adjustments represent the current level within the specific adjustment only.
- Page 16 Function The PowerManager feature automatically reduces the monitor’s power consumption during idle periods. The EIZO PowerManager functions comply with the VESA DPMS standard. · Do your part to conserve energy, turn off the monitor when your finished using it. Complete energy use can only be stopped by disconnecting the monitor from the power supply.
- Page 17 Function Off Timer What is Off Timer? The Off Timer function allows the user to set the time in which the monitor will be in operation, called the “On Period” and automatically shifts the operation into the “Off Timer Mode” when the set “On Period” expires.
-
Page 18: Shortcut Keys
Reset 2-3. Shortcut Keys Before entering the ScreenManager, brightness and contrast can be adjusted directly by moving the Control pad. To record the new setting and exit the ScreenManager, press the Enter key. (The brightness and contrast functions are also available in the ScreenManager “contrast/brightness”... -
Page 19: Troubleshooting
3 TROUBLESHOOTING Troubleshooting If a problem persists even after applying the suggested remedies, contact an EIZO dealer. Problems 1) Indicator status: OFF 2) Indicator status: GREEN 3) Indicator status: GREEN (flashing) 4) Indicator status: YELLOW 5) Indicator status: YELLOW (flashing) 6) Following message appears. - Page 20 It may be solved by switching off or moving the interfering device, or by relocating the monitor. If the volume level of the EIZO optional i·Sound speaker is too high, it may, in some cases, cause a slight vibra-...
- Page 21 PC and operating system. Flicker will occur with interlaced scanning, or non-interlaced scanning with a low refresh rate. All EIZO monitors are capable of reproducing high refresh rates for non-interlaced scanning. If a problem occurs when using a non-interlaced signal, try adjusting the graphics board to increase the refresh rate (if possible).
- Page 22 Explanation of the Characteristics of CRTs When the monitor is not fully warmed up, the screen may look slightly colored, e.g. reddish or bluish. This phenomenon is due to the unstableness of the electron gun during its warm-up period. Please wait for about 30 minutes until the monitor stabilizes in order to gain its proper color.
-
Page 23: Cleaning
4 CLEANING WARNING • Keep liquids away from the monitor. Spillage into the cabinet may result in fire, electric shock, or equipment damage. If an object or liquid falls/spills into the cabinet, unplug the monitor immediately. Have the unit checked by a qualified service engineer before using it again. -
Page 24: Specifications
* The actual size displayed can be dependent on the graphics board or PC utilized. 100-120/220-240 VAC±10%, 50/60 Hz, 1.6/0.75 A 120 W/140 W (with EIZO optional speaker attached) D-Sub mini 15-pin • H/V Separate, TTL, Positive/Negative • H/V Composite, TTL, Positive/Negative •... -
Page 25: Preset Timing
Preset Timing 2 factory presets shown below have been registered in the monitor’s microprocessor. Resolution fH (kHz) fV (Hz) 720 × 400 (text) VESA 1280 × 1024 Pin Assignment D-Sub mini 15 pin connector Dimensions Frequencies Interlace Sync Polarity 31.47 70.09 H/Negative V/Positive... - Page 26 SPECIFICATIONS...
-
Page 27: Why Do We Have Environmentally Labelled Computers
Congratulations! You have just purchased a TCO’99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products. -
Page 28: Environmental Requirements
Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. -
Page 29: Fcc Declaration Of Conformity
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. -AC Cord -Shielded Signal Cable (D-SUB mini 15 pin - D-SUB mini 15 pin, the enclosed signal cable) This Class B digital apparatus complies with Canadian ICES-003. - Page 30 Röntgenstrahlung ist durch die eigensichere Kathodenstrahlroehre ausreichend abgeschirmt. Recycle Auskunft Die Rücknahme dieses Produktes nach Nutzungsende übernimmt EIZO in Deutschland zusammen mit dem Partner von Roll MBB Recycling GmbH. Dort werden die Geräte in ihre Bestandteile zerlegt, die dann der Wiederverwertung zugeführt werden.
