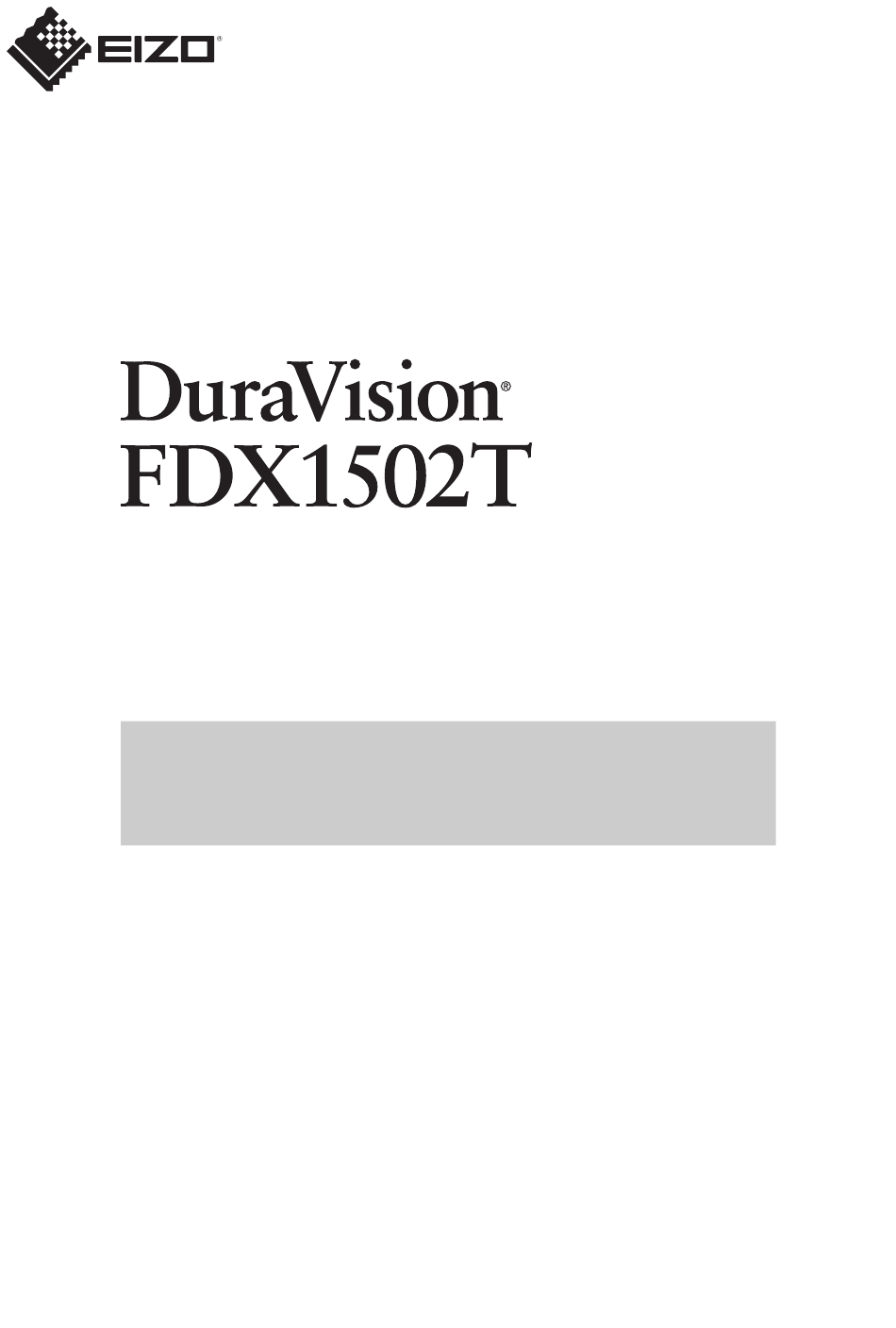

Setup Manual
Touch Panel Color LCD Monitor
Important
Carefully read this Setup Manual and User's Manual (downloaded
from the website) before use to use the monitor correctly.Please
retain this manual for future reference.
• Refer to the "User's Manual" for information on the setting / adjustment
of the monitor.
• You can check the latest product information, including the Setup
Manual, from our web site.
www.eizoglobal.com
Advertisement
Table of Contents
Related Manuals for Eizo DuraVision FDX1502T
Summary of Contents for Eizo DuraVision FDX1502T
- Page 1 Setup Manual Touch Panel Color LCD Monitor Important Carefully read this Setup Manual and User's Manual (downloaded from the website) before use to use the monitor correctly.Please retain this manual for future reference. • Refer to the "User’s Manual" for information on the setting / adjustment of the monitor.
- Page 2 EIZO Corporation. EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information.
-
Page 3: Precautions
PRECAUTIONS PRECAUTIONS Important This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside this region, the product may not perform as stated in the specifications. Please read and follow the "PRECAUTIONS" section carefully before use. Symbols on the unit Symbol This symbol indicates... - Page 4 WARNING If the unit begins to emit smoke, smells like something is burning, or makes strange noises, disconnect all power connections immediately and contact your EIZO representative for advice. Attempting to use a malfunctioning unit may result in fire, electrical shock, or equipment damage.
- Page 5 Before installation, make sure that desks, walls, or any other installation surface has adequate mechanical strength. If the unit falls, disconnect the power immediately and ask your local EIZO representative for advice. Do not continue using a damaged unit. Using a damaged unit may result in fire or electrical shock.
- Page 6 PRECAUTIONS CAUTION CAUTION Disconnect cables and remove accessories when moving the unit. Otherwise, the cables or accessories may become detached when moving, resulting in injury. CAUTION Do not block the ventilation slots on the cabinet. • Do not place any objects on the ventilation slots. •...
-
Page 7: About This Product
When the screen becomes dark or begins to flicker, please contact your local EIZO representative. • Do not scratch or press on the LCD panel with any sharp objects, at this may result in damage to the LCD panel. -
Page 8: About The Installation
About This Product • (Cautions for the Use of the Touch Panel) During touch operation Be careful of the following points. Otherwise, damage may occur to the monitor. – Do not strongly press, scratch, or poke the touch panel. – Do not touch the touch panel with hard objects such as ballpoint pens or metals. About the Installation •... -
Page 9: Table Of Contents
CONTENTS CONTENTS PRECAUTIONS ......................Important ......................Symbols on the unit ................About This Product ....................About the Usage of This Product ................ About the LCD Panel ..................About the Installation................... Cleaning ......................To Use the Monitor Comfortably ................. 1 Introduction ........................ 11 Package Contents.................... - Page 10 CONTENTS LIMITED WARRANTY ..................24...
-
Page 11: Introduction
Introduction | 1 1 Introduction Thank you very much for choosing an EIZO color LCD monitor. 1.1 Package Contents Check that all of the following items are contained in the package. If any of these are missing or damaged, contact your dealer or local EIZO representative. -
Page 12: Controls And Functions
1 | Introduction 1.2 Controls and Functions button Switches the input signals to be displayed. button Switches the color mode. button Displays the Setting menu, confirms the adjustment items of each menu, and saves adjustment results. button Selects menu items, adjusts/sets functions, and displays the brightness adjustment screen while the Setting menu is displayed. - Page 13 Introduction | 1 9. DisplayPort™ connector Connects to a PC with a DisplayPort output. 10. HDMI connector Connects to a PC with HDMI output. 11. D-Sub15 pin (mini) Connects to a PC with D-Sub output. connector *1*2 12. RS-232C port Connect a RS-232C cable to the monitor when you use it as a touch panel monitor.
-
Page 14: Installation / Connection
2 | Installation / Connection 2 Installation / Connection 2.1 Installing 2.1.1 Installation conditions The screen orientations that can be set are as follows: No rotation Rotate 90˚ right Rotate 90˚ left Up: 90˚ Down: 90˚ 2.1.2 How to assemble Attention • Mounting screws are not included with this product. Prepare M3 screws separately for the assembly enclosure. -
Page 15: Connecting Cables
Installation / Connection | 2 2.2 Connecting Cables Attention • Check that the monitor, PC, and peripherals are powered off. • When replacing the current monitor with this monitor, refer to "Compatible Resolutions" in the User's Manual to change the PC settings for resolution and vertical scan frequency to those that are available for this monitor, before connecting the PC. - Page 16 2 | Installation / Connection 2. Use either the USB cable or the RS-232C cable to connect the PC to the monitor. USB-B USB-A USB cable*1 (included) RS-232C RS-232C RS-232C cable*2 (commercially available) When connecting an USB cable, fasten the cable with the supplied cable clamp. Cross type.
- Page 17 Installation / Connection | 2 Using the DC power terminal block Attention • Use wires with a gauge size of AWG 18 to 12 (0.8 mm to 3 mm 1. Remove the terminal block. DC power terminal block 2. Strip the wire insulation (strip length: 7 mm ± 0.5 mm). If tip treatment is required, attach a rod terminal (ferrule).
-
Page 18: Turning On The Power
2 | Installation / Connection 4. Attach the terminal block. DC power terminal block Using the DC power jack (DC-IN) 1. Insert the DC power cord firmly into the DC power jack. 2.3 Turning On the Power 1. Press to turn on the power of the monitor. The power switch indicator of the monitor lights up blue. -
Page 19: Installing The Touch Panel Driver
Installation / Connection | 2 2.4 Installing the Touch Panel Driver Attention • To install the touch panel driver, the user account needs "Administrator" privileges. • To reinstall the touch panel driver in order to update the driver, uninstall the driver, and then restart the PC before installation. -
Page 20: Reference
Supported Operating Systems Windows 11 Windows 10 (32 bit / 64 bit) These cannot be used simultaneously. EIZO support will end when OS vendor support ends. 3.1.3 Video Signals Input Terminals DisplayPort (HDCP 1.3 compatible) x 1, HDMI (HDCP 1.4 compatible) -
Page 21: Communication
Reference | 3 3.1.4 Communication Port USB-B connector (upstream) x 1 Standard USB Specification Revision 2.0 RS-232C Port D-Sub 9-pin (male) x 1 3.1.5 DC Power (DC Power Terminal Block) Input DC 12 - 24 V ± 10 % Maximum Power Consumption Less than 16 W (DC 12 V) Less than 17 W (DC 24 V) Maximum Input Current... -
Page 22: Pin Specifications
3 | Reference 3.2 Pin Specifications 3.2.1 DC power terminal block Input signal connection Pin No. Input signal DC 12 - 24 V GND (Ground) Power sequencing 10 V 10 V 10 ms < t1 < 500 ms t2 < 1 s 3.2.2 Control button extension connector Connector used: S3B-PH-SM4-TB(LF)(SN) (JST) Input signal connection... -
Page 23: Appendix
Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. • AC Cord •... - Page 24 Original Purchaser or any third parties other than as provided under this Warranty. EIZO and Distributors will cease to hold or store any parts (excluding design parts) of the Product upon expiration of seven (7) years after the production of the Product is discontinued.
- Page 25 The Warranty Period for any replaced and/or repaired product under this Warranty shall expire at the end of the original Warranty Period. EIZO OR DISTRIBUTORS ARE NOT RESPONSIBLE FOR ANY DAMAGE TO, OR LOSS OF, DATA OR OTHER INFORMATION STORED IN ANY MEDIA OR ANY PART OF ANY PRODUCT RETURNED TO EIZO OR DISTRIBUTORS FOR REPAIR.
- Page 26 153 Shimokashiwano, Hakusan, Ishikawa 924-8566 Japan Belgrader Straße 2, 41069 Mönchengladbach, Germany 中国苏州市苏州工业园区展业路8号中新科技工业坊5B 00N0N461A1 www.eizoglobal.com SUM-FDX1502T-4 Copyright © 2023 EIZO Corporation. All rights reserved. 1st Edition – December, 2023...
