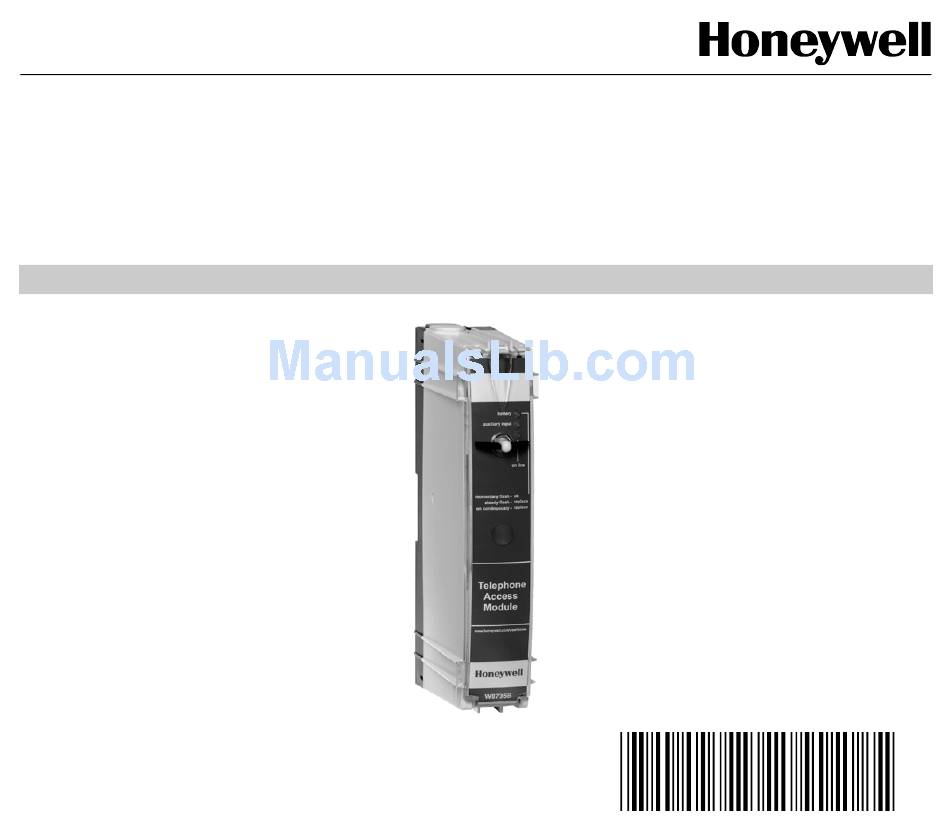

  • Page 1 W8735B Telephone Access Module OWNER’S GUIDE Place Bar Code Here 69- 1353...

  • Page 2: Table Of Contents

    CONTENTS Using this guide ........................... 3 Features ..............................3 Telephone Access Module Description ..................... 4 Indicators ............................4 Pass Code Reset Button ........................4 Battery Installation ..........................5 Operating Your Telephone Access Module ..................8 Calling Your Telephone Access Module..................8 Receiving Dial-Out Alert Messages ....................

  • Page 3: Using This Guide

    USING THIS GUIDE FEATURES The W8735B Telephone Access Module is a multi- Use the Telephone Access Module to: functional product. This means that it can be used in • Check the temperature in your home remotely many different applications such as single- or multi-zone using the telephone.

  • Page 4: Telephone Access Module Description

    TELEPHONE ACCESS MODULE IMPORTANT: If the battery indicator is on continuously or DESCRIPTION indicates a steady flash, replace the battery immediately (see Battery Installation section). Indicators Replace the battery annually and/or before leaving for an extended period The three light emitting diode (LED) indicators, see Fig. of time.

  • Page 5: Battery Installation

    Battery Installation The Telephone Access Module requires a 9-volt alkaline battery (not included) to provide the power to dial an alert indicating an extended power interruption. (See Power Outage Setting discussion in Configuring Your Telephone Access Module section.) CAUTION Dead or Missing Battery Hazard. Can prevent Telephone Access Module from dialing power outage alert.
  • Page 6 FRONT COVER TABS GRASP TABS AND SWING COVER DOWN M14801 Fig. 3. Removing front cover. 69-1353...
  • Page 7 COMMUNICATION LED PASS CODE RESET BUTTON STATUS LEDs SWING UP TO LATCH BATTERY COVER HOOK IN BOTTOM M14770 Fig. 4. Replacing front cover. 69-1353...

  • Page 8: Operating Your Telephone Access Module

    Operating Your Telephone Access Module PASS CODE You will be asked to respond to the query, “Enter your When installing your Telephone Access Module, your Pass Code followed by the # key.” installer used the telephone hookup connection practice described in the CAUTION. Do not alter your telephone You will be asked to enter a four-digit Pass Code.
  • Page 9 CONFIGURATION MENU USER MENU Enter: Enter your Passcode To Change ID Listen for: To Change Low Limit Setting Active Alert Message (If any) Press 1 to Acknowledge the Active Alert To Change High Limit Setting Room Temperature System Mode To Change Ring Setting (Heat, Cool, Off, Auto) Temperature Setting To Change Passcode...
  • Page 10 Table 1. Alert Messages. Alert Message Possible Cause High Temperature The room temperature exceeded the high-limit temperature setting. Low Temperature The room temperature exceeded the low-limit temperature setting. Heat Pump A heat pump compressor fault occurred. Heating System The system heat output is below the acceptable performance; possible heating system failure.
  • Page 11 ROOM TEMPERATURE “The zone 1 (1-9) setting is (__ degrees).” You will hear, “The room temperature is (__degrees).” or or if you have named the zones: “The zone (1-9) temperature is ZONING (__ degrees).” “The zone name (for example, Great Room) heat (cool) setting is Or if you have named the zones: ZONING (__ degrees).”...
  • Page 12 The Telephone Access Module The Telephone Access Module announces the temperature will advance only to available setting per zone. For example, “To system mode settings. For change the zone 1 (1-9) heat example, if your thermostat is set setting, press 1“ or “To change the for a heat only system, your ZONING (Great Room), heat setting, press...

  • Page 13: Receiving Dial-Out Alert Messages

    If an acknowledgement is not received, the Telephone Access Module continues calling Receiving Dial-Out Alert Messages every 30 minutes until an acknowledgement is You will hear,”Hello, this is a Honeywell alert message received. from (your ID here). A (alert message) was observed”. •...

  • Page 14: Configuring Your Telephone Access Module

    CONFIGURING YOUR TELEPHONE Press 99 anytime after the room temperature is announced. ACCESS MODULE You will hear, “This is the Configuration Menu; enter the Configuration Number followed by the # key.” IMPORTANT: See Table 2 for configuration numbers. The Telephone Access Module is designed to allow remote access to your thermostat set- Table 2.

  • Page 15: Entering Your Identification (Id) Number

    Telephone Access Module dials out. When you answer You will hear, “To change the Low Limit Setting, press the phone, you will hear, ”Hello, this is a Honeywell alert 1.” “Enter the Low Limit Setting followed by the # key.”...

  • Page 16: High Limit Setting

    1.” “Enter the High Limit Setting followed by the # key” answer the telephone, you will hear, ”Hello, this is a Honeywell alert message from (your ID here). A High Enter a High Limit Setting from 70°F (21°C) to Limit Alert was observed.”...

  • Page 17: Ring Setting

    Ring Setting You will hear, “To change the Ring Setting, press 1.” “Enter the Ring Setting followed by the # key” The ring setting determines how many rings the Telephone Access Module hears before answering.The Enter a Ring Setting from 1 to 10. You will hear, factory default setting is ten rings.

  • Page 18: Assigning Zone Names

    Assigning Zone Names Table 3. Assigning Zone Names. (Continued) The Telephone Access Module Zone ID Number Zone Name can announce the temperatures Master Bedroom and settings of up to nine zones. These zones are announced as Media Room “zone one,” “zone two.” “zone Nursery three”...

  • Page 19: Filter Alert Setting (Enable/Disable)

    If the Zone ID Number is not Press 1 to change. You will hear, “Your Filter entered correctly, you will hear, Alert Setting is disabled.” This means the Tele- “Invalid ID.” Follow the menu and phone Access Module will not activate an alert if these instructions and enter a your filter change message is received from the ZONING...

  • Page 20: Programming Dial-Out Telephone Number Settings

    Programming Dial-Out Telephone Number Settings Press 1. You will hear, “Telephone number one is not pro- The Telephone Access Module stores up to three dial- grammed, enter the telephone number followed out telephone numbers. Each telephone number can be by the # key.” a maximum of 25 digits in length.
  • Page 21 Table 4. Dial-Out Procedure. When these telephone number settings are programmed Acknowledged Not Acknowledged #1 or #2 - Telephone Access Module Alert is cleared. Dial-out procedure is attempted every 30 dials-out to announce the alert. minutes until the alert is acknowledged. #1 and #2 - Telephone Access Module Alert is cleared if either #1 Dial-out procedure is attempted to #1...

  • Page 22: Power Outage Setting

    Telephone Access Module dials out and when you the continuous power outage is equal to or longer than answer the phone, you will hear, ”Hello, this is a the Power Outage Setting. Honeywell alert message from (your ID). A Power Outage Alert was observed.” 69-1353...

  • Page 23: To Change The Power Outage Setting

    To Change the Power Outage Setting Enter a Power Outage Setting from one to four hours. You will hear, “Your Power Outage Setting After you enter Configuration Number 10, if your Power is (your Power Outage Setting).” Outage Setting is set to the factory setting, you hear, If this is the Power Outage Setting you want pro- “The Power Outage Setting is one.”...

  • Page 24: Troubleshooting

    TROUBLESHOOTING Table 5. Troubleshooting the W8735B. Symptom Possible Cause Action The battery indicator is on The battery is either dead Install or replace the battery. continuously. or not installed. The battery indicator is The battery is weak. Replace the battery.

  • Page 25: Warranty

    This warranty shall not apply if it is shown by please write Honeywell Customer Relations, 1985 Honeywell that the defect or malfunction was caused by Douglas Dr N, MN10-1461, Golden Valley, MN 55422 or damage which occurred while the product was in the call 1-800-468-1502, Monday-Friday, 7:00 a.m.

  • Page 26: Customer Assistance

    CUSTOMER ASSISTANCE After reading this guide, if you have any questions concerning the operation of your Telephone Access Module, please call the Honeywell Customer Relations at 1-800-468-1502. For service, contact your local heating and cooling contractor. NOTICE: This equipment complies with Federal Communications Commission Part 15, Class B and Part 68 regulations.
  • Page 27 69-1353...
  • Page 28 Home and Building Control Home and Building Control Honeywell Honeywell Limited-Honeywell Limitée 1985 Douglas Drive North 35 Dynamic Drive Golden Valley, MN 55422 Scarborough, Ontario M1V 4Z9 Printed in U.S.A. on recycled 69-1353 G.H. 11-00 www.honeywell.com/yourhome paper containing at least 10%...
