Audio 2, 4, or 6-channel configuration
Port
Light Blue
Lime
Pink
USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports
7.
are available for connecting USB 2.0 devices.
USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports
8.
are available for connecting USB 2.0 devices.
COM port. This port is for pointing devices or other serial devices.
9.
10. Coaxial S/PDIF Out port (yellow). This port connects an external audio
output device via a coaxial S/PDIF cable.
11. PS/2 keyboard port (purple). This port is for a PS/2 keyboard.
1.10.2

Internal connectors

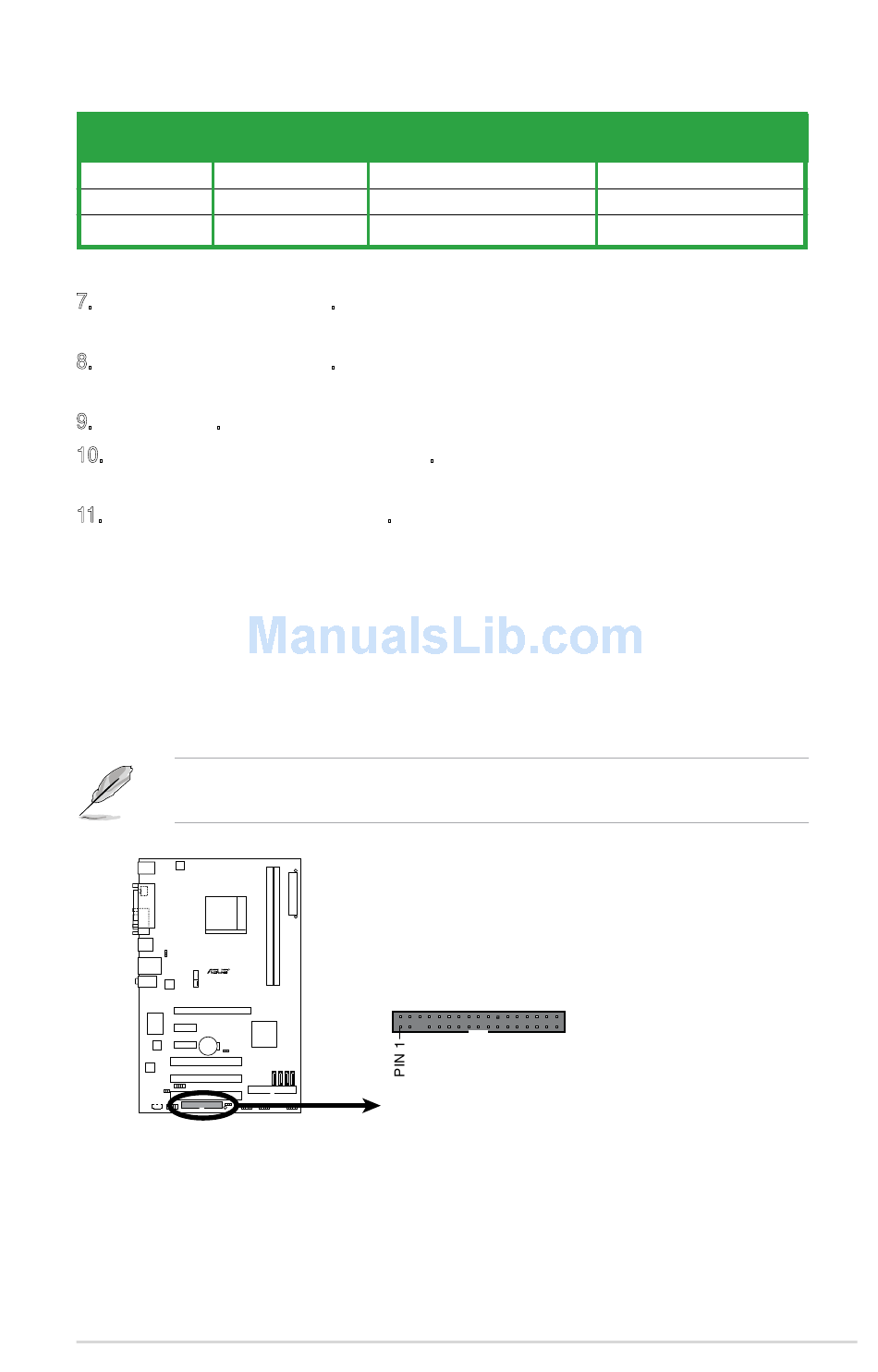

1. Floppy disk drive connector (34-1 pin FLOPPY)
This connector is for the provided Floppy Disk Drive (FDD) signal cable.
Insert one end of the cable to this connector, then connect the other end to
the signal connector at the back of the floppy disk drive.
Pin 5 on the connector is removed to prevent incorrect cable connection when
using an FDD cable with a covered Pin 5.
R
M2N-X PLUS
M2N-X PLUS Floppy Disk Drive Connector
ASUS M2N-X PLUS
Headset
2-speaker
Line In
Line Out
Mic In
FLOPPY
NOTE: Orient the red markings on
the floppy ribbon cable to PIN 1.
4-speaker
Surround Out
Front Speaker Out
Mic In
6-speaker
Surround Out
Front Speaker Out
Center/Bass
1-23
