Insignia NS-46E790A12 Quick Setup Manual

46" 1080p LED-LCD HDTV

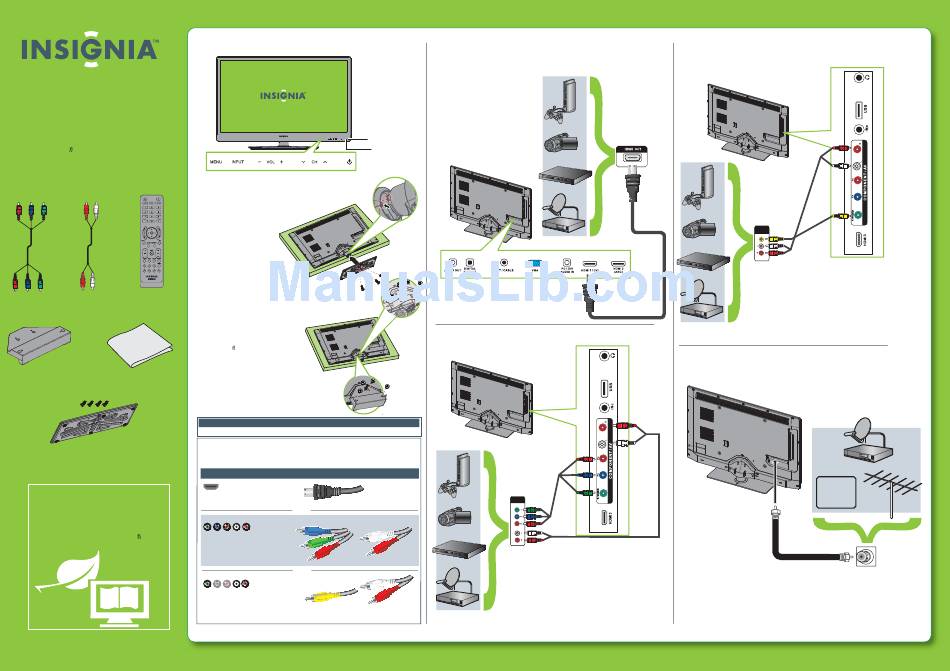

QUICK SETUP GUIDE
NS-46E790A12
Thank You
for purchasing this ne Insignia television. We hope you
enjoy the quality and reliability of this product for years
to come.
_______________________________
Component Audio cable Remote control
video cable and two AAA
batteries
Flat Stand Cover Cleaning cloth
for wall mounting
TV stand and 4 screws
WE ARE GOING GREEN!
A copy of your User Guide is not provided in
the box but is available online.
Go to www.insigniaproducts.com, click
Support & Service, enter your model
number in the Product Search eld,
then click Search.
Front features
Remote
control sensor
Power
indicator
Installing the stand
1 Carefully place your TV screen face-down
on a cushioned, clean surface to protect
the screen from damages and scratches.
2 Align and insert the base into the stand.
3 Secure the stand to the TV
with the four
provided screws.
Installing a wall-mount bracket
1 Carefully place your TV screen face-down on
a cushioned, clean surface to protect the screen
from damages and scratches.
2 Remove the four screws that secure the
cover, then remove the cover.
3 Secure the at stand cover to the
back of your TV using the four screws
you just removed.
4 Attach the wall-mount bracket to your TV
using the mounting holes . See the instructions
that came with the wall-mount bracket for
information about how to correctly hang your TV.
Warning
This apparatus is intended to be supported by a UL Listed wall mount bracket.
Identifying cables
Your TV has several connection types for connecting devices. For the best video quality,
connect a device to the best available connection.
Connection type
Video quality Cable connector
HDMI video/audio Best
OR
Better
Component video
and analog audio
OR
Good
Composite video
and analog audio
You can use the HDMI 1 jack to connect a DVI device to your TV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device's jack.
Connecting a DVD or Blu-ray player, cable box,
satellite receiver, camcorder, or game station
Using an HDMI cable (best)
Using component cables (better)
AUDIO/VIDEO
OUT
Using composite cables (good)
AUDIO/VIDEO
OUT
Note: Connect your Yellow video cable
to the Green Y/Video jack.
Connecting an antenna/cable wall jack
Connect a coaxial cable (not included) to the ANT/CABLE jack on the back of
your TV and to the Antenna/Cable wall jack.
CABLE
