Summary of Contents for Kenwood KVT-50DVDRY

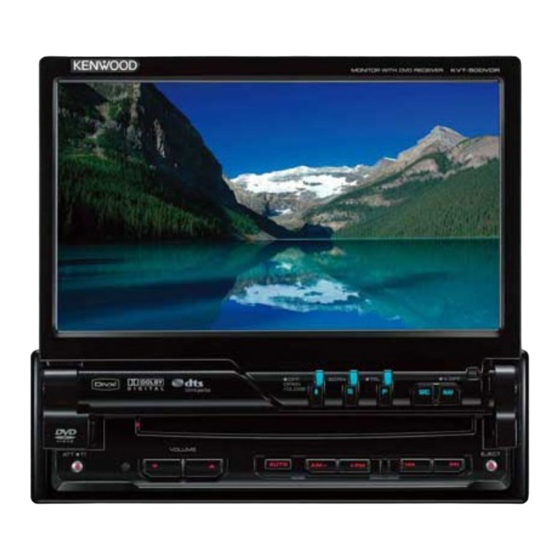

- Page 1 MONITOR WITH DVD RECEIVER KVT-522DVD KVT-522DVDY KVT-50DVDRY INSTALLATION MANUAL © B54-4639-00/00 (EW/E2W/E3W)
- Page 2 Installation Procedure/Accessories • If the console has a lid, make sure to install the unit so that 1. To prevent short circuits, remove the key from the ignition and disconnect the - terminal of the the faceplate will not hit the lid when closing and opening. battery.
-
Page 3: Connecting Wires To Terminals
Connecting Wires to Terminals 2WARNING Connector Function Guide Pin Numbers for Cable Colour Functions Connecting the ISO Connector ISO Connectors The pin arrangement for the ISO connectors depends on External Power the type of vehicle you drive. Make sure to make the proper Connector connections to prevent damage to the unit. - Page 4 When this terminal is not in use, leave its cap on. Mute wire (Brown) Connect to the terminal that is grounded when either the telephone rings or during conversation. To connect the Kenwood navigation system, consult your navigation manual. Power control/ Motor antenna control wire (Blue/White) Connect either to the power control terminal when using the optional power amplifier, or to the antenna control terminal in the vehicle.
- Page 5 Cooling fan Antenna Cord Do not connect. FM/AM antenna input (JASO) Wiring harness (Accessory 1) Wiring harness (Accessory 2) Audio/Visual input / Rear View Camera Input • Visual input (Yellow) AV IN • Audio left input (White) • Audio right input (Red) REAR VIEW CAMERA Audio/Visual Output...
-
Page 6: Optional Accessory Connection
Optional Accessory Connection iPod (commercially available) KCA-iP300V (Optional Accessory) Audio Input Resistance-free stereo type mini plug (3.5Ф) Audio Output (Black) Visual Input (Yellow) Resistance-free mini plug (3.5Ф) Visual Output (Yellow) USB terminal USB terminal KCA-BT200 input (Optional Accessory) Connection cable (Included in the Navigation System) TV Tuner (Optional Accessory) -
Page 7: Installation/Removing The Unit
Installation/Removing the Unit Installation Firewall or metal support Screw (M4X8) (commercially available) Bend the tabs of the mounting sleeve with a screwdriver or similar utensil and attach it in place. Self-tapping screw Metal mounting strap (commercially available) (commercially available) Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (eg, the sound may skip). -
Page 8: Removing The Unit
Installation/Removing the Unit Removing the Hard Rubber Frame Removing the Unit (escutcheon) 1. Remove the hard rubber frame by referring to the removal procedure in the section <Removing the 1. Engage the catch pins on the removal tool 3 and Hard Rubber Frame>.
