Summary of Contents for Asus F2A85-M/CSM

  • Page 1 F2A85-M...
  • Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

  • Page 3: Table Of Contents

    Special features .................... 1-1 1.1.1 Product highlights ................1-1 1.1.2 DIGI+VRM Digital Power Design ............ 1-2 1.1.3 Innovative ASUS features ............... 1-2 Before you proceed ..................1-5 Motherboard overview ................. 1-6 1.3.1 Placement direction ................ 1-6 1.3.2 Screw holes ..................1-6 1.3.3...
  • Page 4 Managing and updating your BIOS ............. 2-1 2.1.1 ASUS Update utility ................ 2-1 2.1.2 ASUS EZ Flash 2 ................2-2 2.1.3 ASUS CrashFree BIOS 3 utility ............2-3 2.1.4 ASUS BIOS Updater ............... 2-4 BIOS setup program ..................2-6 Main menu ....................2-10 2.3.1 System Language [English] ............
  • Page 5 2.7.11 Boot Option Priorities ..............2-29 2.7.12 Boot Override ................2-29 Tools menu ....................2-30 2.8.1 ASUS EZ Flash 2 Utility ..............2-30 2.8.2 ASUS SPD Information ..............2-30 2.8.3 ASUS O.C. Profile ................. 2-30 Exit menu ....................2-31 Appendices Notices ........................

  • Page 6: Safety Information

    Safety information Electrical safety • To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. • When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.

  • Page 7: About This Guide

    Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS website provides updated information on ASUS hardware and software products. Refer to the ASUS contact information. Optional documentation Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer.

  • Page 8: Conventions Used In This Guide

    Conventions used in this guide To ensure that you perform certain tasks properly, take note of the following symbols used throughout this manual. DANGER/WARNING: Information to prevent injury to yourself when trying to complete a task. CAUTION: Information to prevent damage to the components when trying to complete a task IMPORTANT: Instructions that you MUST follow to complete a task.

  • Page 9: F2A85-M Specifications Summary

    Dual-channel memory architecture * The maximum 64GB memory capacity can be supported with 16GB or above DIMMs. ASUS will update the memory QVL once the DIMMs are available in the market. ** Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List).
  • Page 10 - ASUS Fanless Design: Stylish heatsink solution - ASUS Fan Xpert ASUS EZ DIY - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS My Logo 2 * The ASUS Network iControl feature does not support Windows ®...
  • Page 11 BIOS features 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM 2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 Printscreen function, F3 Shortcut function and ASUS DRAM SPD (Serial Presence Detect) memory information...

  • Page 12: Package Contents

    USB3_34 CLRTC USB910 USB78 USB56 PANEL AAFP ASUS F2A85-M motherboard 2 x Serial ATA 6.0 Gb/s cables 1 x I/O Shield User Guide Support DVD • If any of the above items is damaged or missing, contact your retailer. •...

  • Page 13: Product Introduction

    CODEC enables high-quality 192KHz/24-bit audio output and jack-detect feature that automatically detects and identifies what types of peripherals are plugged into the audio I/O jacks and notifies users of inappropriate connection, which means there will be no more confusion of Line-in, Line-out, and Mic jacks. ASUS F2A85-M...

  • Page 14: Digi+Vrm Digital Power Design

    Engineered and tested to assure unmitigated performance, ASUS A85X boards with DIGI+ VRM remain efficient and accurate, for reliable application in every scenario.

  • Page 15: Asus Turbov

    ASUS TurboV With its user-friendly interface, ASUS TurboV offers you the adrenaline rush of real-time overclocking without exiting or rebooting the OS. It also provides you with the ASUS OC profiles for the best overclocking settings in different scenarios. GPU Boost...

  • Page 16: Fan Xpert

    DVD or USB flash disk that contains the latest BIOS file. ASUS EZ Flash 2 ASUS EZ Flash 2 is a utility that allows you to update the BIOS without using an OS-based utility. C.P.R. (CPU Parameter Recall) The BIOS C.P.R.

  • Page 17: Before You Proceed

    Before you install or remove any component, ensure that the ATX power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, or components. ASUS F2A85-M...

  • Page 18: Motherboard Overview

    Motherboard overview Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Ensure that you unplug the power cord before installing or removing the motherboard. Failure to do so can cause you physical injury and damage motherboard components. 1.3.1 Placement direction When installing the motherboard, ensure that you place it into the chassis in the correct...

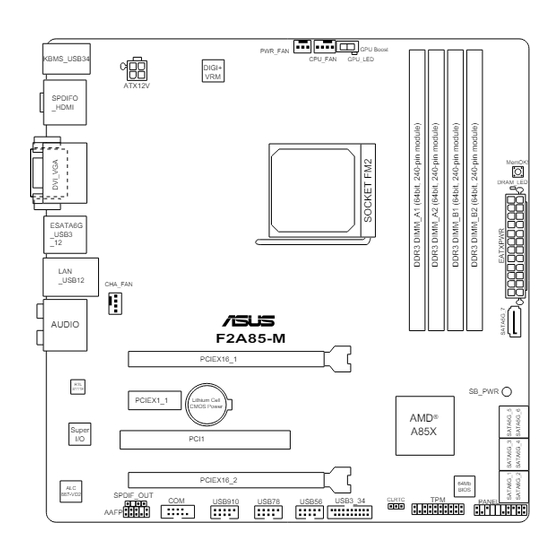

  • Page 19: Motherboard Layout

    PWR_FAN KBMS_USB34 CPU_FAN GPU_LED DIGI+ ATX12V SPDIFO _HDMI ESATA6G _USB3 _USB12 CHA_FAN AUDIO F2A85-M PCIEX16_1 8111F SB_PWR PCIEX1_1 Lithium Cell CMOS Power ® A85X Super PCI1 PCIEX16_2 64Mb BIOS 887-VD2 SPDIF_OUT USB3_34 CLRTC USB910 USB78 USB56 PANEL AAFP ASUS F2A85-M...

  • Page 20: Layout Contents

    1.3.4 Layout contents Connectors/Jumpers/Slots/LED Page ATX power connectors (24-pin EATXPWR, 4-pin ATX12V) 1-27 CPU, power fan and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN and 1-28 3-pin PWR_FAN) GPU Boost switch 1-33 GPU Boost LED (GPU_LED) 1-34 FM2 Socket ® DDR3 DIMM slots 1-12 MemOK! switch...

  • Page 21: Installing The Apu

    1.4.1 Installing the APU ASUS F2A85-M...

  • Page 22: Apu Heatsink And Fan Assembly Installation

    1.4.2 APU heatsink and fan assembly installation Apply the Thermal Interface Material to the APU heatsink and APU before you install the heatsink and fan if necessary. To install the APU heatsink and fan assembly 1-10 Chapter 1: Product introduction...
  • Page 23 To uninstall the APU heatsink and fan assembly ASUS F2A85-M 1-11...

  • Page 24: System Memory

    System memory 1.5.1 Overview The motherboard comes with four Double Data Rate 3 (DDR3) Dual Inline Memory Modules (DIMM) sockets. A DDR3 module has the same physical dimensions as a DDR2 DIMM but is notched differently to prevent installation on a DDR2 DIMM socket. DDR3 modules are developed for better performance with less power consumption.

  • Page 25: Memory Configurations

    • The maximum 64GB memory capacity can be supported with 16GB or above DIMMs. ASUS will update the memory QVL once the DIMMs are available in the market. • The default memory operation frequency is dependent on its Serial Presence Detect (SPD), which is the standard way of accessing information from a memory module.
  • Page 26 DDR3-2250 (O.C.) MHz capability DIMM socket support SS/DS Chip (Optional) Vendors Part No. Size Chip NO. Timing Voltage Brand 1 DIMM 2 DIMMs 4 DIMMs Kingston KHX2250C9D3T1K2/4GX(XMP) 4GB(2 x 2GB) DS 1.65V • • • DDR3-2200 (O.C.) MHz capability DIMM socket support (Optional) Vendors Part No.
  • Page 27 12GB(3 x 4GB) DS 9-9-9-27 1.65V • (XMP) Kingston KHX1600C9D3K4/16GX(XMP) 16GB(4GB x 4) DS 1.65V • • • Kingston KHX1600C9AD3/2G 1.65V • • • D1288JPN 11-11- Kingston KVR1600D3N11/2G-ES 1.35V-1.5V • • • DPLD9U 11-28 (continued on the next page) ASUS F2A85-M 1-15...
  • Page 28 DDR3-1600 MHz capability DIMM socket support Chip (Optional) Vendors Part No. Size Chip NO. Timing Voltage Brand 1 DIMM 2 DIMMs 4 DIMMs Kingston KHX1600C7D3K2/4GX(XMP) 4GB(2 x 2GB) 1.65V • • • Kingston KHX1600C8D3K2/4GX(XMP) 4GB(2 x 2GB) 1.65V • • Kingston KHX1600C8D3T1K2/4GX(XMP) 4GB(2 x 2GB)
  • Page 29 • Kingston KHX1333C9D3UK2/4GX(XMP) 4GB(2 x 2GB) DS XMP 1.25V • • • Kingston KVR1333D3N9/4G(low profile) 4GB ELPIDA J2108BCSE-DJ-F 1.5V • • • Kingston KVR1333D3N9/4G(low profile) 4GB ELPIDA J2108BCSE-DJ-F 1.5V • • • (continued on the next page) ASUS F2A85-M 1-17...
  • Page 30 DDR3-1333 MHz capability DIMM socket support (Optional) Vendors Part No. Size Chip Brand Chip NO. Timing Voltage 1 DIMM 2 DIMMs 4 DIMMs Kingston KVR1333D3N9/4G D2568JENCNGD9U 1.5V • • • Kingston KVR1333D3N9/4G Hynix H5TQ2G83AFR • • KVR1333D3N9/4G-SP(low Kingston Kingston D2568JENCPGD9U 1.5V •...
  • Page 31 A2 and B2 for better compatibility. • 4 DIMMs: Supports four (4) modules inserted into both the blue and black slots as two pairs of Dual-channel memory configuration • Visit the ASUS website at www.asus.com for the latest QVL. ASUS F2A85-M 1-19...

  • Page 32: Installing A Dimm

    1.5.3 Installing a DIMM Unplug the power supply before adding or removing DIMMs or other system components. Failure to do so can cause severe damage to both the motherboard and the components. Press the retaining clips outward to unlock a DIMM DIMM notch socket.

  • Page 33: Expansion Slots

    The PCI slot supports cards such as a LAN card, SCSI card, USB card, and other cards that comply with PCI specifications. 1.6.4 PCI Express x1 slot This motherboard supports PCI Express 2.0 x1 network cards, SCSI cards, and other cards that comply with the PCI Express specifications. ASUS F2A85-M 1-21...

  • Page 34: Pci Express X16 Slots

    1.6.5 PCI Express x16 slots This motherboard supports two PCI Express x16 graphics cards that comply with the PCI Express specifications. PCI Express operating mode VGA configuration PCIe x16_1 PCIe x16_2 Single VGA/PCIe card x16 (Recommended for single VGA card) Dual VGA/PCIe card •...

  • Page 35: Jumpers

    You do not need to clear the RTC when the system hangs due to overclocking. For system failure due to overclocking, use the CPU Parameter Recall (C.P.R.) feature. Shut down and reboot the system, then the BIOS automatically resets parameter settings to default values. ASUS F2A85-M 1-23...

  • Page 36: Connectors

    Connectors 1.8.1 Rear panel connectors 6 7 8 9 PS/2 Keyboard / Mouse Combo port. This port is for a PS/2 keyboard or PS/2 mouse. Optical S/PDIF Out port. This port connects an external audio output device via an optical S/PDIF cable. Video Graphics Adapter (VGA) port.
  • Page 37 HDMI port. This port is for a High-Definition Multimedia Interface (HDMI) connector, and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected content. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports are for USB 2.0/1.1 devices. ASUS F2A85-M 1-25...

  • Page 38: Internal Connectors

    1.8.2 Internal connectors Front panel audio connector (10-1 pin AAFP) This connector is for a chassis-mounted front panel audio I/O module that supports either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel audio I/O module cable to this connector. AAFP PIN 1 F2A85-M...
  • Page 39 • If you are uncertain about the minimum power supply requirement for your system, refer to the Recommended Power Supply Wattage Calculator at http://support.asus. com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us for details. TPM connector (20-1 pin TPM) This connector supports a Trusted Platform Module (TPM) system, which securely store keys, digital certificates, passwords and data.
  • Page 40 • The CPU_FAN connector supports a CPU fan of maximum 2A (24 W) fan power. • Only the 4-pin CPU fan and CHA FAN can support ASUS FanXpert feature. 1-28 Chapter 1: Product introduction...
  • Page 41 This connector is for the additional USB 3.0 ports. Connect the USB 3.0 bracket cable to this connector, then install the USB 3.0 bracket to the rear side of the chassis. If your chassis support customized front panel installation, with ASUS USB 3.0 header, you can have a front panel USB 3.0 solution.
  • Page 42 Serial ATA 6.0 Gb/s connectors (7-pin SATA6G 1~7) These connectors are for the Serial ATA 6.0 Gb/s signal cables for Serial ATA hard disk drives and optical disc drives. If you installed Serial ATA hard disk drives, you can create a RAID 0, RAID 1, RAID 5, RAID 10, or JBOD configuration through the onboard controller.

  • Page 43: System Panel Connector

    This connector is for the system power button. Pressing the power switch for more than four seconds while the system is ON turns the system OFF. • Reset button (2-pin RESET) This 2-pin connector is for the chassis-mounted reset button for system reboot without turning off the system power. ASUS F2A85-M 1-31...

  • Page 44: Onboard Switches

    BIOS default settings. A message will appear during POST reminding you that the BIOS has been restored to its default settings. • We recommend that you download and update to the latest BIOS version from the ASUS website at www.asus.com after using the MemOK! function. 1-32 Chapter 1: Product introduction...

  • Page 45: Onboard Leds

    , the LED next to the error device will continue lighting until the problem is solved. This user-friendly design provides an intuitional way to locate the root problem within a second. DRAM LED F2A85-M F2A85-M DRAM LED ASUS F2A85-M 1-33...
  • Page 46 GPU Boost LED The GPU Boost LED lights when the GPU Boost switch is turned to Enable. GPU_LED F2A85-M F2A85-M GPU Boost LED 1-34 Chapter 1: Product introduction...

  • Page 47: Software Support

    Place the Support DVD into the optical drive. If Autorun is enabled in your computer, the DVD automatically displays the Specials screen which contains the unique features of ASUS motherboard. Click Drivers, Utilities, Make Disk, Manual, and Contact tabs to display their respective menus.
  • Page 48 1-36 Chapter 1: Product introduction...

  • Page 49: Bios Information

    BIOS in the future. Copy the original motherboard BIOS using the ASUS Update utility. 2.1.1 ASUS Update utility The ASUS Update is a utility that allows you to manage, save, and update the motherboard BIOS in Windows environment. ®...

  • Page 50: Asus Ez Flash 2

    Follow the onscreen instructions to complete the updating process. 2.1.2 ASUS EZ Flash 2 The ASUS EZ Flash 2 feature allows you to update the BIOS without using an OS-based utility. Before you start using this utility, download the latest BIOS file from the ASUS website at www.asus.com.

  • Page 51: Asus Crashfree Bios 3 Utility

    2.1.3 ASUS CrashFree BIOS 3 utility The ASUS CrashFree BIOS 3 is an auto recovery tool that allows you to restore the BIOS file when it fails or gets corrupted during the updating process. You can restore a corrupted BIOS file using the motherboard support DVD or a USB flash drive that contains the updated BIOS file.

  • Page 52: Asus Bios Updater

    2.1.4 ASUS BIOS Updater The ASUS BIOS Updater allows you to update BIOS in DOS environment. This utility also allows you to copy the current BIOS file that you can use as a backup when the BIOS fails or gets corrupted during the updating process.

  • Page 53: Updating The Bios File

    Ensure to load the BIOS default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu. Refer to section 2.9 Exit menu for details. • Ensure to connect all SATA hard disk drives after updating the BIOS file if you have disconnected them. ASUS F2A85-M...

  • Page 54: Bios Setup Program

    The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen. • Visit the ASUS website at www.asus.com to download the latest BIOS file for this motherboard. •...

  • Page 55: Bios Menu Screen

    Power Saving mode Loads optimized default boot device Advanced mode priority menus Normal mode ASUS Optimal mode Displays the system properties Selects the Selects the boot device priority of the selected mode on the Advanced mode right hand side functions •...

  • Page 56: Advanced Mode

    The Advanced Mode provides advanced options for experienced end-users to configure the BIOS settings. The figure below shows an example of the Advanced Mode. Refer to the following sections for the detailed configurations. To access the EZ Mode, click Exit, then select ASUS EZ Mode. Back button Menu items...

  • Page 57: Menu Items

    You cannot select an item that is not user-configurable. A configurable field is highlighted when selected. To change the value of a field, select it and press <Enter> to display a list of options. ASUS F2A85-M...

  • Page 58: Main Menu

    Main menu The Main menu screen appears when you enter the Advanced Mode of the BIOS Setup program. The Main menu provides you an overview of the basic system information, and allows you to set the system date, time, language, and security settings. 2.3.1 System Language [English] Allows you to choose the BIOS language version from the options.

  • Page 59: Administrator Password

    To clear the user password, follow the same steps as in changing a user password, but press <Enter> when prompted to create/confirm the password. After you clear the password, the User Password item on top of the screen shows Not Installed. ASUS F2A85-M 2-11...

  • Page 60: Ai Tweaker Menu

    Ai Tweaker menu The Ai Tweaker menu items allow you to configure overclocking-related items. Be cautious when changing the settings of the Ai Tweaker menu items. Incorrect field values can cause the system to malfunction. The configuration options for this section vary depending on the CPU and DIMM model you installed on the motherboard.
  • Page 61 Scroll down to display the following items: Scroll down to display the following items: ASUS F2A85-M 2-13...

  • Page 62: Ai Overclock Tuner [Auto]

    Target CPU Turbo-Mode Speed : xxxxMHz Displays the CPU Turbo-Mode speed. Target DRAM Speed : xxxxMHz Displays the current DRAM speed. 2.4.1 Ai Overclock Tuner [Auto] Allows you to select the CPU overclocking options to achieve the desired CPU internal frequency.

  • Page 63: Gpu Boost [Auto]

    To offset the voltage by a positive value. [–] To offset the voltage by a negative value. VDDNB Offset Voltage [Auto] Allows you to set the VDDNB Offset voltage. The values range from 0.00625V to 0.50000V with a 0.00625V interval. ASUS F2A85-M 2-15...

  • Page 64: Dram Voltage [Auto]

    2.4.10 DRAM Voltage [Auto] Allows you to set the DRAM voltage. The values range from 1.35V to 2.00V with a 0.005V interval. 2.4.11 SB 1.1V Voltage [Auto] Allows you to set the Southbridge 1.1V voltage. The values range from 1.1V to 1.4V with a 0.01V interval.
  • Page 65 VRM efficiency. [Standard] Proceeds phase control depending on the CPU loading. [Optimized] Loads the ASUS optimized phase tuning profile. [Extreme] Proceeds the full phase mode. [Manual Adjustment] Adjustment]Allows manual adjustment. DO NOT remove the thermal module when switching to Extreme and Manual Mode. The thermal conditions should be monitored.

  • Page 66: Advanced Menu

    Advanced menu The Advanced menu items allow you to change the settings for the CPU and other system devices. Be cautious when changing the settings of the Advanced menu items. Incorrect field values can cause the system to malfunction. 2.5.1 CPU Configuration The items in this menu show the CPU-related information that the BIOS automatically detects.

  • Page 67: Sata Configuration

    S.M.A.R.T. Status Check [Enabled] S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a monitor system. When read/write of your hard disk errors occur, this feature allows the hard disk to report warning messages during the POST. Configuration options: [Enabled] [Disabled] ASUS F2A85-M 2-19...

  • Page 68: Usb Configuration

    2.5.3 USB Configuration The items in this menu allow you to change the USB-related features. The USB Devices item shows the auto-detected values. If no USB device is detected, the item shows None. Legacy USB Support [Enabled] [Enabled] Enables the support for USB devices on legacy operating systems (OS). [Disabled] The USB devices can be used only for the BIOS setup program.

  • Page 69: Apm

    Sets the Ctrl+Esc key on the PS/2 keyboard to turn on the system. [Power Key] Sets Power key on the PS/2 keyboard to turn on the system. This feature requires an ATX power supply that provides at least 1A on the +5VSB lead. ASUS F2A85-M 2-21...

  • Page 70: Network Stack

    Power On By PS/2 Mouse [Disabled] [Disabled] Disables the Power On by a PS/2 mouse. [Enabled] Enables the Power On by a PS/2 mouse. This feature requires an ATX power supply that provides at least 1A on the +5VSB lead. Power On By PME [Disabled] [Disabled] Disables the PME to wake up by PCI/PCIE devices.

  • Page 71: Monitor Menu

    The onboard hardware monitor automatically detects and displays the CPU and chassis fan speeds in rotations per minute (RPM). If the fan is not connected to the motherboard, the field shows N/A. Select Ignore if you do not wish to display the detected speed. ASUS F2A85-M 2-23...

  • Page 72: Cpu Q-Fan Control [Enabled]

    2.6.3 CPU Q-Fan Control [Enabled] [Disabled] Disables the CPU Q-Fan control feature. [Enabled] Enables the CPU Q-Fan control feature. CPU Fan Speed Low Limit [200 RPM] This item appears only when you enable the CPU Q-Fan Control feature and allows you to disable or set the CPU fan warning speed.

  • Page 73: Cpu Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage

    The onboard hardware monitor automatically detects the voltage output through the onboard voltage regulators. Select Ignore if you do not want to detect this item. 2.6.6 Anti Surge Support [Enabled] This item allows you to enable or disable the Anti Surge function. Configuration options: [Disabled] [Enabled] ASUS F2A85-M 2-25...

  • Page 74: Boot Menu

    Boot menu The Boot menu items allow you to change the system boot options. Scroll down to display the following items: 2.7.1 Bootup NumLock State [On] [On] Sets the power-on state of the NumLock to [On]. [Off] Sets the power-on state of the NumLock to [Off]. 2-26 Chapter 2: Getting started...

  • Page 75: Full Screen Logo [Enabled]

    [Disabled] Disables the full screen logo display feature. Set this item to [Enabled] to use the ASUS MyLogo 2™ feature. Post Report [5 sec] This item appears only when the Full Screen Logo item is set to [Disabled] and allows you to set the waiting time for the system to display the post report.

  • Page 76: Next Boot After Ac Power Loss [Normal Boot]

    2.7.7 Next boot after AC Power Loss [Normal Boot] [Normal Boot] Returns to normal boot up process after AC Power Loss. [Fast Boot] Accelerates the boot up speed after AC Power Loss. 2.7.8 CSM Parameters This option allows you to control the CSM launch parmeters. Launch CSM [Enabled] Configuration option: [Auto] [Enabled] [Disabled] The following four items appear when Launch CSM is set to [Enabled].

  • Page 77: Setup Mode [Ez Mode]

    • To select the boot device during system startup, press <F8> when ASUS Logo appears. • To access Windows OS in Safe Mode, press <F8> after POST.

  • Page 78: Tools Menu

    <Enter> to display the submenu. 2.8.1 ASUS EZ Flash 2 Utility Allows you to run ASUS EZ Flash 2. Press [Enter] to launch the ASUS EZ Flash 2 screen. For more details, see section 2.1.2 ASUS EZ Flash 2. 2.8.2...

  • Page 79: Exit Menu

    This option allows you to exit the Setup program without saving your changes. When you select this option or if you press <Esc>, a confirmation window appears. Select Yes to discard changes and exit. ASUS EZ Mode This option allows you to enter the EZ Mode screen. Launch EFI Shell from filesystem device This option allows you to attempt to launch the EFI Shell application (shellx64.efi) from one of...
  • Page 80 2-32 Chapter 2: Getting started...

  • Page 81: Appendices

    Appendices Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received including interference that may cause undesired operation.

  • Page 82: Canadian Department Of Communications Statement

    IC: Canadian Compliance Statement Complies with the Canadian ICES-003 Class B specifications. This device complies with RSS 210 of Industry Canada. This Class B device meets all the requirements of the Canadian interference-causing equipment regulations. This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 83 ASUS Recycling/Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials.

  • Page 84: Asus Contact Information

    +1-812-282-3777 +1-510-608-4555 Web site usa.asus.com Technical Support Telephone +1-812-282-2787 Support fax +1-812-284-0883 Online support support.asus.com ASUS COMPUTER GmbH (Germany and Austria) Address Harkort Str. 21-23, D-40880 Ratingen, Germany +49-2102-959911 Web site www.asus.de Online contact www.asus.de/sales Technical Support Telephone +49-1805-010923* Support Fax...
  • Page 85 F2A85-M...
  • Page 86 Appendices...
