HP Integrity rx6600 Hardware Quick Start Manual

Use this console quick start for a server that is set up and ready to connect to a host console. This material
can also be found in the HP Integrity rx3600 and HP Integrity rx6600 Installation Guides or the HP Integrity
rx3600 and rx6600 Integrated Lights-Out 2 Management Processor Operations Guide.
To connect the console, use one or more of the following ports:
• RS-232 serial port. Use this port to access the iLO 2 MP through the serial.
• iLO 2 MP LAN port. Use this port to access the iLO 2 MP through the LAN.
• VGA port. Use this port to access a graphics console. (You cannot access the iLO 2 MP using this port.)
Physical Access Methods
Figure 1 shows ports, connection methods, and required connection components.

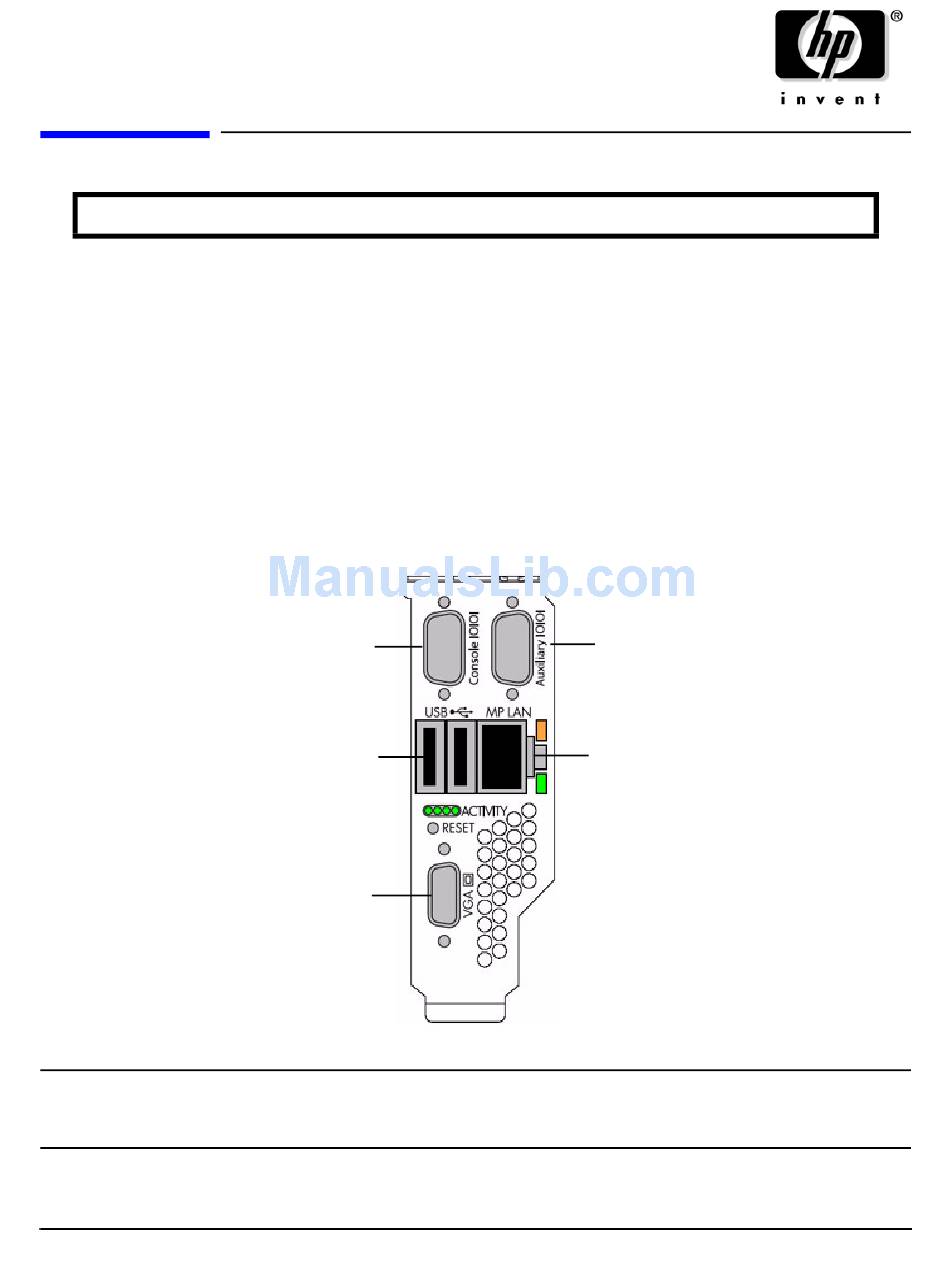

Figure 1 Server Rear Ports
RS-232 Serial Port
(RS-232 female-to-female cable)
Connected to emulation terminal
device (PC, laptop, or ASCII terminal)
VGA Port (optional)
(VGA cable)
No iLO 2 MP access; EFI only.
IMPORTANT Once you are physically connected, the next step is to configure the console. For information on
configuring the console, see the HP Integrity rx3600 and rx6600 Installation Guides at:
http://www.docs.hp.com/en/hw.html and search for your server product number.
MPN: AB463-9006A AB463-9006A
Console Quick Start
HP Integrity rx3600 / rx6600 Servers
USB 2.0 Ports
(any USB device)
General Use Serial Port
(printers, etc.)
iLO 2 MP LAN Port
(10/100 LAN cable)
The iLO 2 MP LAN port requires a
separate IP address from the port
used by the operating system.
Obtain the MAC address to the
UCIO board and not the MAC
address to the server core LAN card.
