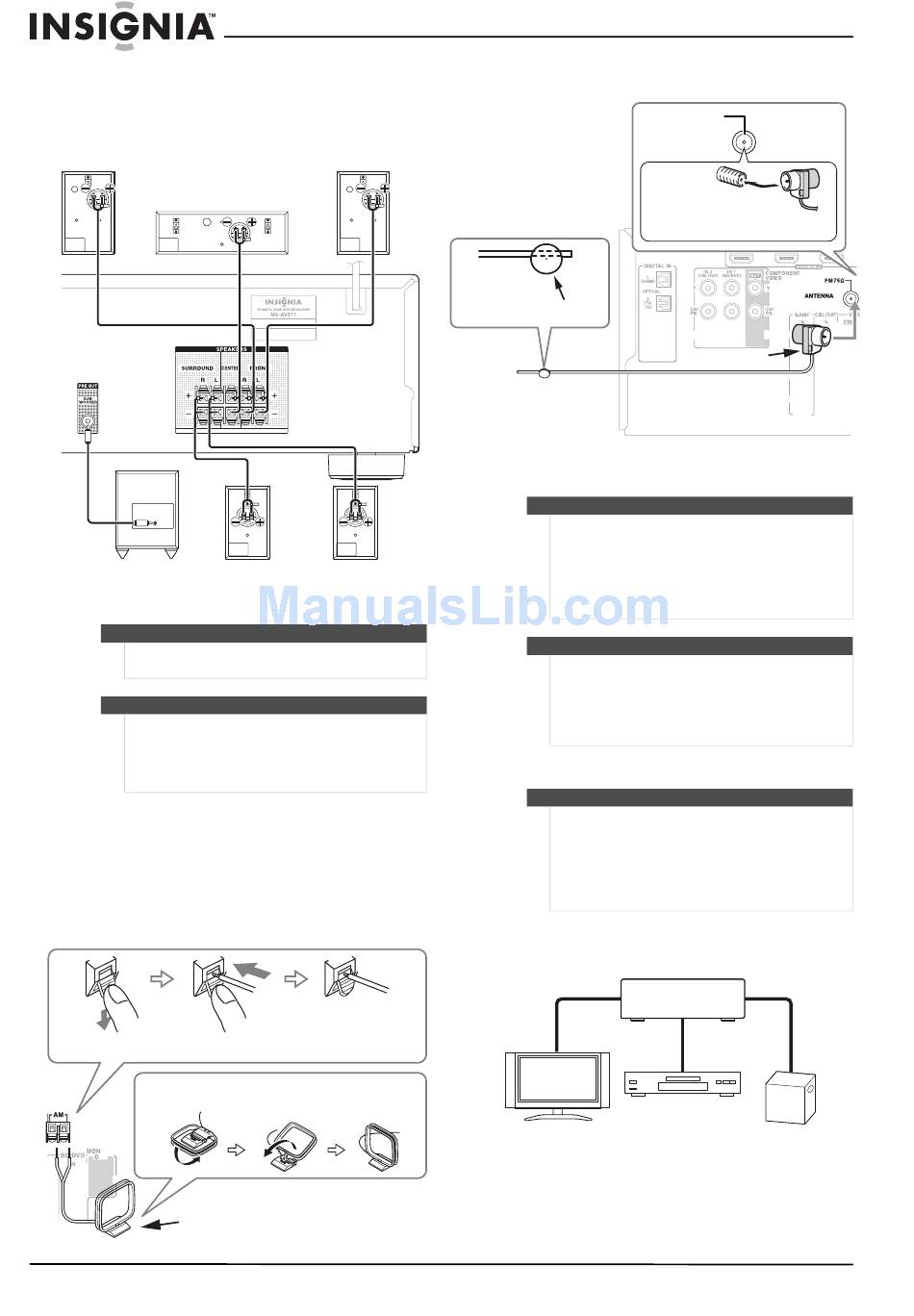

To connect the subwoofer:
1 Using the subwoofer RCA cable, connect the AV
receiver's SUBWOOFER PRE OUT jack to the
input on your powered subwoofer, as shown.
Front right speaker
Center speaker
Powered subwoofer

Connecting devices

Warning
Do not plug the AC cord into the AC outlet until all
connections are completed.
Notes
• Be sure to observe the color coding when
connecting audio and speaker cords.
• Make connections firmly and correctly. Failure
to do this can cause loss of sound, add noise to
the sound, or damage your receiver.
Connecting the antenna
This section explains how to connect the supplied
indoor FM antenna and AM loop antenna.
The receiver won't pick up any radio signals without
any antenna connected, so you must connect the
antenna to use the tuner.
AM Antenna connection
Push
Insert wire
AM loop antenna (supplied)
8
Front left speaker
Surround right speaker
Surround left speaker
Release
Assembling the AM loop antenna
www.insigniaproducts.com
Insignia NS-HT511 Home Theater System
FM Antenna connection
Thumbtacks
Indoor FM antenna (supplied)
To connect the antennas:
1 Connect the FM antenna to your receiver.
Note
If you are using an indoor FM antenna, change the
position of the antenna until you get the best
reception of your favorite FM stations.
To improve reception, use a 75 Ω outdoor antenna
instead of an indoor antenna. Disconnect the
indoor antenna before replacing it with an outdoor
antenna.
Tip
Once your receiver is ready for use, you need to tune
into a radio station and position the antenna to
achieve the best possible reception.
If you cannot achieve good reception with the
supplied indoor FM antenna, try a commercially
available outdoor FM antenna instead.
2 Connect the AM loop antenna to the receiver.
Notes
Place the AM loop antenna as far as possible from the
receiver, television, speaker cords, and the AC cord.
Change the position of the antenna until you get the
best reception of your favorite AM stations.
To improve reception, use an outdoor AM antenna
instead of a loop AM antenna. Disconnect the indoor
antenna before replacing it with an outdoor antenna.
Connecting audio components
HDMI cable
TV or projector
FM 75 Ohm
Insert the plug
fully into the jack
Receiver
Blu-ray disc/DVD player
Game console
