Rear Panel Components

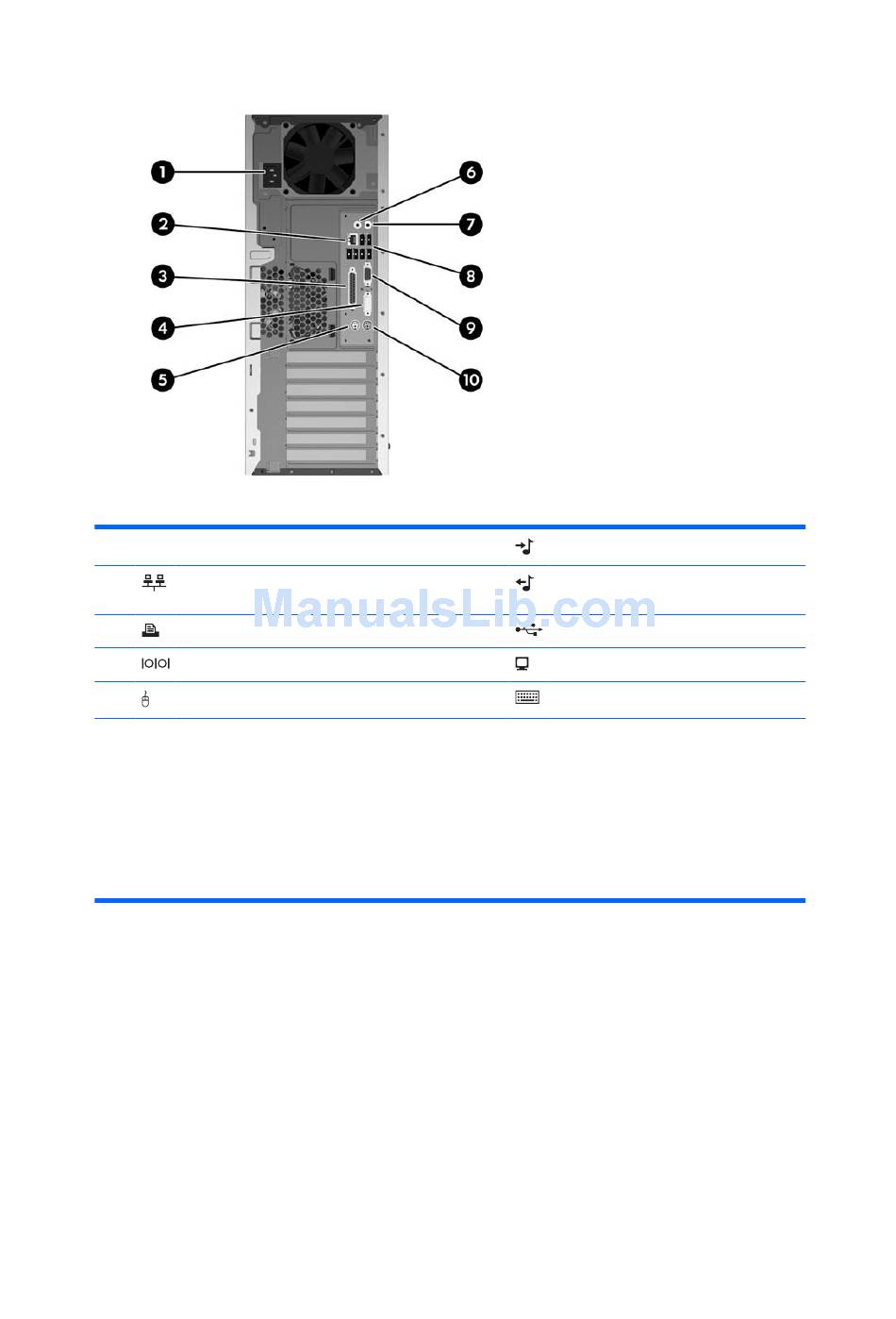

Figure 1-4
Table 1-3 Rear Panel Components
1 Power Cord Connector
2 RJ-45 Network Connector
3 Parallel Connector
4 Serial Connector
5 PS/2 Mouse Connector (green)
NOTE: Arrangement and number of connectors may vary by model.
The Line-in audio connector can be retasked as a microphone connector in the audio driver's control panel.
The monitor connector on the system board is inactive when a PCI Express x16 graphics card is installed in the
computer.
If a PCI or PCI Express x1 graphics card is installed, the connectors on the card and the system board may be used
at the same time. Some settings may need to be changed in Computer Setup to use both connectors. For information
about Boot Order, refer to the Computer Setup (F10) Utility Guide.
4 Chapter 1 Product Features
Rear Panel Components
6 Line-In Audio Connector (blue)
7 Line-Out Connector for powered audio
devices (green)
8 Universal Serial Bus (USB)
9 VGA Monitor Connector
10 PS/2 Keyboard Connector (purple)
