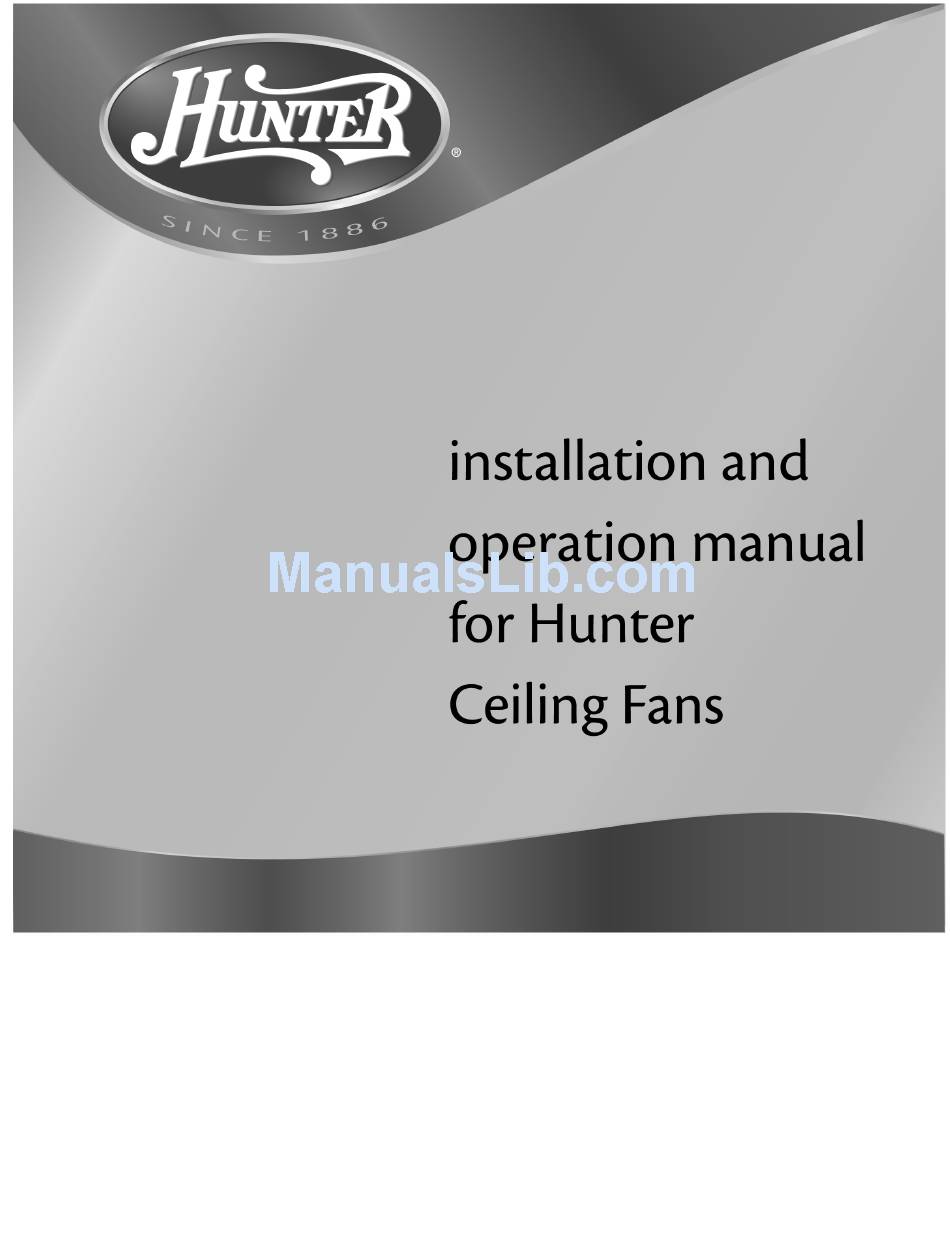

- Page 1 41869-01 • 03/12/04...
-
Page 2: Table Of Contents
Welcome Your new Hunter® ceiling fan is an addition to your home or office that will provide comfort and performance for many years. is installation For Your Records and Warranty and operation manual gives you complete instructions for installing Assistance and operating your fan. - Page 3 Understanding Mounting and Installer’ s Choice® Hunter’s patented 3-position mounting system provides you maximum installation fl exibility and ease. You can install your Hunter fan in one of three ways, depending on ceiling height and your preference: Low Profi le, Standard, or Angle mounting. e steps in this manual include instructions for all three Installer’s Choice mounting methods.
-
Page 4: Getting Ready
• Drill holes for and install wood screws. • Identify and connect electrical wires. • Lift 40 pounds. If you need help installing the fan, your Hunter fan dealer can direct you to a licensed installer or electrician. Gathering the Tools You will need the following tools for installing the fan: •... -
Page 5: Installing The Ceiling Plate
Do not over tighten. Steps 2-3 – 2-5 Flat Washer 3” Screw For Angled Ceilings: Be sure to orient the ceiling plate so that the arrows printed on the ceiling plate are pointing towards the ceiling peak. 41869-01 • 03/12/04 Hunter Fan Company... -
Page 6: Assembling The Fan
You can move them most easily using a small pair of pliers or tweezers. IMPORTANT! Before you change jumper switches, make sure the battery is not connected to the transmitter. Hunter Fan Company 41869-01 • 03/12/04... - Page 7 CAUTION: e remote control device complies with part 13 of the FCC rule. Changes or modifications not expressly approved by Hunter Fan Company could void your authority to operate this equipment. Operation is subject to the following two conditions: 1.
-
Page 8: Hanging The Fan
4-2. Align the hooks on the receiver with the appropriate slots in the ceiling plate. Also be sure the slot in the receiver and the hook in the ceiling plate line up. Snap the receiver into place on the ceiling plate. Step 4-2 Receiver Receiver Hook Hunter Fan Company 41869-01 • 03/12/04... -
Page 9: Wiring The Fan
5-5. Run the white antenna wire from the receiver through one of the Wire Nut slots in the ceiling plate so that it rests between the ceiling plate and the ceiling. Push it to the edge of the ceiling plate for clear reception. 41869-01 • 03/12/04 Hunter Fan Company... -
Page 10: Installing The Canopy And Canopy Trim Ring
2. Press fi rmly on opposite sides of the ring towards the canopy. e tabs will fl ex out releasing the trim ring from the canopy Step 6-3 Steps 6-4 – 6-5 Canopy Screw Hunter Fan Company 41869-01 • 03/12/04... -
Page 11: Assembling The Blades
7 • Assembling the Blades Hunter fans use several styles of fan blade irons (brackets that hold the Step 7-1 blade to the fan). 7-1. Your fan may include blade grommets. If your fan has grommets, insert them by hand into the holes on the blades. -
Page 12: Installing The Fan
Align the side screw holes in the upper and lower switch housings. Attach the lower switch housing to the upper switch housing with three #6-32 x 3/8” housing assembly screws. Lower Switch Housing Housing Assembly Screw Step 8-4 Hunter Fan Company 41869-01 • 03/12/04... -
Page 13: Installing The Wall Control
9-9. Turn the circuit breaker back on. 9-10. To operate fan and light, push the on/off switch to the up position Steps 9-5 – 9-8 and press the desired button on the wall control keypad. 41869-01 • 03/12/04 Hunter Fan Company... -
Page 14: Operating And Cleaning Your Ceiling Fan
To Change Airfl ow Direction Turn the fan off and let it come to a complete stop. Press the reversing switch on the remote or wall control. Restart fan. In cold weather, use upward air fl ow pattern Hunter Fan Company 41869-01 • 03/12/04... -
Page 15: Operating The Remote Control And Mounting The Holder
11-7. You can mount the remote holder to any toggle switch plate with the screws already in the switch plate. Or, you can simply mount the remote holder on the wall. Step 11-6 Step 11-7 41869-01 • 03/12/04 Hunter Fan Company... -
Page 16: Operating The Wall Control
(You can use a screwdriver and the small indentation under the on/off switch to pry off the keypad assembly.) When you have finished, press the keypad assembly back into the wall box. Battery Compartment Step 12-6 Hunter Fan Company 41869-01 • 03/12/04... -
Page 17: Troubleshooting
3. Turn power off , support fan very carefully, and check that the hanger ball is properly seated. If you need parts or service assistance, please call 888-830-1326 or visit us at our WEB site at http://www.hunterfan.com. Hunter Fan Company 2500 Frisco Avenue Memphis, Tennessee 38114 41869-01 • 03/12/04 Hunter Fan Company...
