Jabra GN8210 - Headset Amplifier User Manual

Digital headset amplifier
Hide thumbs Also See for GN8210 - Headset Amplifier:

Advertisement

Quick Links

English - GN 8210 user guide
This user guide provides you with information on setting up, using and maintaining
your GN 8210.
Contents
1. Parts and signatures .............................................. 3
2. Product information .............................................. 3
2.1
GN 8210 - What's in the box ................................ 4
3. Setting up the GN 8210 ......................................... 4
3.1
Assembly .............................................................. 4
3.2
Clear dial tone adjustment .................................... 6
3.3
Microphone volume adjustment ............................ 6
3.4
Choosing the audio mode ..................................... 7
4. Features and use ................................................... 8
4.1
4.2
Muting a call ......................................................... 9
4.3
Automatic Volume Adjust ...................................... 9
4.4
Visual indicators .................................................... 10
5. Frequently asked questions ................................... 11
6. Operational and safety information ....................... 12
2
1558-979_RevA_20-06-2004_10sprog.indd 2-3
1558-979_RevA_20-06-2004_10sprog.indd 2-3

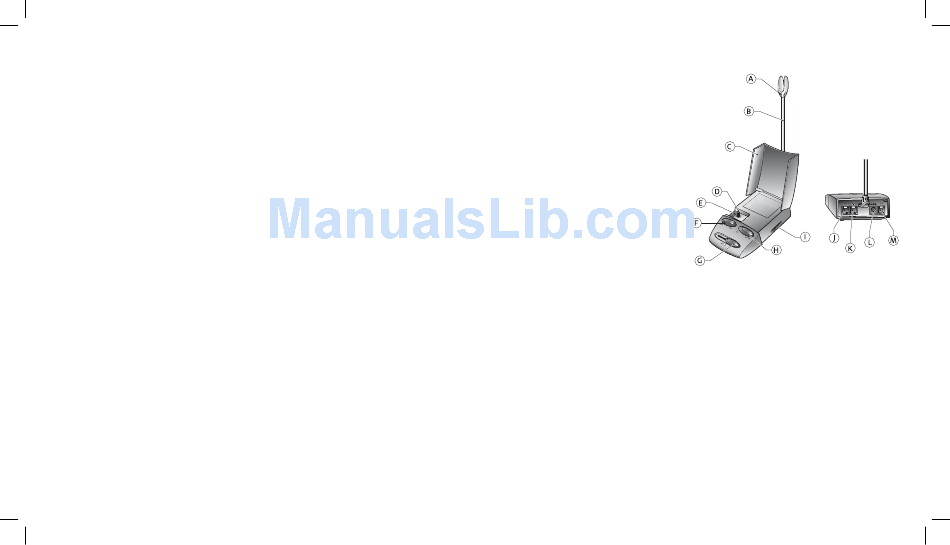

1. Parts and signatures
A) On-line indicator
B) Headset stand
C) Top cover
D) Microphone volume adjustment
control
E) Audio mode switch
F) Mute switch with indicator light
G) Manual headset volume control
H) Handset/headset switch
I)
Telephone termination switch
J)
Handset socket
K) *Telephone socket
L) Power adapter socket
M) *Headset socket
*
The telephone and headset are
not included in the GN 8210 box.
The reference letters found through-out this user guide refer to this illustration.
2. Product information
Congratulations on purchasing the GN 8210, a digital headset amplifi er that enables
you to connect your GN Netcom headset to your telephone. With its advanced digital
technology, the GN 8210 provides you with enhanced sound quality and protection
against excessively-loud sounds. The GN 8210 operates in one of three user-selected
audio modes to suit the protection needs and sound quality preferences of each
user.
Follow the instructions in this user guide carefully and in the same order they are pre-
sented to fully benefi t from your GN 8210.
3
21-06-2004 11:29:10
21-06-2004 11:29:10

Advertisement

loading

Summary of Contents for Jabra GN8210 - Headset Amplifier

  • Page 1: Table Of Contents

    English – GN 8210 user guide 1. Parts and signatures This user guide provides you with information on setting up, using and maintaining A) On-line indicator your GN 8210. B) Headset stand C) Top cover Contents D) Microphone volume adjustment control E) Audio mode switch 1.
  • Page 2: Gn 8210 - What's In The Box

    2.1 GN 8210 3. Connect the power adapter to the power – What’s in the box adapter socket (L) at the back of the ampli- fi er, and then connect it to a power socket. • GN 8210 amplifi er with headset The amplifi...
  • Page 3: Clear Dial Tone Adjustment

    3.2 Clear dial tone adjustment In order to hear a dial tone, you must select the telephone termi- 2. Make a telephone call to someone who will act as your test nation setting. Complete the following: person. 1. Put on your headset. Make sure that the headset/handset switch (H) is set to headset position, and volume (G) is set to mid-range.
  • Page 4: Features And Use

    Description If you want to select a different audio mode, complete the fol- a) For all earpads: Superior sound quality and good protection with extra emphasis on lowing: treble tones (for people who prefer a sound with more pitch or those with a high frequency hearing loss) .
  • Page 5: Answering And Making Telephone Calls

    4.1 Answering and making telephone calls 4.4 Visual indicators The amplifi er has two visual indicators: the on-line indicator (A) To answer or make a telephone call: on the headset stand and the mute indicator (F). 1. Put the headset on. 2.
  • Page 6: Frequently Asked Questions

    5 Frequently Asked Questions Why do I hear my own voice in my headset when I talk? • The microphone volume control may be set too high. Lift the GN 8210 top cover and GN 8210 is a digital amplifi er - can I use with both analogue and digital adjust the microphone volume counter clockwise to a lower number.
  • Page 7 Audio Mode settings The telephone company may make changes in its facilities, equipment, operations and/or procedures that could affect the The three audio modes for customized sound enhancement and protection setting (A, operation of this equipment (GN 8210 Telephone Headset Amplifi er). If this happens, the telephone company will provide B &...
