KitchenAid KUDC20FVBL - ARCHITECT Series II Parts List page 11

Illus. Part
No. No. DESCRIPTION
1 8539233 Dishrack, Upper
2 W10082839 Housing, Adjuster
3 Actuator, Adjuster
W10077838 Right Hand
W10077839 Left Hand
4 8268654 Adjuster Assembly
5 W10082834 Positioner, Arm
6 W10077844 Clip, No−Flip
7 3385089 Track, Rack
8 W10082860 Stop, Track
9 8539110 Handle,Dishrack
10 3385088 Wheel
11 8268703 Axle, Adjuster
12 9741232 Screw
13 W10082840 Cover, Adjuster
14 8281156 Screw
15 W10082649 Cupshelf
Includes Item 16
16 W10082848 Clip−Cup Shelf
W10304967

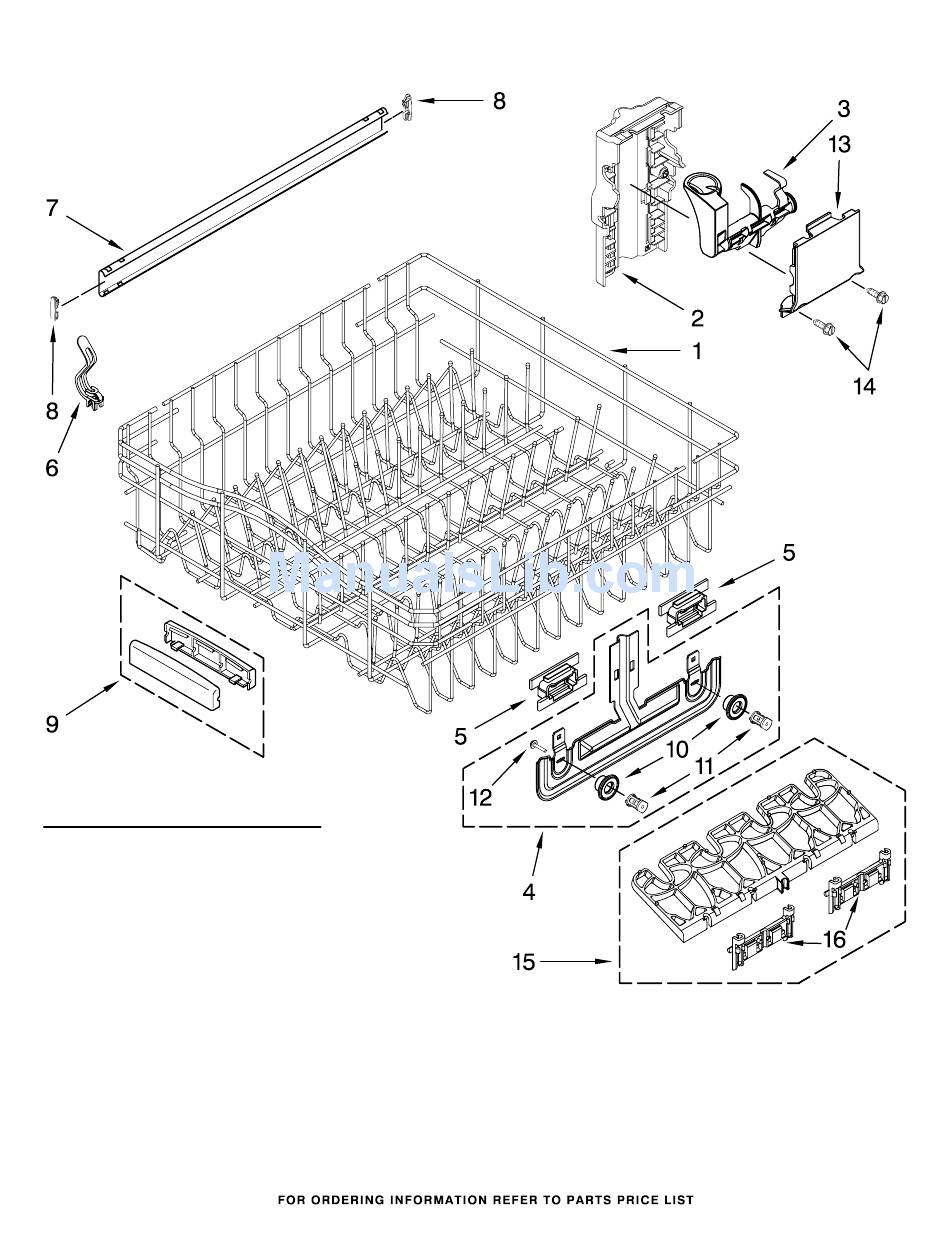

UPPER RACK AND TRACK PARTS
For Models: KUDC20FVBL3, KUDC20FVWH3, KUDC20FVSS3
(Black) (White) (Stainless)
11
