4K MEMORY CARD CAMERA RECORDER
GY-HMQ10U/
GY-HMQ10E
For Future Reference:
Enter the Model No. (located on the bottom of
the camera) and Serial No.
(located on the battery pack mount of the
camera) below.
Model No. GY-HMQ10
Serial No.

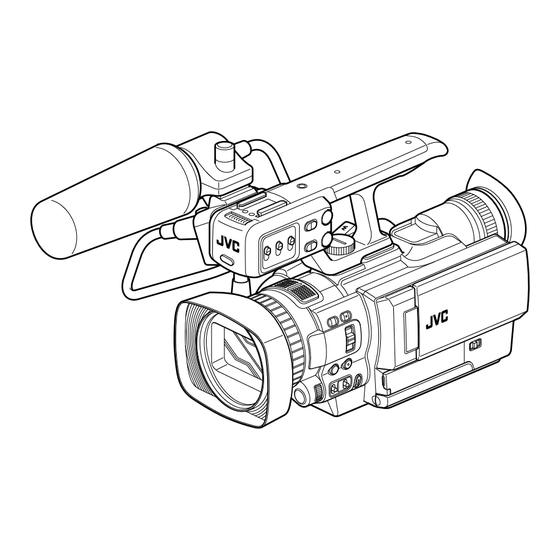

*The illustration shows the GY-HMQ10U/GY-HMQ10E with the supplied
audio unit attached. (Microphone is optional.)
Please read the following before getting started:
Thank you for purchasing this JVC product.
Before operating this unit, please read the instructions carefully to ensure the
best possible performance.
In this manual, each model number is described without the last letter (U/E)
which means the shipping destination. (U: for USA and Canada, E: for Europe)
Only "U" models (GY-HMQ10U) have been evaluated by UL.
INSTRUCTIONS
LYT2468-001A-M
Advertisement
Table of Contents
Related Manuals for JVC GY-HMQ10U
Summary of Contents for JVC GY-HMQ10U
- Page 1 In this manual, each model number is described without the last letter (U/E) which means the shipping destination. (U: for USA and Canada, E: for Europe) Model No. GY-HMQ10 Only “U” models (GY-HMQ10U) have been evaluated by UL. Serial No. LYT2468-001A-M...
-
Page 2: Table Of Contents
Contents Setting Backlight Compensation ........... 43 Contents Setting Touch Priority AE/AF ..........43 Setting the Grid ..............43 Setting Time-lapse Recording ..........44 Checking the Remaining Recording Time ......44 Audio Recording ..............45 Setting the Reference Audio Recording Level ....45 Introduction Using the Built-in Microphone .......... -
Page 3: Introduction
： Indicates the page or item to refer to. Contents of This Manual Focus Assist Function The copyright of this manual belongs to JVC. Unauthorized Enables easy and accurate focusing during shooting. reprint, duplication, etc. of this manual, wholly or partially, is strictly prohibited. -
Page 4: Safety Precautions
Introduction Safety Precautions ■ For GY-HMQ10U FOR USA AND CANADA NOTES: • The rating plate and safety caution are on the bottom and/or CAUTION the back of the main unit. RISK OF ELECTRIC SHOCK • The serial number plate is on the bottom of the unit. - Page 5 AC plug adapter, called a “Siemens Plug”, as shown. 7. Do not block any ventilation openings. Install in accordance For this AC plug adapter, consult your nearest JVC dealer. with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, Plug Adapter heat registers, stoves, or other apparatus (including amplifi...
- Page 6 Introduction ■ For GY-HMQ10E IMPORTANT (for owners in the U.K.) When the equipment is installed in a cabinet or on a shelf, make Connection to the mains supply in the United sure that it has sufficient space on all sides to allow for ventilation Kingdom.
-
Page 7: And Batteries
If you wish to dispose of this product, please visit our web page permanently damage your hearing. http://www.jvc.eu to obtain information about the take-back of DON’T obstruct the ventilation of the equipment, for example the product. - Page 8 Introduction ■ Common This equipment is in conformity with the provisions and protection Battery Pack requirements of the corresponding European Directives. Terminals This equipment is designed for professional video appliances and The supplied battery pack is a lithium-ion can be used in the following environments: battery.
- Page 9 When a child uses the unit, there must be parental guidance. Make a backup of important recorded data Make a backup of important recorded data JVC will not be responsible for any lost data. It is recommended to copy your important recorded data to...
-
Page 10: Precautions For Proper Use
Introduction Precautions for Proper Use Transportation Do not drop or hit this unit against a hard object when transporting. Power Saving Storage and Usage Locations When this unit is not in use, be sure to turn off the power in order to reduce power consumption. Allowable ambient temperature and humidity Be sure to use this unit within the allowable temperature range of Maintenance... - Page 11 Introduction If you format (initialize) the SDHC/SDXC card, all SDHC/SDXC Cards data recorded on the card, including video data and setup files, will be deleted. This camera recorder saves the recorded images and audio sound on the SDHC/SDXC card (sold If you want to wipe out all information by completely separately) in the card slot.
-
Page 12: Accessories
SDHC/SDXC card. AC Adapter If you use this unit continuously for a long period of UIA336-12 / UIA336-1230 (For GY-HMQ10U) time, the characters displayed in the viewfinder may UIA336-1230 (For GY-HMQ10E) temporarily remain on the screen. This is not recorded on the SDHC/SDXC card. -
Page 13: Names Of Parts
Introduction Names of Parts Front G H I * Microphone is optional. A Tally lamp F Shoe “Tally Settings” (A p. 27) For mounting separately sold lights and accessories. B Tally lamp G Eyepiece focus lever “Tally Settings” (A p. 27) Lever for adjusting the visibility. - Page 14 Introduction Names of Parts (Continued) Side (LCD Monitor) S R Q AUTO MANUAL CH-1 CH-2 INPUT AUDIO INPUT AUDIO - LINE - INPUT1 SELECT - MIC - INPUT2 MIC+48V INPUT2 CH-2 INPUT1 AUTO MANUAL FULL AUTO SHUTTER ADJ. GAIN WHT. BAL IRIS PRST DOOR LOCK...
- Page 15 Introduction P [CH-1/CH-2] CH-1/CH-2 recording level adjustment knob For adjusting the audio input level for CH-1 or CH-2. “Adjusting the audio recording level” (A p. 46) Q [CH1/CH2 AUDIO SELECT] CH-1/CH-2 audio selection switch For setting the method of adjusting the audio recording level for CH-1 or CH-2 to the Auto or Manual mode.
- Page 16 Introduction Names of Parts (Continued) LCD Monitor Unit USER1 USER2 USER3 CAM/MEDIA INFO AUTO MANUAL CH-1 CH-2 INPUT AUDIO INPUT AUDIO INPUT1 - LINE - - MIC - SELECT INPUT2 MIC+48V INPUT1 INPUT2 CH-2 AUTO MANUAL FULL AUTO SHUTTER ADJ. GAIN WHT.
- Page 17 Introduction Rear Side (Grip Belt) ACCESS BATT MEDIA * Microphone is optional. A Battery lock release button J [STANDBY/ON OFF]/[CAM/MEDIA] Power/Operation mode selection switch “Removing the Battery” (A p. 24) STANDBY/ ： Turns the power On/Off. B USB Connector ON OFF “Copying to Computer”...
-
Page 18: Lcd Screen Display
Introduction LCD Screen Display LCD Screen Display Information (During Recording) All the items are displayed in the illustration for explanatory purposes. 12 3 4 56 7 8 10:45AM 1/4000 40SEC ±0.0 F3.4 12dB Overlap 0:00:00:00 0:00:00[000:00] PLAY MENU A Exposure compensation M Display button “Adjusting the Exposure Manually”... - Page 19 Introduction Y Magnify button “Using the Magnifying Function” (A p. 36) Z FAW “Using the Full Auto White (FAW) Function” (A p. 42) a Gain level “Adjusting Manual Gain” (A p. 38) b Zoom button “Zoom Operation” (A p. 35) c Aperture value “Adjusting the Aperture”...
- Page 20 Introduction LCD Screen Display (Continued) LCD Screen Display Information (During Playback) 0:01:23 0:12:34 40SEC Overlap MENU A 4K2K mode “Selecting a Video Recording Format or Recording Mode” (A p. 33) B Record mode “Selecting a Video Recording Mode (HD Recording Only)” (A p.
-
Page 21: Using The Touch Screen
Introduction Using the Touch Screen Memo : The touch screen of this unit is pressure-sensitive. When the touch screen does not respond smoothly, apply slightly more force to your fingertip. Do not press or rub with excessive force. Do not operate the touch screen using an object with a sharp tip. There are two ways to operate the touch screen, namely “tap”... -
Page 22: Preparations
Preparations Preparation and Adjustment Attaching an External Microphone Before Use You can attach a microphone (optional) to the microphone holder. Turn the knob on the microphone holder anticlockwise to loosen and open the microphone holder. Attaching the Audio Unit Place the microphone in the microphone The audio unit (with handle) is not attached to the camera recorder holder. -
Page 23: Adjusting The Grip Belt
Preparations Adjusting the Grip Belt Attaching the Tripod Open the pad and adjust the position of the grip belt accordingly. To prevent the camera recorder from falling off, which may result in injuries or damages, read the instruction manual of the tripod to be used and make sure that it is securely attached. -
Page 24: Charging The Battery Pack
To purchase a spare battery or battery charger, please visit a Align the top of the battery with the mark on this unit, and nearby JVC dealer. slide in until the battery clicks into place. Connect the AC adapter to the [DC] terminal... -
Page 25: Turning On/Off The Power
Preparations [CAM/MEDIA] operation mode and indicating lamp Turning On/Off the Power status Use the [CAM/MEDIA] operation mode selection switch to switch to a different mode. The [CAM] indicating lamp and [MEDIA] indicating lamp change as below. Mode [CAM] Indicating [MEDIA] Indicating Lamp Lamp Turning On the Power... -
Page 26: Clock Setting
Preparations Clock Setting Select the region where you live and tap “SAVE”. CLOCK/AREA SETTING The “SET DATE/TIME!” screen appears when you turn on this unit for the first time after purchase, when it has not been used for a long time, or when the clock is not set yet. -
Page 27: Assigning Functions To The User Buttons
Preparations Assigning Functions to the USER Adjusting the Touch Panel Button Buttons Position This unit comes with three user buttons, [USER1], [USER2], and If the reactive area of the screen is misaligned with the touched area, [USER3]. adjust the alignment between the button display position and the A specific function can be assigned to each button according to your reactive area. -
Page 28: Changing The Display Language
Preparations Changing the Display Language Tap “OK”. COMPLETED The language on the display can be changed. Tap “MENU”. Tap “Q” (Common). Tap “LANGUAGE”. Setting ends and returns to the menu screen. Caution : COMMON Do not tap areas other than the “+” mark during touch screen adjustment (steps 4 - 5). -
Page 29: Inserting An Sdhc/Sdxc Card
Preparations Inserting an SDHC/SDXC Card SDHC/SDXC cards to use See “SDHC/SDXC Cards” (A p. 11). Slot Display The icon of the slot will appear blinking in the following cases. This camera recorder comes with four SDHC/SDXC card slots. When the card is write-protected (Slots A, B, C, and D) When the card in use does not support Class 6 or higher Set the [STANDBY/ON OFF] switch to [OFF]. -
Page 30: Estimated Recordable Time Of Sdhc/Sdxc Cards
Preparations Estimated Recordable Time of SDHC/SDXC Cards The estimated recordable time is only a guide. Differences may occur depending on the SDHC/SDXC card in use and the battery condition. Recording Quality 4 GB 8 GB 16 GB 32 GB 48 GB 64 GB Format 4K2K mode... -
Page 31: Viewing The Viewfinder/Lcd Monitor
Preparations Relationship between the viewfinder and LCD Viewing the Viewfinder/LCD monitor displays Monitor When “PRIORITY SETTING” (A p. 64) in the common menu is set to “VIEWFINDER” VF Status LCD Status Video Output You can monitor video images on this camera recorder using the viewfinder or LCD monitor. -
Page 32: Shooting
Shooting Selecting a Shooting Mode Selecting a Focusing Mode There are two focusing modes, namely Auto and Manual. Setting to the Auto Focus mode Set the focus switch to [AF] to display the Auto Focus icon (AF) on the screen. Selecting the Full Auto / Manual Shooting Focus is adjusted automatically. -
Page 33: Selecting A Video Recording Format Or Recording Mode
Shooting Selecting a Video Recording Shooting Format or Recording Mode This camera recorder supports both 4K2K recording (4K2K mode) Preparation: “Selecting a Shooting Mode” (A p. 32) and HD recording (1920 mode). Preparation: “Selecting a Video Recording Format or Recording 4K2K recording: Mode”... -
Page 34: Checking Image On Monitor Before Shooting
Shooting Recording in 1920 mode Checking Image on Monitor before Shooting Connect to a monitor. Recording in 4K2K mode Connect to a monitor. To [HDMI] Terminal To [HDMI] Terminal HDMI Mini Cable (Sold Separately) HDMI Mini Cable (Sold Separately) Monitor Connect the [HDMI 1] terminal to the monitor. -
Page 35: Zoom Operation
Shooting Adjusting the Focus Manually Zoom Operation Applicable to: Full Auto shooting mode A, Manual shooting mode Adjusts the angle of view. Use the W end (wide angle end) to shoot a wider field of view. Applicable to: Full Auto shooting mode A, Manual shooting mode Use the T end (telephoto end) to magnify the subject for shooting. -
Page 36: Using The Focus Assist Function
Shooting Using the Focus Assist Function Using the Magnifying Function This feature temporarily switches the screen to black-and-white, You can ease focusing by magnifying the display of the area you and adds color to the contour of the focused image. want to focus. -
Page 37: Using The Tele Macro Feature
Shooting Using the Tele Macro Feature Displaying the Zebra Pattern Applicable to: Full Auto shooting mode A, Manual shooting mode Applicable to: Full Auto shooting mode A, Manual shooting mode Shortens the closeup distance at the telephoto (T) end of the zoom. During shooting, diagonal lines (zebra pattern) are displayed only (1 m B approx. -
Page 38: Adjusting The Exposure Manually
Shooting Adjusting the Exposure Manually Adjusting Manual Gain Applicable to: Full Auto shooting mode A, Manual shooting mode Applicable to: Manual shooting mode M You can select the gain of the video amplifier using the [GAIN] Generally, the brightness of the subject that is being shot is switch on the camera recorder. -
Page 39: Adjusting The Shutter Speed
Shooting Setting Values Adjusting the Shutter Speed Frame rate 60/50 1/2, 1/2.5, 1/3, 1/4, 1/5, 1/6, 1/8, 1/10, 1/13, 1/15, 1/20, 1/25, 1/30, 1/40, 1/50, 1/60, 1/80, 1/100, 1/120, 1/160, 1/200, 1/250, 1/320, 1/400, 1/500, 1/640, 1/800, 1/1000, 1/1250, 1/1600, 1/2000, 1/2500, 1/3200, 1/4000 Frame rate 24 Applicable to: Manual shooting mode M... -
Page 40: Adjusting The Aperture
Shooting Setting Values Adjusting the Aperture F2.8 - F5.6 (7 steps) The open F-number of the aperture varies according to the zoom position. Wide-angle (W) end: F2.8 Telephoto (T) end: F4.5 Applicable to: Manual shooting mode M Memo : The aperture value (F-number) of the lens can be set as follows. When zooming to the Tele end, the aperture value is set according to the zoom and indicated in yellow. -
Page 41: Adjusting The White Balance
Shooting Adjusting the White Balance Adjusting Automatic White Balance As the color of the light (color temperature) varies according to the light source, it is necessary to readjust the white balance when the main light source illuminating the object changes. You can store two white balance types in memories [A] and [B]. -
Page 42: Using The Full Auto White (Faw) Function
Shooting Error Message Adjusting the Camera Image If the auto white balance adjustment is not correctly completed, one of the following messages will appear for about 5 seconds. Error Message Status NG ： OBJECT The object used is defective. Applicable to: Full Auto shooting mode A, Manual shooting mode Displayed when there is not enough white color on the object, or when the color The picture quality of the camera can be set using the recording... -
Page 43: Using The Image Stabilizer Feature
Shooting Using the Image Stabilizer Setting Touch Priority AE/AF Feature Applicable to: Full Auto shooting mode A, Manual shooting mode Applicable to: Full Auto shooting mode A, Manual shooting mode Reduces blurring of images due to camera shake. Adjusts the focus and brightness automatically based on information of the touched area. -
Page 44: Setting Time-Lapse Recording
Shooting Setting Time-lapse Recording Checking the Remaining Recording Time Applicable to: Full Auto shooting mode A, Manual shooting mode Applicable to: Full Auto shooting mode A, Manual shooting mode Enables the changes of a scene that occur slowly over a long period You can check the remaining recording time on the SDHC/SDXC to be shown within a short time by taking frames of it at a certain card as well as the remaining battery power. -
Page 45: Audio Recording
Shooting Audio Recording Using the Built-in Microphone Applicable to: Full Auto shooting mode A, Manual shooting mode Setting the input level. Set “INTERNAL MIC LEVEL” in the recording menu (“-2” to “+2”). Applicable to: Camera mode (A p. 62) There are two ways to input audio sound. A Built-in microphone Using an External Microphone Connected to B [INPUT1] terminal / [INPUT2] terminal... -
Page 46: Reducing Wind Noise
Shooting Adjusting the audio recording level Monitoring Audio Sound Using a Select a method for adjusting the audio recording level. Headphone Set the [CH1/CH2 AUDIO SELECT] switch. Select whether to set each channel to the [AUTO] or [MANUAL] mode. AUTO: Applicable to: Camera mode and Media mode Use this setting to enable the auto adjustment mode. -
Page 47: Playback
Playback Playback in 1920 mode Playing Back Videos Preparation: Insert into slot A an SDHC/SDXC card used for recording in the 1920 mode. “Inserting an SDHC/SDXC Card” (A p. 29) Tap “<<PLAY” to select the playback mode. You can select and play back the recorded videos from an index screen (thumbnail display). -
Page 48: Playing Back In Magnified Display
Playback Playing Back in Magnified Display Adjusting the Volume of Videos You can play back in magnified display to view the details. The volume level of the playback video can be adjusted. Tap A. Tap U. 0:01:23 0:12:34 0:01:23 0:12:34 Overlap Overlap Adjust the volume level... -
Page 49: Checking The Recording Date And Other Information
Playback Checking the Recording Date and Other Index Screen Display Information You can view the recording information of the recorded videos. A Press the INFO button while playback of the video is A B C D paused. AUTO MANUAL CH-1 CH-2 INPUT AUDIO INPUT AUDIO... -
Page 50: Screen Display During Playback
Playback Playing a Video with Defective Screen Display During Playback Management Information The management information of a video may be damaged if 0:01:23 0:12:34 recording is not performed correctly, such as turning off the power Overlap in the middle of recording. You can perform the following operations to play back the videos with defective management information. -
Page 51: Viewing Images On A Monitor
Playback Viewing Images on a Monitor Tap on the file to start playback. OTHER FILE You can connect this camera recorder to a monitor that is equipped with an HDMI terminal. Use a High Speed HDMI Mini Cable for the HDMI mini cable. Refer also to the instruction manual of the monitor in use. -
Page 52: Playing Videos Recorded In 4K2K Mode
Playback Playing Videos Recorded in 4K2K Mode Connect the AC adapter to the [DC] terminal Connect to a monitor. Set the [STANDBY/ON OFF] switch to [OFF]. [DC] Terminal AC Adapter To AC Outlet (110 V to 240 V) Turn on the power and set to the Playback mode. -
Page 53: Playing Videos Recorded In 1920 Mode
Playback Playing Videos Recorded in 1920 Mode Connect the AC adapter to the [DC] terminal Connect to a monitor. Set the [STANDBY/ON OFF] switch to [OFF]. [DC] Terminal AC Adapter To AC Outlet (110 V to 240 V) Turn on the power and set to the Playback mode. -
Page 54: Deleting Unwanted Files
Playback Deleting Unwanted Files Tap A. A B C D If the remaining space on the SD card is running low, erase any unwanted videos. Memo : Deleted files cannot be restored. Files that are protected cannot be deleted. MENU Be sure to back up important files on a PC. -
Page 55: Protecting Files
Playback Protecting Files Protecting/Releasing Protection of Selected Files Protects or releases protection of the selected files. Tap “<<PLAY” to select the playback mode. Protect important videos to prevent them from being deleted accidentally. 10:45AM Caution : When an SD card is formatted, even the protected files will be deleted. - Page 56 Playback Tap “SET” to complete the setting. PROTECT/CANCEL A B C D SEL ALL REL ALL Protect marks I appear on the selected files. Protect marks I disappear from the deselected files.
-
Page 57: Copy
Copy Copying to Computer Windows From the “Start” menu, select “Computer” (Windows 7/Windows Vista)/“My Computer” (Windows XP), and click the [JVCCAM_SDA]/ [JVCCAM_SDB]/[JVCCAM_SDC]/ You can read and copy the files on the SD card by connecting this [JVCCAM_SDD] (4K2K mode) or the unit to a computer using a USB cable. -
Page 58: List Of Files And Folders
Copy List of Files and Folders Folders and files are created in the SD card as shown below. They are created only when necessary. [ J V C ] [J M AV ] IN DEX . NP L [ JV C C A M _ S DA ] ~ [ PR I V A TE ] [ * * A _ 0 0 0 0 ] (Management File) -
Page 59: Settings Menu
Settings Menu Operating the Menu Operating the Common Menu You can configure common setting items regardless of the mode using the common menu. Tap “MENU”. There are two types of menus in this unit. The menu differs according to the mode in use. Main menu: Menu that contains all the items specific to the video recording 10:45AM... -
Page 60: Recording Menu
Settings Menu Recording Menu You can change the recording settings in this menu. Setting Details FOCUS ASSIST When this is set to “ON”, the focused subject is outlined in color for easier focusing. Memo : When FOCUS ASSIST is enabled, the image becomes black and white, while the outline of the focused object is displayed in the selected color. - Page 61 Settings Menu Setting Details For setting the [WHT.BAL.] switch position to assign the FAW (Full Auto White Balance) function to during manual shooting. Not set: FAW function is not assigned. A: assigns FAW to the A position. B: assigns FAW to the B position. PRESET: assigns FAW to the PRESET position.
- Page 62 Settings Menu Setting Details REC MODE For setting the image quality when “SYSTEM SELECT” is in the 1920 mode. UXP: Enables recording in the best picture quality. Applies to Blu-ray discs only. Videos taken in high-definition quality cannot be saved to DVDs. XP: Enables recording in high picture quality.
-
Page 63: Playback Menu
Settings Menu Setting Details AUDIO MONITOR For setting the audio sound of the headphone. MIX: Outputs mixed sound. STEREO: Outputs stereo sound. MIC LEVEL METER Setting this to “ON” displays the microphone level screen. USER1 You can assign any one of the following functions to each of the [USER1], [USER2], and [USER3] buttons. USER2 “FOCUS ASSIST”, “TELE MACRO”, “ZEBRA”, “NONE”. - Page 64 UPDATE Updates the functions of this unit to the latest version. For details, refer to the JVC Professional homepage. (When no program to update the software of this unit is available, nothing will be provided on the homepage.) http://pro.jvc.com/ or http://www.jvcpro.co.uk/ FORMAT SD CARD Deletes all files on the SD card.
-
Page 65: Further Information
Further Information Error Displays and Actions Error Message Action FORMAT ERROR! Check the operating procedure, and perform once again. “Formatting (Initializing) SDHC/SDXC Cards” (A p. 30) Turn off and on this unit again. MEMORY CARD Check that the card is supported by this unit. ERROR! “SDHC/SDXC Cards”... -
Page 66: Trouble
In such a case, turn off the power, then remove the AC adapter and battery pack. This unit will be reset. Trouble Before sending for repair, check the camera recorder’s problem according to the table below. If the problem persists, consult your nearest JVC dealer or JVC service center. Trouble Action SDHC/SDXC card Check that the SDHC/SDXC card is facing the right direction. - Page 67 “Viewing the Viewfinder/LCD Monitor” (A p. 31) When used in cold places, the screen may appear darker. The screen may be reaching the end of its service life. Consult your nearest JVC dealer. Screen display is difficult to see. The screen may be difficult to see if used in bright areas, such as under direct sunlight.
- Page 68 Replace the battery with a new one. charged battery. To purchase a new battery, please visit a nearby JVC dealer. The built-in microphone does not work. Remove the audio unit cable from the [AUDIO IN] terminal of the camera recorder.
-
Page 69: Specifications
Further Information Specifications Item Details LCD monitor 3.5", 920,000 pixels, polysilicon color LCD Viewfinder 0.24", 260,000 pixels Recording media Commercially available SDHC/SDXC card (Class 6 or higher) Camera “Estimated Recordable Time of SDHC/ SDXC Cards” (A p. 30) Item Details Clock Battery Rechargeable battery Power supply... - Page 70 Further Information Video (4K2K mode) AC Adapter UIA336-12 / UIA336-1230 Item Details Item Details Recording/ MP4 standard Power supply AC 100 V to 240 V, 50 Hz/60 Hz Playback format Video: MPEG-4 AVC/H.264 Output DC 12 V, 3 A Audio: AAC 2ch Allowable 0°C to 40°C (32°F to 104°F) Extension...
- Page 71 Further Information Dimensional Outline Drawing (Unit: mm) AUTO MANUAL CH-1 CH-2 INPUT AUDIO INPUT AUDIO INPUT1 - LINE - SELECT - MIC - INPUT2 MIC+48V CH-2 INPUT1 INPUT2 AUTO MANUAL FULL AUTO SHUTTER ADJ. GAIN WHT. BAL IRIS PRST DOOR LOCK * Microphone is optional.
