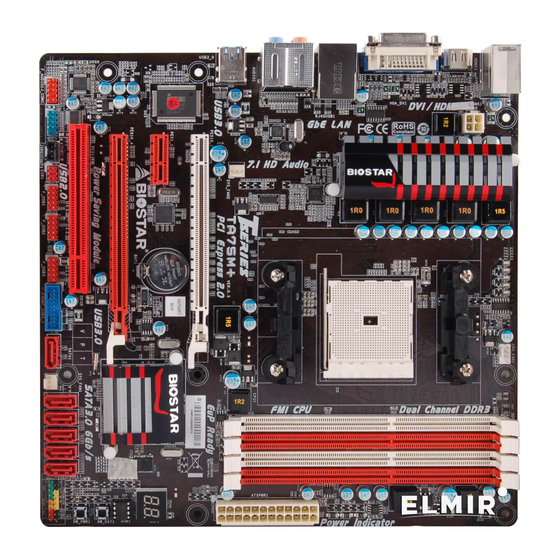

TA75M UEFI BIOS Manual
UEFI BIOS Setup...................................................................................... 1
1 Main Menu ............................................................................................. 3
2 Advanced Menu...................................................................................... 4
3 Chipset Menu ....................................................................................... 17
4 Boot Menu............................................................................................. 25
5 Security Menu ...................................................................................... 27
6 O.N.E Menu.......................................................................................... 28
7 Exit Menu ............................................................................................. 35
i

Advertisement

Table of Contents
loading

Related Manuals for Biostar TA75M

Summary of Contents for Biostar TA75M

  • Page 1 TA75M UEFI BIOS Manual UEFI BIOS Setup..................1 1 Main Menu ..................... 3 2 Advanced Menu..................4 3 Chipset Menu ..................17 4 Boot Menu..................... 25 5 Security Menu ..................27 6 O.N.E Menu..................28 7 Exit Menu ..................... 35...

  • Page 2: Uefi Bios Setup

    TA75M UEFI BIOS Manual UEFI BIOS Setup Introduction The purpose of this manual is to describe the settings in the AMI UEFI BIOS Setup program on this motherboard. The Setup program allows users to modify the basic system configuration and save these settings to NVRAM.

  • Page 3: Supported Cpus

    TA75M UEFI BIOS Manual Supported CPUs This AMI UEFI BIOS supports the Intel CPU. Using Setup When starting up the computer, press <Del> during the Power-On Self-Test (POST) to enter the UEFI BIOS setup utility. In the UEFI BIOS setup utility, you will...

  • Page 4: Bios Information

    TA75M UEFI BIOS Manual 1 Main Menu Once you enter AMI UEFI BIOS Setup Utility, the Main Menu will appear on the screen providing an overview of the basic system information. BIOS Information Shows system information including UEFI BIOS version, Project Code, Model Name, Build Date, etc.

  • Page 5: Advanced Menu

    TA75M UEFI BIOS Manual 2 Advanced Menu The Advanced Menu allows you to configure the settings of CPU, Super I/O, Power Management, and other system devices. Notice Beware of that setting inappropriate values in items of this menu may cause system to malfunction.
  • Page 6 TA75M UEFI BIOS Manual PCI ROM Priority In case of multiple option ROMs (Legacy and EFI Compatible), this item specifies what PCI Option ROM to launch Options: Legacy ROM (Default) / EFI Compatible ROM PCI Latency Timer This item sets the value to be programmed into PCI Latency Timer Register.
  • Page 7 TA75M UEFI BIOS Manual Maximum Payload This item sets Maximum Payload of PCI Express Device or allows System BIOS to select the value. Options: Auto (Default) / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048...

  • Page 8: Ps2 Keyboard Poweron

    TA75M UEFI BIOS Manual S3 Video Repost This item allows you to enable or disable S3 Video Repost. Options: Disabled (Default) / Enabled EuP Control When EuP is enabled, the system will meet EuP requirement. Options: Disabled (Default) / Enabled PME Wake up from S5 The item enables the system to wake from S5 using PME event.

  • Page 9: Ps2 Mouse Poweron

    TA75M UEFI BIOS Manual Stroke Keys Selected This item will show only when Keyboard PowerOn is set “Stroke Key.” Options: Wake Key (Default) / Power Key / Ctrl+F1 / Ctrl+F2 / Ctrl+F3 / Ctrl +F4 / Ctrl+F5 / Ctrl+F6 Specific Key Enter This item will show only when Keyboard PowerOn is set “Specific Key.”...

  • Page 10: Limit Cpuid Maximum

    TA75M UEFI BIOS Manual Limit CPUID Maximum When the computer is booted up, the operating system executes the CPUID instruction to identify the processor and its capabilities. Before it can do so, it must first query the processor to find out the highest input value CPUID recognizes. This determines the kind of basic information CPUID can provide the operating system.

  • Page 11: Sata Configuration

    TA75M UEFI BIOS Manual Node 0 Information This item shows Node 0 Information SATA Configuration The BIOS will automatically detect the presence of SATA devices. There is a sub-menu for each SATA device. Select a device and press <Enter> to enter the...

  • Page 12: Smart Fan Control

    TA75M UEFI BIOS Manual SMART FAN Control CPU Smart FAN This item allows you to control the CPU Smart Fan function. Options: Disabled (Default) / Auto / 4Pin / 3Pin CPU FAN Calibrate Press [ENTER] to calibrate CPU FAN. Control Mode This item provides several operation modes of the fan.

  • Page 13: Usb Configuration

    TA75M UEFI BIOS Manual Fan Ctrl Start Value This item sets CPU FAN Start Speed Value. Options: 50 (Default) Fan Ctrl Sensitive The bigger the numeral is, the higher the FAN speed is. Options: 30 (Default) USB Configuration Legacy USB Support This item determines if the BIOS should provide legacy support for USB devices like the keyboard, mouse, and USB drive.

  • Page 14: Super Io Configuration

    TA75M UEFI BIOS Manual EHCI Hand-Off This is a workaround for OSes without EHCI hand-off support. The EHCI ownership change should be claimed by EHCI driver. Options: Disabled (Default) / Enabled USB FLASH DRIVE PMAP This items shows when user inserts USB drive.

  • Page 15: Serial Port 1 Configuration

    TA75M UEFI BIOS Manual Serial Port 1 Configuration Serial Port This item enables or disables Serial Port (COM). Options: Enabled (Default) / Disabled Change Settings This item selects an optimal setting for Super IO device. Options: Auto (Default) Parallel Port Configuration Parallel Port This item enables or disables Parallel Port (LPT/LPTE).
  • Page 16 TA75M UEFI BIOS Manual Change Settings This item allows you to select an optimal setting for Super IO device. Options: Auto (Default) / IO=378h; IRQ=5 / IO=378h; IRQ=5, 6, 7, 9, 10, 11, 12 / IO=278h; IRQ=5, 6, 7, 9, 10, 11, 12 / IO=3BCh; IRQ=5, 6, 7, 9, 10, 11, Device Mode This item allows you to determine how the parallel port should function.
  • Page 17 TA75M UEFI BIOS Manual H/W Monitor Shutdown Temperature This item allows you to set up the CPU shutdown Temperature. Options: Disabled (Default) / 70 /158 / 75 /167 / 80 /176 / 85 /185 ℃ ℉ ℃ ℉ ℃ ℉...

  • Page 18: Chipset Menu

    TA75M UEFI BIOS Manual 3 Chipset Menu This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed of the CPU itself uses when communicating with its own special components.

  • Page 19: North Bridge

    TA75M UEFI BIOS Manual Launch PXE OpROM This item enables/disables Boot Option for Legacy Network Devices. Options: Disabled (Default) / Enabled Launch Storage OpROM This item enables/disables Boot Option for Legacy Mass Storage Devices with Option ROM. Options: Enabled (Default) / Disabled Realtek PCIE NIC This item enables/disables Realtek PCIE NIC.

  • Page 20: Integrated Graphics

    TA75M UEFI BIOS Manual GFX Configuation PSPP Policy This item allows you to set PCIe speed power policy. Options: Balanced-High (Default) / Disabled / Performance / Balanced-Low / Power Saving GFX HD Audio controller This item allows you to enable or disable GFX HD Audio controller.

  • Page 21: South Bridge Configuration

    TA75M UEFI BIOS Manual Bank Interleaving Bank Interleaving is an advanced chipset technique used to improve memory performance. Memory interleaving increases bandwidth by allowing simultaneous access to more than one piece of memory. Options: Enabled (Default) / Disabled Channel Interleaving This item allows you to control the DDR3 dual-channel function.
  • Page 22 TA75M UEFI BIOS Manual SB SAT A Configuration OnChip SATA Channel This option allows you to enable the on-chip Serial ATA. Options: Enabled (Default) / Disabled OnChip SATA Type This option allows you to select the on-chip Serial ATA operation mode.
  • Page 23 TA75M UEFI BIOS Manual SB USB Configuration XHCI Switch This item allows you to switch XHCI Options: Enabled (Default) / Disabled OHCI HC (Bus 0 Dev 18/19/20 Fn 0/5) This item allows you to control OHCI host controller. (USB 1.1 Device)
  • Page 24 TA75M UEFI BIOS Manual SB GPP Port Configuration GPP Link ASPM Options: Disabled (Default) / L1 GPP Gen2/ UMI Gen2 Options: Enabled (Default) / Disabled GPP HW Compliance Mode Options: Disabled (Default) / Port A / Port B / Port C / Port D...
  • Page 25 TA75M UEFI BIOS Manual SB Azalia Audio Configuration HD Audio Azalia Device This item allows you to control the HD audio device. Options: Enabled (Default) / Auto / Disabled...

  • Page 26: Setup Prompt Timeout

    TA75M UEFI BIOS Manual 4 Boot Menu This menu allows you to setup the system boot options. Setup Prompt Timeout This item sets number of seconds to wait for setup activation key. Options: 2 (Default) Bootup NumLock State This item selects the keyboard NumLock state.

  • Page 27: Gatea20 Active

    TA75M UEFI BIOS Manual GateA20 Active Upon Request – FA20 can be disabled using BIOS services. Always – do not allow disabling GA20; this option is useful when any RT code is executed above 1MB Options: Upon Request (Default) / Always Option ROM Messages This item sets the display mode for option ROM.

  • Page 28: Security Menu

    TA75M UEFI BIOS Manual 5 Security Menu Administrator Password This item sets Administrator Password. User Password This item sets User Password.

  • Page 29: Overclock Navigator

    OverClock Navigator OverClock .Navigator is designed for beginners in overclock field. Based on many test and experiments from Biostar Engineer Team, OverClock Navigator provides 3 default overclock configurations that are able to raise the system performance. Options:...

  • Page 30: Cpu Clock

    TA75M UEFI BIOS Manual V6 Tech Engine This engine will make a good over-clock performance. V8 Tech Engine This engine will make a better over-clock performance. V12 Tech Engine This engine will make a best over-clock performance. CPU Clock This item allows BIOS to select CPU Clock (MHz).

  • Page 31: Dram Timing Configuration

    TA75M UEFI BIOS Manual DDR Memory Over Voltage This item allows you to select DDR Memory Voltage Control. APU DDR-PHY/PCI-E Over Voltage This item allows you to select APU DDR-PHY/PCI-E Voltage Control. FCH Over Voltage This item allows you to select FCH Voltage Control.
  • Page 32 TA75M UEFI BIOS Manual DRAM Timing Mode This item allows you to choose to manually or automatically regulate the DRAM Timing. Options: Auto (Default) / DCT0 / DCT1 / Both Options: Auto (Default) / 4~12 CLK 2TCMD Options: Auto (Default) / 1T / 2T...
  • Page 33 TA75M UEFI BIOS Manual TRWTTO Options: Auto (Default) / 4~7 CLK TWRRD Options: Auto (Default) / 4~7 CLK TWT R Options: Auto (Default) / 4~7 CLK TWRWR Options: Auto (Default) / 4~7 CLK TRDRD Options: Auto (Default) / 4~7 CLK...

  • Page 34: Bank Interleaving

    TA75M UEFI BIOS Manual Bank Interleaving Bank Interleaving is an advanced chipset technique used to improve memory performance. Memory interleaving increases bandwidth by allowing simultaneous access to more than one piece of memory. Options: Auto (Default) / Disabled Channel Interleaving This item allows you to control the DDR2 dual-channel function.

  • Page 35: Phase Control

    TA75M UEFI BIOS Manual G.P.U Phase Control G.P.U Phase Mode This item allows you to control G.P.U Phase Mode (power saving technology). Options: Auto (Default) / Off...

  • Page 36: Save Changes And Reset

    TA75M UEFI BIOS Manual 7 Exit Menu This menu allows you to load the optimal default settings, and save or discard the changes to the BIOS items. Save Changes and Reset Reset the system after saving the changes. Discard Changes and Exit Abandon all changes made during the current session and exit setup.
