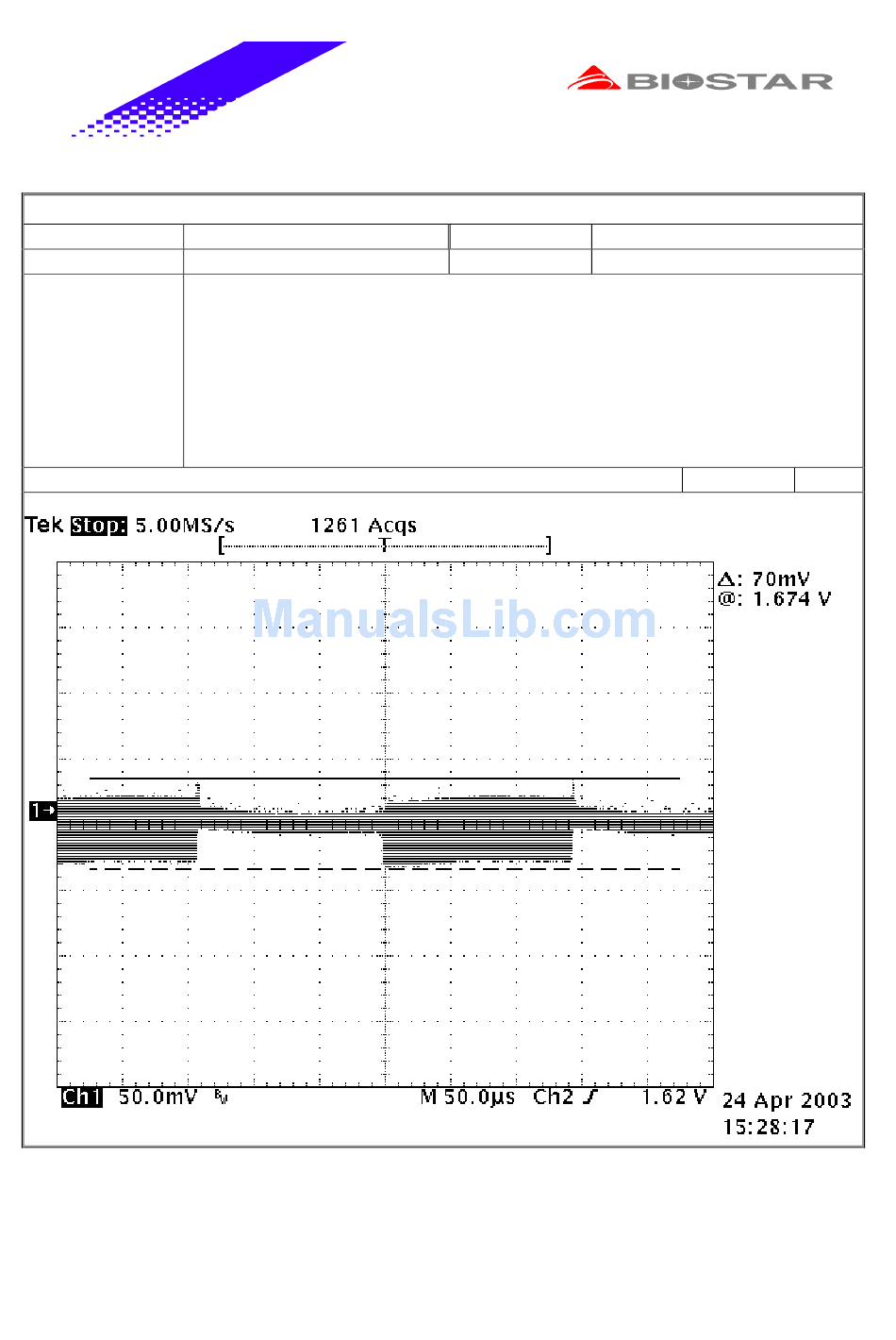

VCORE WAVEFORM MEASUREMENT-Ver 1.0

Vcore Transient Test(Dos Mode)

CPU Athlon_XP_2800+ M\B NCD-Pro1.1
CH1 Vcore CH2 STP CLK
Condition 1.Boot the system to the Win98SE environment(Command Prompt Only)
Dos mode and run the stpclk.exe
2.At the main menu ,type Enter & Enter & "Y" to go to the "menu"
3.At the next menu , select "Power Management Utilities"
4.At this menu , select "Throttle Ratio" and set at the rang of 50.0%~56.0%
and set " Enable " of " ON"
5.Press <ESC> tiwce and then "Y" to exit the stpclk.bat program
6.Measure the Vcore waveform
Vcore Transient waveform RESULT PASS
43
