Sip Accounts - Draytek 2800 Series User Manual

Min Len
Max Len
Interface
3 . 9 . 2 S I P A c c
3 . 9 . 2 S I P A c c

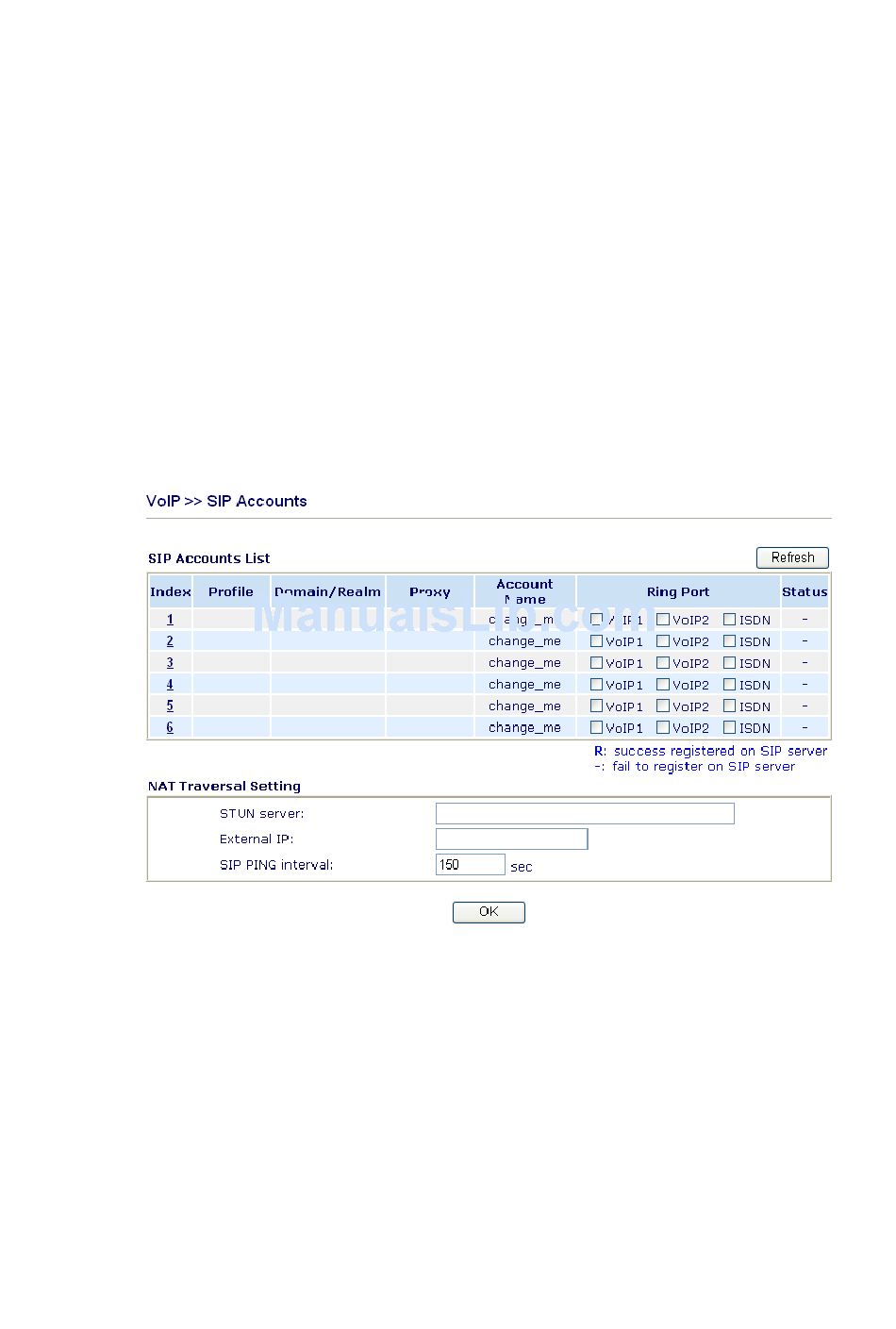

In this section, you set up your own SIP settings. When you apply for an account, your SIP
service provider will give you an Account Name or user name, SIP Registrar, Proxy, and
Domain name. (The last three might be the same in some case). Then you can tell your folks
your SIP Address as in Account Name@ Domain name
As Vigor VoIP Router is turned on, it will first register with Registrar using
AuthorizationUser@Domain/Realm. After that, your call will be bypassed by SIP Proxy to
the destination using AccountName@Domain/Realm as identity.
Index
Profile
Domain/Realm
Proxy
Account Name
Ring Port
STUN Server
External IP
Vigor2800 Series User's Guide
o u n t s
o u n t s
Set the minimal length of the dial number for applying the
prefix number settings. Take the above picture (Prefix Table
Setup web page) as an example, if the dial number between 7
and 9, that number can apply the prefix number settings here.
Set the maximum length of the dail number for applying the
prefix number settings.
Choose the one that you want to enable the prefix number
settings from the six pre-saved SIP accounts.
Click this link to access into next page for setting SIP account.
Display the profile name of the account.
Display the domain name or IP address of the SIP registrar
server.
Display the domain name or IP address of the SIP proxy
server.
Display the account name of SIP address before @.
Specify which port will ring when receiving a phone call. The
ISDN ring port is available for Vigor2800VGi only.
Type in the IP address of the STUN server.
Type in the gateway IP address.
