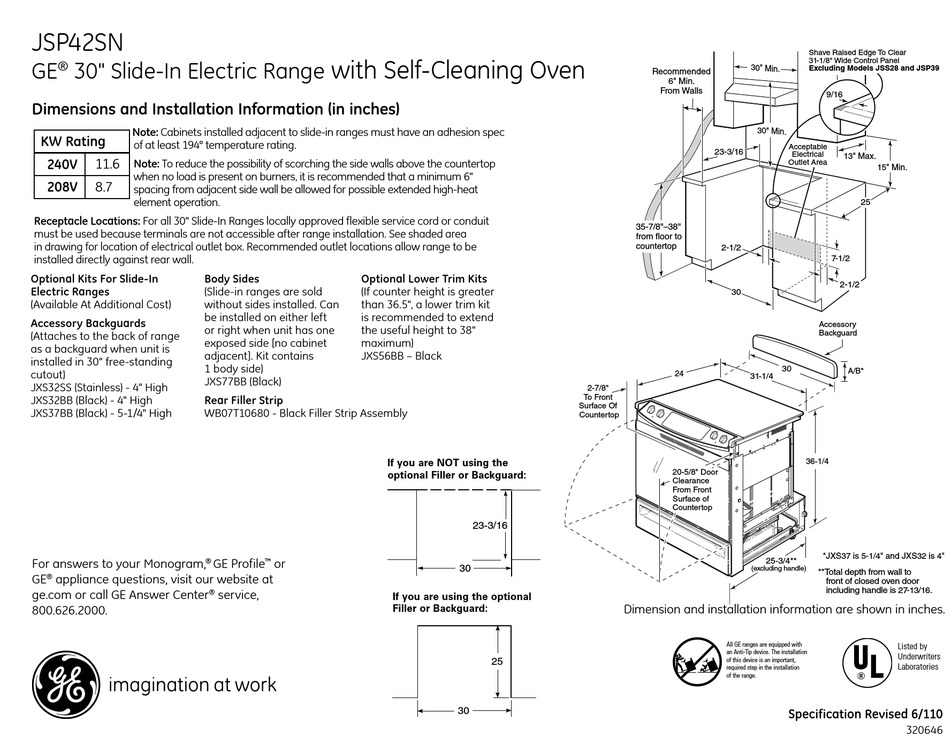

GE JSP42SNSS - 30" Slide-In CleanDesign Electric Range Dimensions And Installation Information

JSP42SN
GE 30" Slide-In Electric Range
®
Dimensions and Installation Information (in inches)
Note: Cabinets installed adjacent to slide-in ranges must have an adhesion spec
KW Rating
of at least 194° temperature rating.
240V 11.6
Note: To reduce the possibility of scorching the side walls above the countertop
when no load is present on burners, it is recommended that a minimum 6"
208V
8.7
spacing from adjacent side wall be allowed for possible extended high-heat
element operation.
Receptacle Locations: For all 30" Slide-In Ranges locally approved flexible service cord or conduit
must be used because terminals are not accessible after range installation. See shaded area
in drawing for location of electrical outlet box. Recommended outlet locations allow range to be
installed directly against rear wall.
Optional Kits For Slide-In Body Sides
Electric Ranges
(Slide-in ranges are sold
(Available At Additional Cost) without sides installed. Can
be installed on either left
Accessory Backguards
or right when unit has one
(Attaches to the back of range
exposed side [no cabinet
as a backguard when unit is
adjacent]. Kit contains
installed in 30" free-standing
1 body side)
cutout)
JXS77BB (Black)
JXS32SS (Stainless) - 4" High
JXS32BB (Black) - 4" High Rear Filler Strip
JXS37BB (Black) - 5-1/4" High WB07T10680 - Black Filler Strip Assembly
For answers to your Monogram, GE Profile
®
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
®
800.626.2000.
with Self-Cleaning Oven
Optional Lower Trim Kits
(If counter height is greater
than 36.5", a lower trim kit
is recommended to extend
the useful height to 38"
maximum)
JXS56BB – Black
If you are NOT using the
optional Filler or Backguard:
or
™
service,
If you are NOT using the If you are using the optional
Filler or Backguard:
optional Filler or Backguard:
23-3/16
30
Recommended
6" Min.
From Walls
23-3/16
35-7/8"–38"
from floor to 35-7/8"–38"
countertop
from floor to
countertop
2-7/8"
To Front
Surface Of
Countertop
If you are using the optional
Filler or Backguard:
23-3/16
30
30
Dimension and installation information are shown in inches.
If the countertop area is not flat, excess tension may be applied to the glass cooktop causing breakage
and voiding the warranty. Make sure the wall covering, countertop, flooring and cabinets around the range
25
can withstand the heat (up to 200°F) generated by the range.
A. Allow 30" minimum clearance between surface units and bottom of unprotected wood or metal cabinet,
or allow a 24" minimum when bottom of wood or metal cabinet is protected by no less than 1/4"-thick
flame-retardant millboard covered with no less than No. 28 MSG sheet metal (.015" thick), .015"-thick
stainless steel, .025" aluminum or .020" copper.
30
B. This appliance has been approved for 0" spacing to adjacent surfaces above the cooktop. However,
a minimum 6" spacing to surfaces less than 15" above the cooktop and adjacent cabinetry is
recommended to reduce exposure to steam, grease splatter and heat. Allow 1/4" minimum clearance
at the back wall.
To reduce the risk of burns or fire when reaching over hot surface elements, cabinet storage space above
the cooktop should be avoided. If cabinet storage space is to be provided above the cooktop, the risk can
Shave Raised Edge To Clear
Shave Raised Edge To Clear
31-1/8" Wide Control Panel
31-1/8" Wide Control Panel
30 " Mi n.
30" Min . Excluding Models JSS28 and JSP39
Excluding Models JSS28 and JSP39
Recommended
6" Min.
From Walls
9/16
9/16
30" Min .
30 " Mi n.
Acceptable
Acceptable
Electrical 13" Max.
23-3/16
Electrical
Outlet Area
Outlet Area 15" Min.
25
2-1/2
7-1/2
2-1/2
2-1/2
30
30
Accessory
Backguard
24
31-1/4
24
2-7/8"
To Front
Surface Of
Countertop
36-1/4
20-5/8" Door
Clearance
From Front
20-5/8" Door
Surface of
Countertop Clearance
From Front
25
Surface of
Countertop
*JXS37 is 5-1/4" and JXS32 is 4"
25-3/4**
(excluding handle)
**Total depth from wall to
front of closed oven door
including handle is 27-13/16.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
If the countertop area is not flat, excess tension may be applied to the glass cooktop causing breakage
and voiding the warranty. Make sure the wall covering, countertop, flooring and cabinets around the range
can withstand the heat (up to 200°F) generated by the range.
Specification Revised 6/110
A. Allow 30" minimum clearance between surface units and bottom of unprotected wood or metal cabinet,
or allow a 24" minimum when bottom of wood or metal cabinet is protected by no less than 1/4"-thick
flame-retardant millboard covered with no less than No. 28 MSG sheet metal (.015" thick), .015"-thick
stainless steel, .025" aluminum or .020" copper.
B. This appliance has been approved for 0" spacing to adjacent surfaces above the cooktop. However,
13" Max.
15" Min.
25
7-1/2
2-1/2
Accessory
Backguard
A/B*
A/B*
31-1/4
36-1/4
*JXS37 is 5-1/4" and J
25-3/4**
(excluding handle)
**Total depth from wall
front of closed oven d
including handle is 27
Listed by
Underwriters
Laboratories
320646
