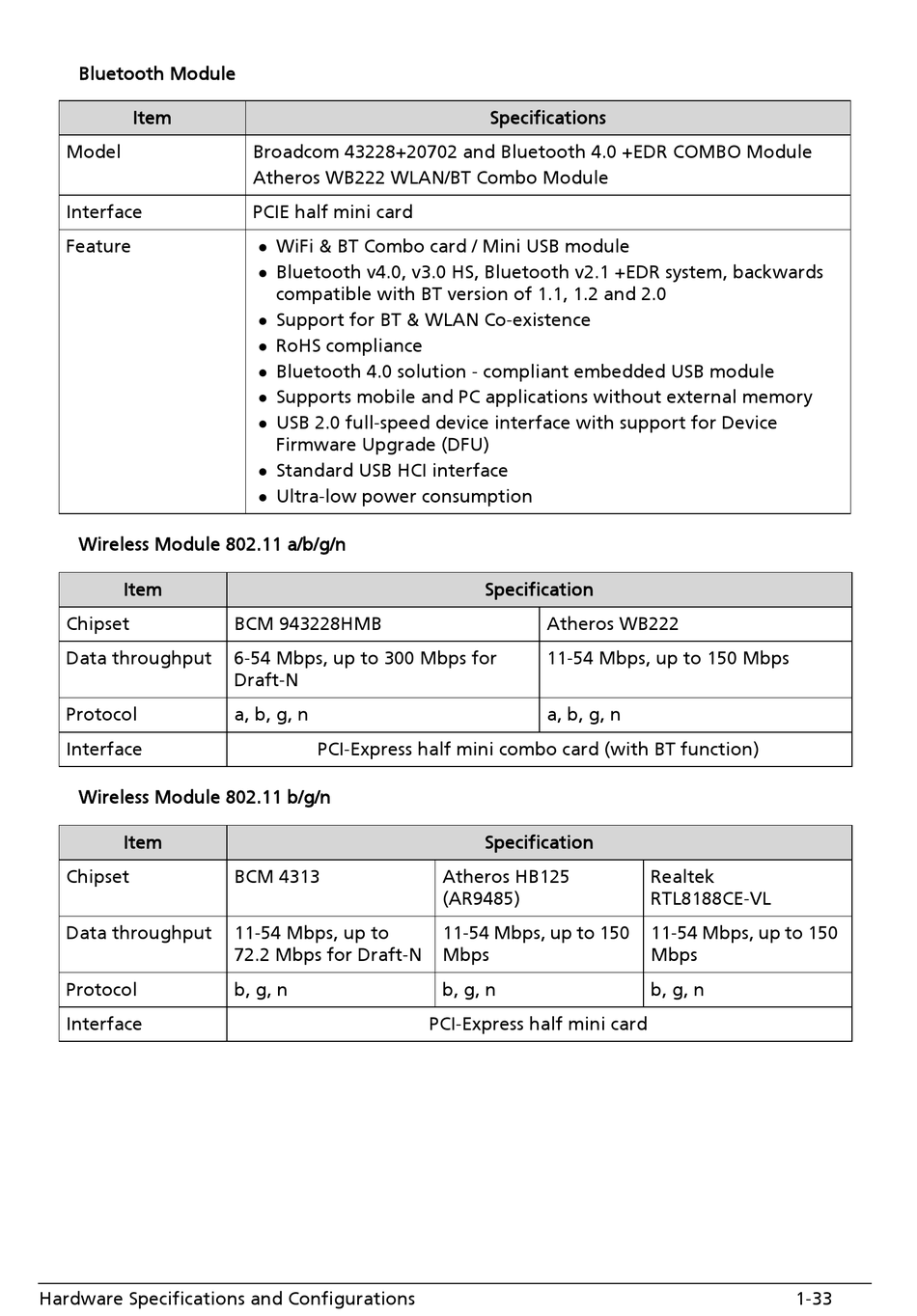

Bluetooth Module; Wireless Module 802.11 A/B/G/N; Wireless Module 802.11 B/G/N - Acer AO725 Service Manual

Bluetooth Module

Item
Model
Interface
Feature

Wireless Module 802.11 a/b/g/n

Item
Chipset
Data throughput
Protocol
Interface

Wireless Module 802.11 b/g/n

Item
Chipset
Data throughput
Protocol
Interface
Hardware Specifications and Configurations
Broadcom 43228+20702 and Bluetooth 4.0 +EDR COMBO Module
Atheros WB222 WLAN/BT Combo Module
PCIE half mini card
WiFi & BT Combo card / Mini USB module

Bluetooth v4.0, v3.0 HS, Bluetooth v2.1 +EDR system, backwards

compatible with BT version of 1.1, 1.2 and 2.0
Support for BT & WLAN Co-existence

RoHS compliance

Bluetooth 4.0 solution - compliant embedded USB module

Supports mobile and PC applications without external memory

USB 2.0 full-speed device interface with support for Device

Firmware Upgrade (DFU)
Standard USB HCI interface

Ultra-low power consumption

BCM 943228HMB
6-54 Mbps, up to 300 Mbps for
Draft-N
a, b, g, n
PCI-Express half mini combo card (with BT function)
BCM 4313
11-54 Mbps, up to
72.2 Mbps for Draft-N
b, g, n
Specifications
Specification
Atheros WB222
11-54 Mbps, up to 150 Mbps
a, b, g, n
Specification
Atheros HB125
(AR9485)
11-54 Mbps, up to 150
Mbps
b, g, n
PCI-Express half mini card
Realtek
RTL8188CE-VL
11-54 Mbps, up to 150
Mbps
b, g, n
