Connecting the sender

Connecting the sender to the amplifier
Caution: Turn off your amplifier while connecting the units.

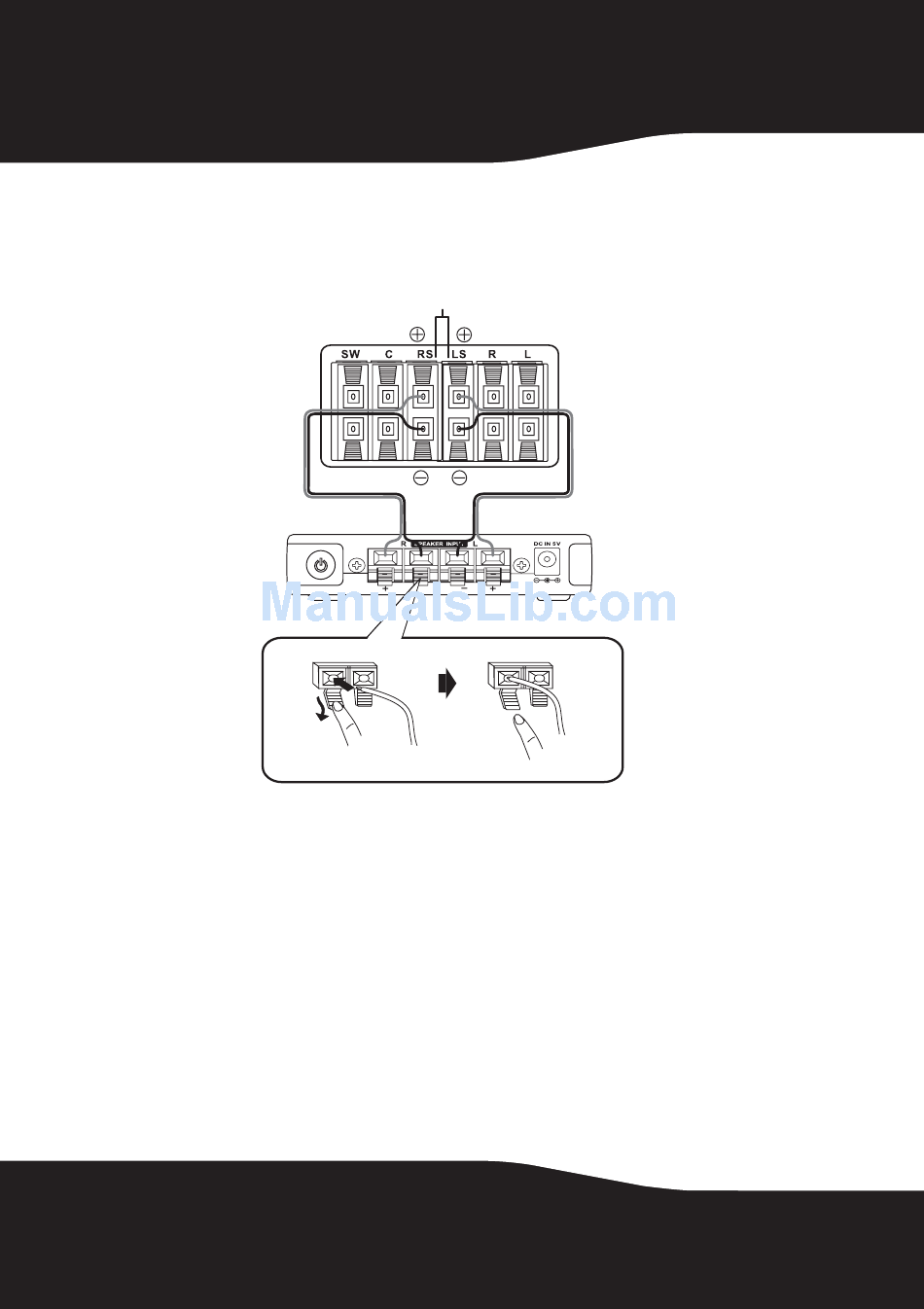

To connect the amplifier to the sender:
Using the 2-foot speaker cords (provided), connect the right surround
1
speaker terminals of your amplifier to the right speaker terminals of the
sender by connecting the red wire to the Red (+) terminals, and the black
wire to the Black (-) terminals.
Connect the left surround speaker terminals of the amplifier the same
2
way.
Notes:
Make sure the exposed tips of each cord do not touch each other, and that they are
fully inserted into the terminals.
Speaker wire colors may vary with different speaker systems.
Make sure you connect your amplifier using the surround speaker terminals only.
8
Surround speaker outputs
Sender back panel
Press and hold
Release
