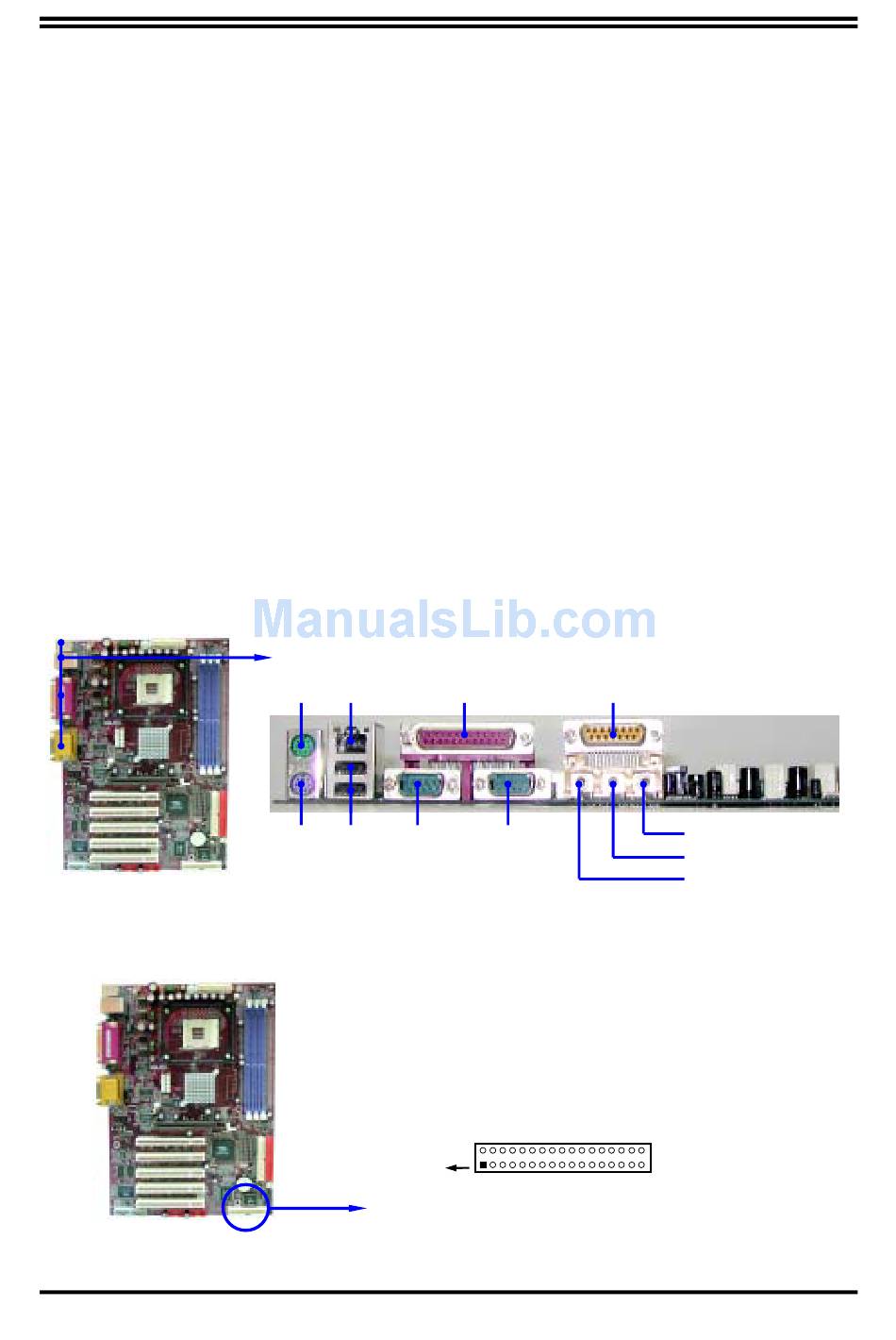

(4) PS/2 Mouse & PS/2 Keyboard Connector: PS2KBM
The connectors for PS/2 keyboard and PS/2 Mouse.
(5) USB Port connector: USB
The connectors are 4-pin connector that connect USB devices to the system board.
(6) LAN Port connector: LAN (only for P4X400DBP/P4X400DBZ)
This connector is standard RJ45 connector for Network.
(7) Parallel Port Connector (25-pin female): LPT
Parallel Port connector is a 25-pin D-Subminiature Receptacle connector. The On-
board Parallel Port can be disabled through the BIOS SETUP. Please refer to Chapter 3
"INTEGRATED PERIPHERALS SETUP" section for more detail information.
Audio and Game Connector : AUDIO _ GAME
(8)
This Connector are 3 phone Jack for LINE-OUT, LINE-IN, MIC and a 15-pin
D-Subminiature Receptacle Connector for joystick/MIDI Device.
Line-out :
Line-in :
MIC :
Game/MIDI :
(9) Serial Port COM1/COM2 : COM1/COM2
COM1/COM2 is the 9-pin D-Subminiature male connector. The On-board serial port
can be disabled through BIOS SETUP. Please refer to Chapter 3 "INTEGRATED
PERIPHERALS SETUP" section for more detail information.
(10) Floppy drive Connector (34-pin block): FDD
This connector supports the provided floppy drive ribbon cable. After connecting the
single plug end to motherboard, connect the two plugs at other end to the floppy drives.
(11) Primary IDE Connector (40-pin block): IDE1
Audio output to speaker
Audio input to sound chip
Microphone Connector
For joystick or MIDI Device
PS/2
Mouse
LAN
PS/2
USB COM1
Keyboard
Pin 1
PRINT GAME/MIDI PORT
COM2
Floppy Drive Connector
13
MIC
LINE-IN
LINE-OUT
