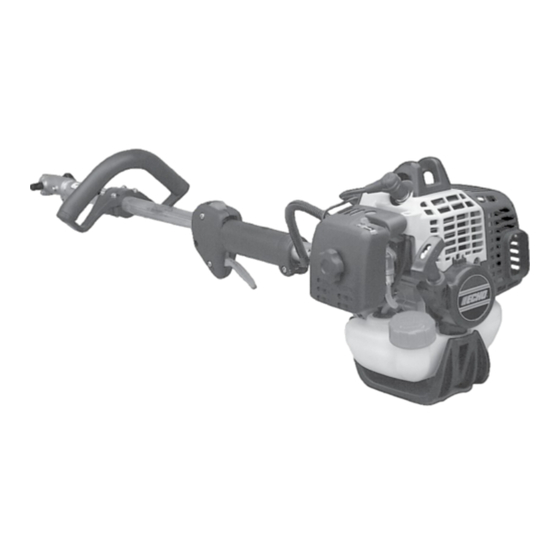

Pro Attachment Series
Operator's Manual
MODELS,
Read rules for safe operation and instructions carefully. ECHO provides an Operator's
Manual with this unit and a separate Operator's Manual and Safety Manual (if available)
with the attachment. All manuals must be read and understood for proper and safe
operation. Failure to do so could result in serious injury.
X7502095800
PAS-260
Serial Number 003001001 & Up
WARNING
DANGER
X750001860
08/00
Advertisement
Table of Contents
Related Manuals for Echo PAS-260 PRO - 08-00
Summary of Contents for Echo PAS-260 PRO - 08-00
- Page 1 WARNING DANGER Read rules for safe operation and instructions carefully. ECHO provides an Operator's Manual with this unit and a separate Operator's Manual and Safety Manual (if available) with the attachment. All manuals must be read and understood for proper and safe operation.
-
Page 2: Table Of Contents
NTRODUCTION Welcome to the ECHO family. This ECHO product was designed and manufactured to provide long life and on-the-job- dependability. Read and understand this manual as well as your attachment operator's manual and SAFETY MANUAL (if available) before operation. You will find these manuals easy to read and full of helpful operating tips and SAFETY messages. -
Page 3: Manual Safety Symbols And Important Information
Make sure the decals are legible and that you understand and follow the instructions on them. If a decal cannot be read, a new one can be ordered from your ECHO dealer. See PARTS ORDERING instructions for specific information. -
Page 4: International Symbols
Read and comply with all safety instructions listed in this manual and attachment manual. • ECHO, INC. will not be responsible for the failure of cutting devices, attachments or accessories which have not been tested and approved by ECHO for use with this Pro Attachment Series. -
Page 5: Fuel
IMPORTANT Spilled fuel is a leading cause of hydrocarbon emissions. Some states may require the use of automatic fuel shut-off containers to reduce fuel spillage. Contact your ECHO dealer for ordering information. After Refueling; • Wipe any spilled fuel from the unit. -
Page 6: Personal Condition And Safety Equipment
Wear no-slip, heavy duty work gloves to improve your grip on the unit handles. Gloves also reduce the transmission of machine vibration to your hands. Hearing Protection — Wear hearing protection. ECHO recommends wearing hearing protec- tion whenever unit is used. Proper Clothing — Wear snug fitting, durable clothing;... -
Page 7: Safe Operation
TTACHMENT ERIES PERATOR ANUAL SAFE OPERATION Determine Operation Area • Provide all operators of this equipment with the Operator's Manuals and instructions for safe operation. 15 m (50 ft.) • Review the area where you will be operating. Look for hazards that could contribute to unsafe conditions. -
Page 8: Extended Operation/Extreme Conditions
EXTENDED OPERATION EXTREME CONDITIONS Vibration and Cold -- It is believed that a condition called Raynaud’s Phenomenon, which affects the fingers of certain individuals may be brought about by exposure to vibration and cold. Exposure to vibration and cold may cause tingling and burning sensations followed by loss of color and numbness in the fingers. -
Page 9: Description
The ECHO product you purchased has been factory pre-assembled for your convenience. Due to packaging restrictions, other assembly may be necessary. After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts. Use the contents list to check for missing parts. - Page 11 TTACHMENT ERIES PERATOR ANUAL 1. POWER HEAD - Includes the Engine, Clutch, Fuel System, Ignition System and Recoil Starter. 2. MUFFLER, SPARK ARRESTOR - The muffler controls the exhaust noise while the spark arrestor prevents hot, glowing particles of carbon from leaving the muffler where they could possibly start a fire. 3.
-
Page 12: Specifications
PECIFICATIONS l f f ) l i . t i . l f i r t... -
Page 13: Echo Approved Optional Attachments
ECHO APPROVED OPTIONAL ATTACHMENTS WARNING DANGER • Use only ECHO approved attachments for Pro Attachment Series models. Serious injury may result from the use of non approved attachment combinations. Read and comply with all safety instructions listed in this manual and attachment manual. -
Page 14: Front Handle Adjustment
50:1 oil meets these standards. Engine problems due to inadequate lubrication caused by failure to use an ISO-L-EGD and J.A.S.O. FC certified oil, such as Echo Premium 50:1 Two-stroke Oil, will void the two-stroke engine warranty. (Emission related parts only are covered for two years, regardless of two-stroke oil used, per the statement listed in the EPA Phase II Emission Defect Warranty Explanation.) - Page 15 IMPORTANT Spilled fuel is a leading cause of hydrocarbon emissions. Some states may require the use of automatic fuel shut-off containers to reduce fuel spillage. Contact your ECHO dealer for ordering information. After Refueling – • Wipe any spilled fuel from the unit.
-
Page 16: Equipment Check
EQUIPMENT CHECK Before operation a complete check of the unit and attachment must be performed; • Check for loose/missing nuts, bolts and screws. Tighten and/or replace as needed. • Inspect fuel lines, tank and area around carburetor for fuel leaks. DO NOT operate unit if leaks are found. -
Page 17: Operation
The cutting attachment should not move at idle. If cutting attach- ment moves, readjust carburetor according to "Carburetor Adjust- ment" instructions in this manual or see your ECHO Dealer, otherwise serious personal injury may result. 1. Stop Switch - Start/Run. -
Page 18: Starting Warm Engine
The cutting attachment should not move at idle. If cutting attach- ment moves, readjust carburetor according to "Carburetor Adjust- ment" instructions in this manual or see your ECHO Dealer, otherwise serious personal injury may result. 1. Stop Switch - Start/Run. -
Page 19: Stopping Engine
ECHO Service Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have the ECHO Dealer do it, each maintenance task has been graded. If the task is not listed, see your ECHO Dealer for repairs. -
Page 20: Maintenance Intervals
MAINTENANCE INTERVALS n i l t I - t l i t l i n i l l f f l i o s t l t n i ® . . n... -
Page 21: Air Filter
TTACHMENT ERIES PERATOR ANUAL AIR FILTER Level 1. Tools required: 25 or 50 mm (1 or 2 in.) medium bristle paint brush Parts required: 90030 REPOWER Air and Fuel Filter Kit 1. Close choke (Cold Start Position). This prevents dirt from entering the carburetor throat when the air filter is removed. -
Page 22: Spark Plug
WARNING DANGER Do not perform maintenance on the muffler until engine and muffler are completely cool, otherwise serious personal injury may occur. SPARK PLUG Level 2. Tools required: Screwdriver, Feeler gauge (preferably a wire gauge), Soft metal brush. Parts Required: 90065 REPOWER TUNE-UP KIT 1. -
Page 23: Exhaust System
TTACHMENT ERIES PERATOR ANUAL 1. Remove spark plug lead. 2. Remove two (2) muffler cover screws and muffler cover (A). 3. Remove screw and arm rest (B). 4. Remove engine cover (C). IMPORTANT DO NOT use a metal scraper to remove dirt from the cylinder fins. 5. -
Page 24: Carburetor Adjustment
The cylinder exhaust port must be inspected and cleaned of excess carbon every 3 months or 90 hours of operation in order to maintain this engine within the emissions durability period. ECHO strongly recommends that you return your unit to your ECHO dealer for this important maintenance service. CARBURETOR ADJUSTMENT... -
Page 25: Lubrication
LUBRICATION Level 1. Tools required: Screwdriver, Clean Rag Parts Required: Echo Lube 8 oz. (P/N 91014) or Lithium Base Grease. Drive Shaft Upper IMPORTANT The drive shaft must be lubricated with high temperature automo- tive grease every 25 hours of operation, otherwise drive shaft assembly overheating and failure can result. -
Page 26: Troubleshooting
ROUBLESHOOTING l f f t l i f t n I t l i f t l i f WARNING DANGER Fuel vapors are extremely flammable and may cause fire and/or explosion. Never test for ignition spark near an open spark plug opening, otherwise serious personal injury may result. -
Page 27: Storage
TTACHMENT ERIES PERATOR ANUAL TORAGE Long Term Storage (over 30 days) WARNING DANGER During operation the muffler or catalytic muffler and surrounding cover become hot. Always keep exhaust area clear of flammable debris during transportation or when storing, otherwise serious property damage or personal injury may result. -
Page 28: Servicing Information
• Sending a check or money order for $2.00 per Parts Catalog or $1.50 per Operator's Manual made payable to ECHO, INCORPORATED. State on a sheet of paper the model number and serial number of the ECHO unit you have, part number of the manual (if known), your name and address and mail to address above.
