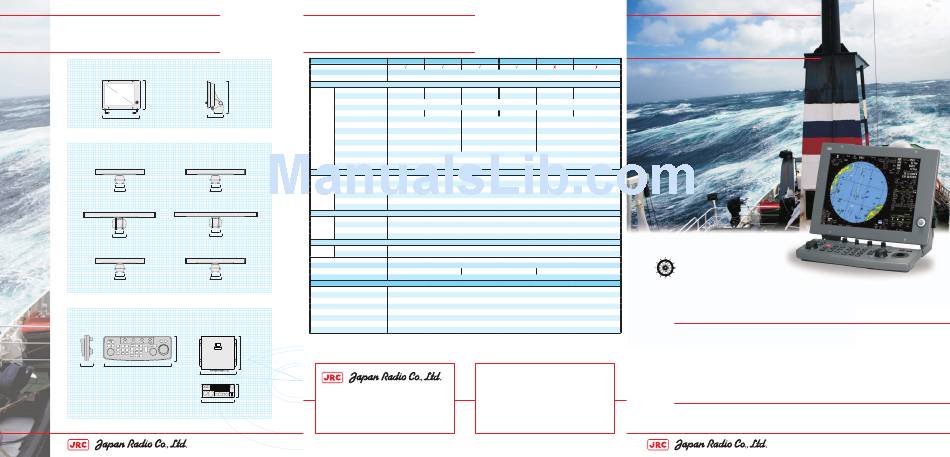

JRC JMA-5200MK2 Brochure

JMA-5200Mk2 series
– dimensions and weights
Dimension drawings - Display
1
NWZ-164
Weight 5 kg
298 mm
15"
338 mm
171,5 mm
395 mm
1 shown with optional bracket, cutout for panel mount height 262 mm, width 368 mm, depth 150 mm
Dimension drawings - Scanners 1
NKE-2103-4 Weight 38 kg NKE-2103-6 Weight 40 kg
Swing circle 1320 mm Swing circle 1910 mm
290 mm 290 mm
344 mm 348 mm
NKE-2254-7 NKE-2254-9
Weight 58 kg Weight 60 kg
Swing circle 2270 mm Swing circle 2825 mm
290 mm
290 mm
458 mm
458 mm
NKE-2103-4HS highspeed NKE-2103-6HS highspeed
Weight 38 kg Weight 40 kg
Swing circle 1910 mm
Swing circle 1320 mm
290 mm 290 mm
344 mm 348 mm
1 all scanners have a brushless motor and comply with 40dB/dec Spurious particulars
Dimension drawings - Keyboard, Processor
NCE-7699A NDC-1460
Weight 1,3 kg Weight 6 kg
160 mm
132 mm
305 mm
59 mm 360 mm
340 mm
cutout for panel mount height 105 mm, width 340 mm, depth 20 mm
125 mm
300 mm
JMA-5200Mk2 series
– specifications
Model JMA-5212-4 JMA-5212-6 JMA-5222-7
IMO compliant
Display colour raster scan PPI
Range scale 0.125/0.25/0.5/0.75/1.5/3/6/12/24/48/96 NM
Scanners
Model NKE-2103-4 NKE-2103-6 NKE-2254-7
Antenna length 4ft. 6ft. 7ft.
Transmitting power 10kW
Transmitting frequency 9410MHz ± 30MHz
Beam width 3db Hor. 1.8°, Ver. 20° Hor. 1.2°, Ver. 20° Hor. 1.0°, Ver. 20°
Rotation speed 27rpm
Pulse width (receive freq.) 0.08µs/2250Hz, 0.07µs & 0.2µs/2250Hz,
0.25µs/1700Hz, 0.4µs/1400Hz,
0.5µs/1200Hz, 0.8µs/750Hz,
0.8µs/750Hz, 1.0µs/650Hz,
1.0µs/650Hz 1.2µs/510Hz
Duplexer circular + diode limiter
Tuning automatic / manual
Ambient condition temperature -25° to 55°C, relative humidity 0% to 93% non-condensing
Processor
Model
Bearing indication north-up / course-up / head-up
Presentation mode RM display with true trail, RM display with relative trail, TM display
EBL 2 (EBL1/EBL2) (center/independent) 000.0° - 359.9°, digital display
VRM 2 (VRM1/VRM2), 0.000 - 97.7 NM, digital display
Trail indication 4 stages: short, middle, long, super long (e.g. short: off/0.25/0.5/1/3/6/10/15-min and continuous)
Display (optional on JMA-5200Mk2 series BB)
Model
LCD 1024 by 768 pixels (XGA)
Effective diameter
Connection cable 5m (processor-monitor)
Keyboard
Model
Connection cable 5m (processor-keyboard)
Installation cable CFQ-6912-20 standard L= 20m (optional up to 65m)
Power supply (voltage) 24V DC (21.6V to 31.2V DC)
Power consumption (at max wind load) 600W
Ambient condition temperature -15° to 55°C, relative humidity 0% to 93% non-condensing (processor, display, keyboard)
Optional items
2) NSK unit (gyro/log interface)
3) ATA unit (30 targets)
3)
Performance monitor
3) AIS interface unit
Interswitch cable CFQ-5251 (5m) + CFQ-5351
Plotting function board
AC rectifier NBA-5111 - AC 100/110/120/220/230/240V
Cable 10/15/20/30/40/50/65 m CFQ-6912-10/15/20/30/40/50/65
1) AC 100-115/220-240V (50/60Hz 1Ø), AC power requires rectifier NBA-5111
2) Required if no high speed NMEA available
3) Performance monitor, Target Tracking, AIS must be fitted on ships compliant to IMO.
For further information please contact:
JRC
Cessnalaan 40-42
1119 NL, Schiphol-Rijk, The Netherlands
T +31 20 6 580 750
F +31 20 6 580 755
E sales@jrceurope.com
W
www.jrceurope.com
JMA-5200Mk2
Black box radar
JMA-5222-9 JMA-5212-4HS JMA-5212-6HS
NKE-2254-9 NKE-2103-4HS NKE-2103-6HS
9ft. 4ft. 6ft.
25kW 10kW
Hor. 0.8°, Ver. 20° Hor. 1.8°, Ver. 20° Hor. 1.2°, Ver. 20°
24rpm 48rpm
0.08µs/2250Hz,
0.25µs/1700Hz,
0.5µs/1200Hz,
0.8µs/750Hz,
1.0µs/650Hz
NDC-1460
NWZ-164
≥ 180mm
NCE-7699A
1) 110V to 230V AC
680W 600W
NCT-4106A
NCA-877A
NJU-85
NQA-2155
NDB-44
All specifications are subject to change without notification.
Copyright © 2008 JRC -08.12/32/1
Complies with SOLAS carriage requirements for vessels
under 500 GT. and fully meets MSC 192(79) radar
performance standards effective from 1 July 2008.
– JRC's new JMA-5200Mk2 runs radar images faster and more efficiently than ever before
15−inch high visibility display
Constaview™ digital signal processing
TEF™ multi-level target enhancement
High speed version available
Brushless antenna motors for extended lifetime
