Page 1: Operating Instructions

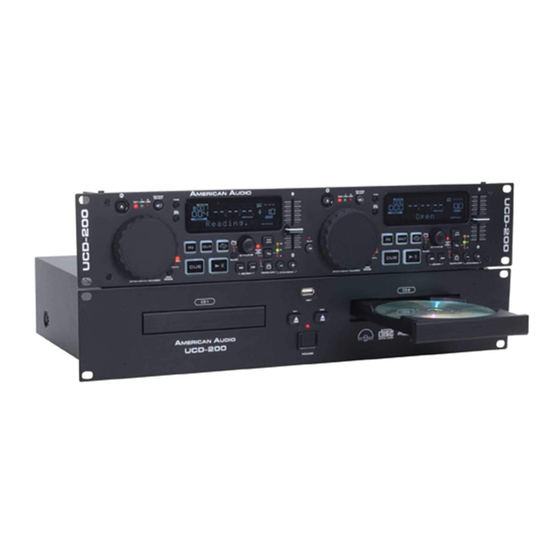

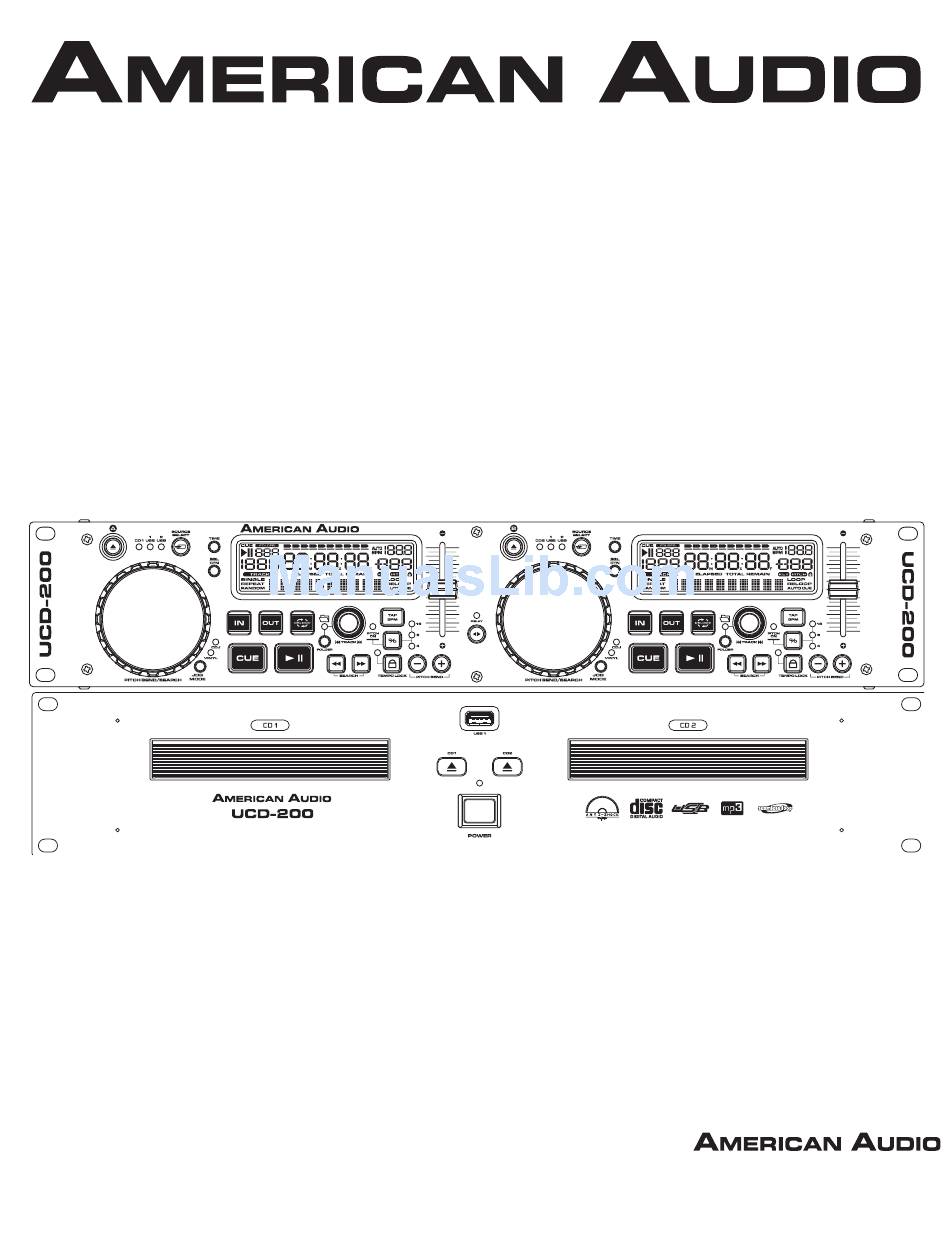

UCD-200 Professional Dual CD/USB Player Operating Instructions 6122 S. Eastern Ave. Los Angeles, Ca. 90040 www.americandj.com 8/10... -
Page 2: Table Of Contents
Please Note: All specifications and improvements to and in the design of this unit and this manuals are subject to change at any time without any prior written or published noticed. For service parts visit http://parts.americandj.com American Audio - www.americanaudio.us - UCD-200™ Instruction Manual Page 2 ©... -
Page 3: Cautions Regarding Handling
BE ADJUSTED OR REPAIRED By ANyONE receiver is connected. EXCEPT PROPERLy qUALIFIED SERVICE – Consult the dealer or an experienced radio/ PERSONNEL. TV technician for help. American Audio - www.americanaudio.us - UCD-200™ Instruction Manual Page 3 © ®... -
Page 4: Electrical Precautions
INSIDE REFER SERVICE TO YOUR AUTHORIZED the literature accompanying the appliance. to constitute a risk of electric shock to persons. AMERICAN AUDIO SERVICE TECHNICIAN. ® IMPORTANT SAFETY INSTRUCTIONS READ INSTRUCTIONS — All the safety and operating... -
Page 5: Product Information
(R.A.) number. If the unit is under warranty, you must provide a copy of your proof of pur- 8. Disconnect from main power before making chase invoice. Please contact American Audio any type of connection. ® customer support at (800) 322-6337 for a R.A. -
Page 6: Customer Support
For service related issue please contact American Audio . Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m. Pacific Standard ®... -
Page 7: Features
• Make sure your SD Card only has MP3 files on it • Do Not have any other file type on your SD Card; no photo files, etc... • American Audio SD Players can read SD HC (High Capacity) Cards up to 32GB PlEASE NOTE: For higher quality MP3 files (more than 128 kbps) American Audio recommends "High Speed"... -
Page 8: Remote Unit
+2% pitch on one disc, remove that disc and insert another, that disc will also have a +2% pitch. The amount of pitch being applied will be displayed in the LCD (4). Use this slider to match the American Audio - www.americanaudio.us - UCD-200™ Instruction Manual Page 8 ©... - Page 9 CD’s or any other music source to match. This is a momentary function. when the button is depressed the pitch speed will automatically return to PITCH SLIDER'S (5) selected pitch. American Audio - www.americanaudio.us - UCD-200™ Instruction Manual Page 9 ©...
- Page 10 20. REMOTE JACK - Connect the supplied 8 pin din cable from this jack to the player's remote con- nector. This will allow you to control the player functions. American Audio - www.americanaudio.us - UCD-200™ Instruction Manual Page 10 ©...
-
Page 11: Player Unit
29. DRIVE 1 aUDIo oUT R & L - These jacks send a left and right analog mono output signal. Use these jacks to send standard audio to a mixer or receiver. The red colored jack represents the right channel output and white jack represents the left channels output. American Audio - www.americanaudio.us - UCD-200™ Instruction Manual Page 11 ©... - Page 12 33. poWER ConnECToR - This is the main power connection. Only use the supplied polarized power cord. Use of any other power may result in sever damage to the unit. Be sure the local power matches the unit’s required power. American Audio - www.americanaudio.us - UCD-200™ Instruction Manual Page 12 ©...
-
Page 13: Liquid Crystal Display
To activate REPEAT mode, press the FOLDER BUTTON (10 ) for at least 2 seconds to activate and deactivate. American Audio - www.americanaudio.us - UCD-200™ Instruction Manual Page 13 ©... - Page 14 48. pLay InDICaToR - The “PLAy” indicator will glow when the unit is in play mode. American Audio - www.americanaudio.us - UCD-200™ Instruction Manual Page 14 ©...
-
Page 15: Internal Menu
DEFAULTS: PITCH (ON), PITCH RANGE (8%), PLAy MODE(CTN), AUTO CUE(ON), TIME MODE (REMAIN), KEy LOCK(OFF), SENSITIVITy(0), BIT RATE(Disp. ON), REPEAT MODE (OFF), PLAyLIST (NORMAL), SLEEP TIME (15 min), LINE SETUP(model 1), DISPLAy(1 sec),RUN TIME(150msec) American Audio - www.americanaudio.us - UCD-200™ Instruction Manual Page 15 ©... -
Page 16: Basic Operation
Pausing temporarily stops playback. Pressing the PLAy/PAUSE BUTTON (16) changes the operating mode between play and pause. Stopping playback will not stop the drive mechanism, but merely pause or cue the track. There are two ways American Audio - www.americanaudio.us - UCD-200™ Instruction Manual Page 16 ©... - Page 17 (17) will now return you to the same point that you pressed the CUE BUTTON (17). Pressing the CUE BUTTON (17) will now return you to this exact point. American Audio - www.americanaudio.us - UCD-200™ Instruction Manual Page 17 ©...
-
Page 18: Adjusting Time Display
Using the Pitch Slider (5): To use the PITCH SLIDER (5) slide the slider up and down. Down will increase the pitch and up will decrease the pitch. Figure 12 American Audio - www.americanaudio.us - UCD-200™ Instruction Manual Page 18 © ®... -
Page 19: Pitch Bending
The speed you rotate the JOG wHEEL (19) will determine pitch bend percent- age (%). Figure 15 American Audio - www.americanaudio.us - UCD-200™ Instruction Manual Page 19 © ®... -
Page 20: Looping
BuTTON (11) at sooner point in the track (Figure 18). - FOR lONGER lOOP: Press the OuT Figure 19 BuTTON (11) at later point in the track (Figure 18). American Audio - www.americanaudio.us - UCD-200™ Instruction Manual Page 20 © ®... -
Page 21: Relay (Flip-Flop)
UOUS mode, the first cd will play all the way through, and then after it has ended the second cd will start. 5) FLIP FLOP™ will continue until you stop it or power is interrupted. 6) To deactivate Flip-Flop™ mode, press the RELAy BUTTON again. American Audio - www.americanaudio.us - UCD-200™ Instruction Manual Page 21 © ®... -
Page 22: Database Builder
The database builder will scan your USB hard drive and create database files so that you may locate the files in your music library to your liking. Step 4: Click Finish American Audio - www.americanaudio.us - UCD-200™ Instruction Manual Page 22 © ®... - Page 23 DATABASE BUILDER To open the database builder, “click” on your start menu, then programs, then American Audio, Da- tabase Builder. American Audio - www.americanaudio.us - UCD-200™ Instruction Manual Page 23 © ®...
- Page 24 DATABASE BUILDER American Audio - www.americanaudio.us - UCD-200™ Instruction Manual Page 24 © ®...
-
Page 25: Typical Set Up
SET UP American Audio - www.americanaudio.us - UCD-200™ Instruction Manual Page 25 © ®... -
Page 26: Troubleshooting
File Error when building Remove the file that cause the database builder to stop and try dB file again, if problem continues remove the folder and try again. American Audio - www.americanaudio.us - UCD-200™ Instruction Manual Page 26 © ®... -
Page 27: Shut Down Procedures
Areas exposed to direct sunlight for a considerable time. b) Areas subject to accumulation of dust or high humidity. c) Areas affected by heat from indoor heaters, etc. American Audio - www.americanaudio.us - UCD-200™ Instruction Manual Page 27 ©... -
Page 28: Warranty
® tive parts at its expense, and will absorb all expenses for warranty service and repair labor by reason of defects in material or workmanship. The sole responsibility of American Audio under ® this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of American Audio . -
Page 29: Specifications
SPECIFICATIONS GENERAL Model: American Audio UCD-200™ - Professional Compact Disc/USB Player ® System: Dual, CD Tray Loading, Digital Compact Disc Audio Player. Disc type: Standard compact discs (5 in /12cm and 3in/8cm discs) Dimensions: Player unit: 19” (w) x 3.49” (H) x 10.5” (D) 482mm (w) x 88.8mm (H) x 267mm (D) (without feet) - Page 30 If the 1 session is CDDA, you can playback Only CDDA track, If the 1 session is MP3, you can playback only MP3 file. Note #1: max.255 files each folder American Audio - www.americanaudio.us - UCD-200™ Instruction Manual Page 30 © ®...
